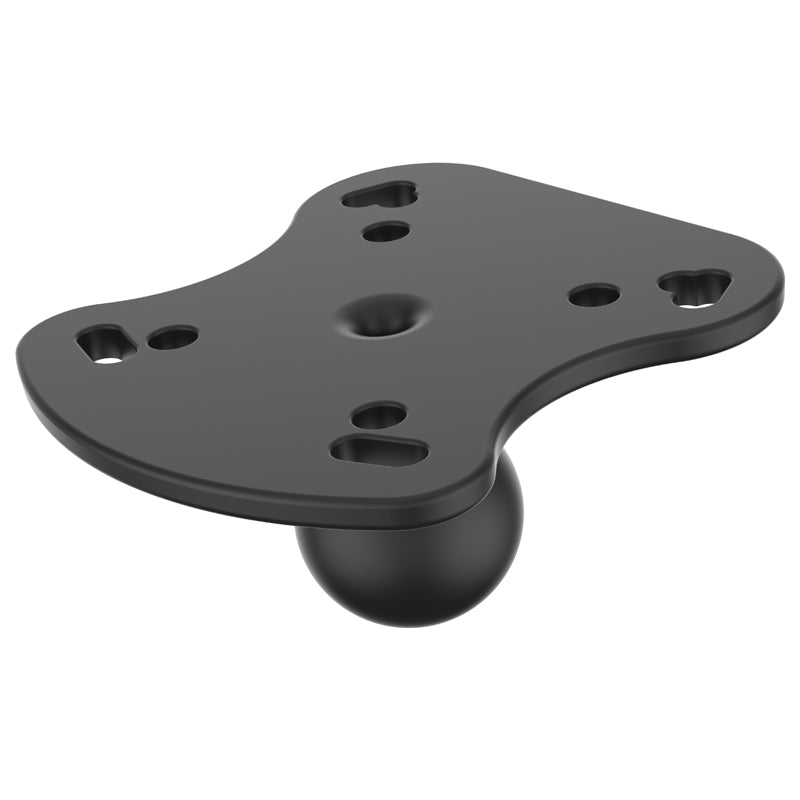

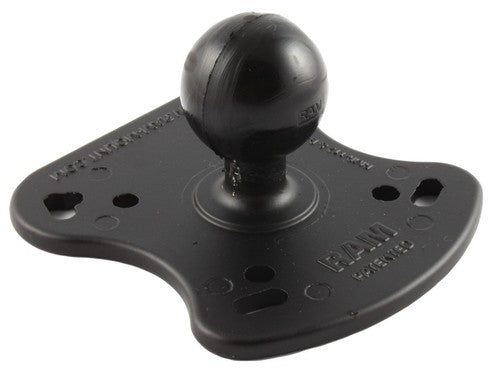

The RAM-107BU is a marine electronics adapter that connects compatible Humminbird and Raymarine fish finders or marine GPS devices to a RAM C Size mounting system. Its 4.25" x 3.81" plate attaches beneath the compatible device, while the integrated C Size ball provides an adjustable connection point for a compatible socket arm.
Constructed from marine-grade aluminum, this standalone adapter is designed for use in demanding boat and marine environments.
Key Features
-
RAM C Size 1.5" ball for compatible socket arms and mounting components
-

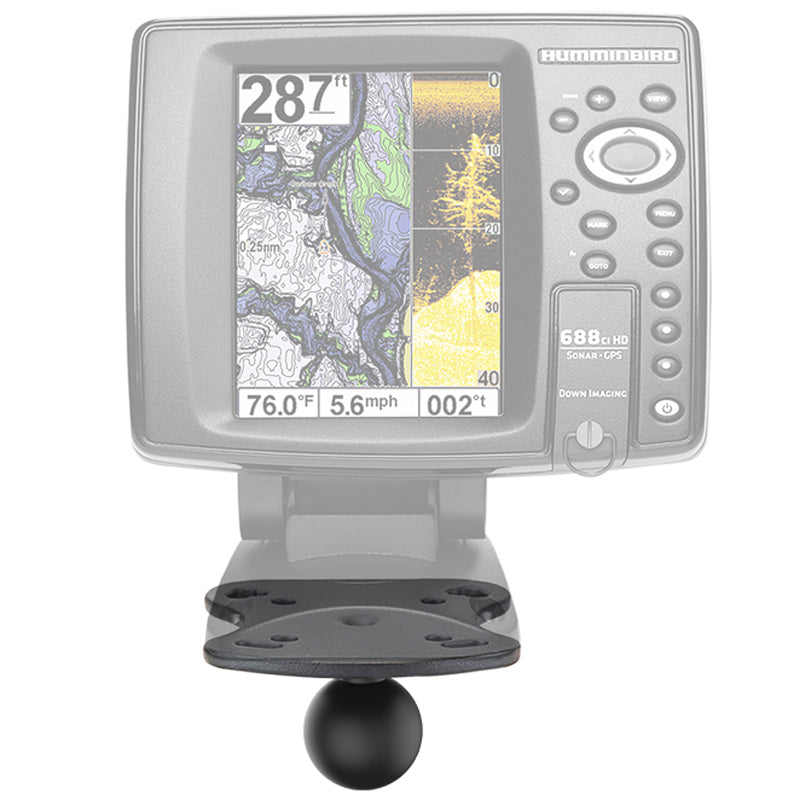

Connects beneath compatible Humminbird and Raymarine marine electronics
-
4.25" x 3.81" mounting plate
-
Marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
Designed for mounting compatible Humminbird and Raymarine fish finders, chartplotters, and marine GPS devices. This standalone adapter is compatible with a variety of RAM C Size 1.5" socket arms and mounting components.

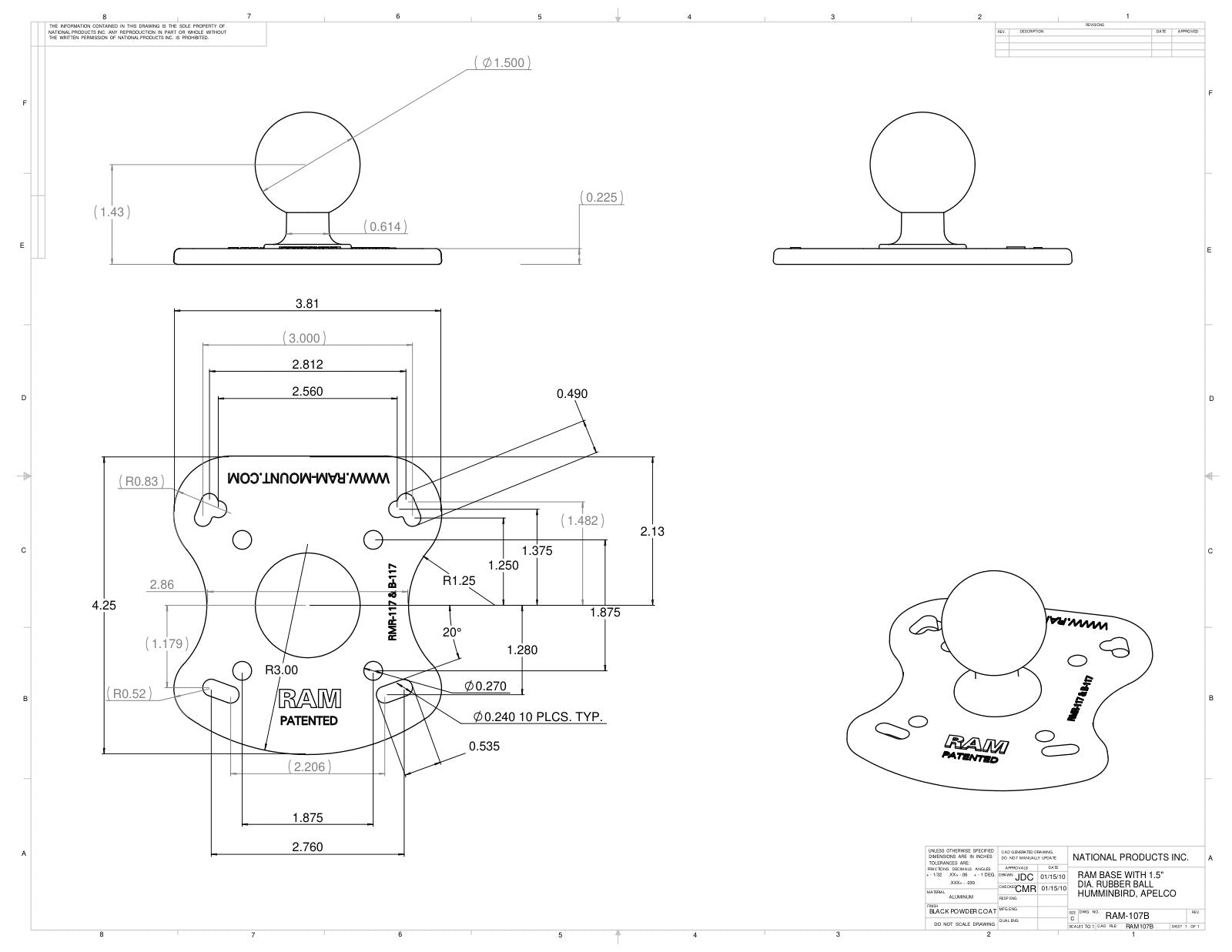

Device compatibility and mounting-hole placement should be confirmed using the manufacturer’s product drawing.
Specifications
Ball Size: C Size 1.5" Ball
Hole Pattern: See drawing
Plate Dimensions: 4.25" x 3.81"
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.41 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-107BU
Warranty: Manufacturer’s lifetime warranty.
