Description

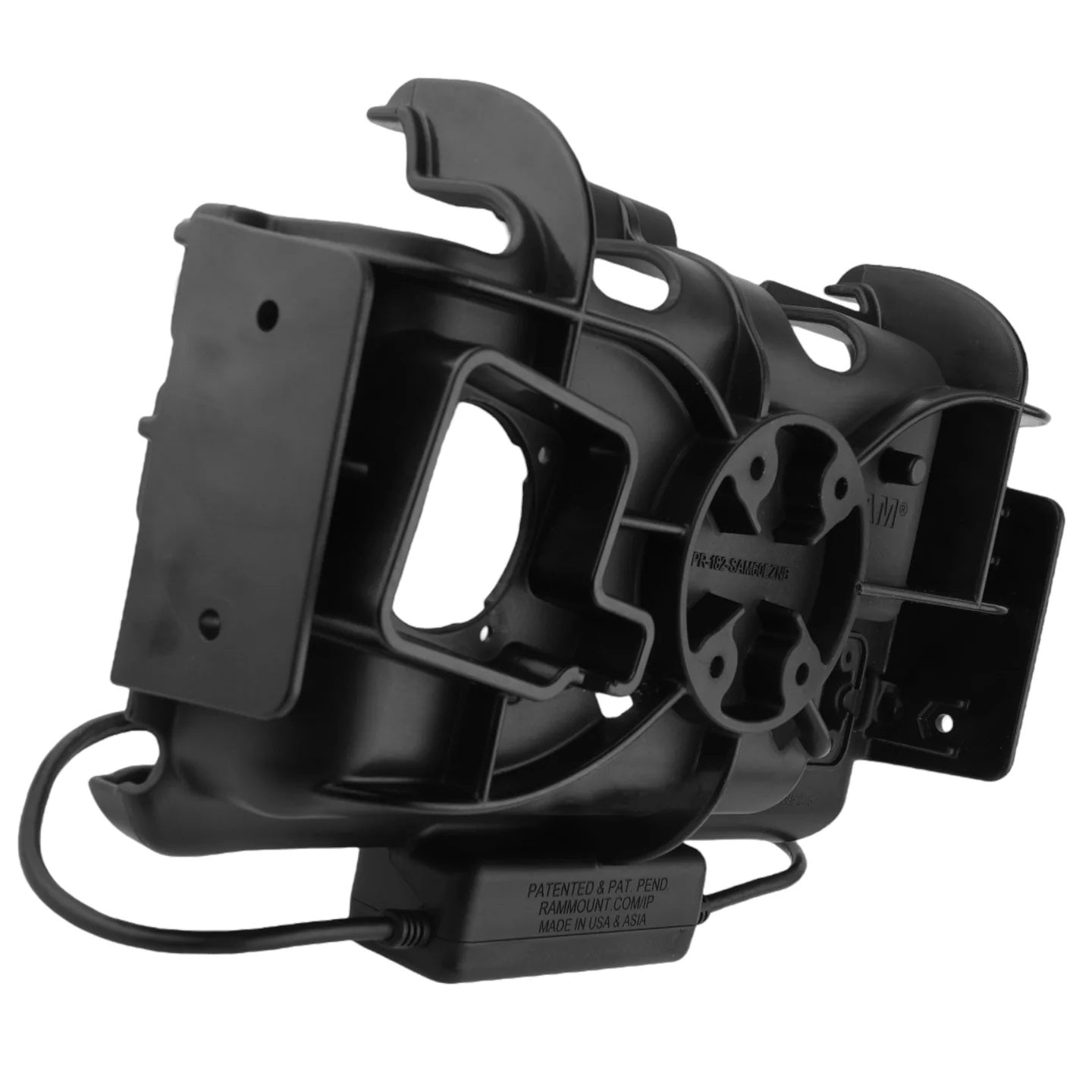

The RAM® EZ-Roll'r™ Modular Power + Single USB Dock Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CPN-1AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the USB-C female pigtail, cable clamp, and zip ties.
Features:

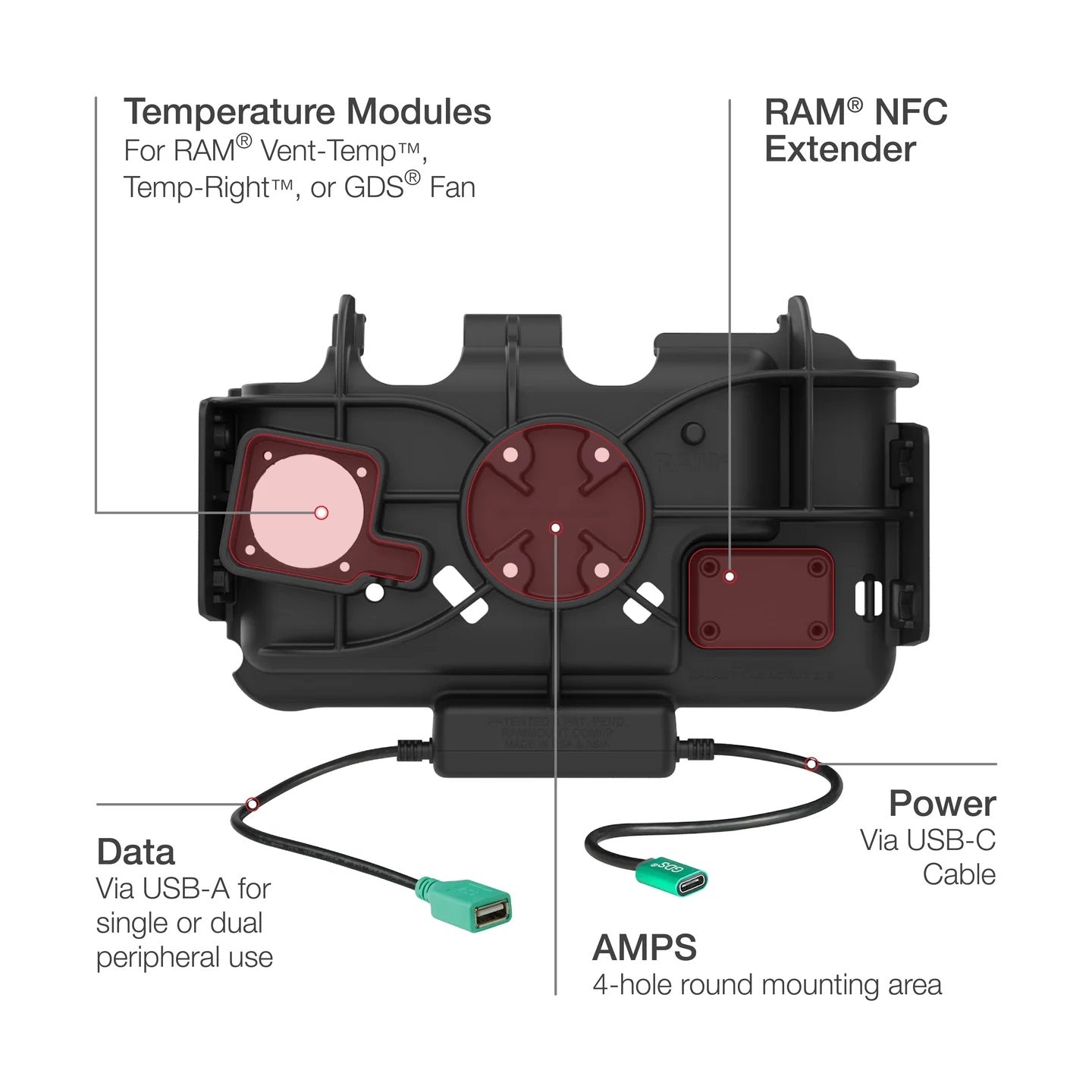

- EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection
- Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- Compatible with the Samsung OEM skin as well as the RAM® Skin™
- Hole pattern: 4-Hole AMPS: 1.181" x 1.496"
- Constructed of high strength composite

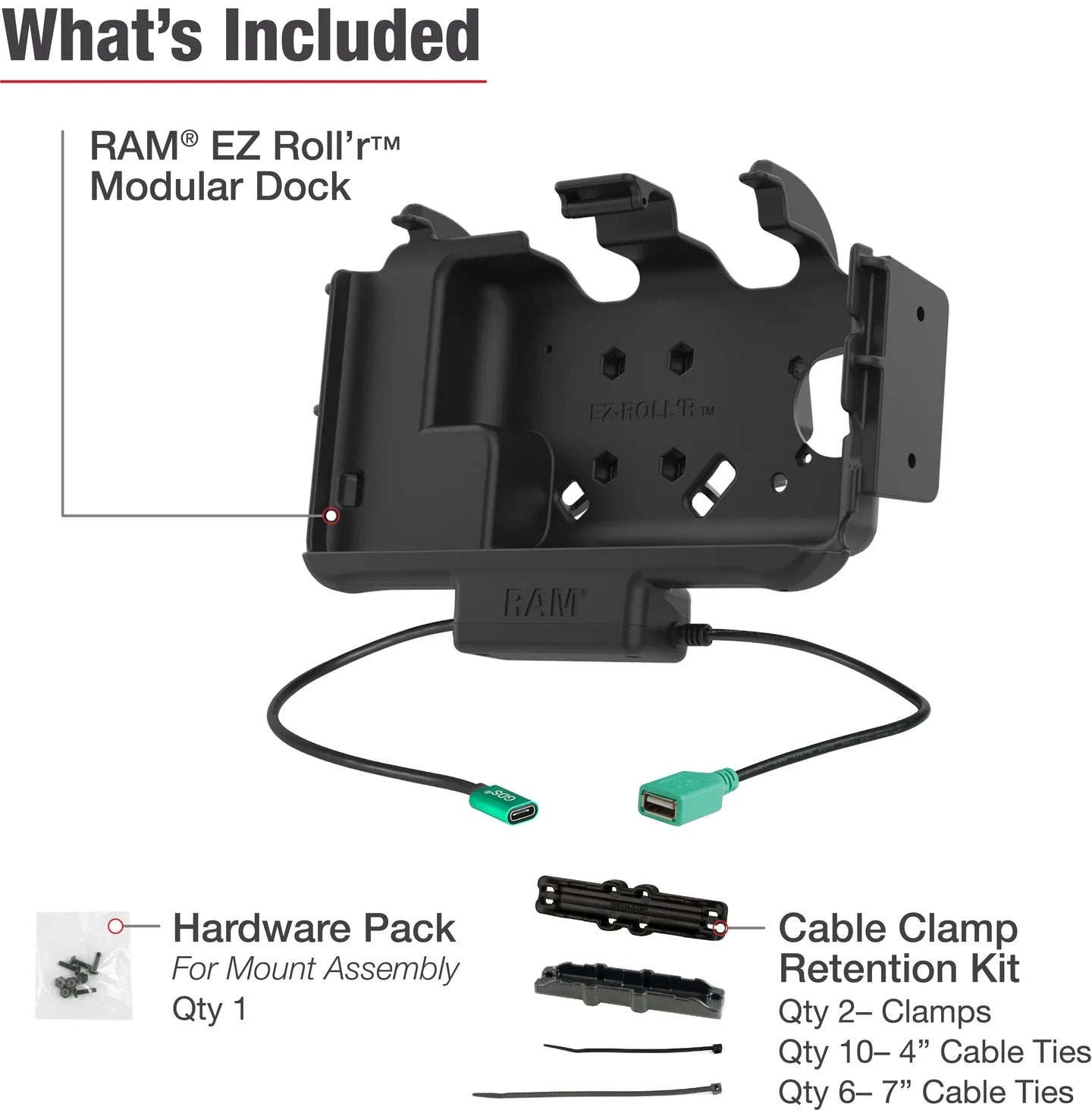

Included Hardware:
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
- (2) Optional Cable Clamp Housings
- (6) Large Cable Ties
- (10) Small Cable Ties
Compatible Devices:
- Samsung
- Tab Active5
- Tab Active3
Specifications:
- Input Voltage: 5.3-5.4VDC
- Output Voltage: 5VDC
- Power Output: 500mA
- Input Connector: USB Type-C Female
- Input Cable Length: 250mm
- Output Connector: USB 1.1 Type A
- Output Cable Length: 250mm
- Peripheral Output: 500mAh
- Transfer Speed: 12Mbps
Brand: RAM Mounts
Part number: RAM-HOL-SAM60CPN-1AU
Warranty: Manufacturer's 3 year warranty
