Description

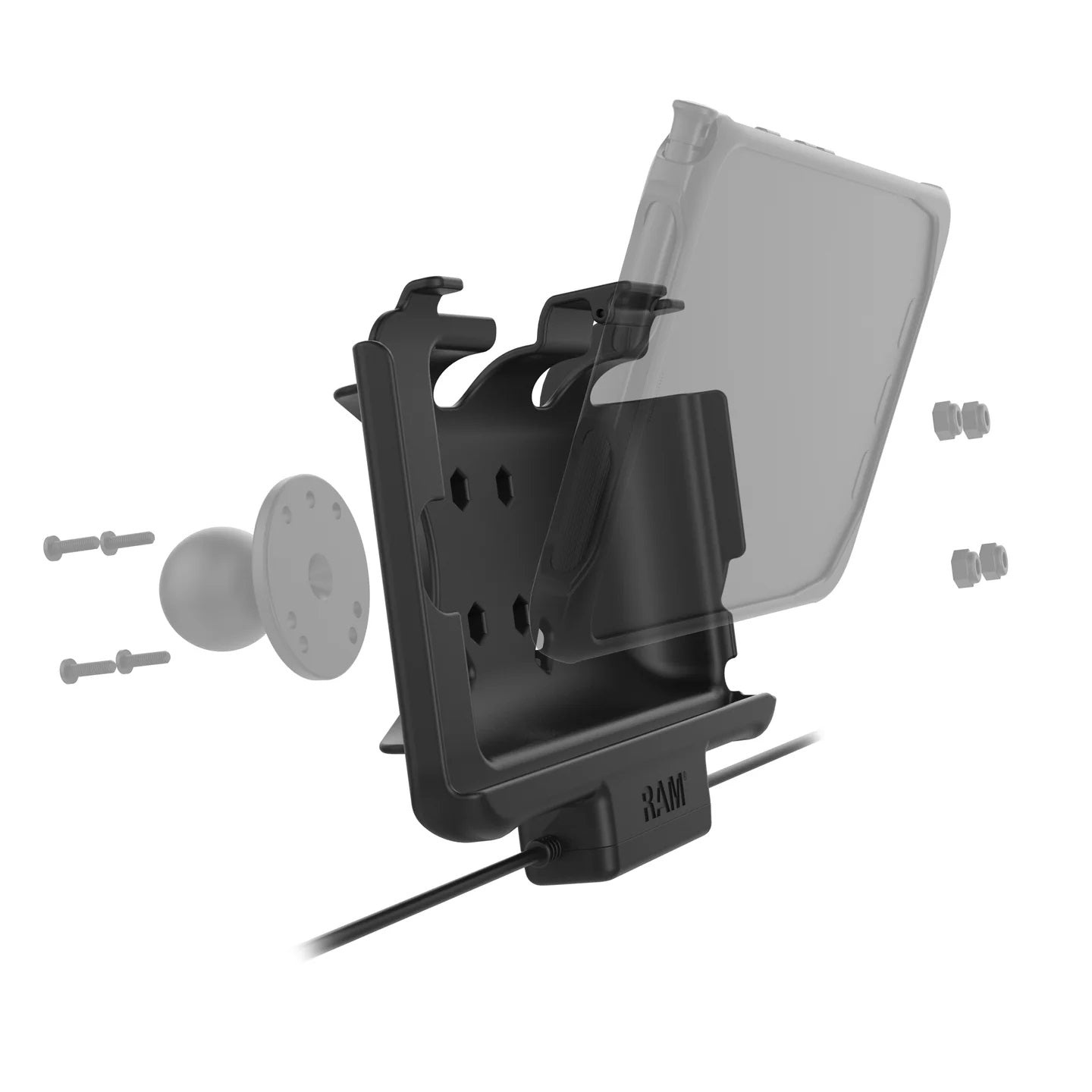

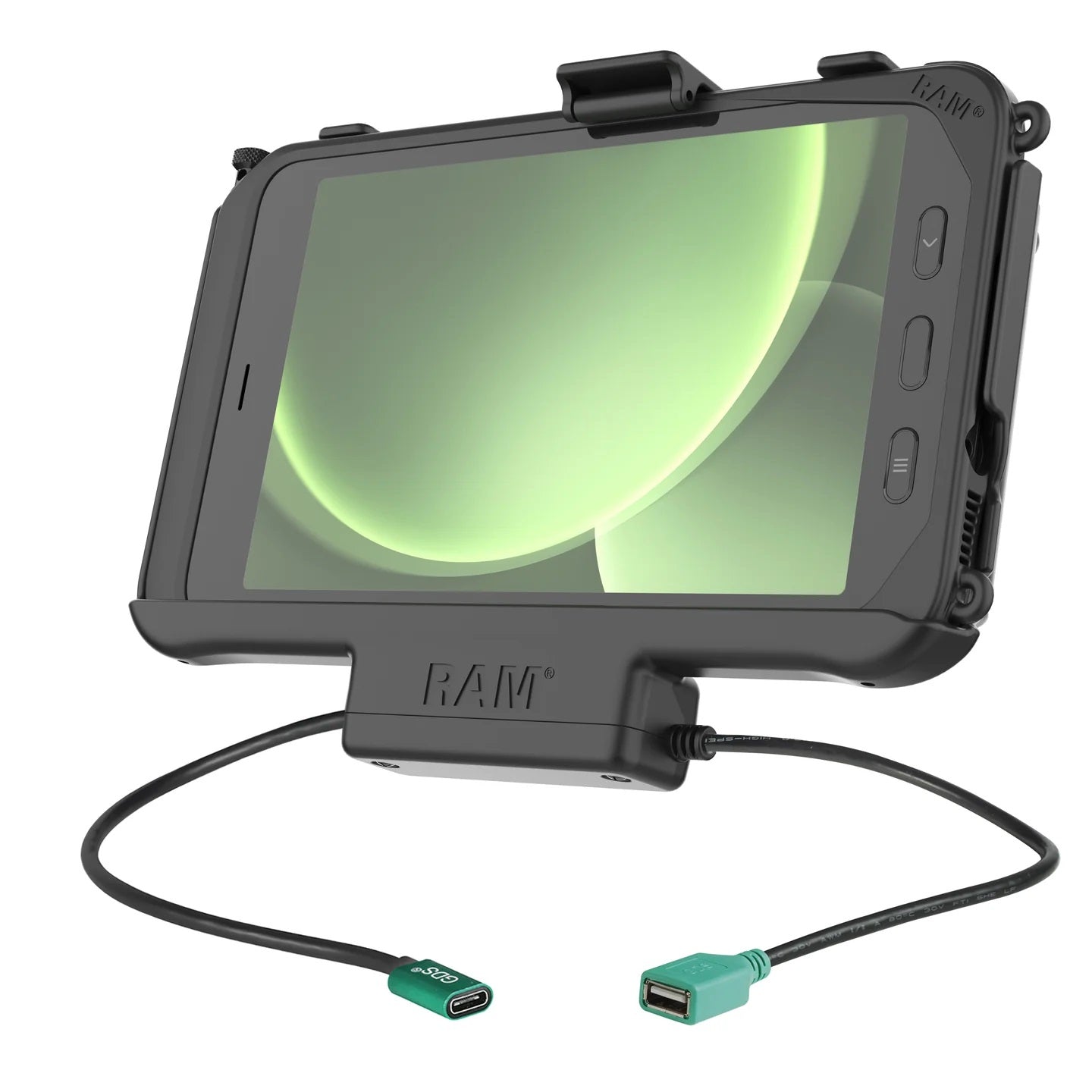

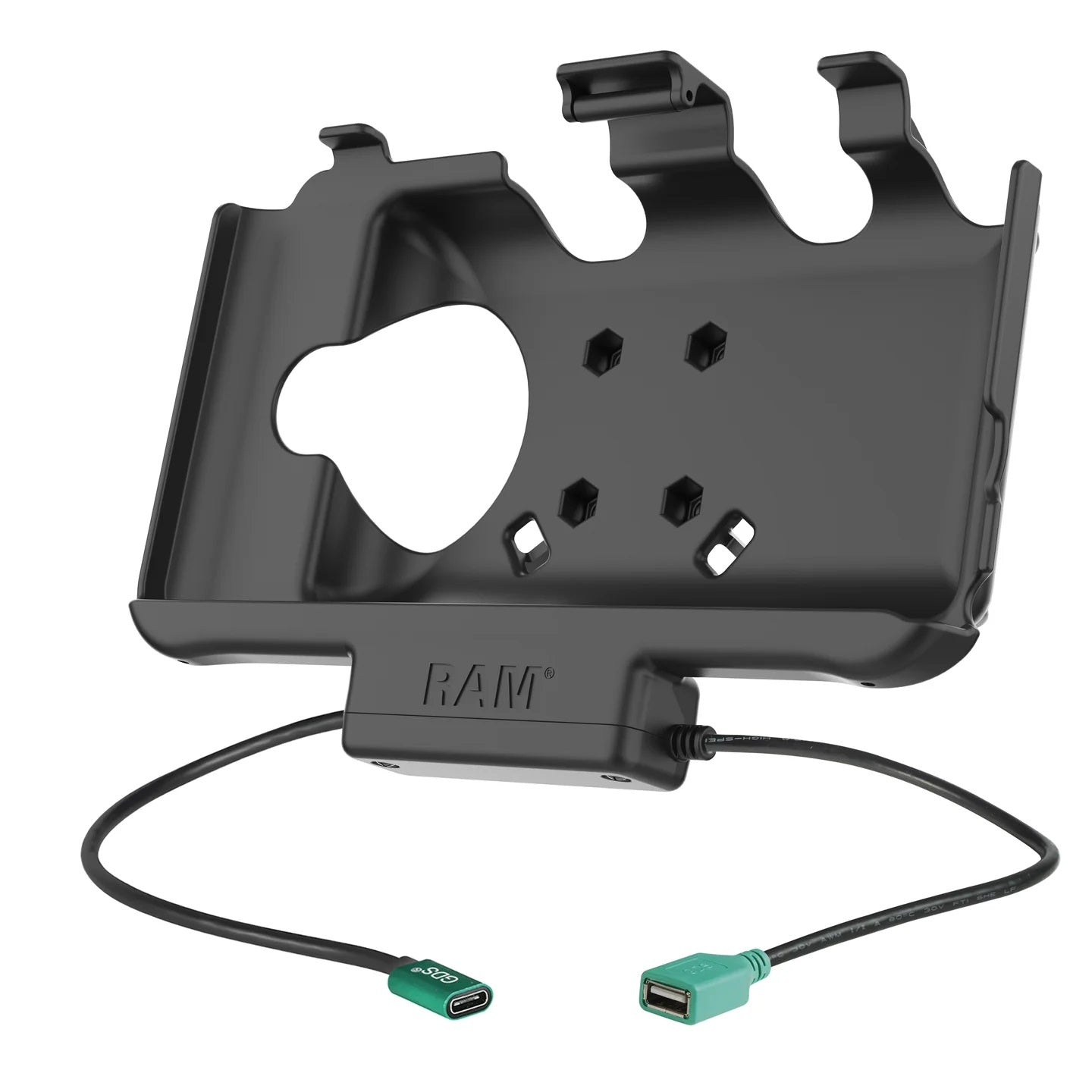

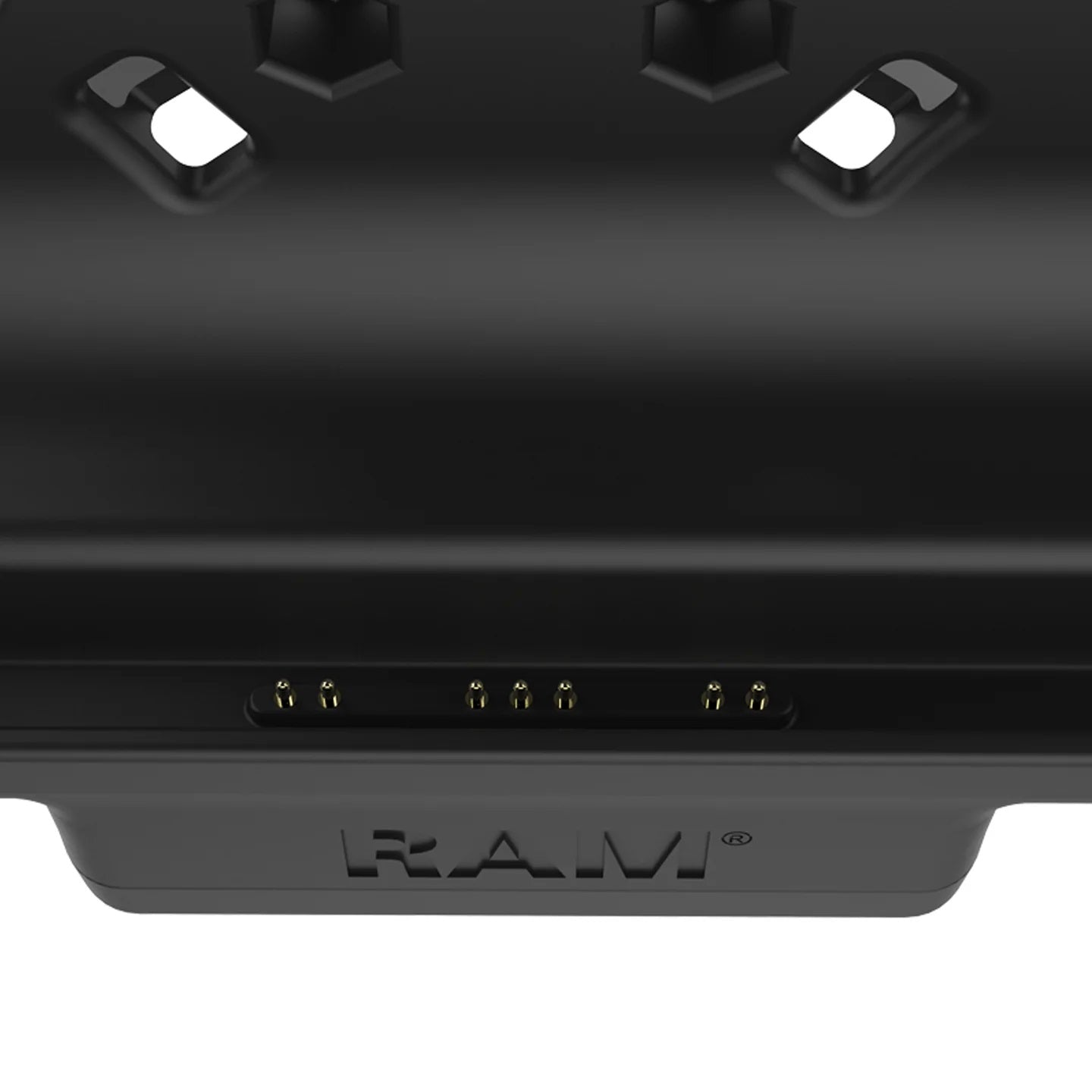

This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.
Features:
- RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

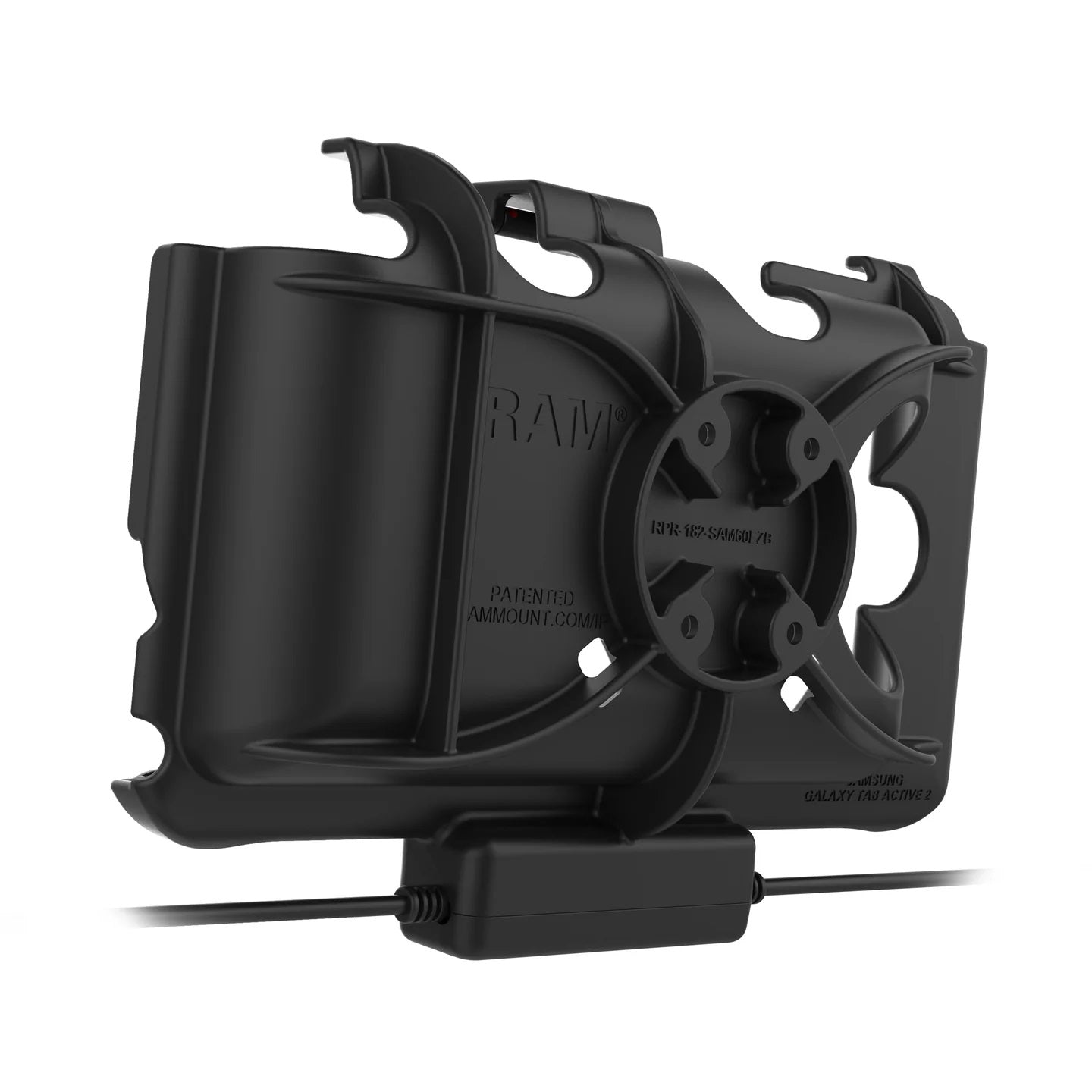

- Hole pattern: 4-Hole AMPS: 1.181" x 1.496"
- Constructed of high strength composite
Product Dimensions:
- Width: 9.24"
- Height: 6.34"
- Depth: 2.57"
Compatible Devices:
- Samsung
- Tab Active5
- Tab Active3
- Tab Active2

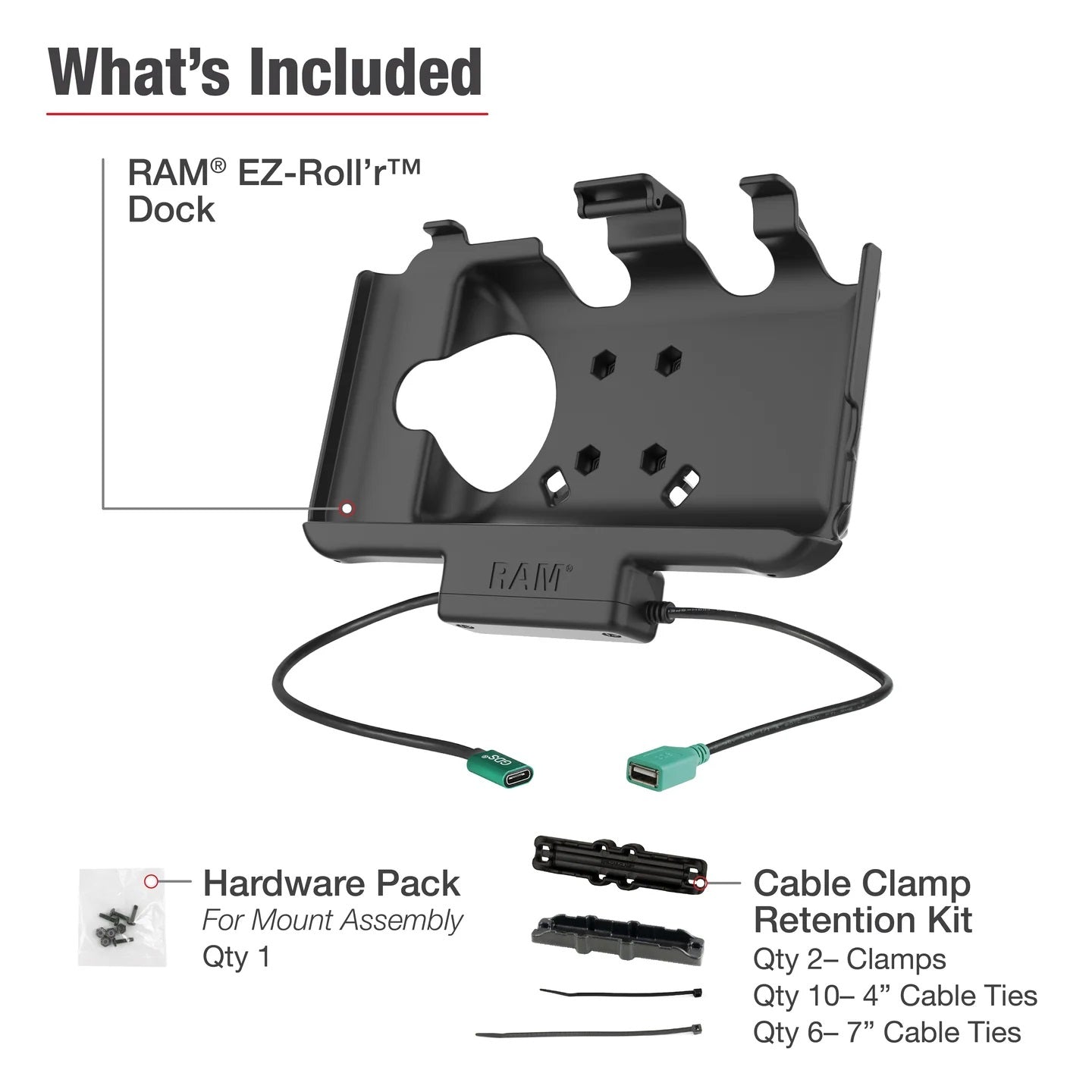

Included Hardware:
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
- (2) Optional Cable Clamp Housings
- (6) Large Cable Ties
- (10) Small Cable Ties
Specifications:
- Input Voltage: 5.3-5.4VDC
- Output Voltage: 5VDC
- Power Output: 500mA
- Input Connector: USB Type-C Female
- Input Cable Length: 250mm
- Output Connector: USB Type-C Female
- Output Cable Length: 250mm
- Output Connector: USB 1.1 Type A
- Peripheral Output: 500mAh
- Transfer Speed: 12Mbps
Brand: RAM Mounts
Part number: RAM-HOL-SAM60CP-1AU
Warranty: Manufacturer's 3 year warranty
