Description
Features:
- Provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories
- Stylus remains accessible while the device is docked

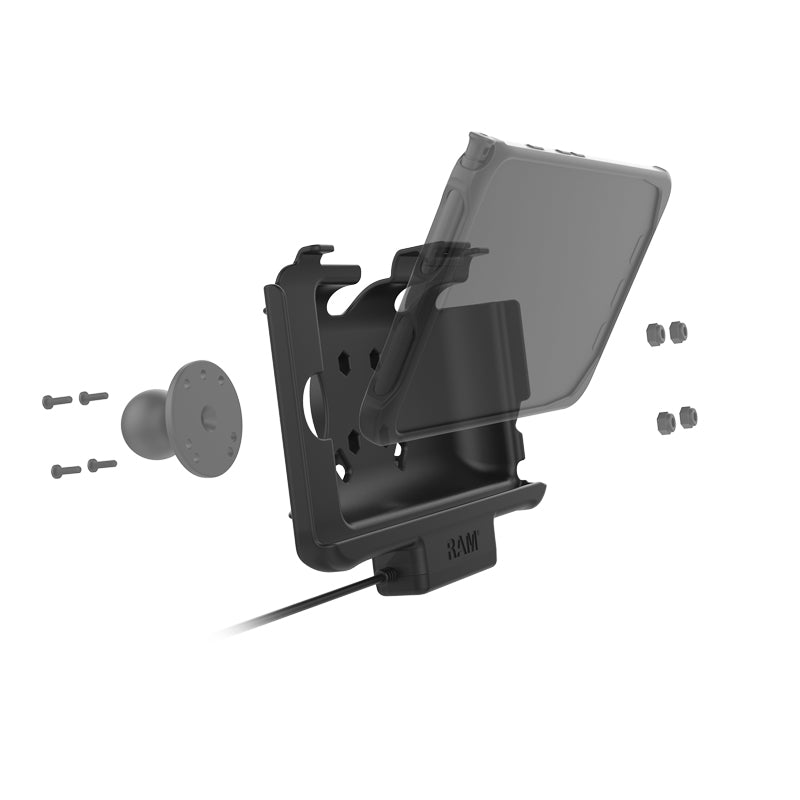

- Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal AMPS hole pattern
- Made in the USA
Input Voltage: 4.4VDC - 5.4VDC (USB power source dependent)
Output Voltage: 4.4VDC - 5.4VDC (USB power source dependent)
Input Connector: mUSB Female
Included Hardware:
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
- (1) GDS® Genuine USB 2.0 Straight Cable
- (1) Optional Cable Clamp Housing
- (2) Large Cable Ties
- (5) Small Cable Ties
Product Dimesions:
Width: 9.25"
Height: 6.375"
Depth: 2"
Compatible Devices:
- Samsung
- Tab Active5
- Tab Active3
- Tab Active2
Additional Information:
- This product will not support IntelliSkin®.
- Mount using a round ball base (RAM-202U recommended)
- Device speakers and mics exposed
- Device headphone jack exposed
- Zip tie locations for cable retention
- Includes mUSB male to Type-A male cable and cable clamp with zip ties
- mUSB female pigtail for power
Brand: RAM Mounts
Part number: RAM-HOL-SAM60PU
Warranty: Manufacturer's 3 Year Warranty
