Description

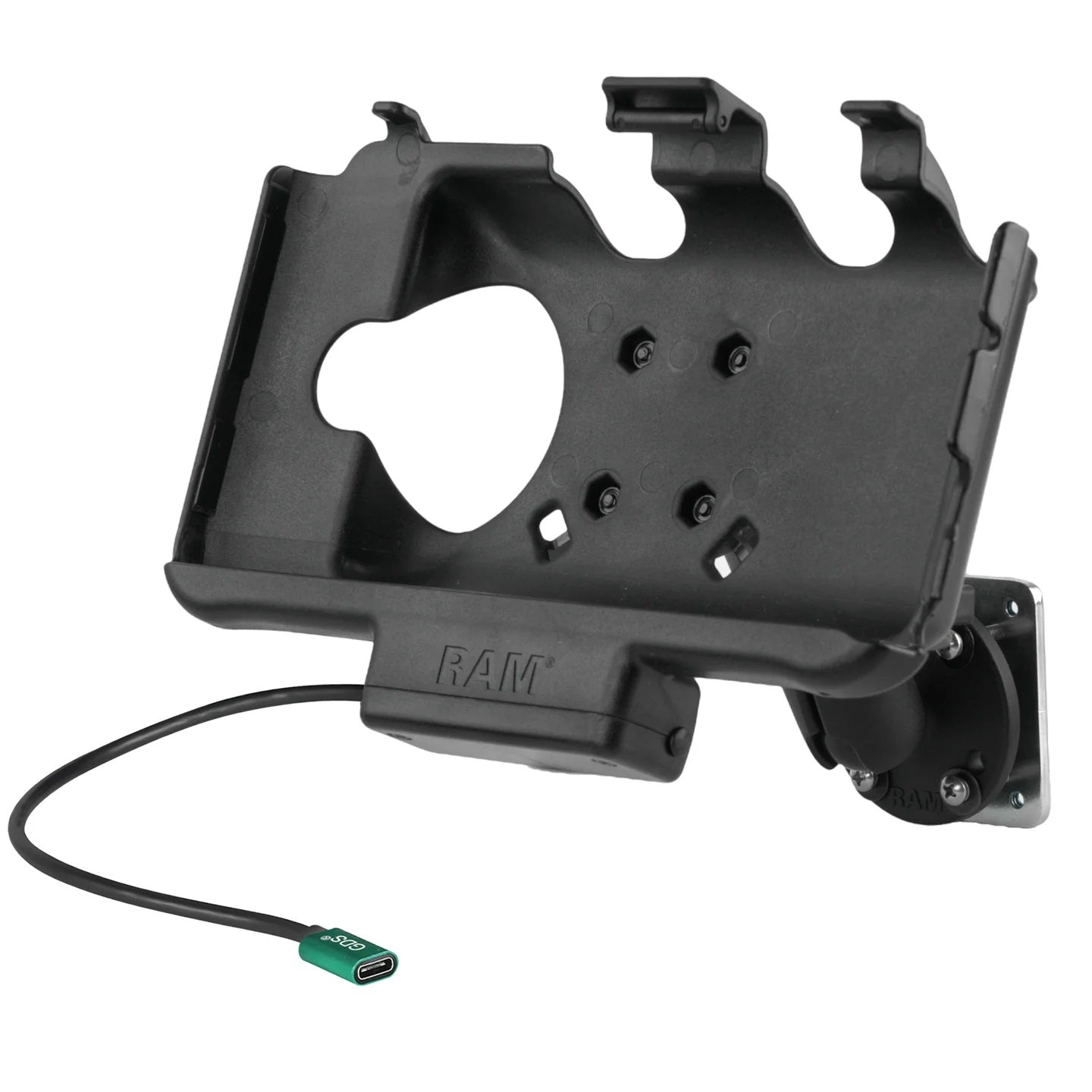

RAM® Mounts has partnered with Samsung to develop a powered cradle for the Samsung Galaxy Tab Active5, Tab Active3 & 2. Compatible with the Samsung OEM case as well as the RAM® Skin™, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active5, 3 & 2.
Features:
- RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
- Double socket short arm - overall size: 3.56"; socket-to-socket length: 3"
- Two 2.5" diameter round bases - each with 1.5" ball & AMPS hole pattern
- 2.10" x 2.60" steel backing plate
- RAM ball & socket system; easily adjust to your perfect angle
- Constructed of powder coated marine grade aluminum, steel and high strength composite
- Holds up to 4 pounds
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
Compatible Devices:
- Samsung
- Galaxy Tab Active5
- Galaxy Tab Active3
- Galaxy Tab Active2

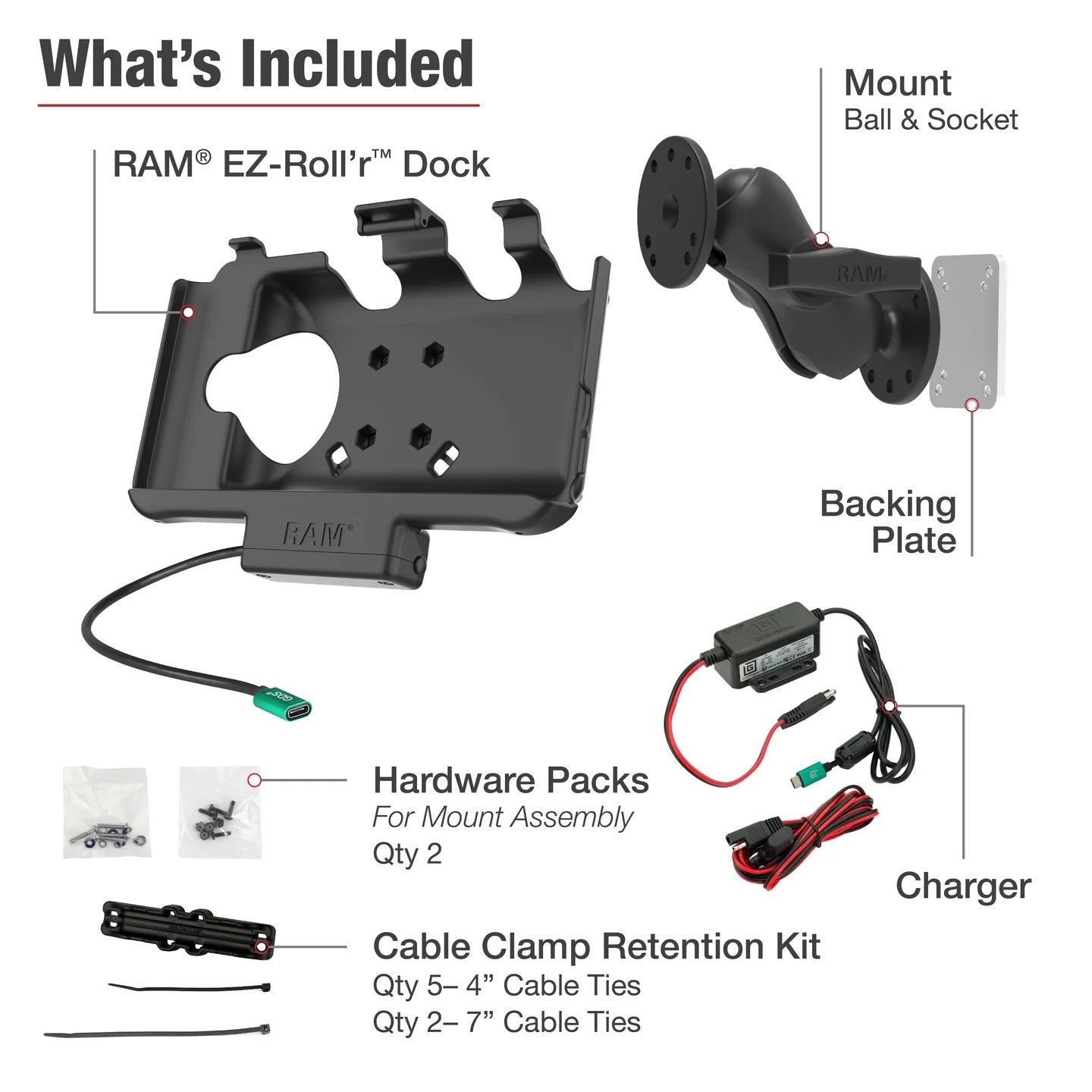

Included Hardware:
- Assembly Hardware
- (1) 2.10" x 2.60" Steel Backing Plate
- (4) #8-32 x 1" Screws
- (4) #8 Split Lock Washers
- (4) #8 Flat Washers
- (1) Cable Clamp
- (1) Hardwire Charger
Specifications:
- Input voltage: 5.3-5.4VDC
- Output voltage: 5VDC
- Power output: 500mA
- Input connector: USB Type-C Female
- Input cable length: 215mm
- Operating temperature: -10°C to +70°C
- Storage temperature: -40°C to +70°C
Regulatory:
- Overvoltage/Load Dump Compliance:
- Meets SAE J-1113
- FCC, CE, UKCA, IC
Certifications:
- E-Mark Certification
- Integrated Short Circuit Protection
- WEEE and RoHS Compliant
- USB 2.0 BC 1.2 DCP Support
- IEC/UL 62368-1
Additional Information: *5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
**This product will not support the "No Battery Mode" function of the Tab Active3.
Brand: RAM Mounts
Part number: RAM-101-225B2-SAM60CP-V7CU
Warranty: Manufacturer's 3 year warranty
