Description

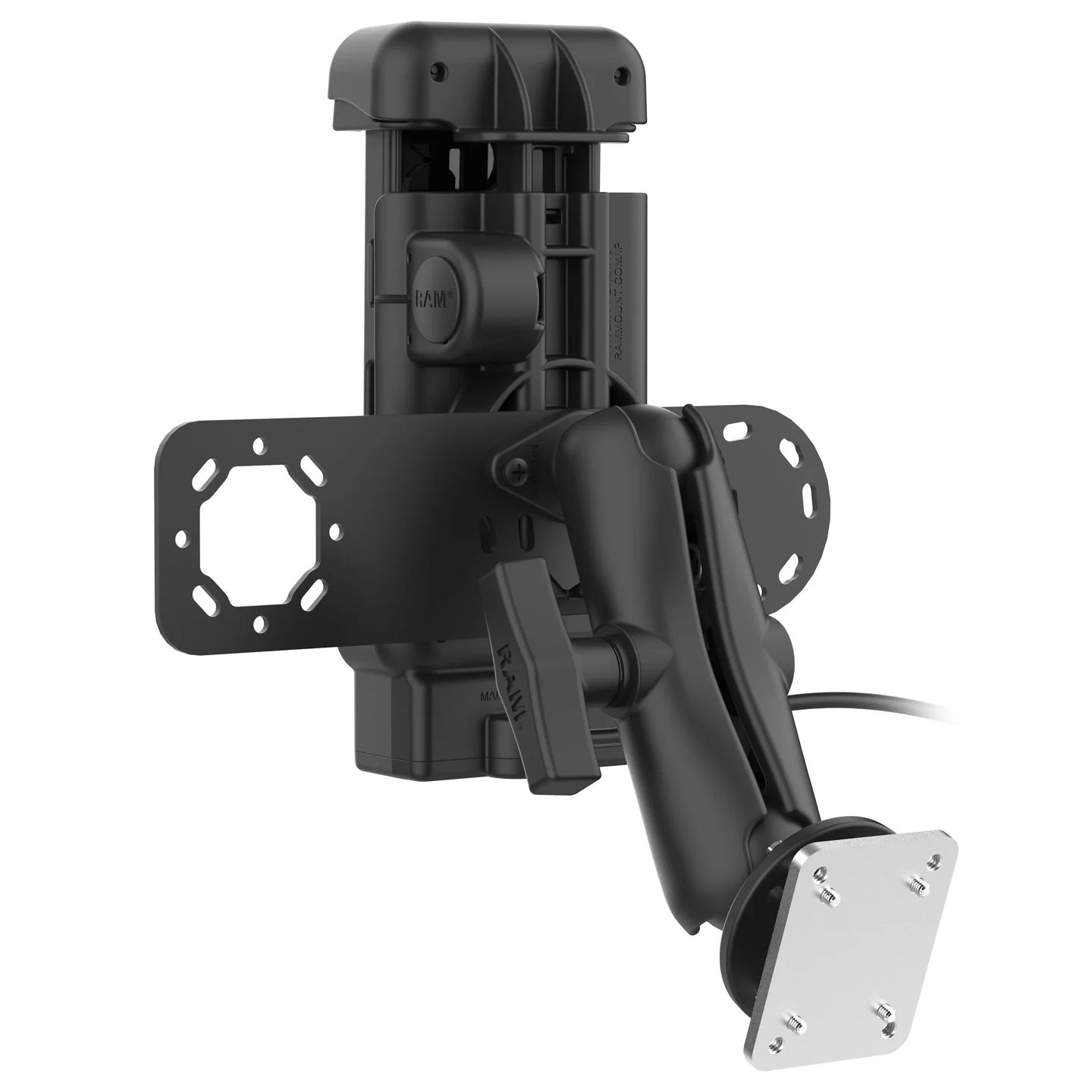

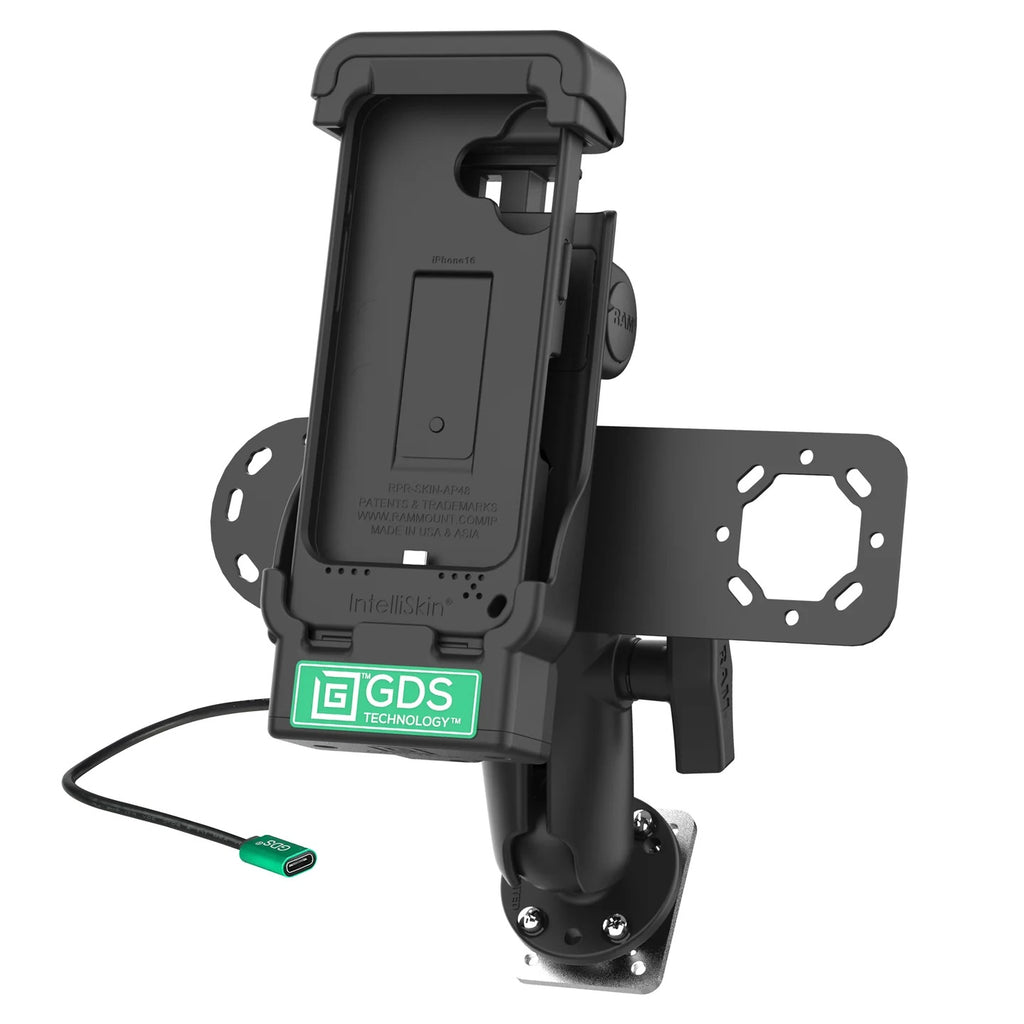

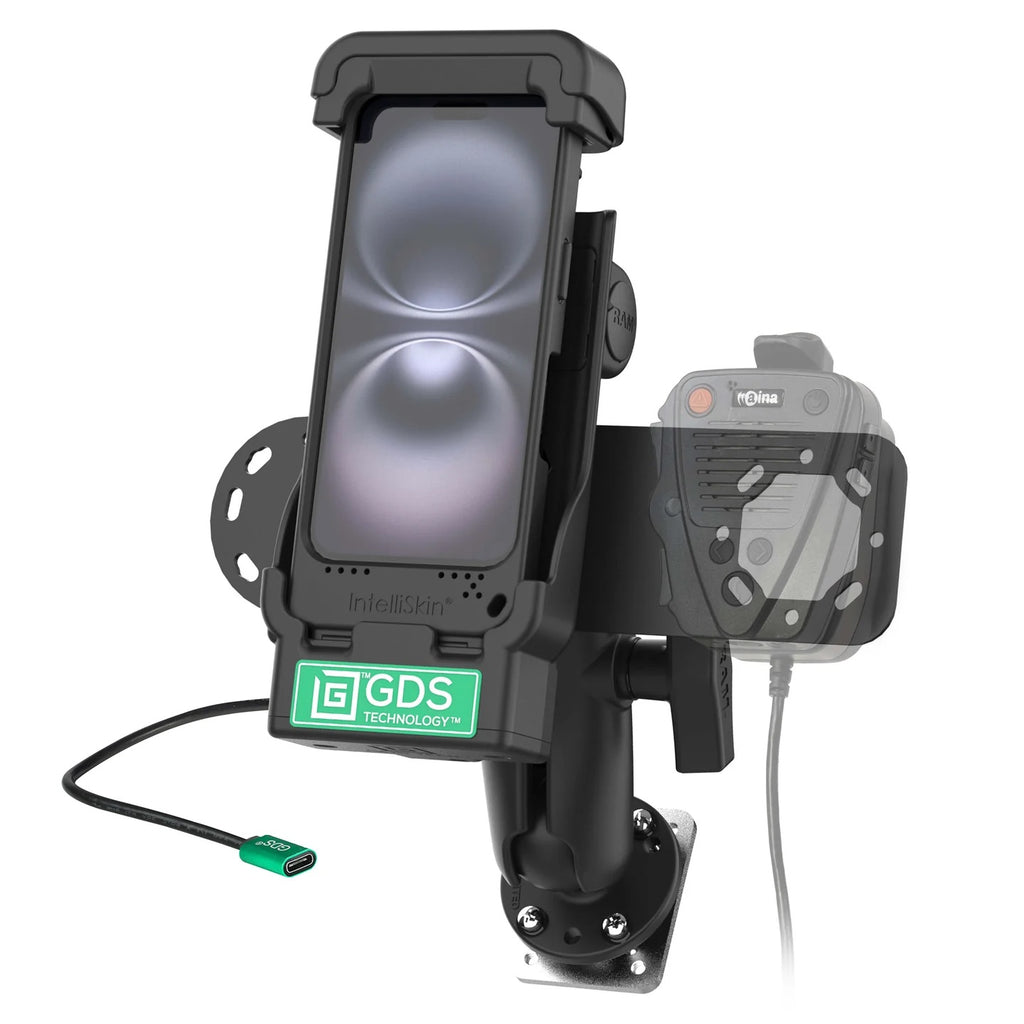

Rugged GDS® PTT Vehicle Bundle for iPhone 16 – Integrated Charging & Bluetooth Voice Solution (RAM-GDS-V15-SAM84-PTT1)
Take control of mission-critical communications with the GDS® Aina PTT Vehicle Bundle for iPhone 16 — a complete, professional-grade mounting and charging solution built for demanding field environments. Designed for public safety teams, fleet operators, and field service professionals, this all-in-one kit keeps your iPhone 16 powered, protected, and connected while supporting reliable Push-to-Talk (PTT) communication.
This bundle includes a GDS® Dock™, IntelliSkin® device sleeve for the iPhone 16, dual hardwire chargers with SAE splitter, microphone bracket, and a heavy-duty double ball mount with backing plate for rock-solid in-vehicle installation. The dock’s pogo-pin connection ensures uninterrupted power delivery to your iPhone, while the Bluetooth-enabled AINA Voice Responder RSM delivers crystal-clear wireless PTT capability — ideal for use with ESChat, Zello, and Kodiak.
Built from marine-grade aluminum and high-strength composites, this kit is engineered for rugged performance in the harshest conditions. Over-voltage, short-circuit, and reverse-polarity protections safeguard your device, ensuring maximum uptime.
Important: IntelliSkin® in this bundle is compatible only with the standard iPhone 16 (not 16 Pro, 16 Pro Max, or 16 Plus).
Key Features
-
Complete in-vehicle communication kit: Dock, IntelliSkin®, microphone bracket, chargers, SAE splitter, and heavy-duty mounting system
-
USB-C powered GDS® Dock™ with pogo-pin charging for reliable, always-ready power
-
Seamless Bluetooth PTT operation with AINA Voice Responder RSM (sold separately)
-
Built for extreme conditions — steel, aluminum, and composite construction
-
3-year manufacturer warranty for long-term reliability

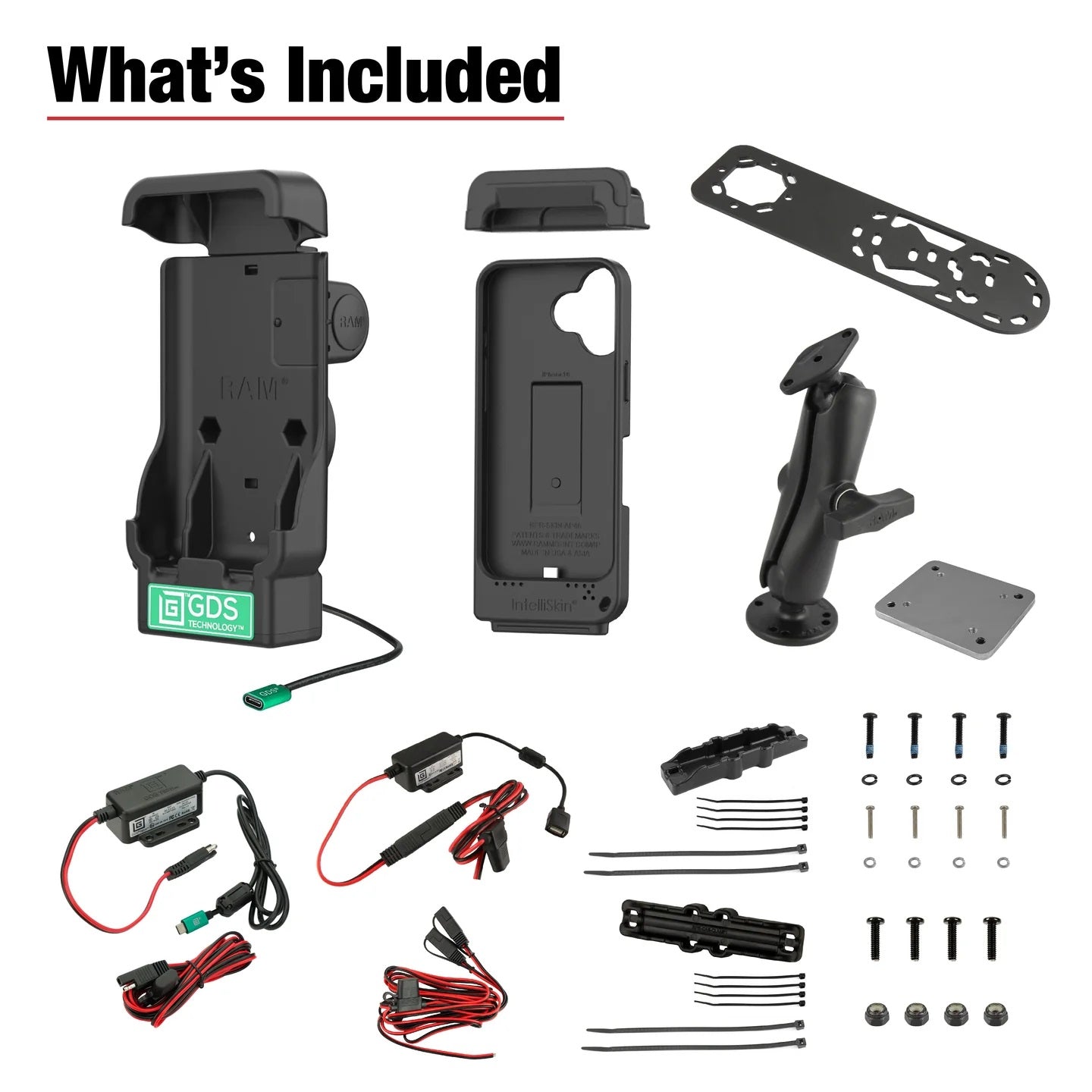

Included Hardware
-
GDS® Dock™ with USB-C connector
-
IntelliSkin® for iPhone 16
-
Microphone bracket
-
Two hardwire chargers (USB-C & USB-A outputs)
-
SAE splitter cable
-
Dashboard backing plate with hardware
-
(2) Cable clamps
-
Assembly hardware
Specifications
-
Socket-to-socket length: 4.66"
-
Hole pattern: 4-Hole AMPS (1.181" x 1.496")
-
Ball size: C Size (1.5")
-
Weight capacity: 4 lbs (standard use), 3 lbs (heavy-duty use)
-
Materials: Steel, marine-grade aluminum, high-strength composite
-
Input Voltage: 10–30VDC (both chargers)
-
Output Voltage: USB-C (5–15V @ 3A), USB-A (5–9V @ 2.5A)
-
Input Connector: Bare wire (via SAE splitter)
-
Output Connectors: USB-C (for GDS® Dock), USB-A (for AINA PTT RSM)
-
Regulatory Compliance:
-
Over-Voltage Protection
-
Short-Circuit Protection
-
Reverse Polarity Protection
-
RoHS & WEEE Compliant
-
SAE J-1113-5 Load Dump (Transient Voltage)
-
Moisture Resistant
-
-
Certifications: CE, RCM, FCC, UL 62368-1
Brand: RAM Mounts
Part number: RAM-GDS-V15-AP48-PTT1
Warranty: Manufacturer's 3-year warranty
