Description
The RAM® GDS® Locking Heated Powered Dock for Zebra EC50/EC55 is engineered for demanding mobile workflows where reliability, security, and all-weather performance matter most. Designed specifically for IntelliSkin®-wrapped Zebra EC5x handhelds, this rugged dock delivers consistent power and data connectivity in vehicles, warehouses, and field operations.

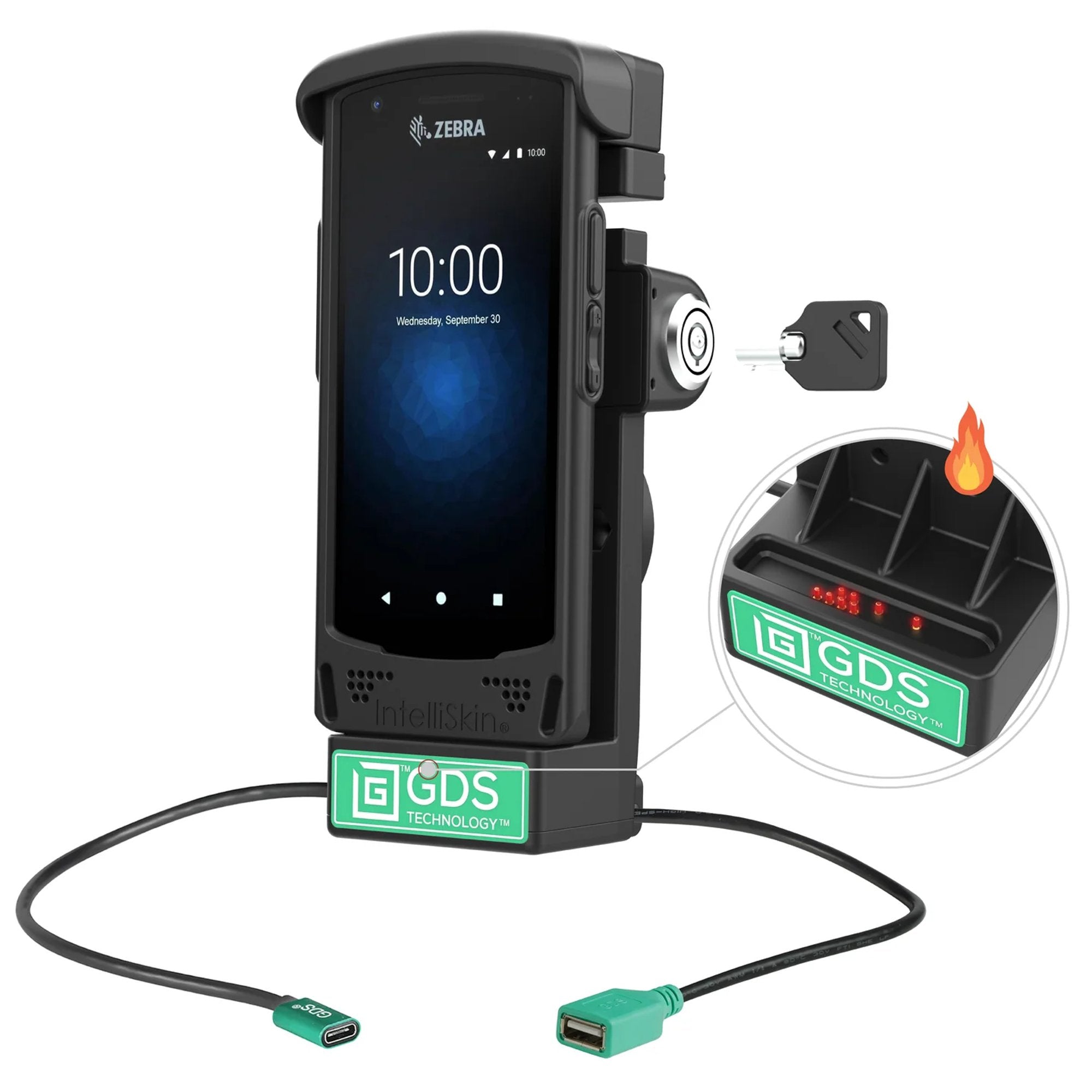

Featuring GDS® Technology™, this spring-loaded dock allows fast, one-handed docking and removal, while the integrated key-lock adds an extra layer of theft deterrence. Built-in heating elements prevent pogo pin freeze-up, ensuring dependable charging and data transfer in wet, icy, or freezing environments.
Power is supplied through a USB-C input, while an integrated USB-A pigtail supports one additional peripheral such as a scanner or accessory. A precision top cutout maintains full access to device buttons, ports, and scanners—no need to remove the device from the dock.
Compatible with RAM® diamond bases and AMPS hole patterns, this dock integrates seamlessly into RAM Mounts ball-and-socket systems for near-infinite adjustability. When you buy from Gadget Mounts, you’re purchasing from an Authorized RAM Mounts Dealer, ensuring genuine products and full manufacturer warranty coverage.
Key Features
-
Designed for IntelliSkin®-wrapped Zebra EC50 & EC55 devices
-

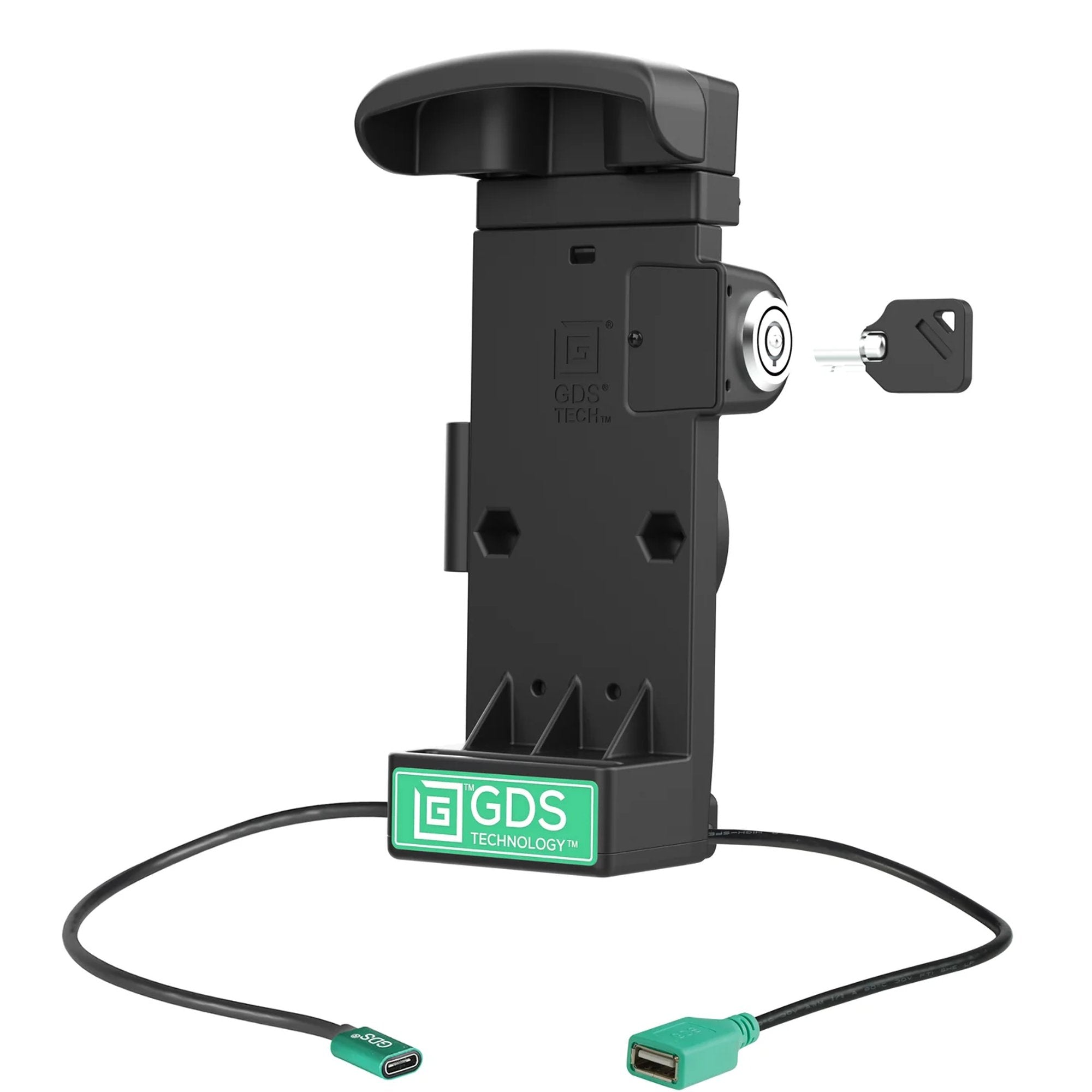

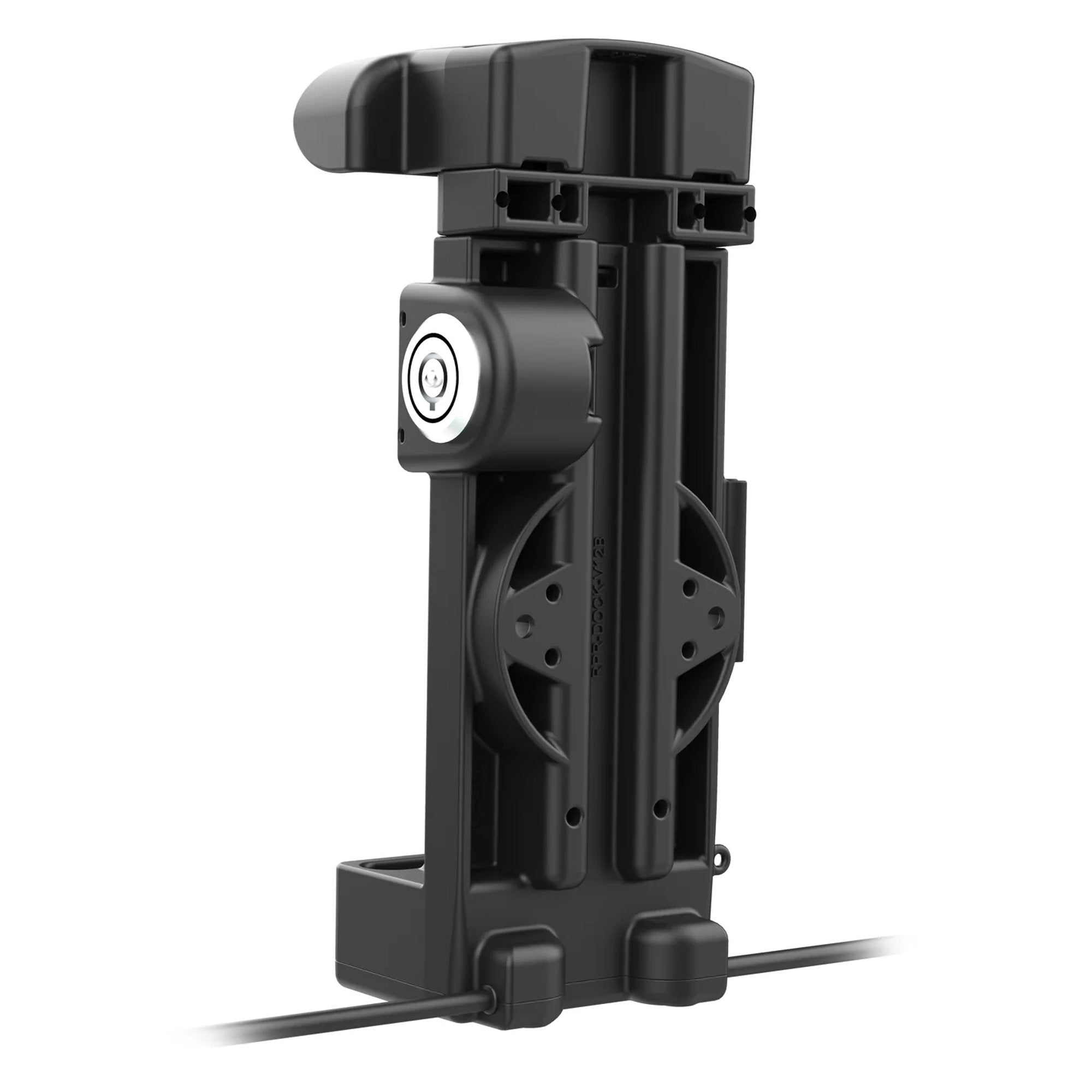

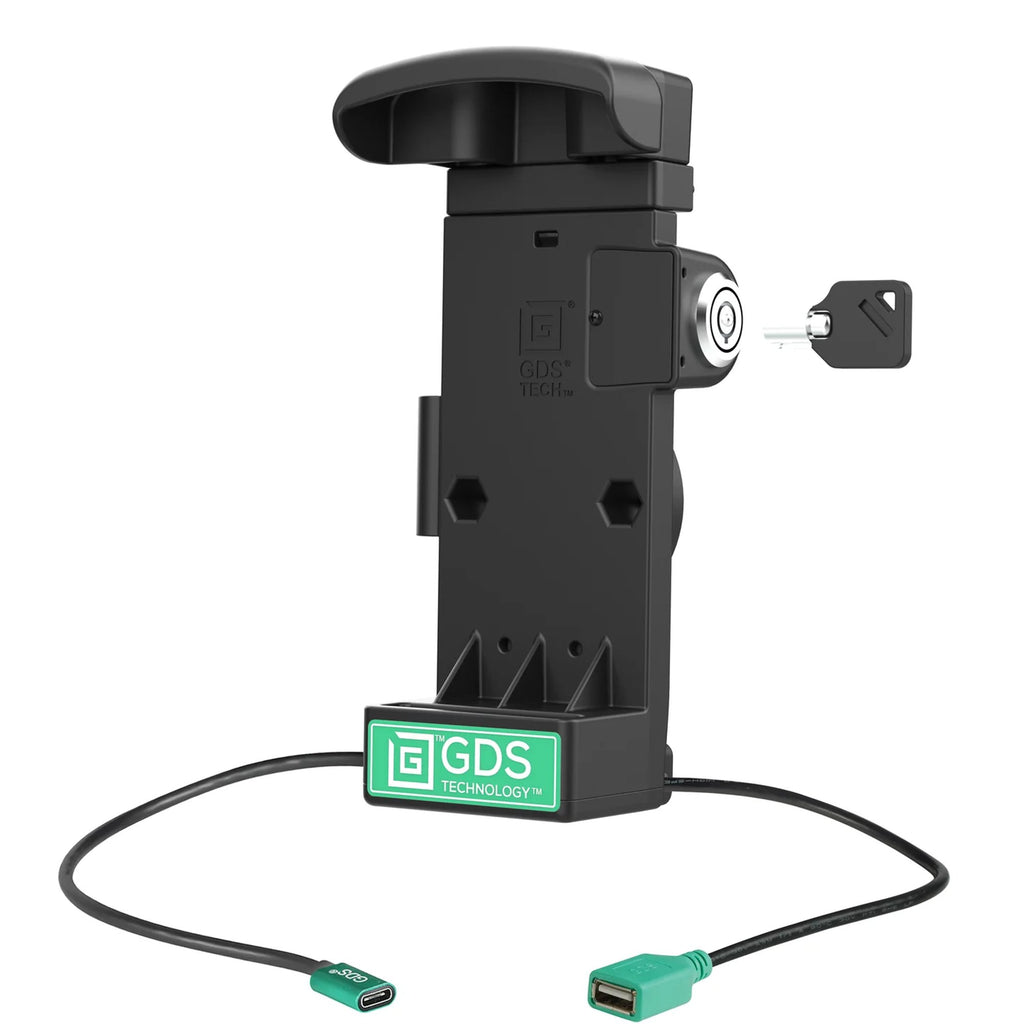

Locking powered dock with included keys for added security
-

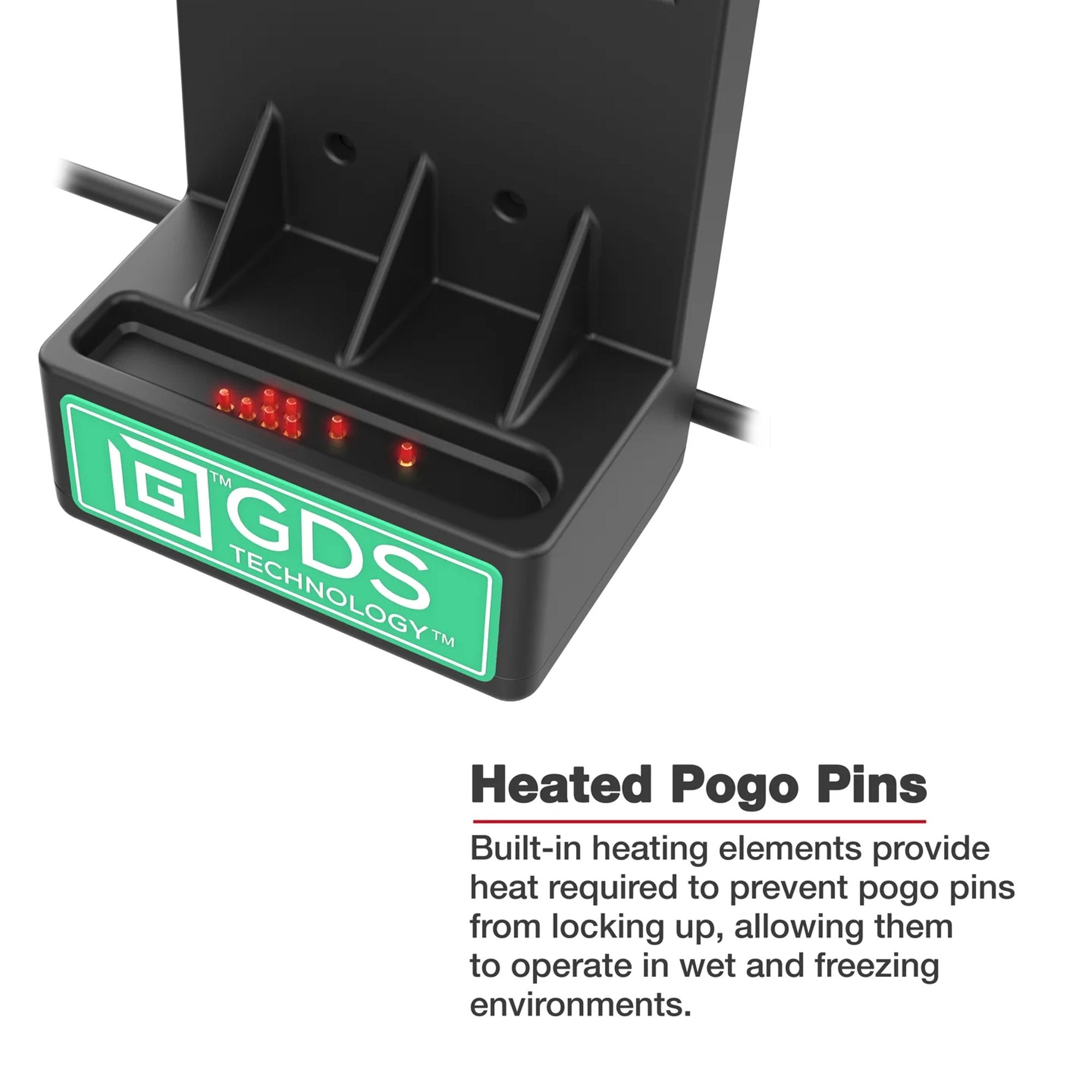

Built-in heating elements prevent pogo pin freezing in cold or wet environments
-
USB-C power input with pogo pin charging and data contacts
-
USB-A output supports one additional peripheral (500mAh)
-
One-handed docking with spring-loaded retention
-

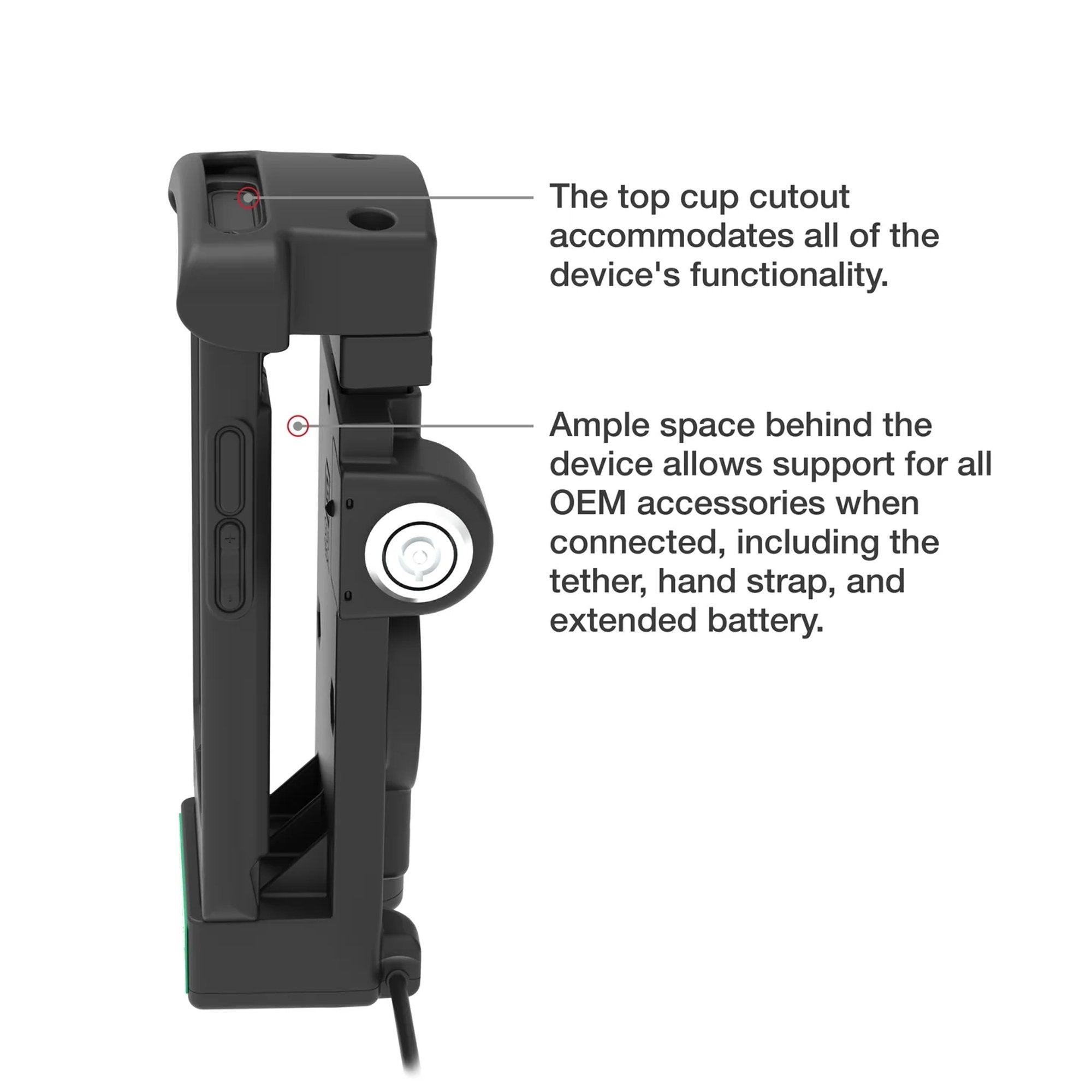

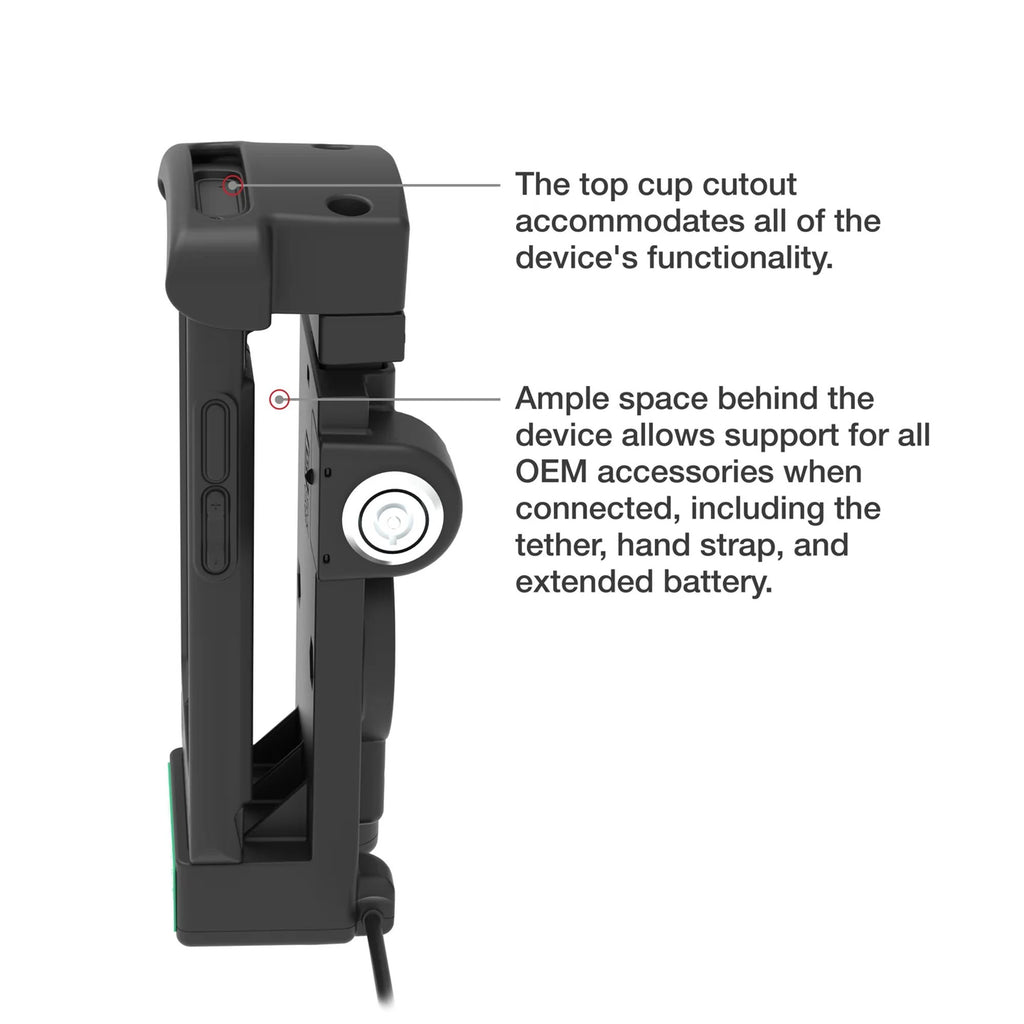

Top cutout allows access to buttons, ports, and scanner
-

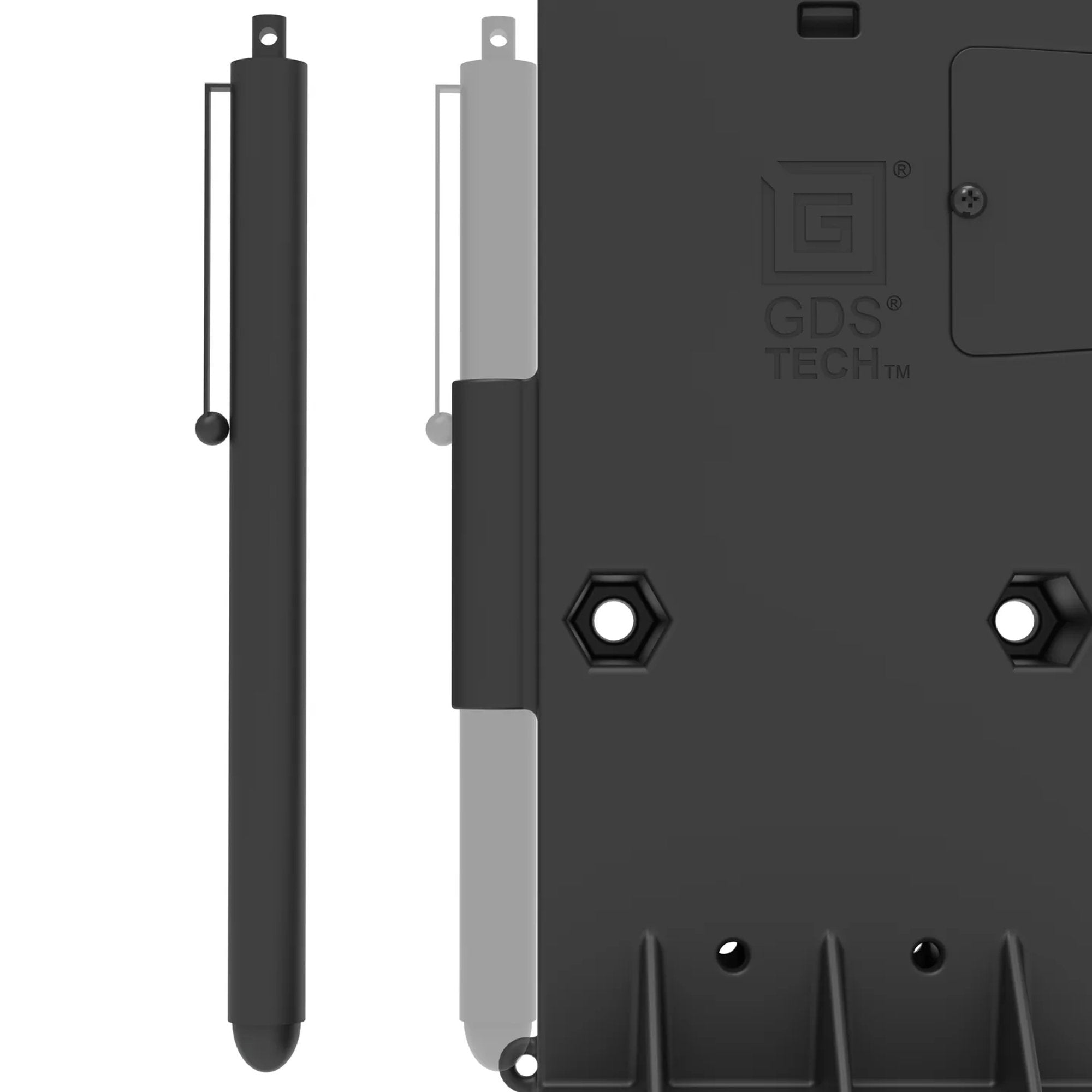

Compatible with RAM® diamond bases and double socket arms
-
Ideal for fleet vehicles, logistics, warehousing, and field service
Specifications
-
Hole Pattern: 2-Hole AMPS (1.912")
-
Input Connectors: USB Type-C, USB Type-A (1 peripheral)
-
Input Cable Length: 1 meter
-
Peripheral Output: 500mAh
-
Material: High-strength composite
-
Weight: 0.84 lb
Hardware Included
-
(2) Keys
-
(2) #8-32 x 1/2" Machine Screws
-
(2) #8-32 x 5/8" Machine Screws
-
(2) #8-32 x 3/4" Machine Screws
-
(2) #8-32 Nylock Nuts
Brand and Warranty
-
Brand: RAM Mounts
-
Part Number: RAM-GDS-DOCKL-V12-ZE16CPDHU
-
Warranty: Manufacturer’s 3-Year Warranty
