Description

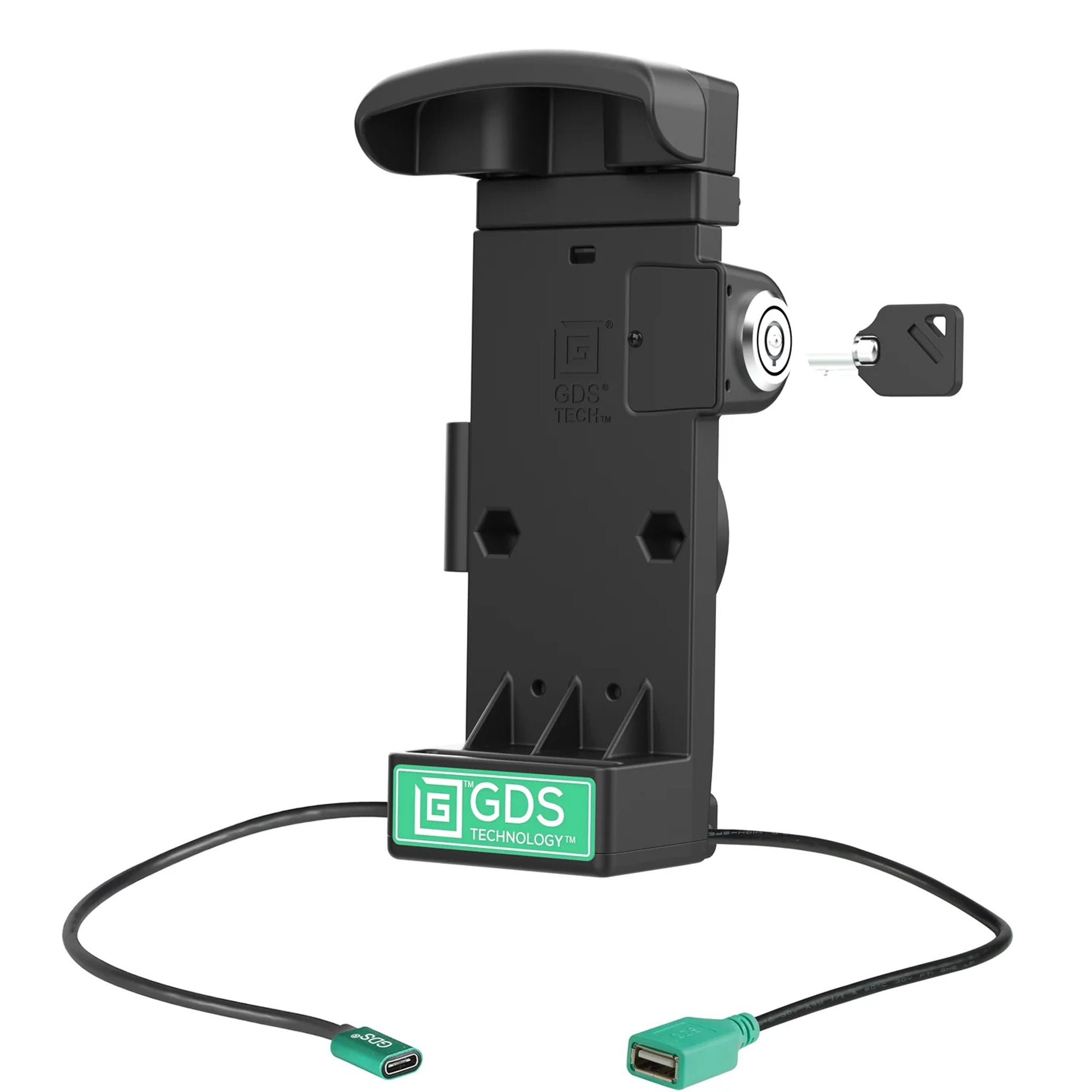

The RAM® GDS® Locking Powered Dock for Zebra EC50 and EC55 is purpose-built for professionals who demand secure mounting, reliable charging, and seamless data connectivity in mobile work environments. Engineered to work exclusively with IntelliSkin®-wrapped Zebra EC5x devices, this dock provides a rugged, vehicle-ready solution for fleets, warehouses, public safety, and field service operations.
Featuring one-handed spring-loaded operation, the dock allows fast and secure device insertion and removal while keeping your handheld computer firmly locked in place. The integrated key lock adds an extra layer of theft deterrence, making it ideal for shared or unattended vehicles.
Power is delivered through a USB-C input combined with pogo pin docking contacts, ensuring consistent charging and reduced port wear. A USB-A pigtail connector supports one additional peripheral, expanding functionality without clutter. Precision cutouts provide full access to buttons, ports, and the scanner—no need to remove the device from the dock.
Built from high-strength composite materials, this dock is compatible with RAM® diamond bases and double socket arms, offering near-infinite adjustability using RAM’s trusted ball-and-socket mounting system. When you buy from Gadget Mounts, you can trust you’re purchasing from an Authorized RAM Mounts Dealer.
Always Protected. Always Connected.®
Key Features
-

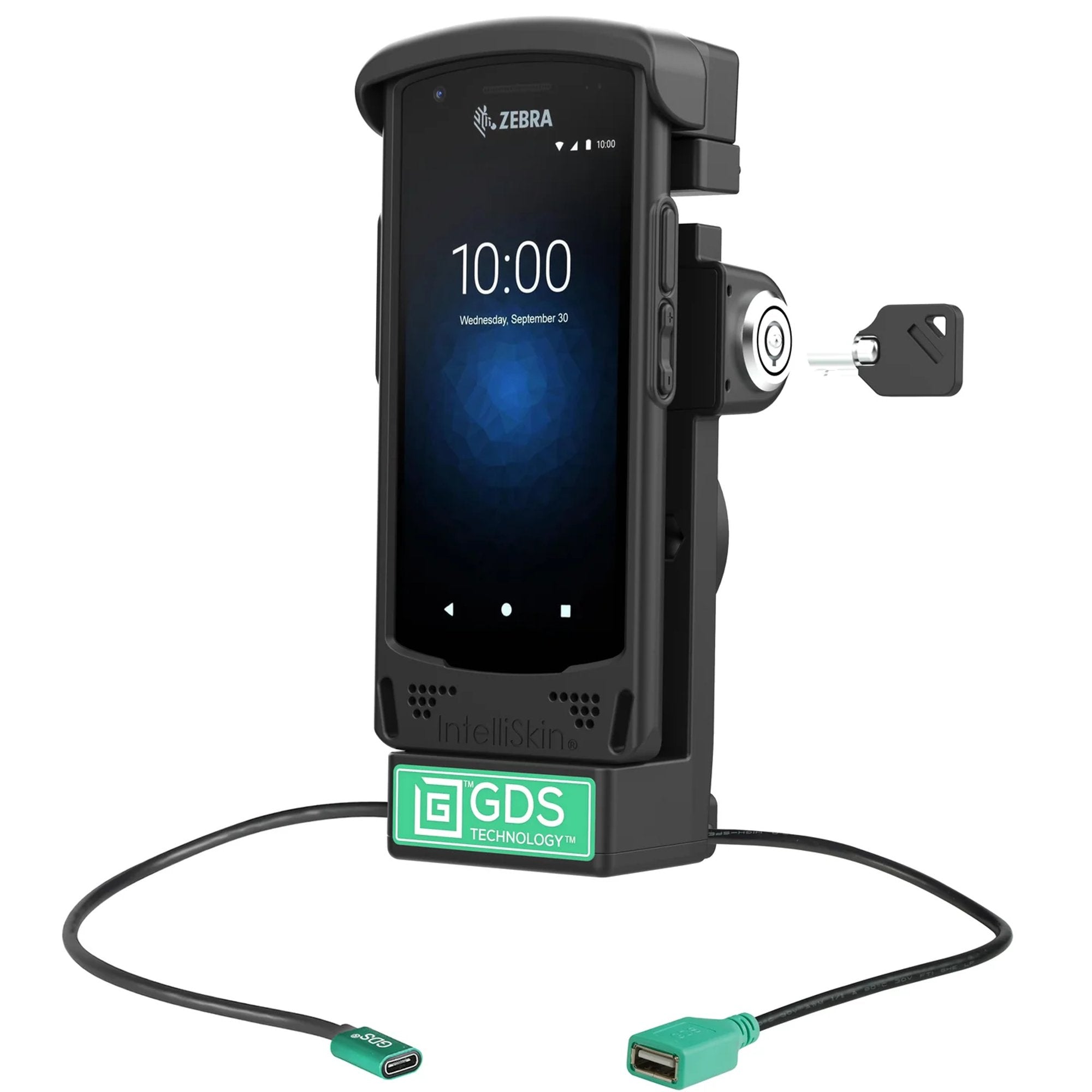

Locking powered dock designed for IntelliSkin®-wrapped Zebra EC50 & EC55
-

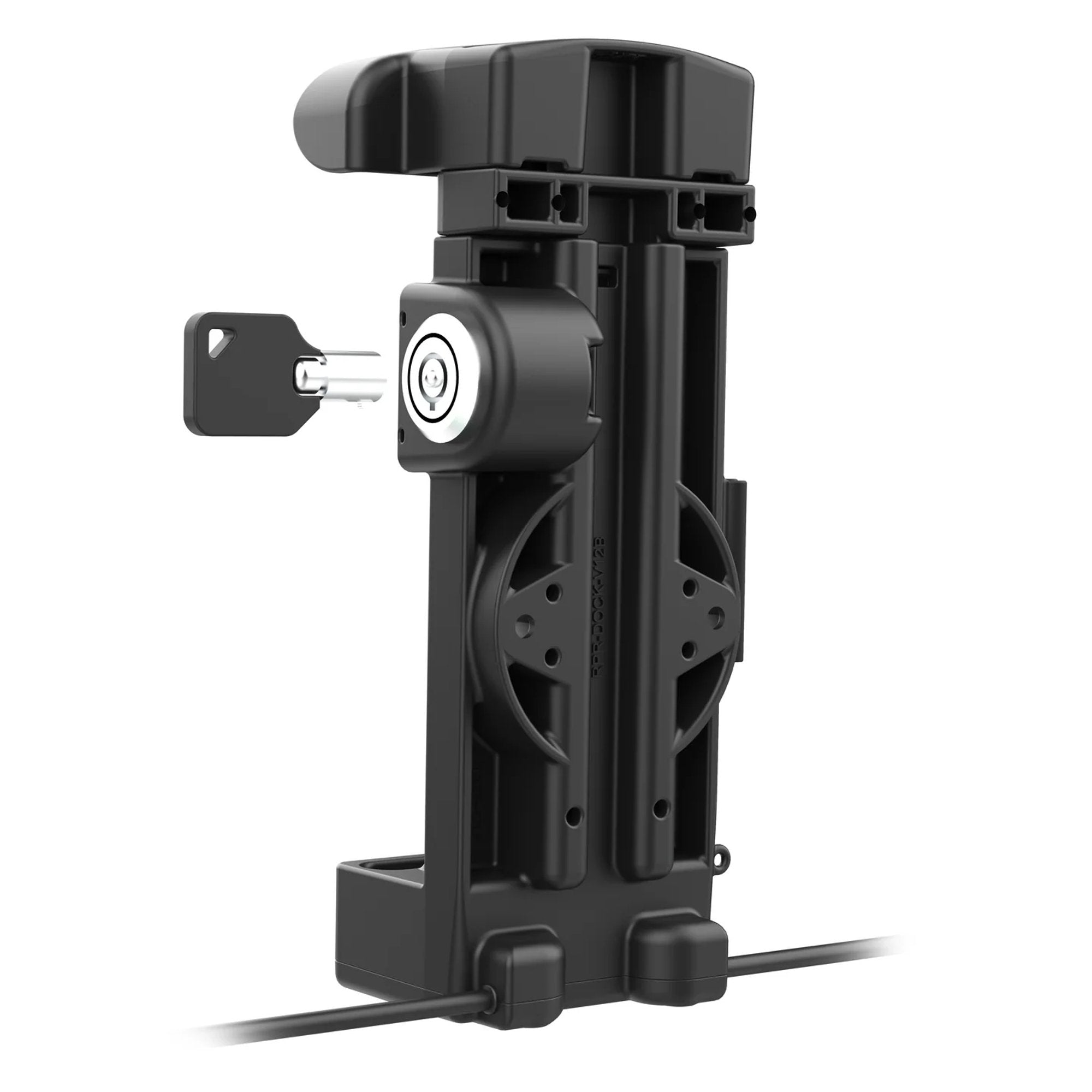

One-handed spring-loaded docking with integrated key lock
-

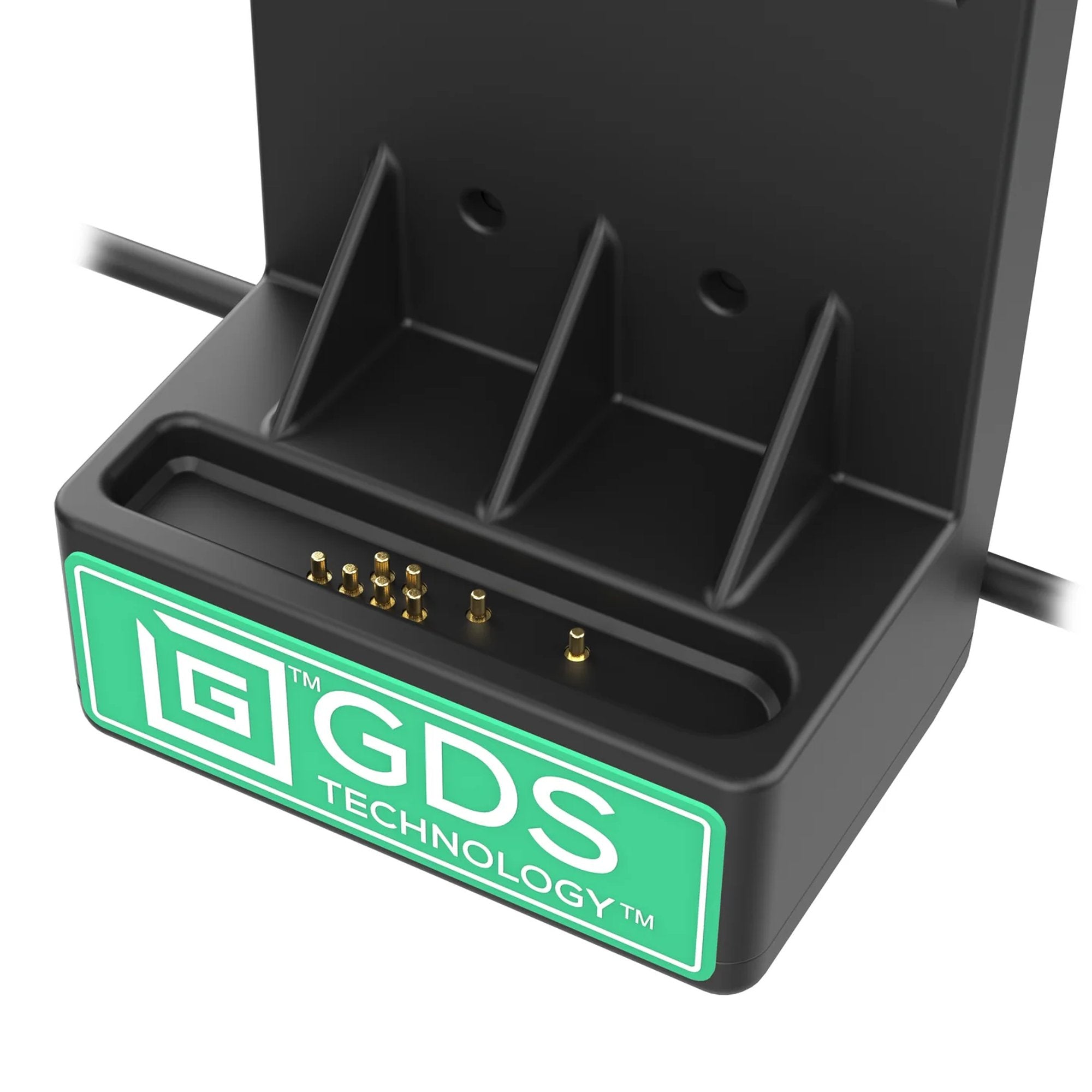

USB-C power input with pogo pin charging contacts
-
USB-A output for one peripheral (500mAh)
-

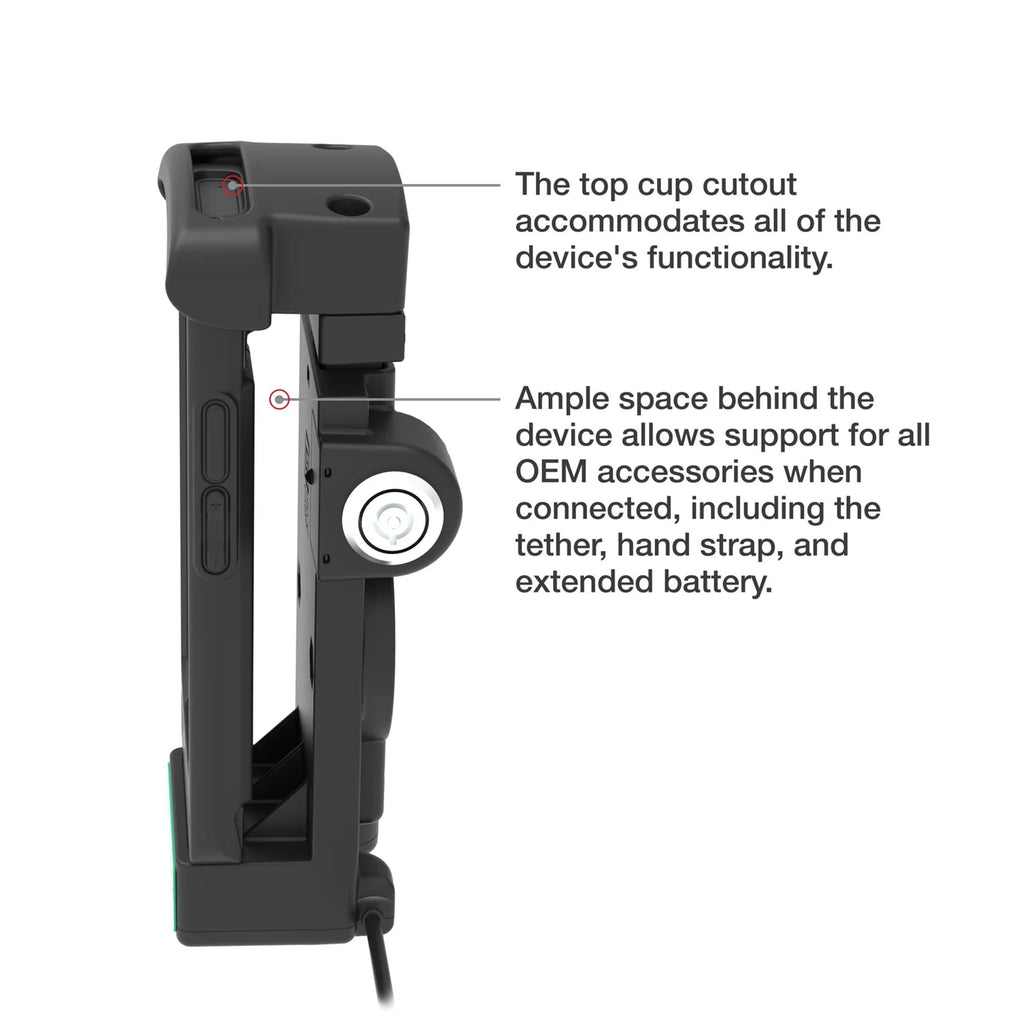

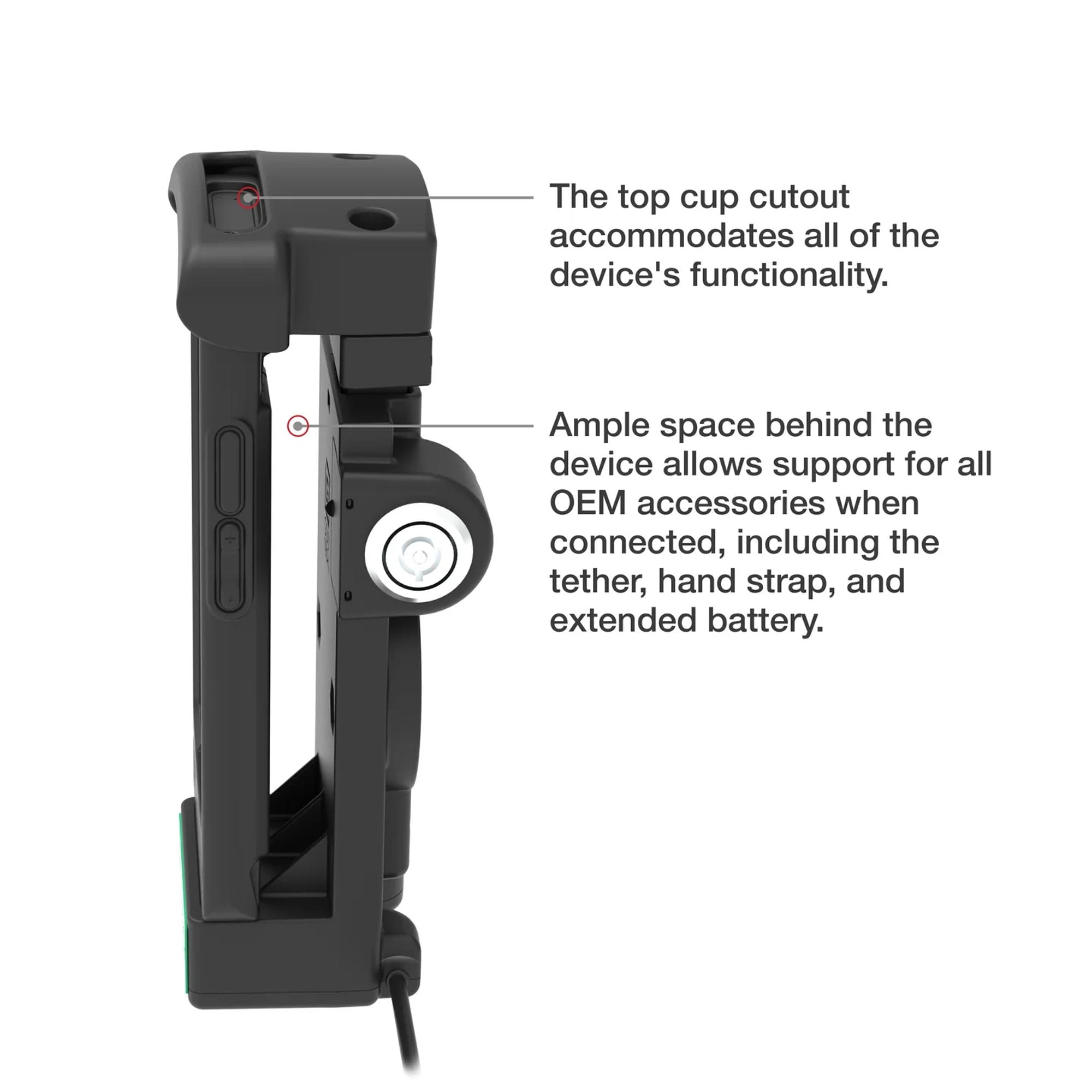

Full access to device buttons, ports, and scanner while docked
-
Compatible with RAM® diamond bases and double socket arms
-
Rugged, high-strength composite construction for demanding environments
-
Backed by a 3-year RAM® manufacturer warranty
Hardware Included
-
(2) Keys
-
(2) #8-32 x 1/2" Machine Screws
-
(2) #8-32 x 5/8" Machine Screws
-
(2) #8-32 x 3/4" Machine Screws
-
(2) #8-32 Nylock Nuts
Technical Specifications
-
Hole Pattern: 2-Hole AMPS (1.912")
-
Material: High-strength composite
-
Input Connector: USB Type-C
-
Peripheral Connector: USB Type-A (1 device)
-
Input Cable Length: 1 meter
-
Peripheral Output: 500mAh
-
Weight: 0.84 lb
Brand and Warranty
-
Brand: RAM Mounts
-
Part Number: RAM-GDS-DOCKL-V12-ZE16CPDU
-
Warranty: Manufacturer’s 3-year warranty
