Description

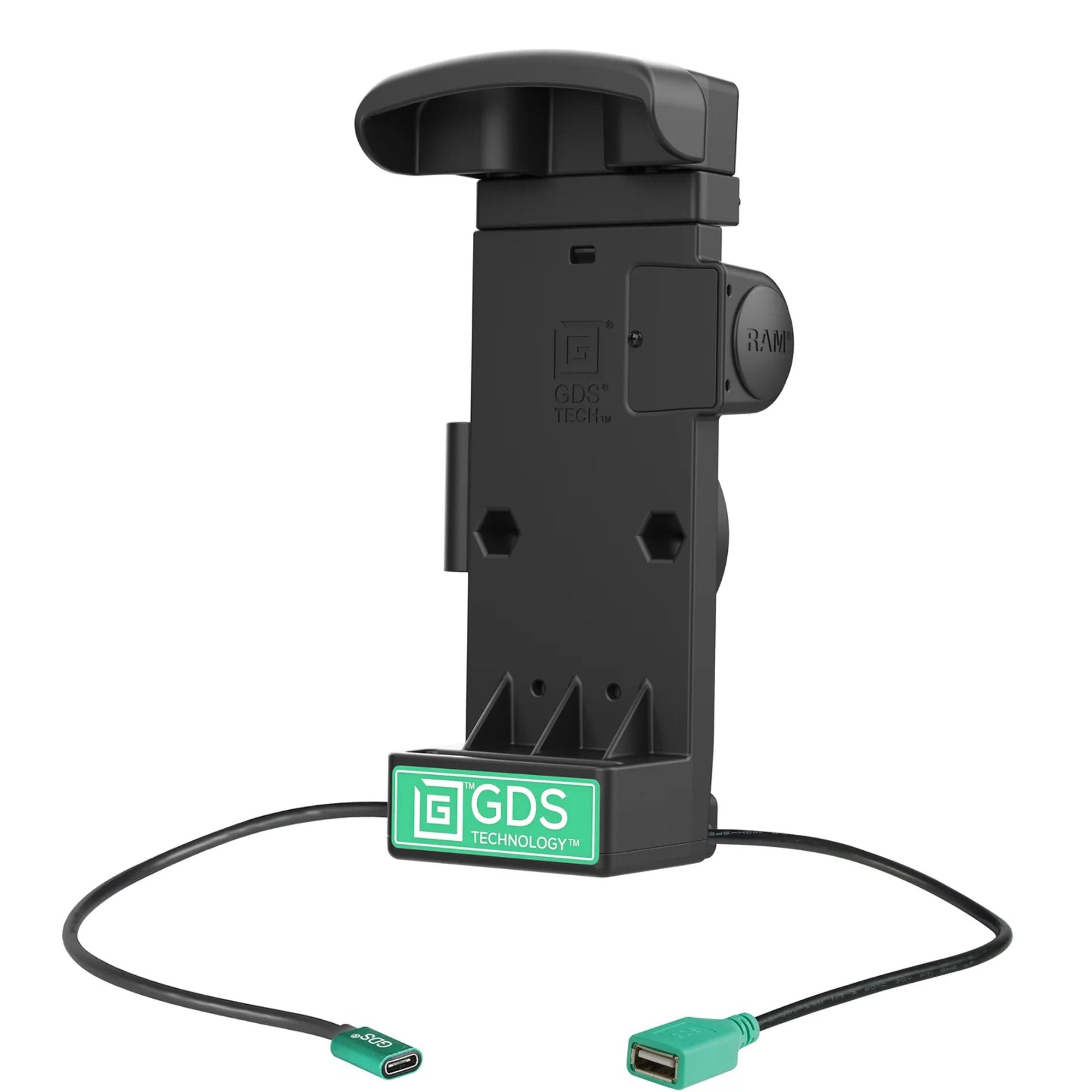

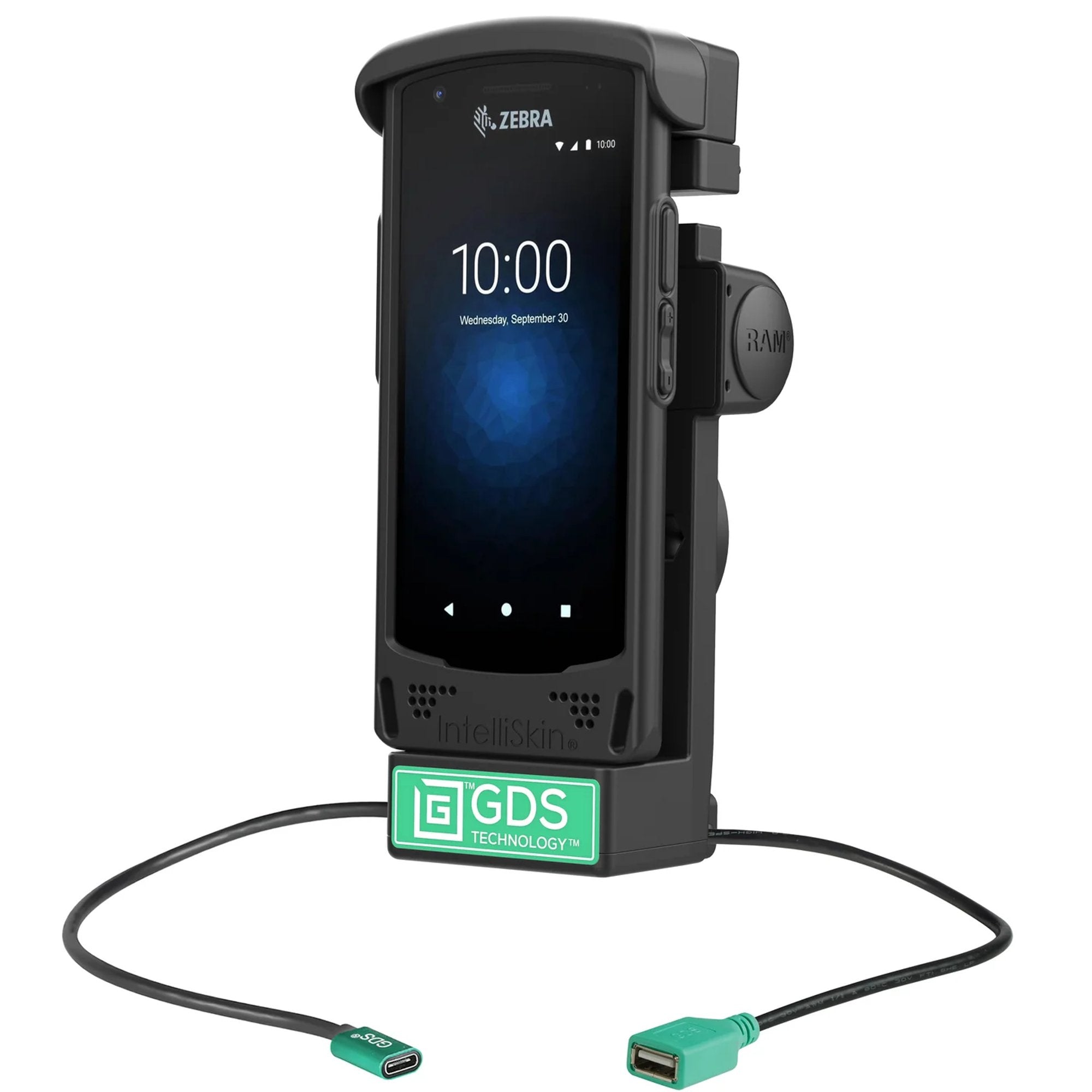

The RAM® GDS® Powered Dock for Zebra EC50 and EC55 delivers secure mounting, reliable charging, and seamless peripheral connectivity for fleet vehicles and mobile work environments. Designed specifically for IntelliSkin®-wrapped Zebra EC5x devices, this rugged powered dock supports one-handed insertion and removal, keeping your device protected, powered, and ready for action.
Built with GDS® Technology™, this vehicle dock uses pogo pin contacts and a USB-C power input to ensure consistent charging while minimizing port wear. An integrated USB-A pigtail allows you to connect a peripheral such as a scanner, keyboard, or other accessory—making it ideal for logistics, warehousing, field service, and public safety applications.
Key Features
-
Powered vehicle dock designed for IntelliSkin®-wrapped Zebra EC50 & EC55
-

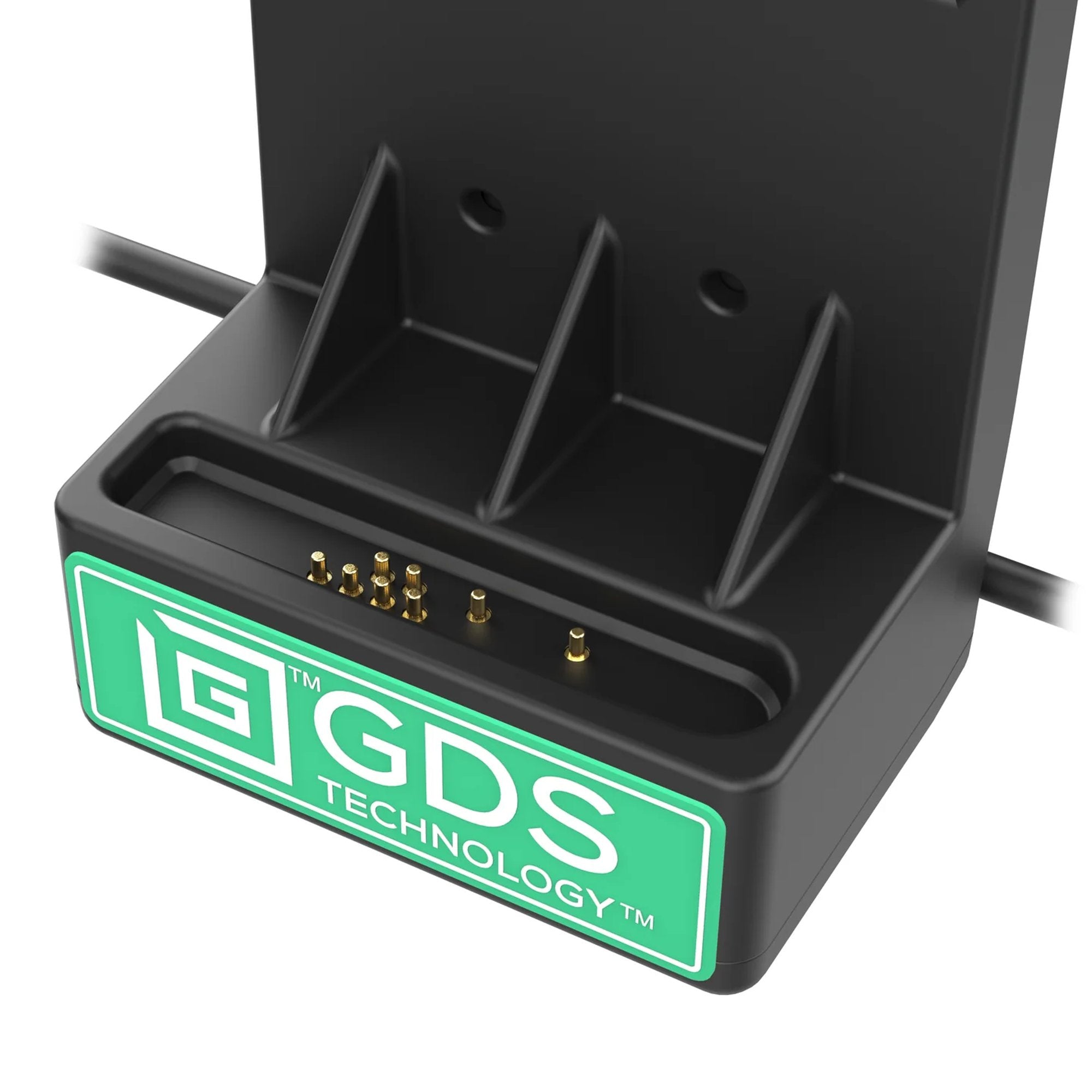

USB-C power input with pogo pin charging contacts for secure docking
-
Integrated USB-A port supports one additional peripheral (500mAh output)
-
Spring-loaded design enables easy one-handed docking and removal
-

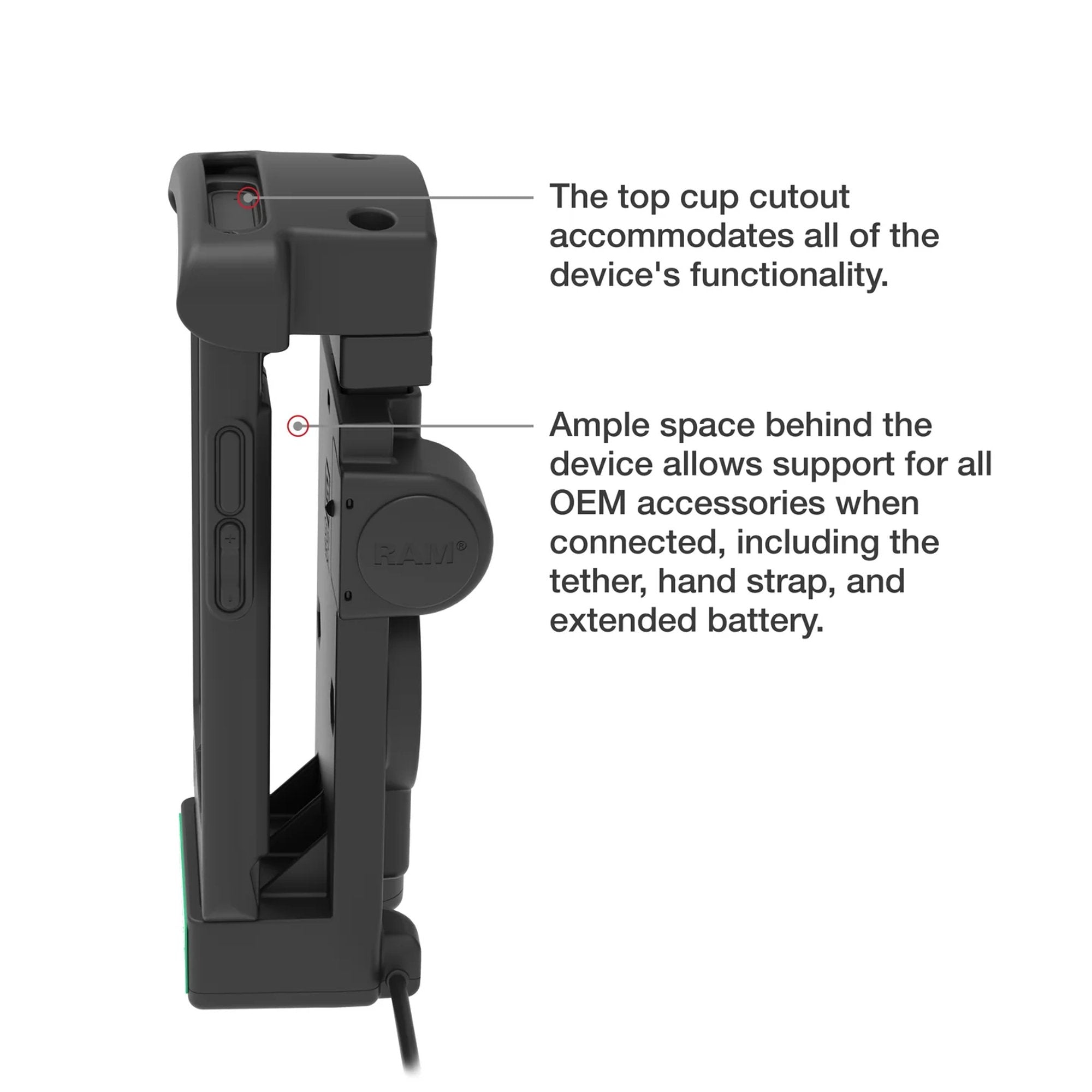

Top cutout allows access to buttons, ports, and barcode scanner while docked
-

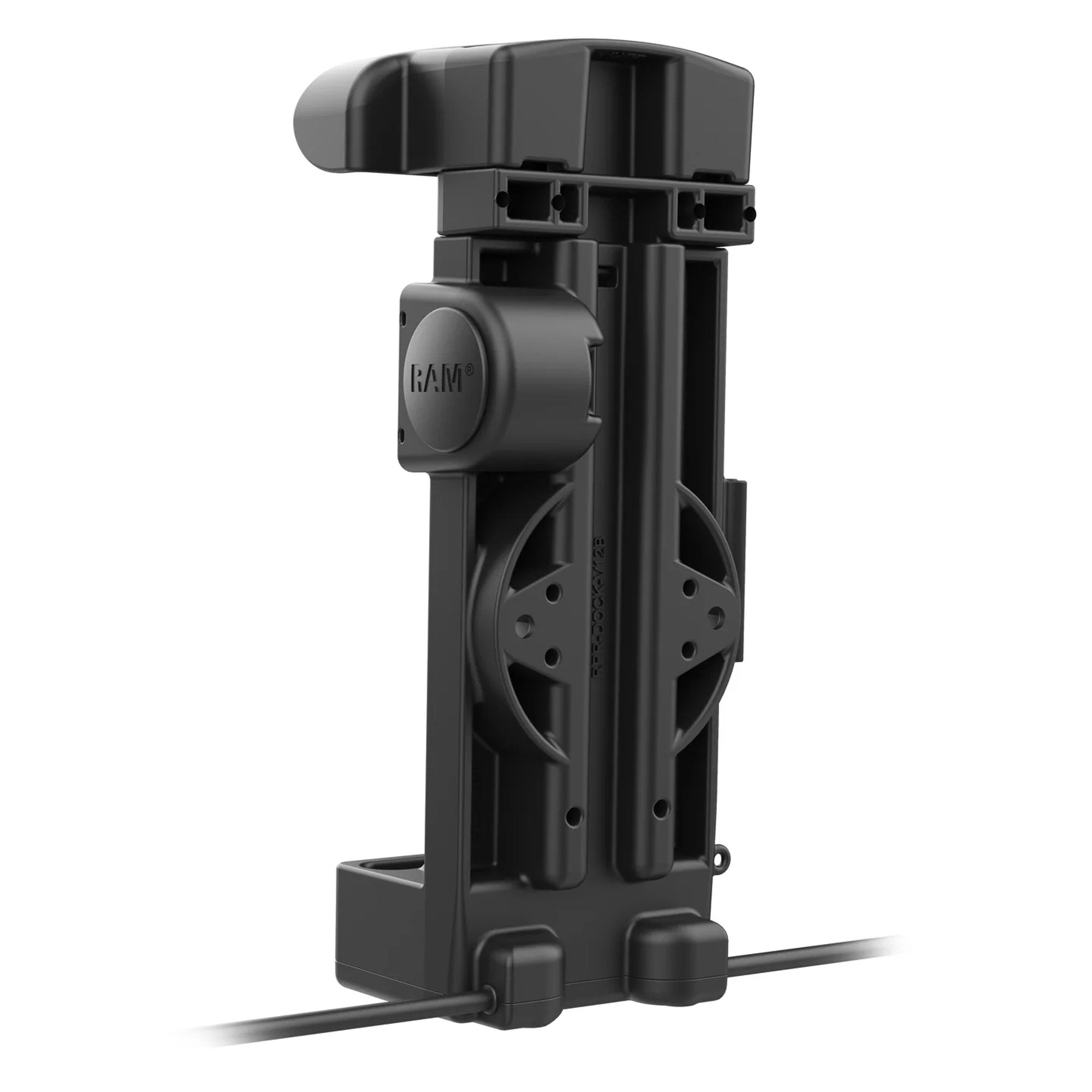

2-Hole AMPS pattern compatible with RAM® diamond bases and double socket arms
-
Constructed from high-strength composite materials for demanding environments
-
Backed by a 3-year RAM® warranty
Ideal Applications
-
Fleet vehicles & service trucks
-
Warehouse and distribution operations
-
Field service & utilities
-
Transportation & logistics
-
Public safety & enterprise mobility
Technical Specifications
-
Dock Type: Powered vehicle dock with data support
-
Compatible Devices: Zebra EC50, EC55 (with IntelliSkin®)
-
Hole Pattern: 2-Hole AMPS (1.912")
-
Input Connectors: USB-C (power), USB-A (1 peripheral)
-
Peripheral Output: 500mAh
-
Cable Length: 1 meter
-
Material: High-strength composite
-
Weight: 0.67 lb
Hardware Included
-
(2) #8-32 x 1/2" Machine Screws
-
(2) #8-32 x 5/8" Machine Screws
-
(2) #8-32 x 3/4" Machine Screws
-
(2) #8-32 Nylock Nuts
Brand and Warranty
-
Brand: RAM Mounts
-
Part Number: RAM-GDS-DOCK-V12-ZE16CPDU
-
Warranty: Manufacturer’s 3-Year Warranty
