Description

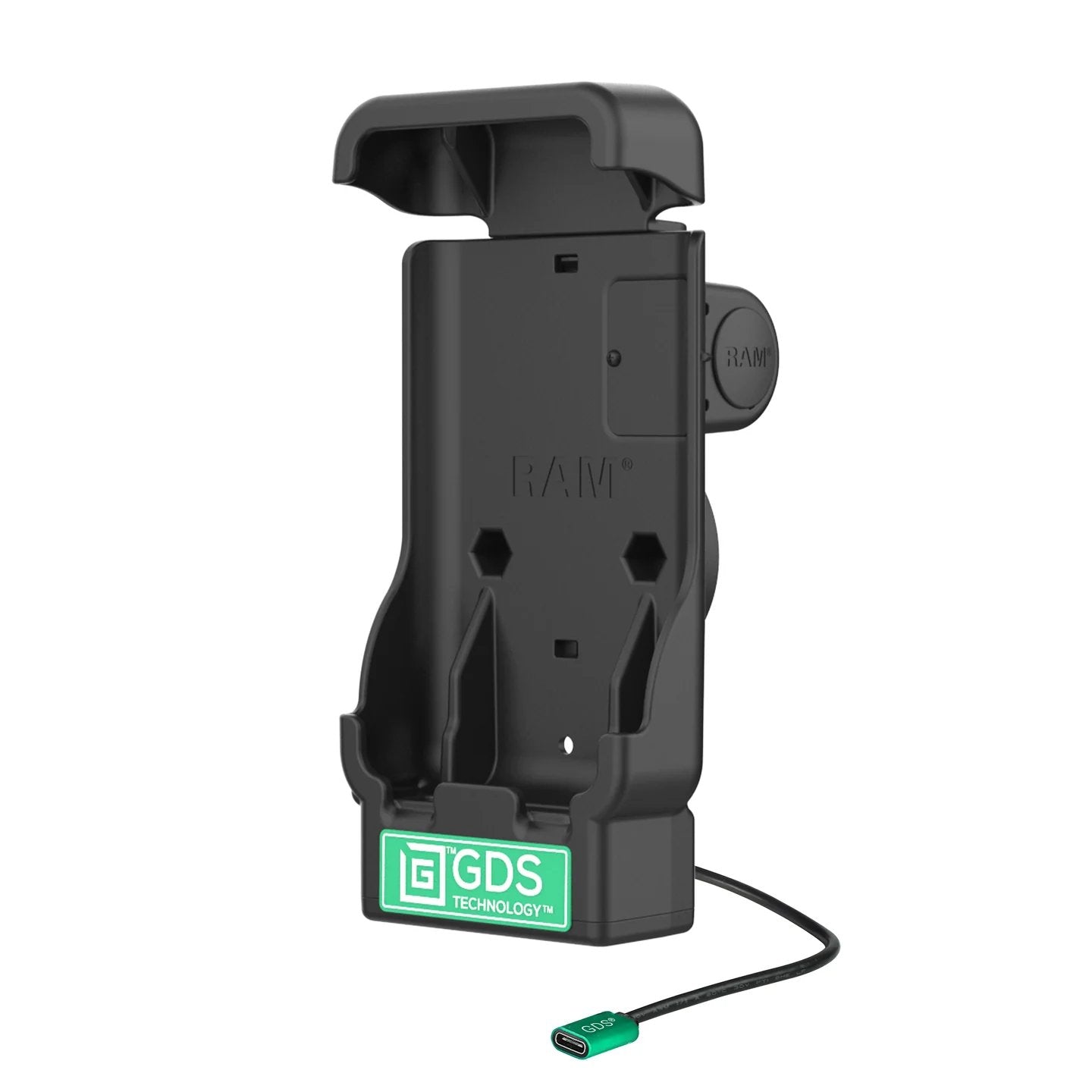

The RAM® GDS® Powered Vehicle Dock with IntelliSkin® is a rugged, enterprise-grade charging solution engineered for vehicles operating in demanding field environments. Designed to work seamlessly with IntelliSkin®-wrapped handheld devices, this dock delivers reliable power and secure retention while supporting fast, one-handed operation.
Integrated pogo pin charging technology ensures consistent power delivery through an external USB-C connection, eliminating wear on device ports. The spring-loaded design allows quick insertion and removal, while the rear cavity supports ergonomic accessories without interference. A top cutout provides direct access to scanners, buttons, and ports—keeping workflows uninterrupted.
Built with RAM® Compatible™ mounting technology, this powered dock features a 2-hole AMPS pattern, making it easy to integrate with RAM® diamond bases and double socket arms for near-infinite adjustability. Constructed from high-strength composite materials, it’s purpose-built for fleet vehicles, warehouses, public safety, logistics, and field service operations.
As an Authorized RAM Mounts Dealer, Gadget Mounts ensures you receive genuine products backed by the manufacturer’s full warranty.
Key Features
-
Spring-loaded powered dock designed for handhelds wrapped in IntelliSkin®
-

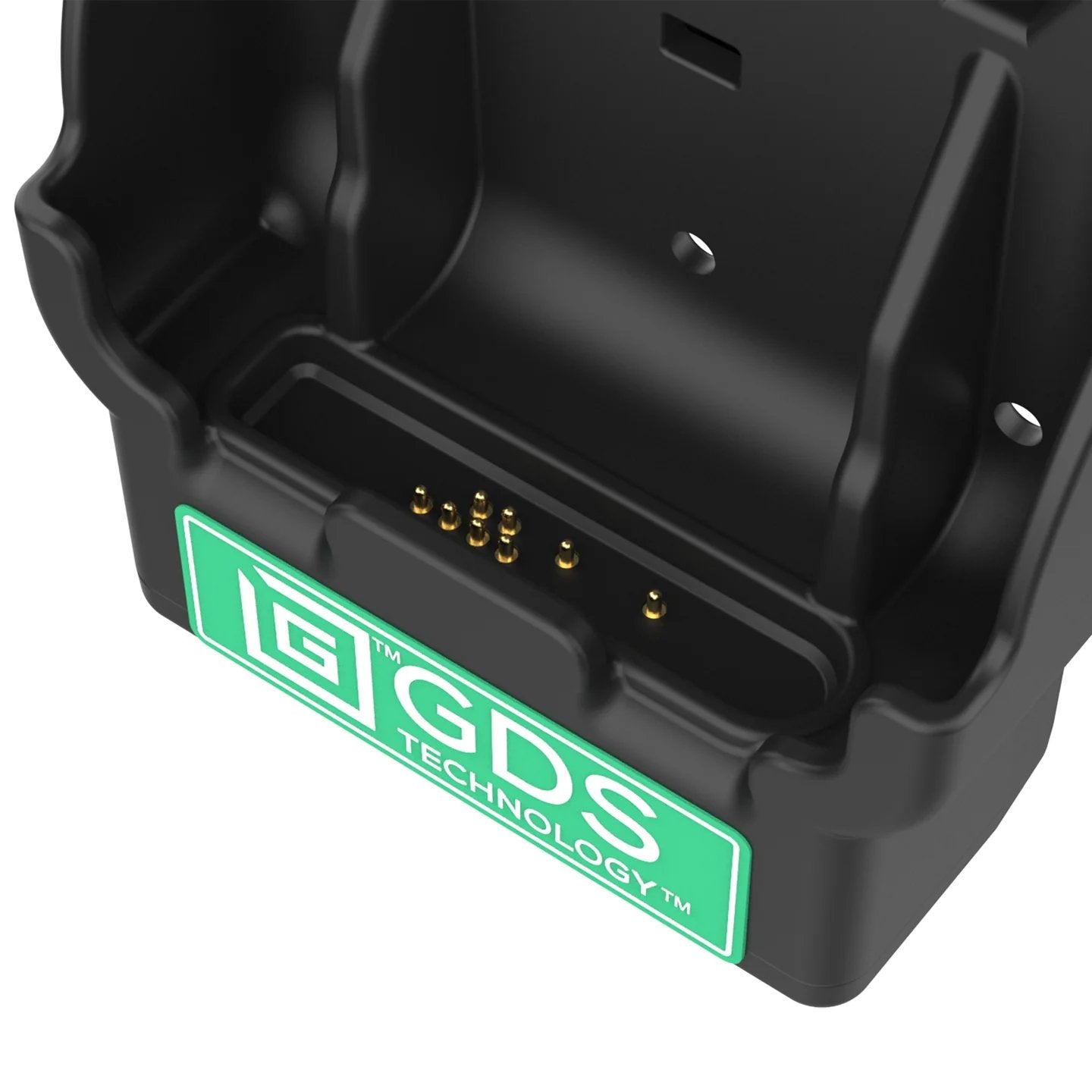

Integrated pogo pin charging with external USB-C power input
-
One-handed insertion and removal for fast-paced workflows
-
Rear cavity supports ergonomic accessories mounted to the device
-

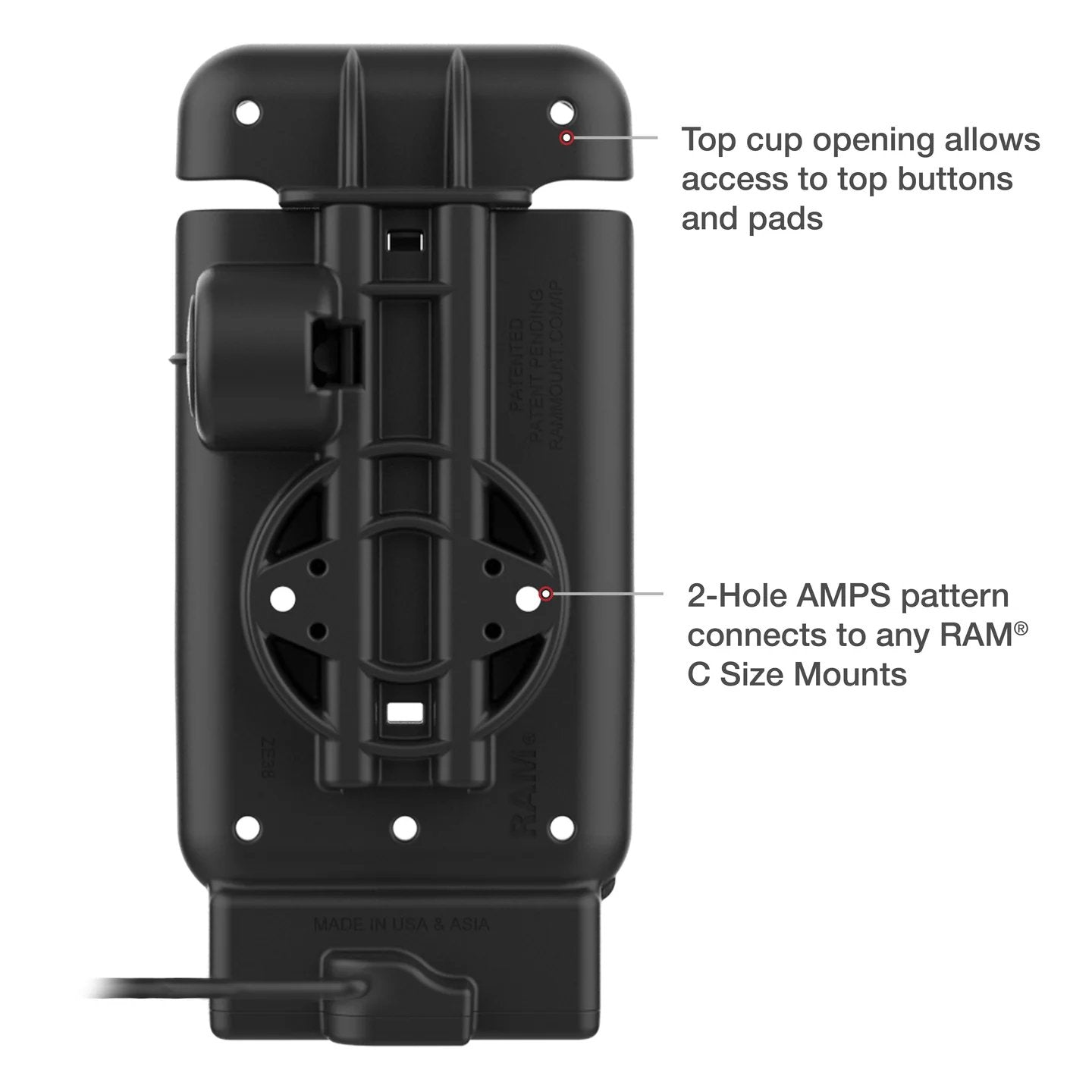

Top access cutout allows scanner, button, and port use while docked
-
RAM® Compatible™ with 2-hole AMPS pattern for modular mounting
-
Durable high-strength composite construction for harsh environments
Technical Specifications
-
Hole Pattern: 2-Hole AMPS (1.912")
-
Input Connector: USB Type-C
-
Input Cable Length: 380mm
-
Output Voltage: 5V – 12V @ 3A
-
Power Output: 15W
-
Material: High-strength composite
-
Weight: 0.69 lb
Hardware Included
-
(2) #8-32 x 5/8" Machine Screws
-
(2) #8-32 x 3/4" Machine Screws
-
(2) #8-32 Nylock Nuts
-
(1) Cable Clamp Kit
Device Compatibility Notes
-

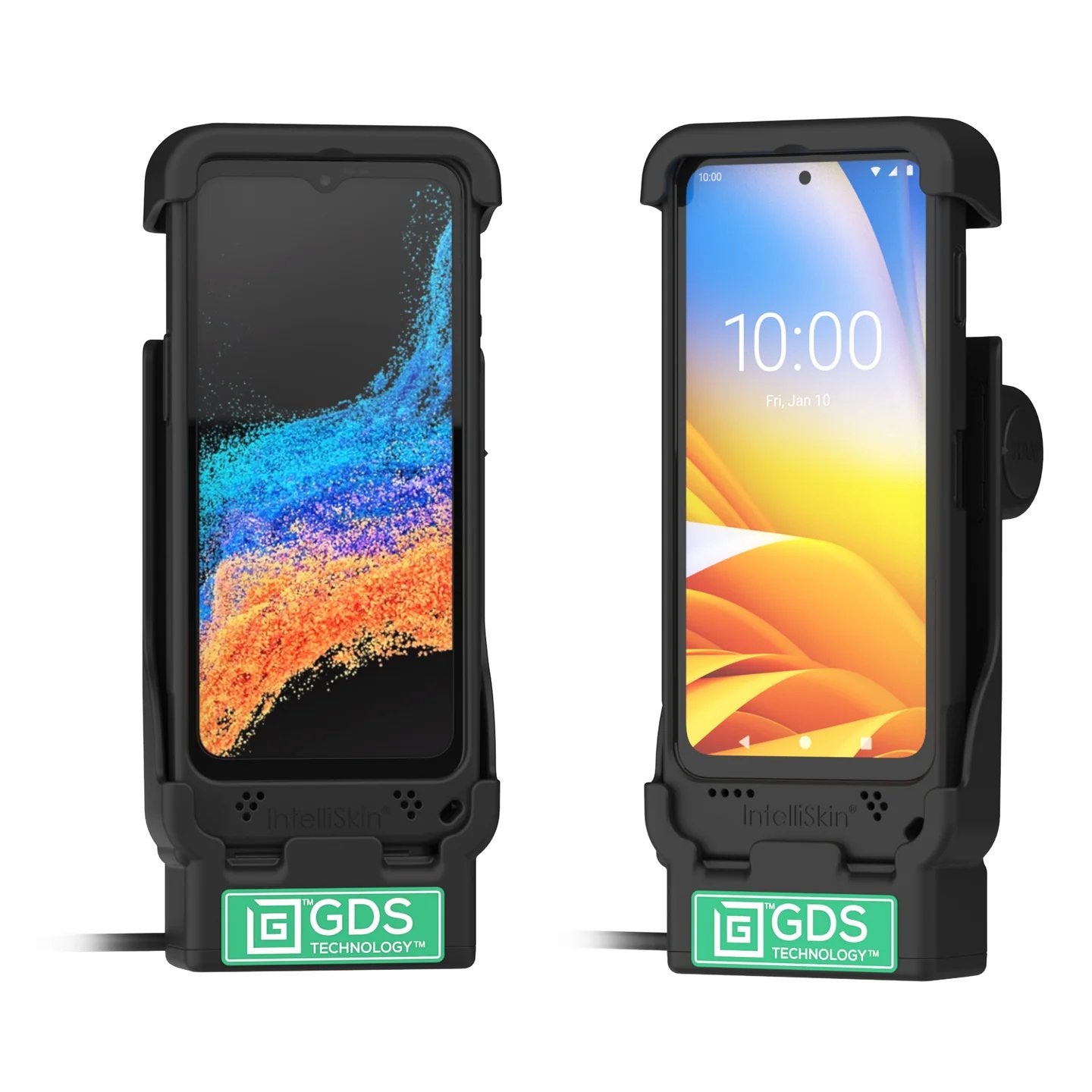

For Samsung XCover6 Pro, XCover7 Pro, and Zebra EM45, this dock supports only IntelliSkin® versions with an external USB-C port
-
For IntelliSkin® versions without USB-C, refer to compatible alternate dock RAM-GDS-DOCK-V15-BU
Brand and Warranty
-
Brand: RAM Mounts
-
Part Number: RAM-GDS-DOCK-V15-AU
-
Warranty: Manufacturer’s 3-Year Warranty
