Description

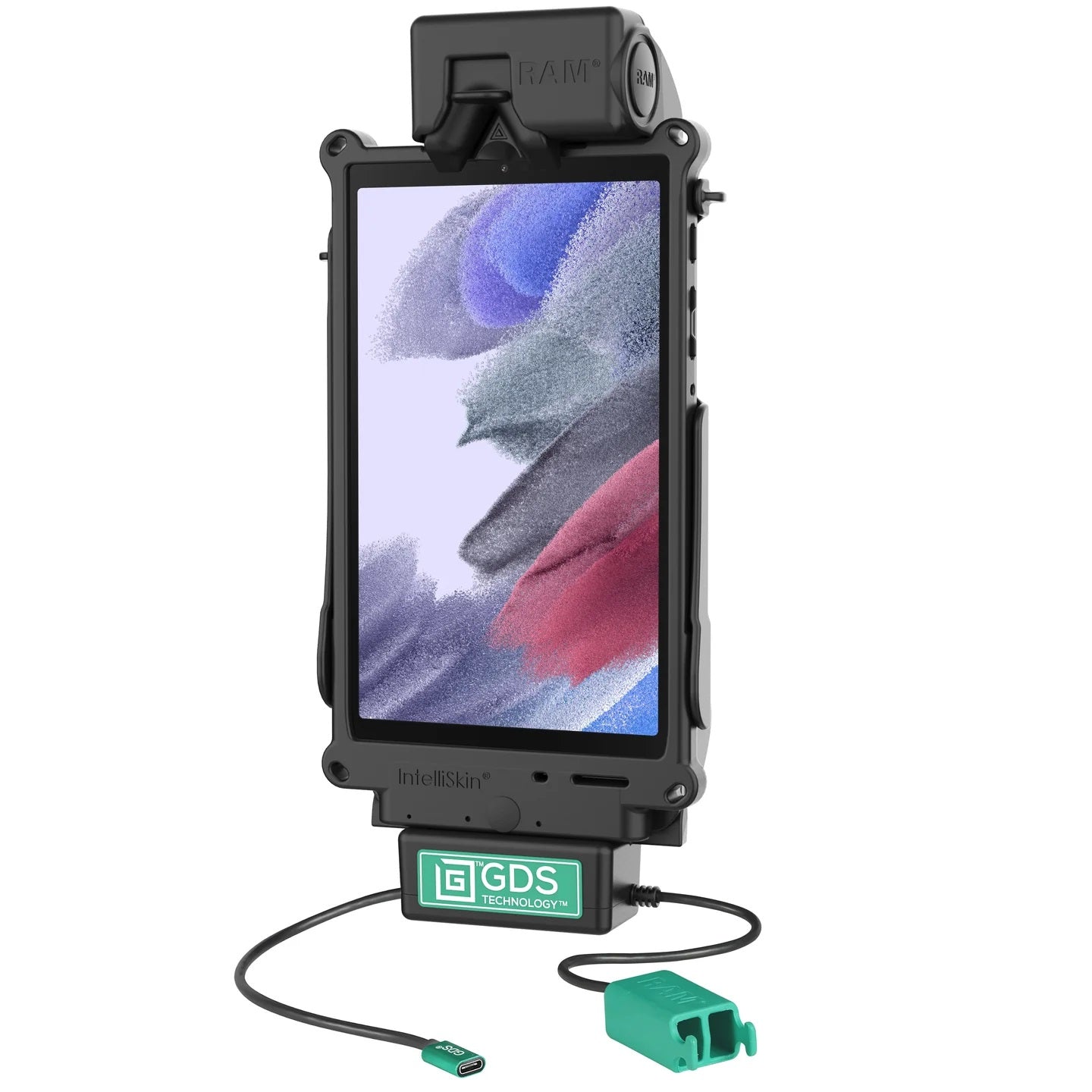

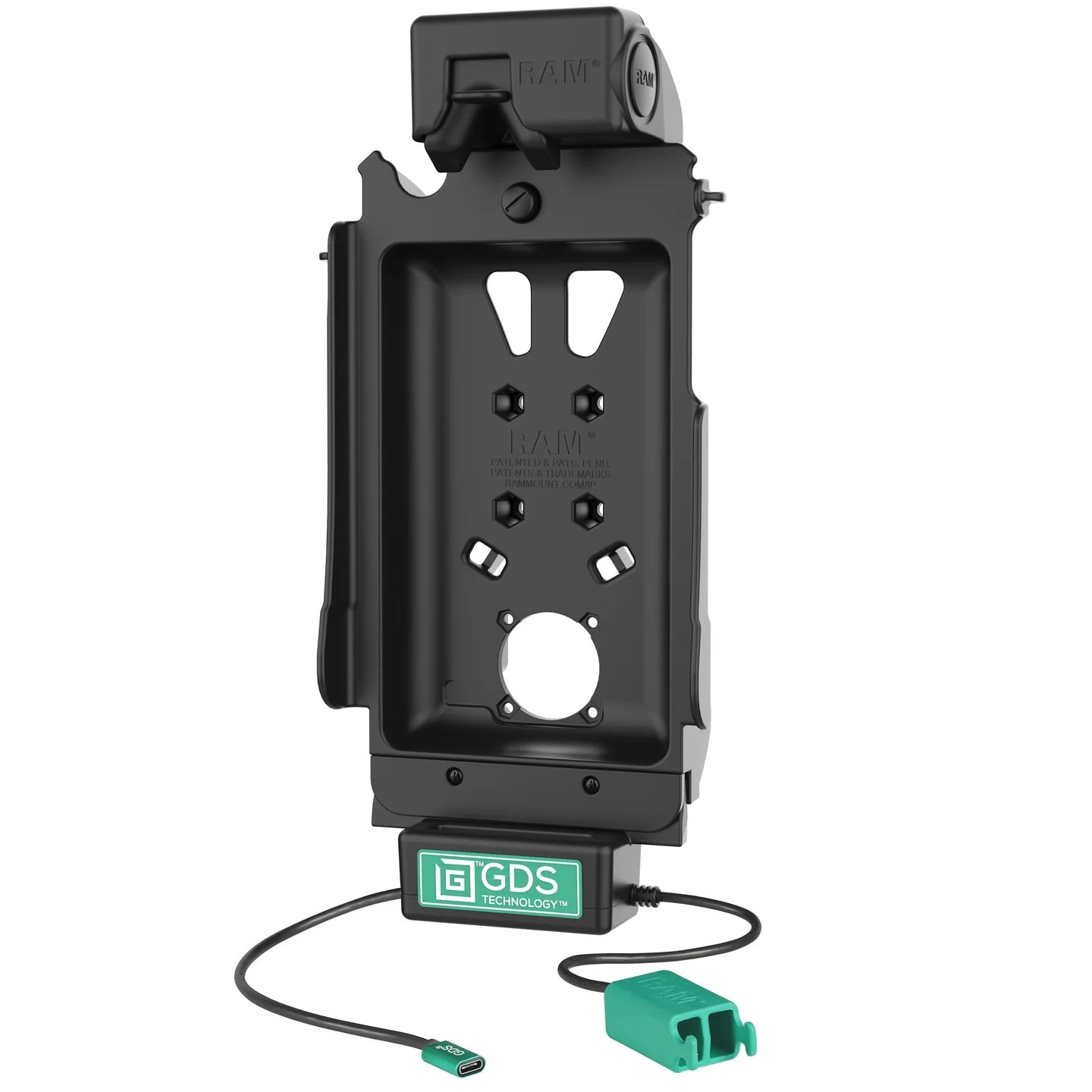

This GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab A9 & A7 Lite 8.7" in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a dual USB Type-A connector to support up to two peripheral add-ons such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features:

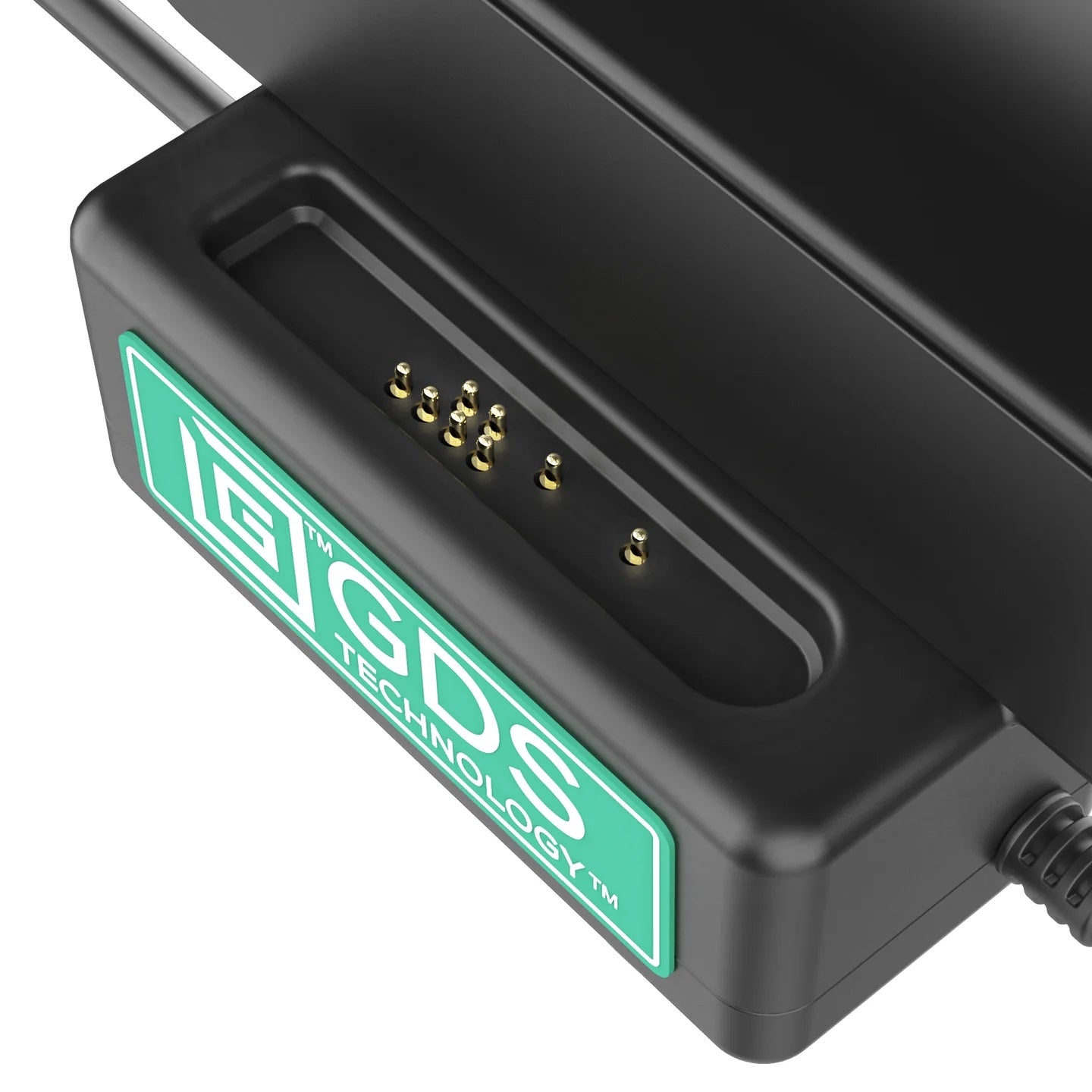

- Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection for up to two additional USB peripherals
- Designed specifically for the Samsung Galaxy Tab A9 & A7 Lite 8.7" wrapped in an IntelliSkin® Next Gen protective sleeve

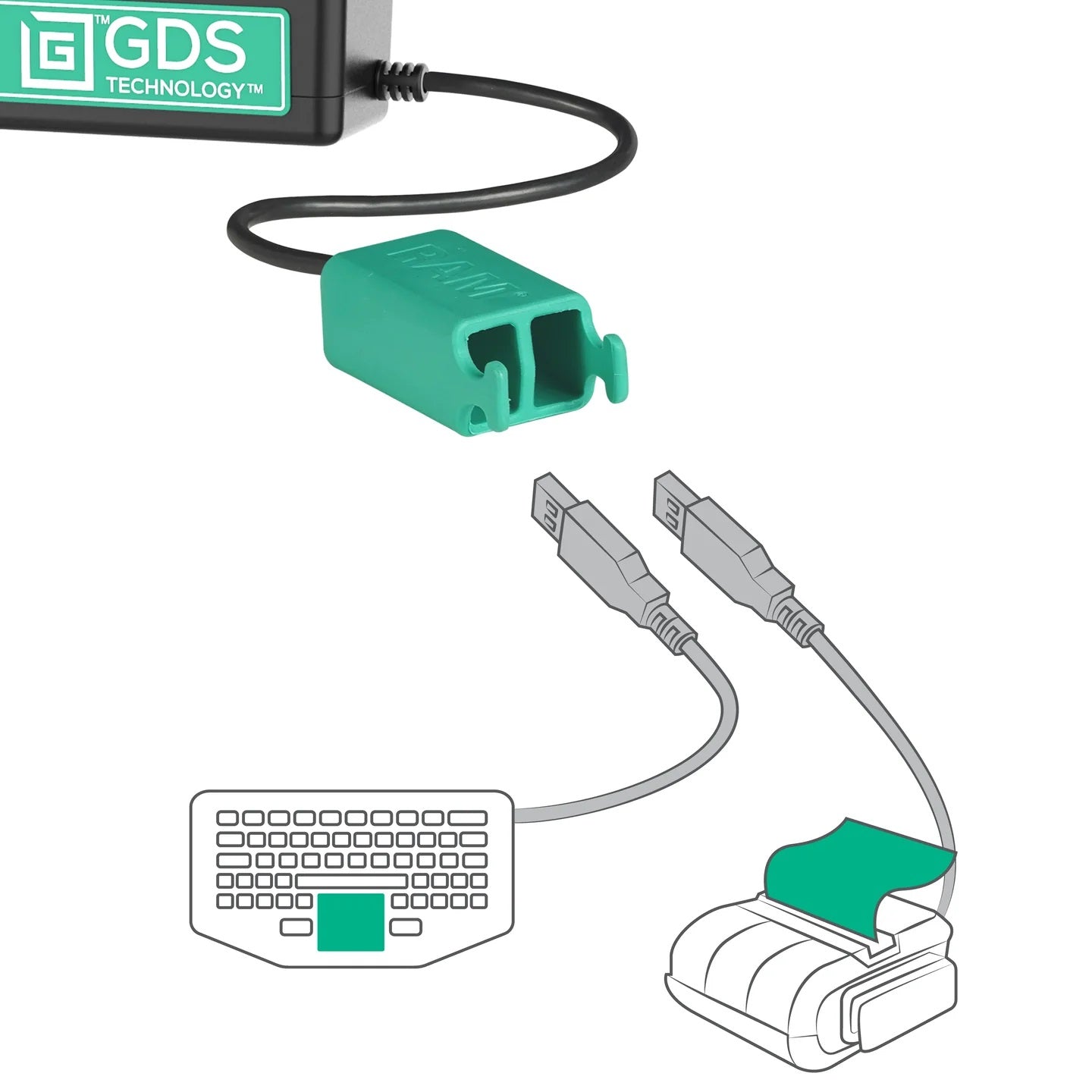

- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector

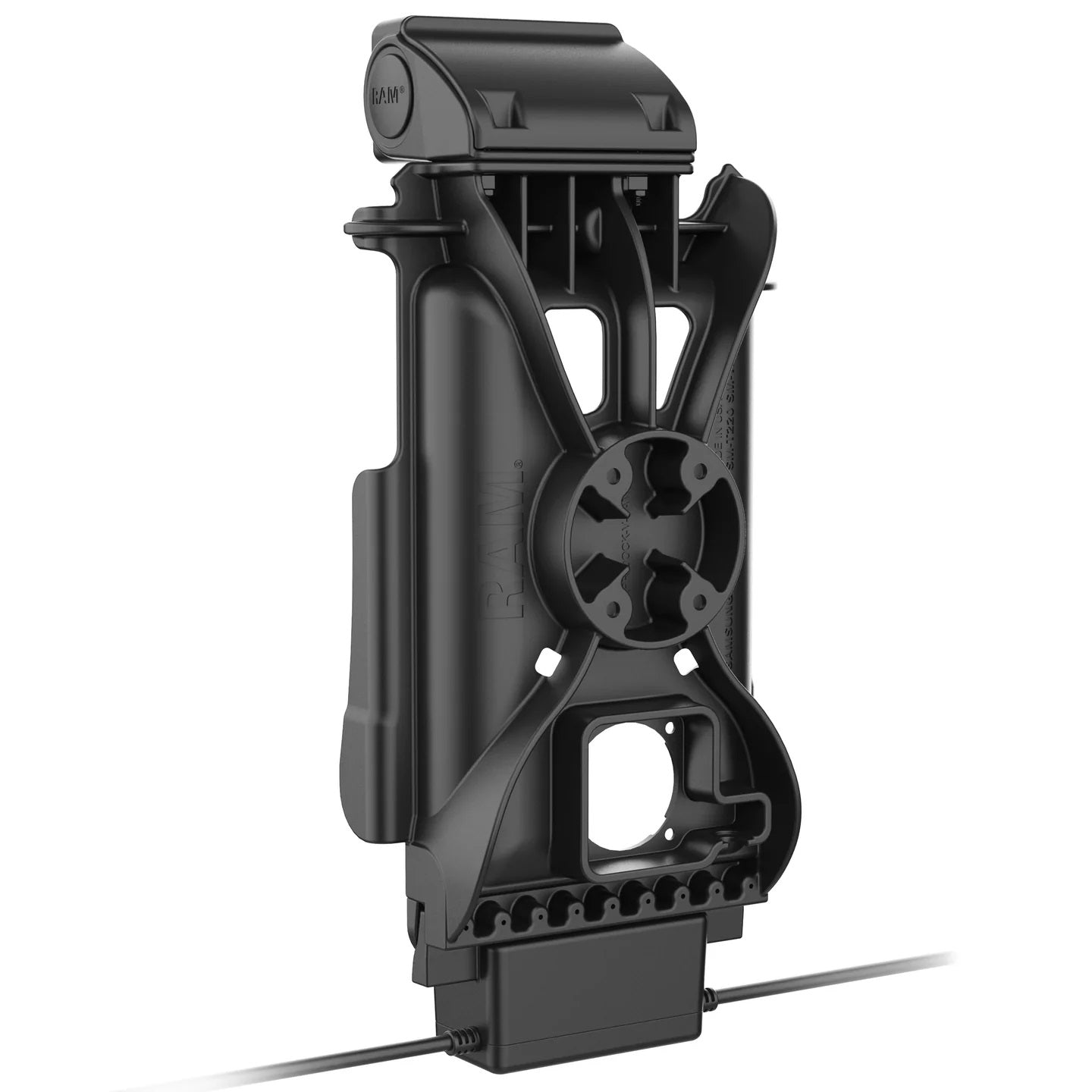

- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Hole pattern: 4-Hole AMPS: 1.181" x 1.496"
- Constructed of high strength composite
Included Hardware:
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
- (1) USB Type-C to Type-A Cable
Compatible Devices:
-Samsung
- Galaxy Tab A9 with IntelliSkin® Next Gen
- Galaxy Tab A7 Lite 8.7" with IntelliSkin® Next Gen
Specifications:
- Output Voltage: 5V - 12V @ 3A max; Each Peripheral: 5V @ 900mA max
- Power Output: 15W
- Input Connector: USB Type-C; Dual USB Type A for 2 Peripherals
- Output Cable Length: 215mm
- Peripheral Output: 900mAh (per port)
Brand: RAM Mounts
Part number: RAM-GDS-DOCK-SAM80CD2U
Warranty: Manufacturer's 3-year warranty
