Description

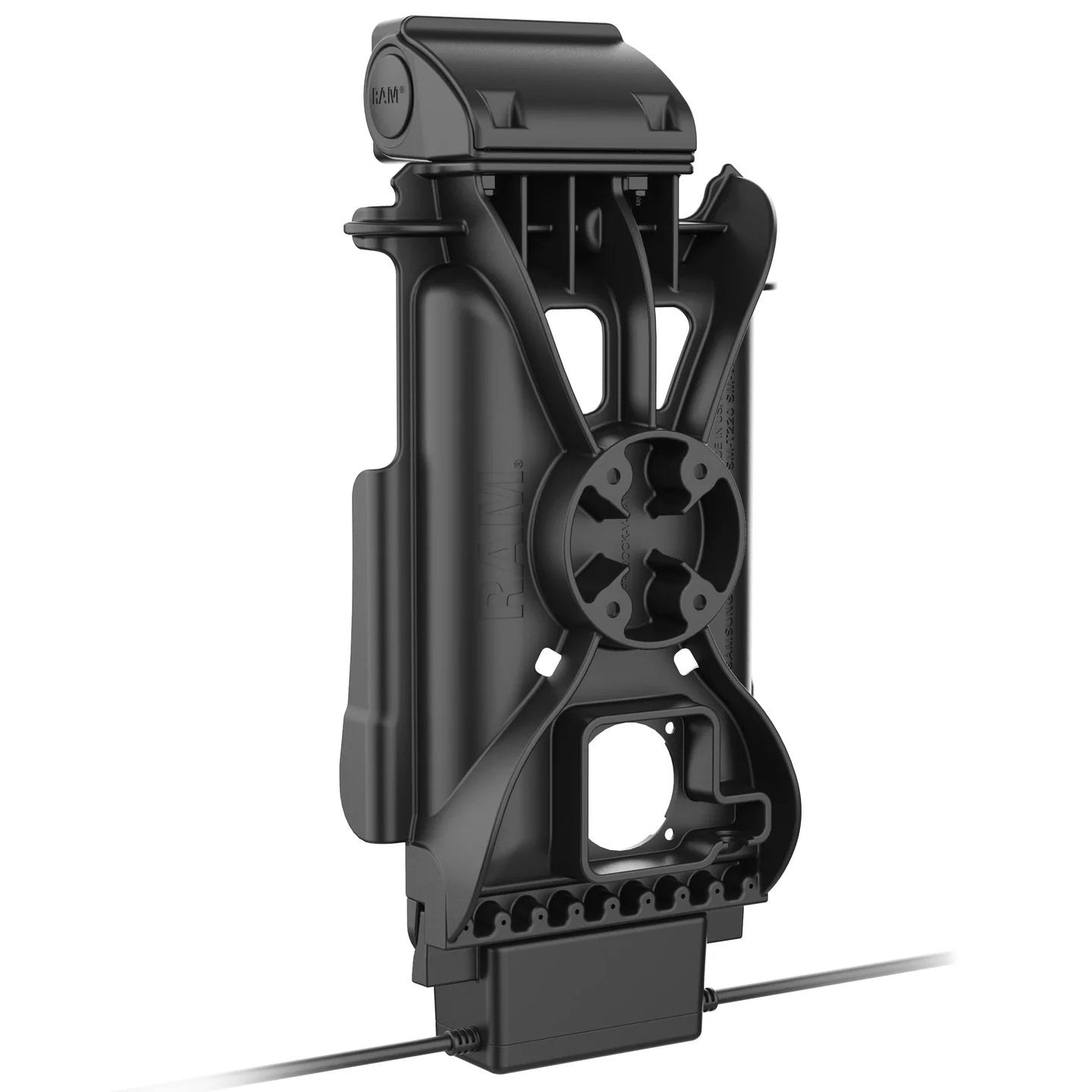

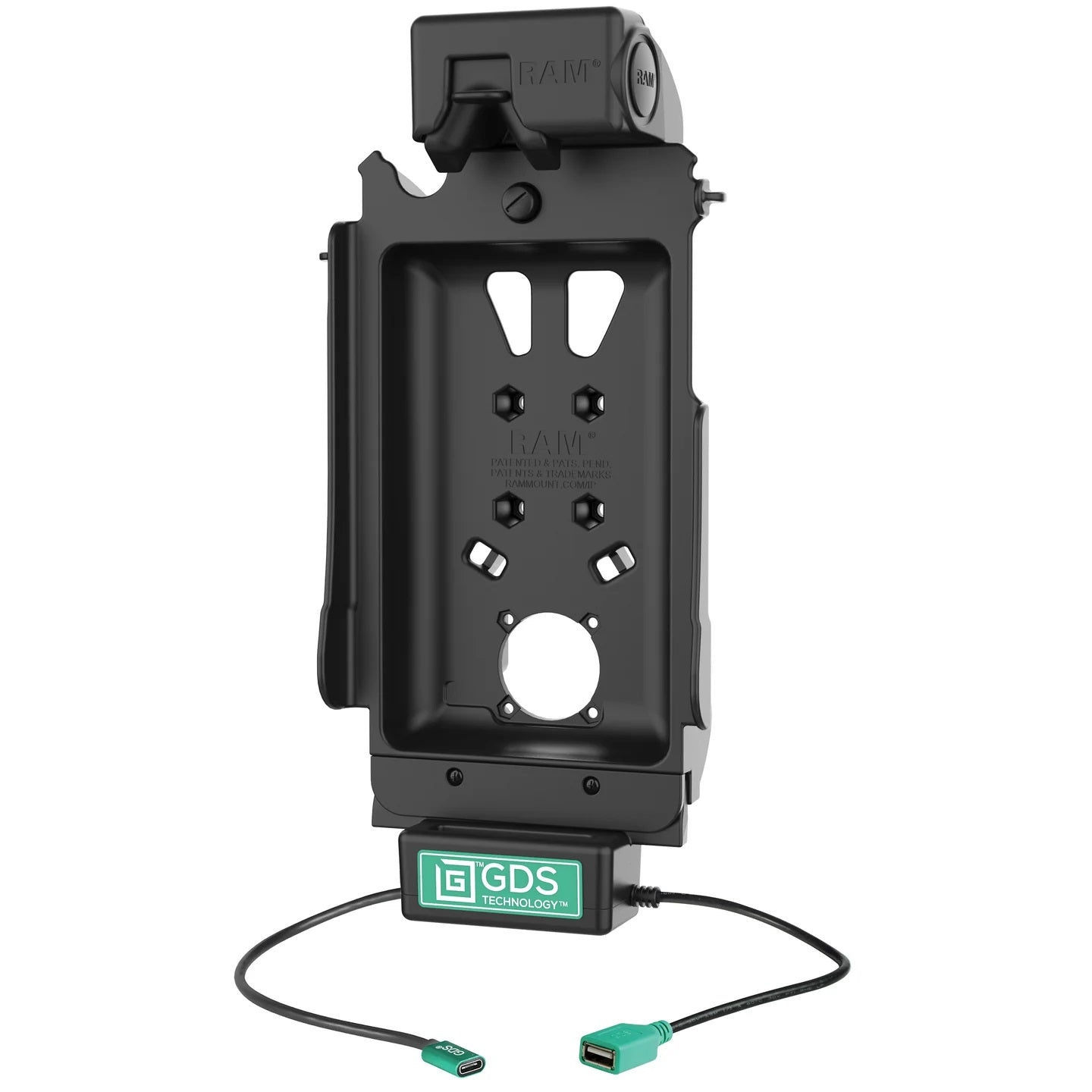

This GDS® Tough-Dock™ vehicle dock is designed to support the Samsung Galaxy Tab A9 & A7 Lite 8.7" in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features:

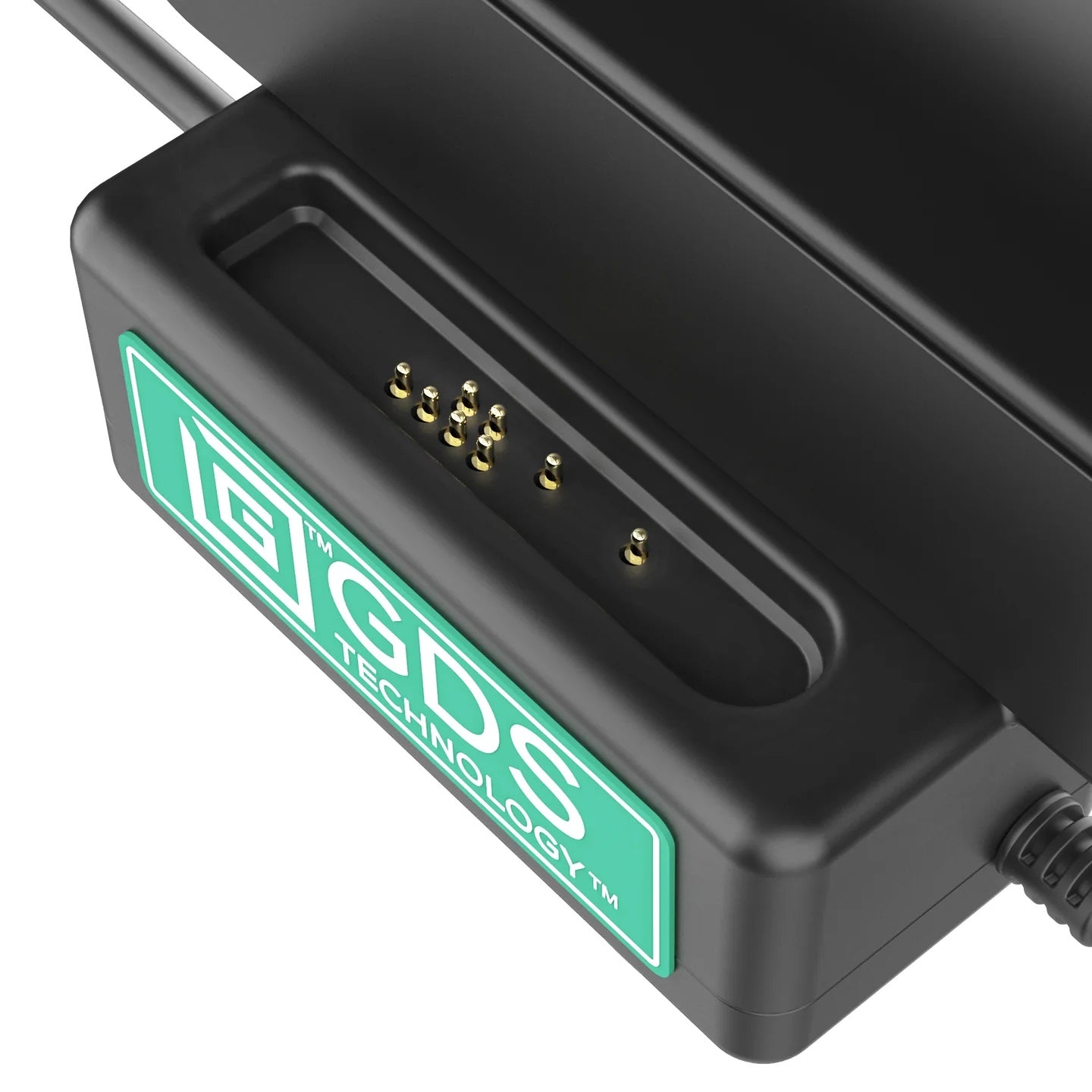

- Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral

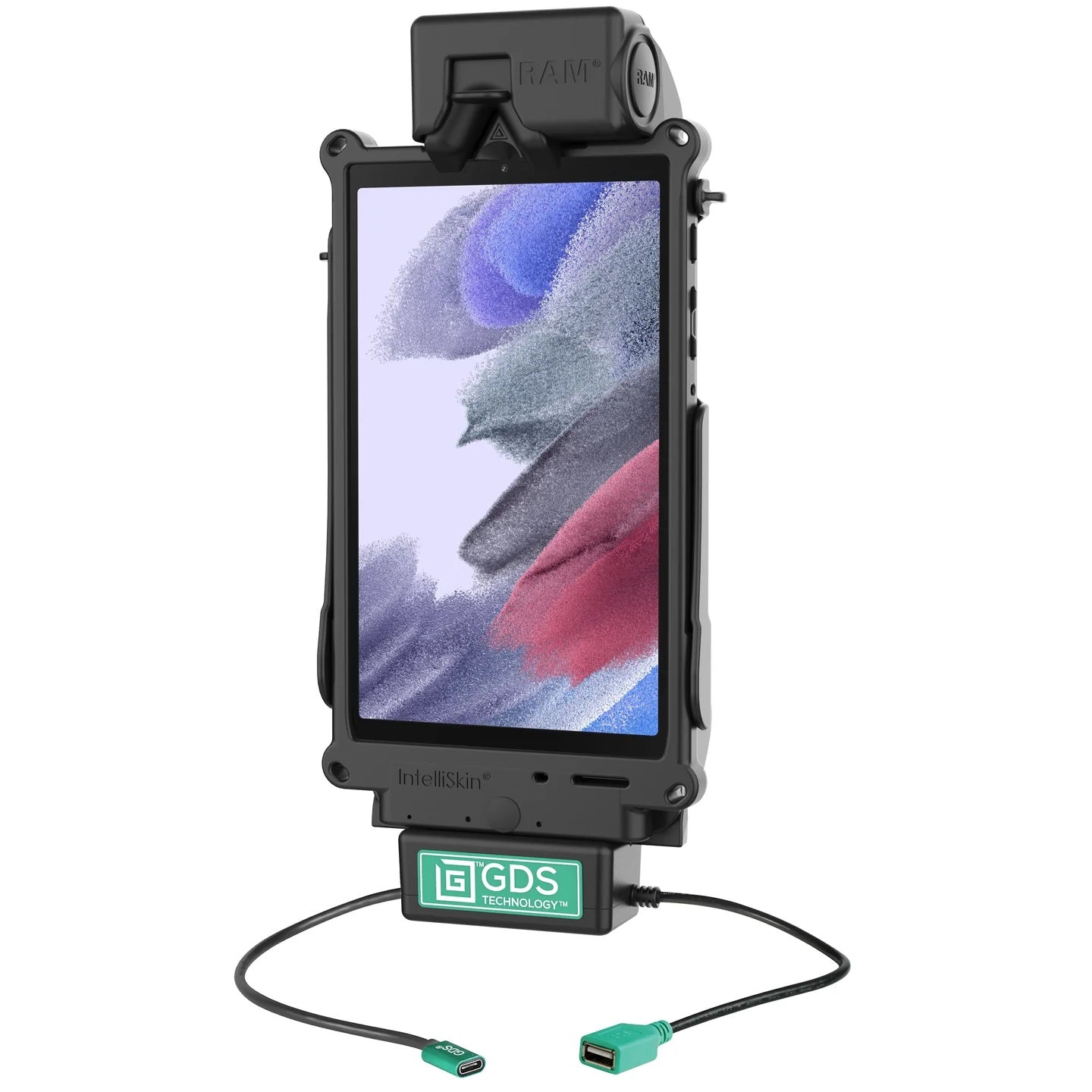

- Designed specifically for the Samsung Galaxy Tab A9 & A7 Lite 8.7" wrapped in an IntelliSkin® Next Gen protective sleeve

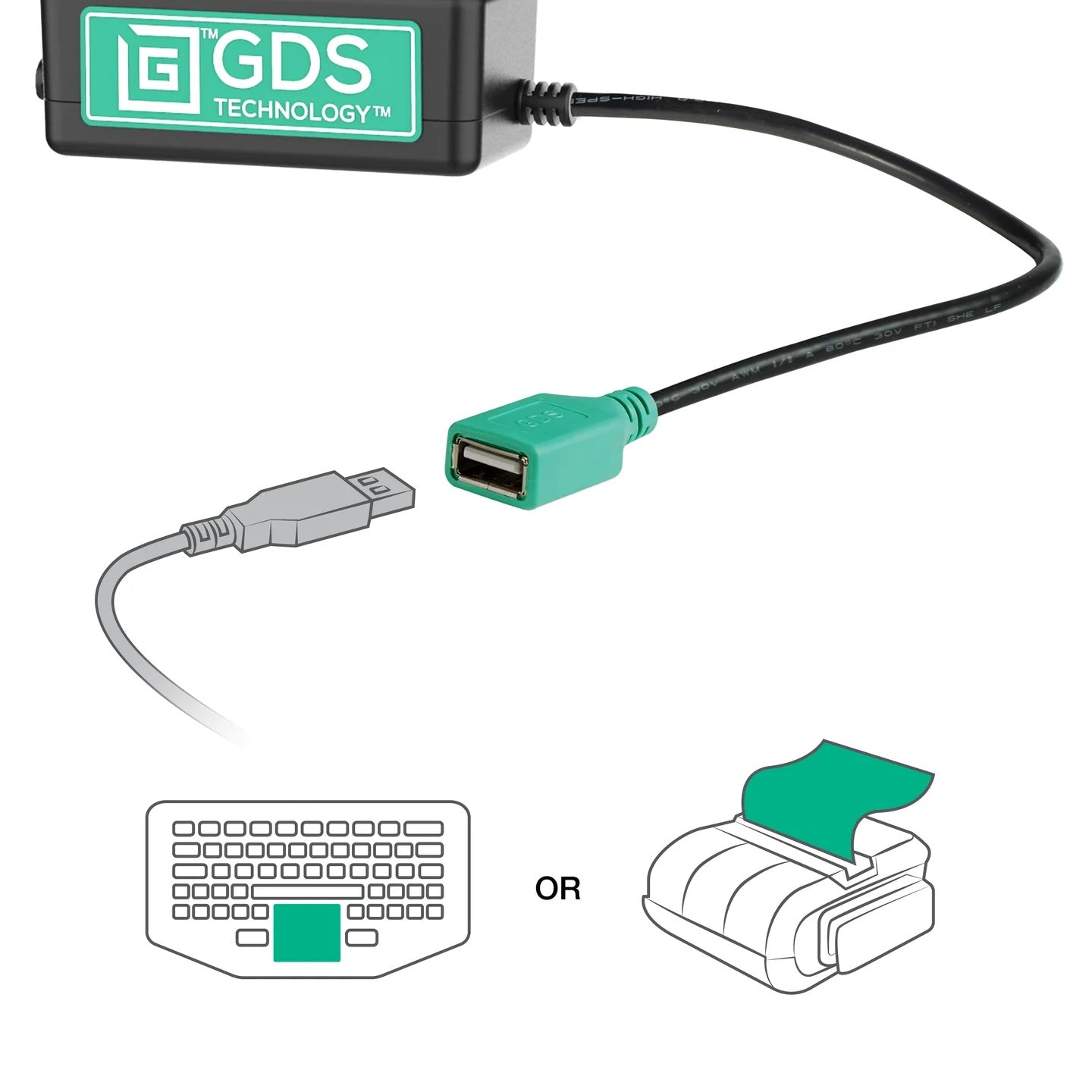

- Power delivered via USB-C connector; connect a single input device via USB-A connector
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Hole pattern: 4-Hole AMPS: 1.181" x 1.496"
- Constructed of high strength composite
Included Hardware:
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
- (1) USB Type-C to Type-A Cable
Compatible Devices:
-Samsung
- Galaxy Tab A9 with IntelliSkin® Next Gen
- Galaxy Tab A7 Lite 8.7" with IntelliSkin® Next Gen
Specifications:
- Output Voltage: 5V - 12V @ 2A
- Power Output: 15W
- Input Connector: USB Type-C; USB Type A for 1 Peripheral
- Output Cable Length: 215mm
- Peripheral Output: 500mAh
Brand: RAM Mounts
Part number: RAM-GDS-DOCK-SAM80CDU
Warranty: Manufacturer's 3-year warranty
