Description

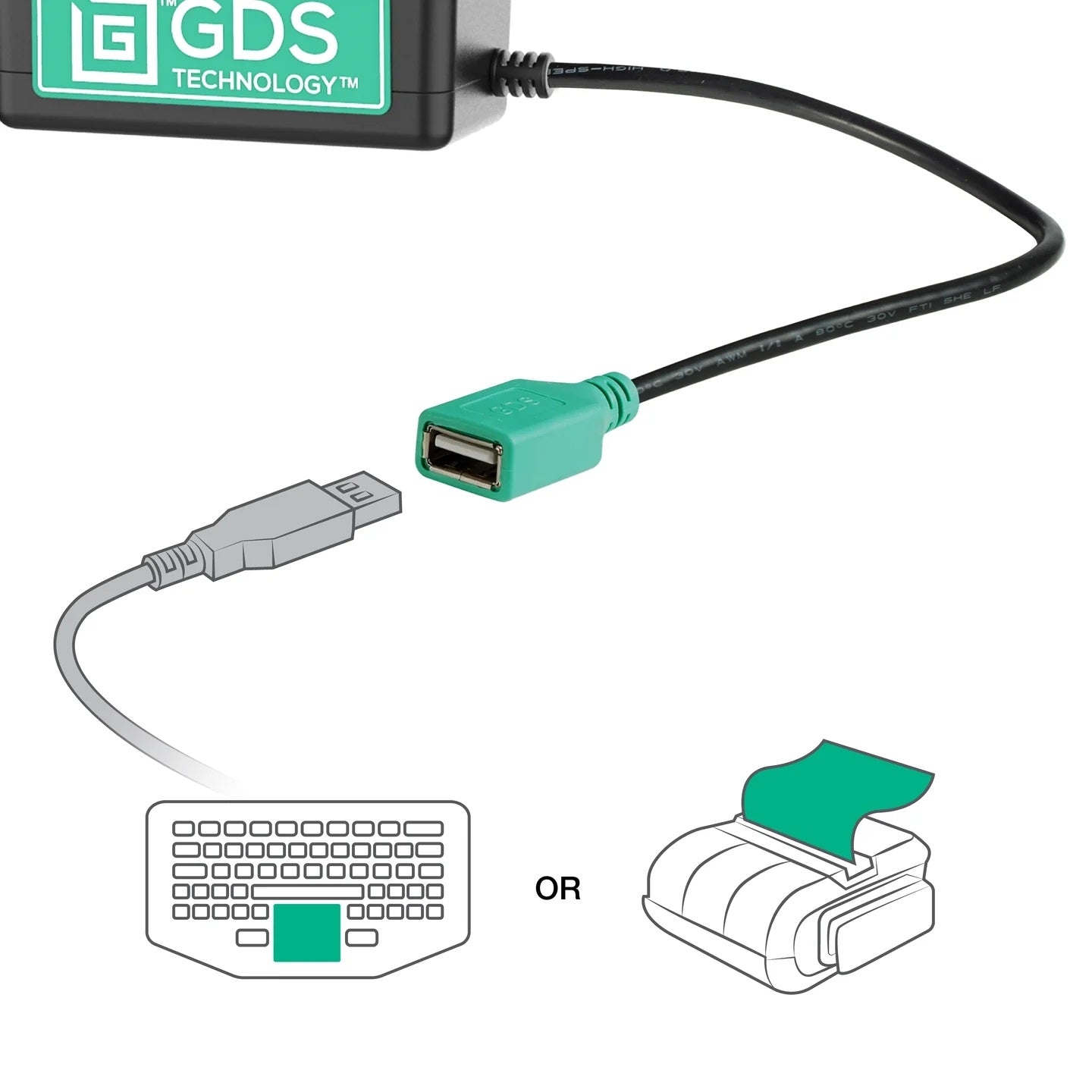

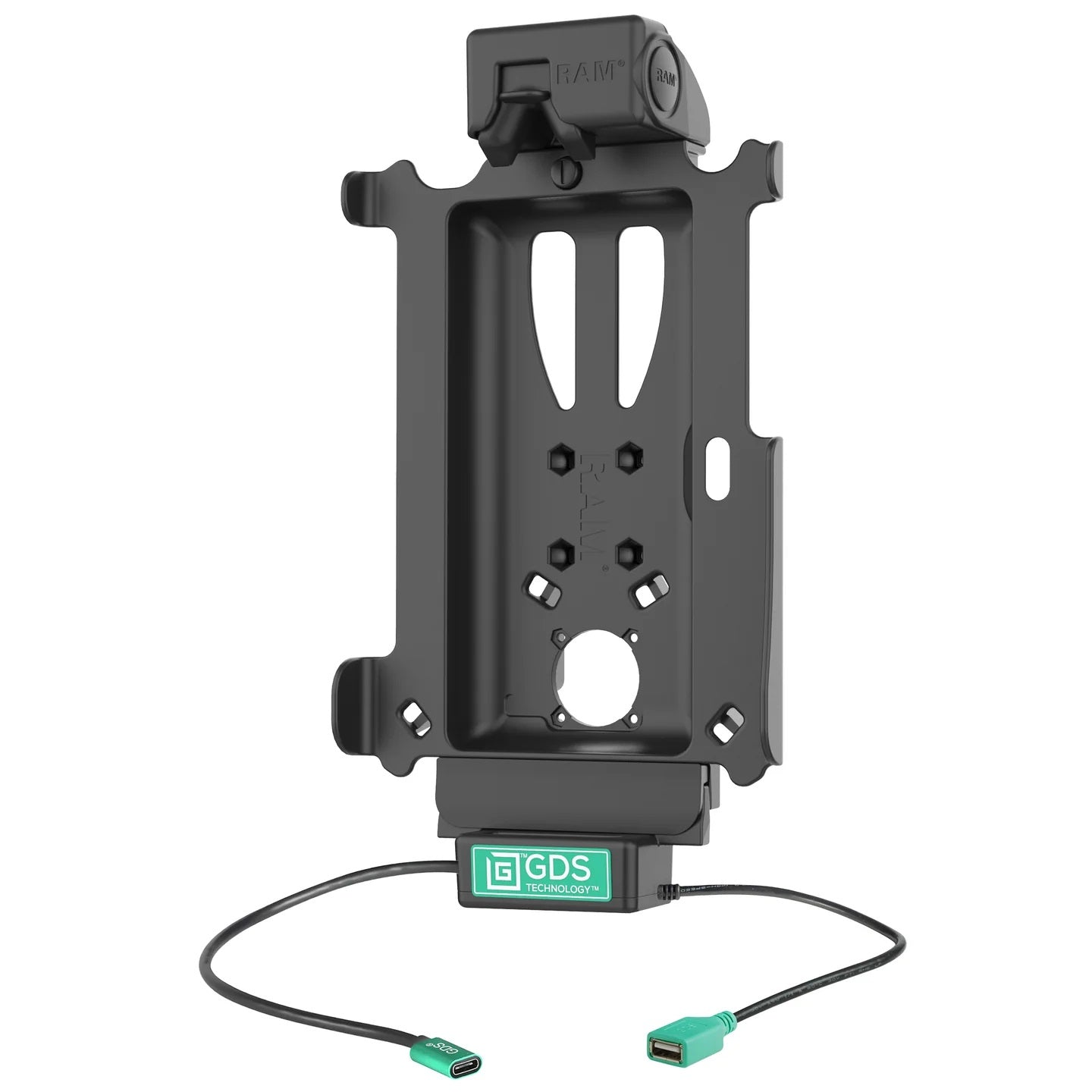

This GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCK-SAM54NCDU) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes one USB Type-A connector to support one peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features:

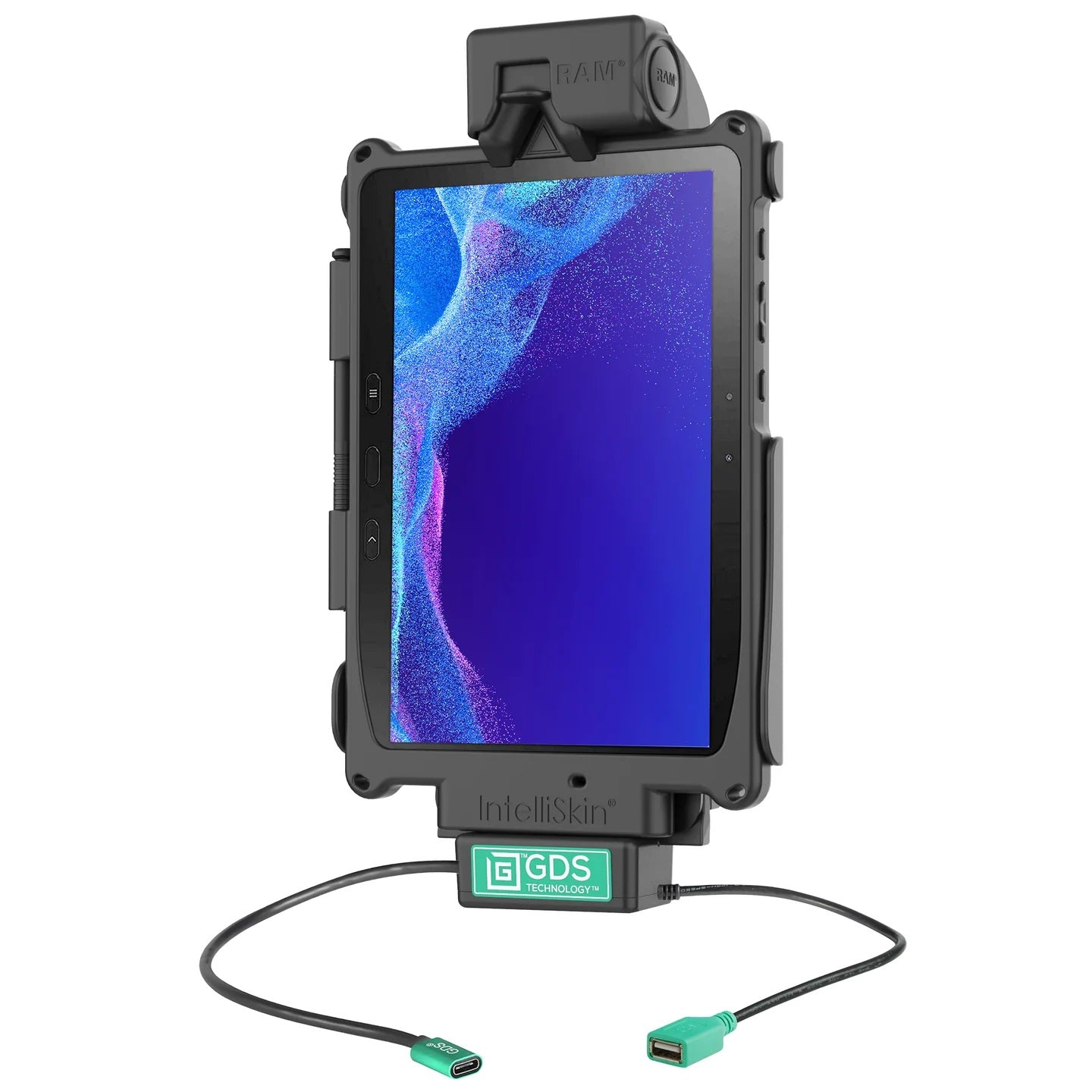

- Spring-loaded vehicle dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in an IntelliSkin® Next Gen protective sleeve
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand
- Constructed of high strength composite

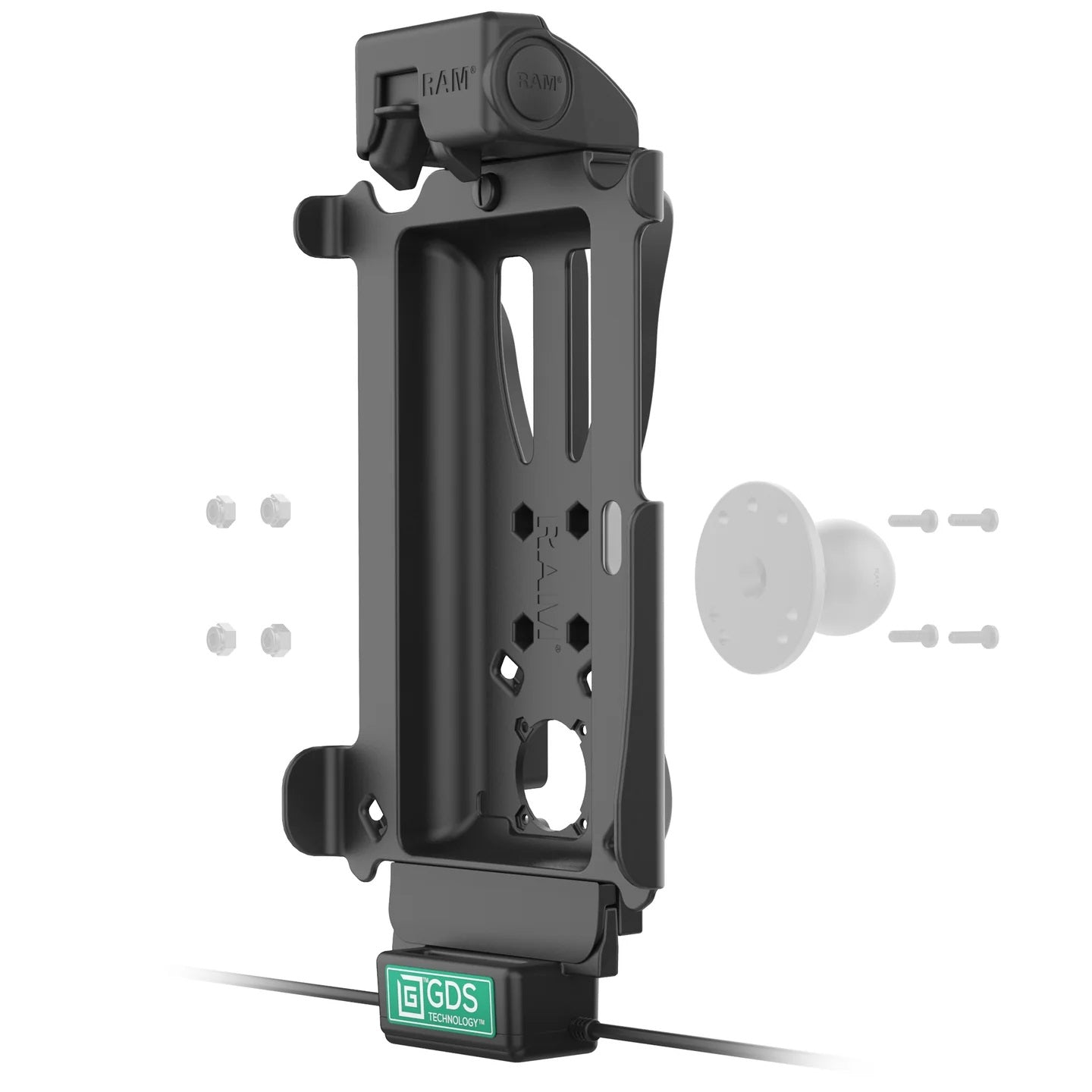

- Mounting hole pattern: 4-Hole AMPS: 1.181" x 1.496"
Included Hardware:
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
- (1) Cable Clamp with Zip Ties
- (1) USB Type-C to Type-A Cable
Compatible Devices:*
- Samsung
- Galaxy Tab Active Pro with IntelliSkin® Next Gen
- Galaxy Tab Active4 Pro with IntelliSkin® Next Gen
* Additional Information: This product will not support the "No Battery Mode" function of the Tab Active4 Pro.
Specifications:
- Output Voltage: 5V - 12V @ 3A max; Peripheral: 5V @ 900mA max
- Power Output: 15W
- Input Connector: USB Type-C; USB Type A for 1 Peripheral
- Output Cable Length: 215mm
- Peripheral Output: 500mAh
Brand: RAM Mounts
Part number: RAM-GDS-DOCK-SAM54NCDU
Warranty: Manufacturer's 3-year warranty
