Description
The GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7" (RAM-GDS-101B2-SAM80-PTT1U) is a vehicle dock designed to support the Samsung Galaxy Tab A7 Lite 8.7" in an IntelliSkin® Next Gen protective sleeve and provide push-to-talk capabilities, ideal for fleets of vehicles. The GDS® Tough-Dock™ uses a USB Type-C power connector to support high speed charging capabilities for the Tab A7 Lite and a single USB Type-A peripheral connector for the RAM® microphone. This turnkey solution includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features:

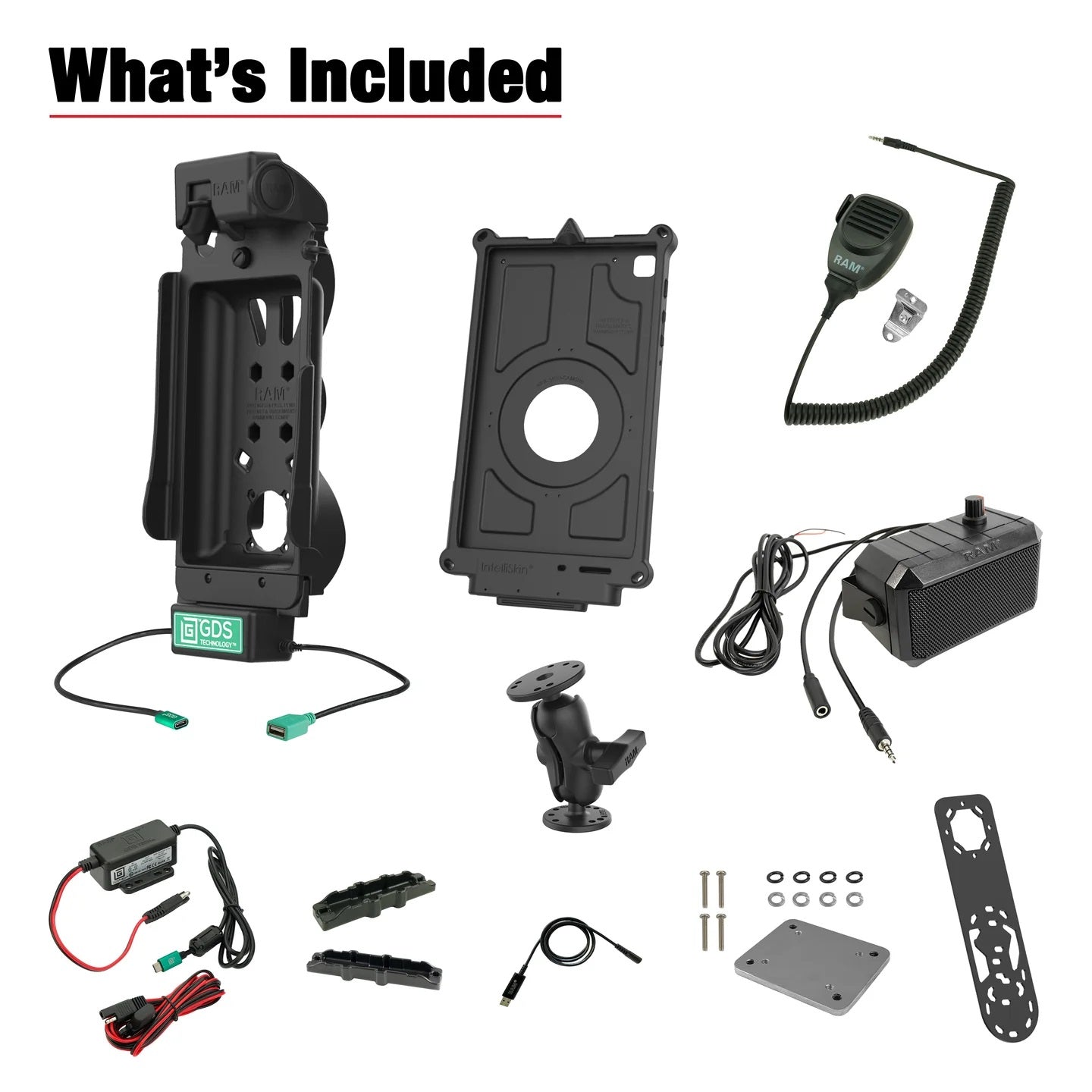

- Bundle includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps
- Features Push-To-Talk capabilites via GDS® Audio™ Amplified Speaker with PTT breakout feature
- Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Hole patterns: 4-Hole AMPS: 1.181" x 1.496": 3-Hole 120-Degree: 1.812" Diameter
- Constructed of steel, marine-grade aluminum and high strength composite
Included Hardware:
- Assembly Hardware
- (1) 2.10" x 2.60" Steel Backing Plate
- (4) #8-32 x 1" Screws
- (4) #8 Split Lock Washers
- (4) #8 Flat Washers
- (2) Cable Clamps
- (1) Vehicle Hardwire Charger
Compatible Devices:
-Samsung
- Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
Specifications:
- Output Voltage: Type-C Tablets: 5V - 12V @ 3A max; mUSB Tablets: 5V @ 1.5A max; Peripheral: 5V @ 900mA max
- Power Output: 15W
- Input Connector: USB Type-C; USB Type A for 1 Peripheral
- Input Cable Length: 215mm
- Output Cable Length: 215mm
Brand: RAM Mounts
Part number: RAM-GDS-101B2-SAM80-PTT1U
Warranty: Manufacturer's 3-year warranty
