Description

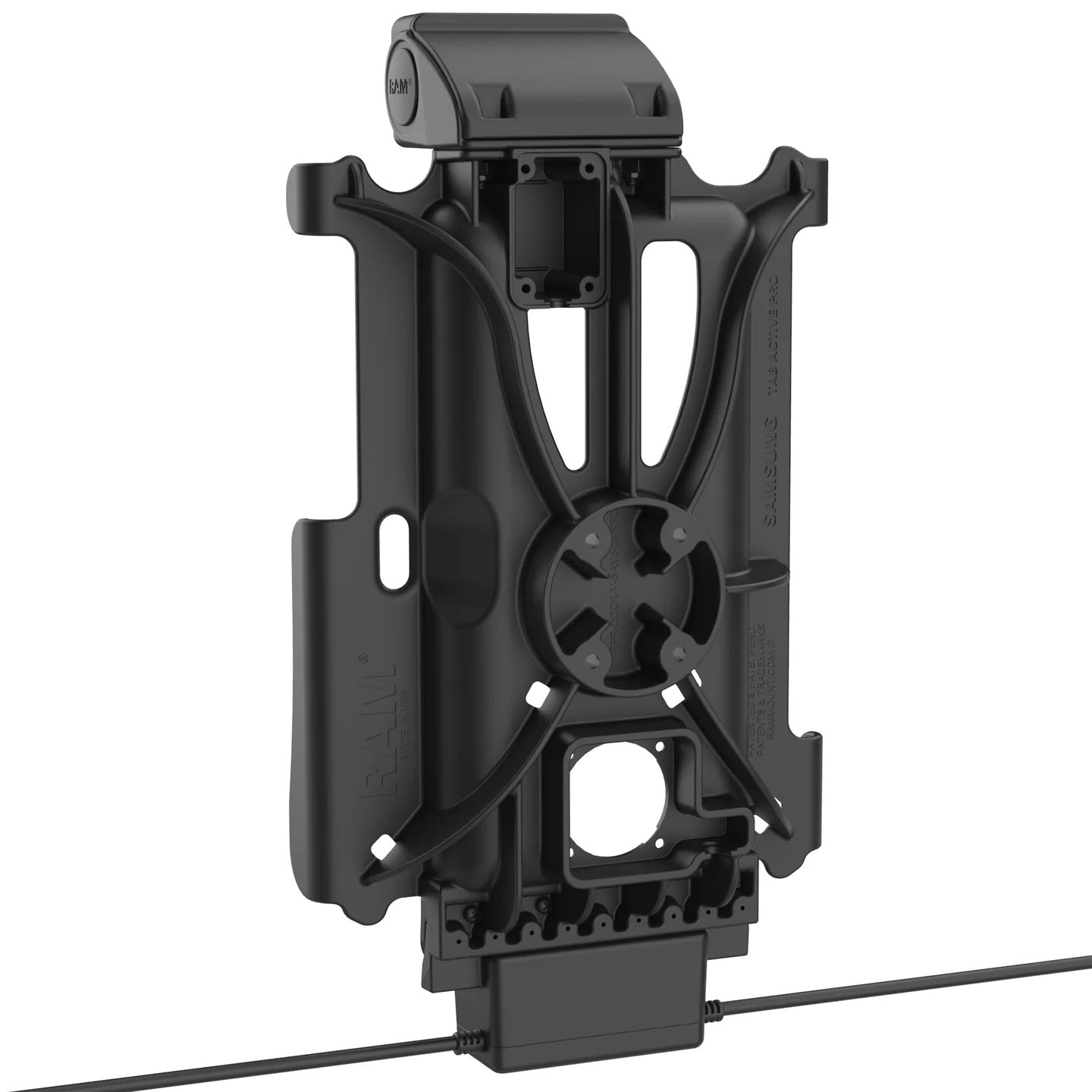

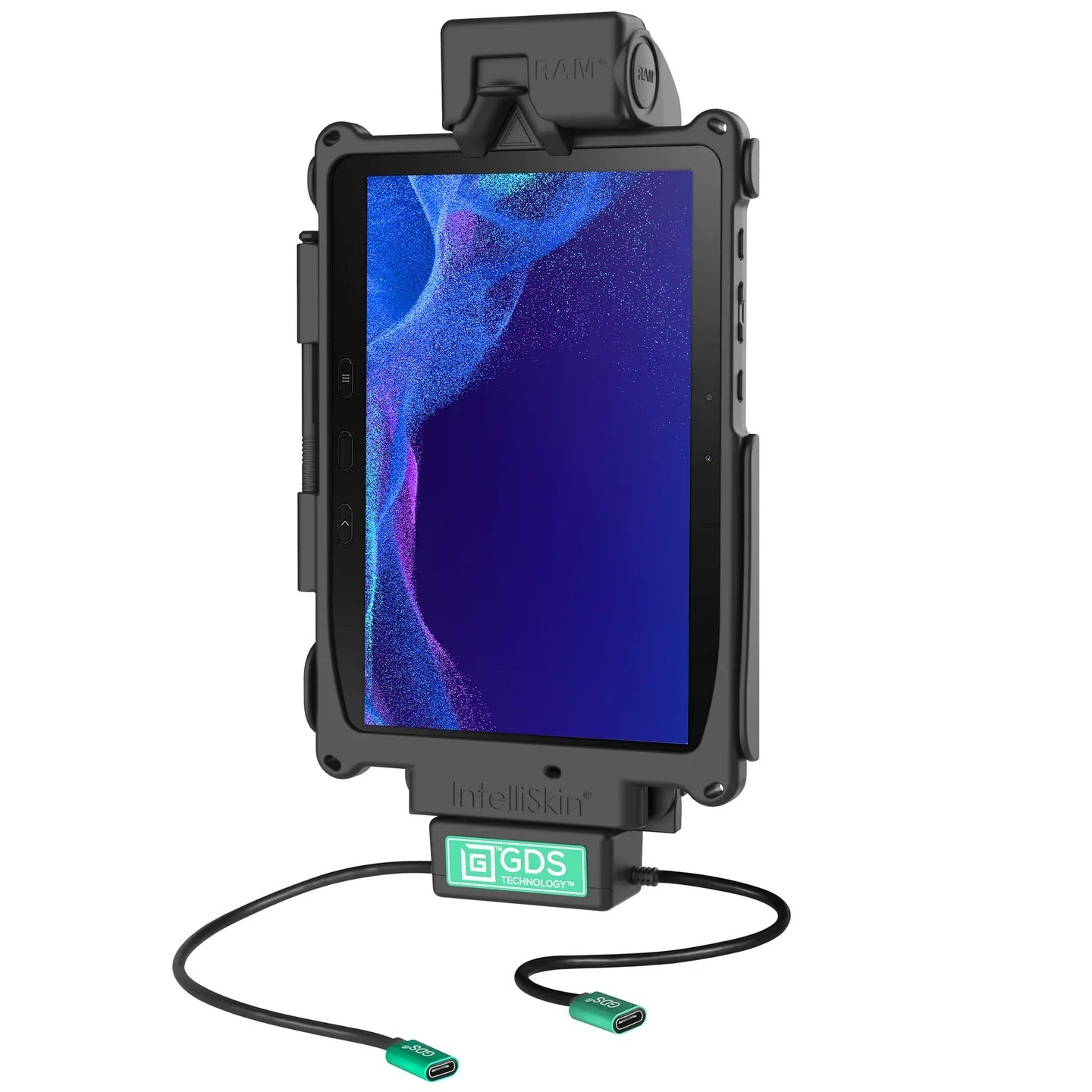

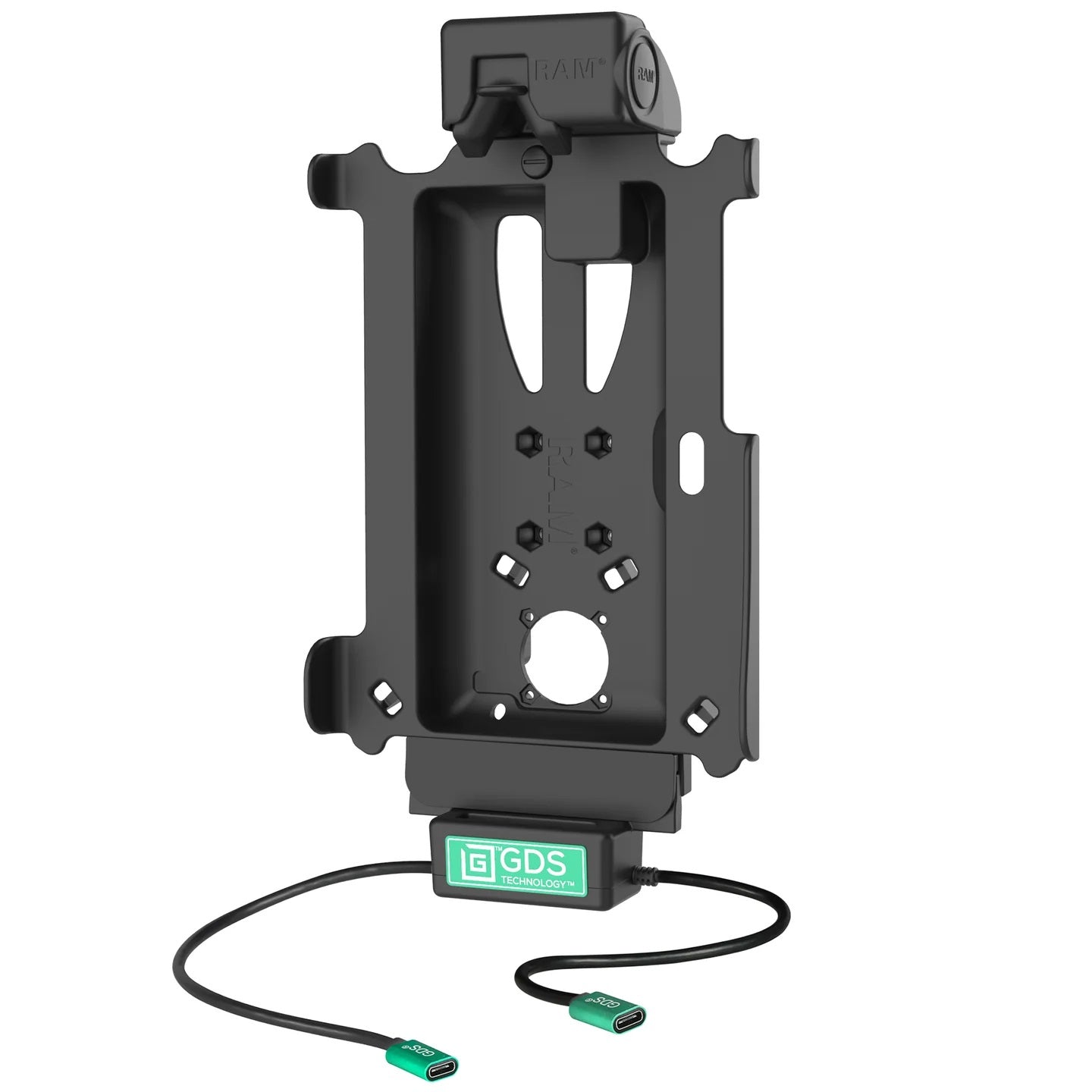

The GDS® Tough-Dock™ + USB-C Data for Tab Active4 Pro & Tab Active Pro (RAM-GDS-DOCK-SAM54NC-CU) is a vehicle dock designed to support the Samsung Galaxy Tab Active4 Pro and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities required by the Samsung devices. It also features an additional USB Type-C connector to support a single peripheral device. The USB Type-C connection work seamlessly with Klein Electronics technology to enable push-to-talk (PTT) over-cellular capabilities. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features:
- Form-fit vehicle dock featuring GDS® Technology™ for the Samsung Tab Active4 Pro & Tab Active Pro

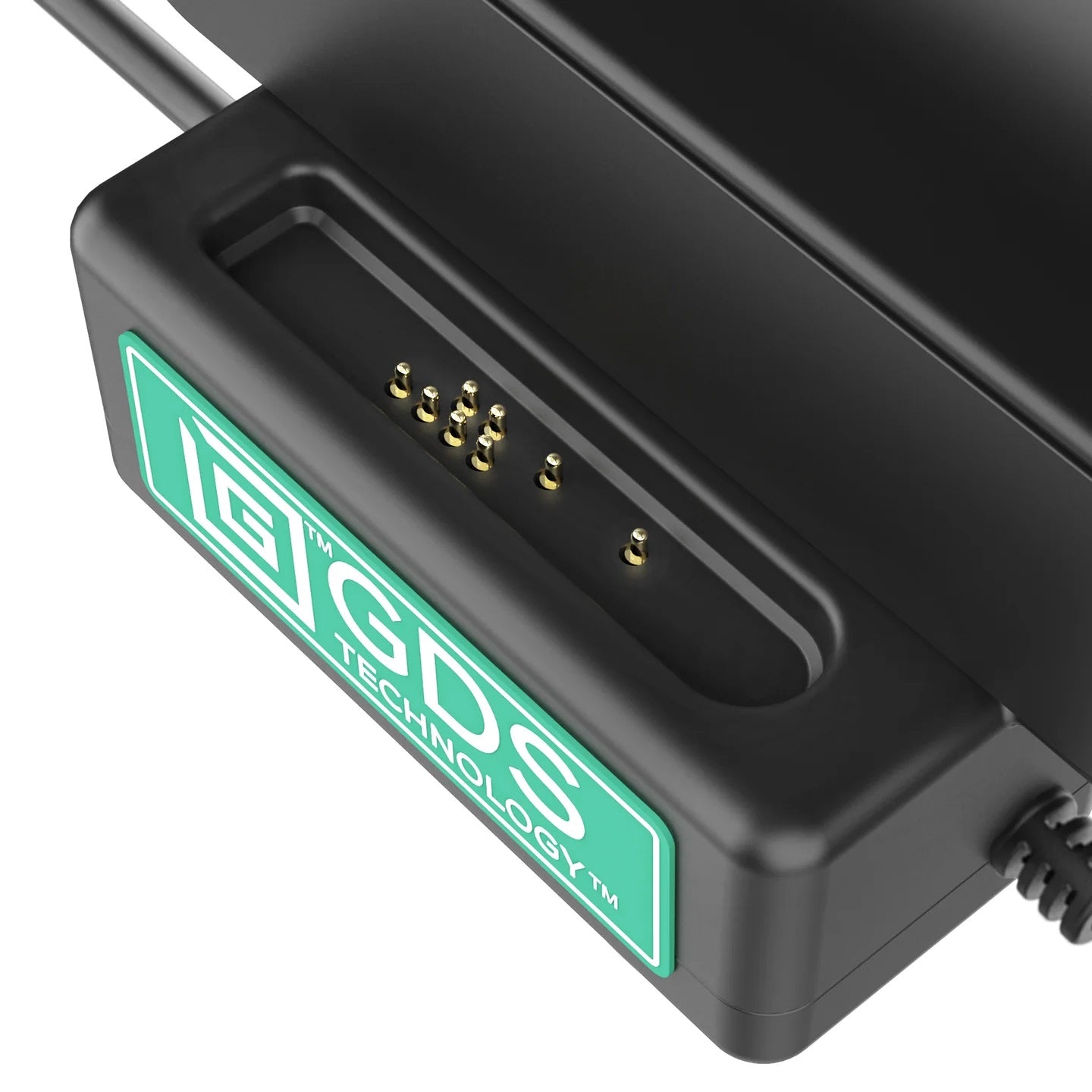

- Enables high speed charging capabilities for IntelliSkin®-wrapped devices via 8-pin connection

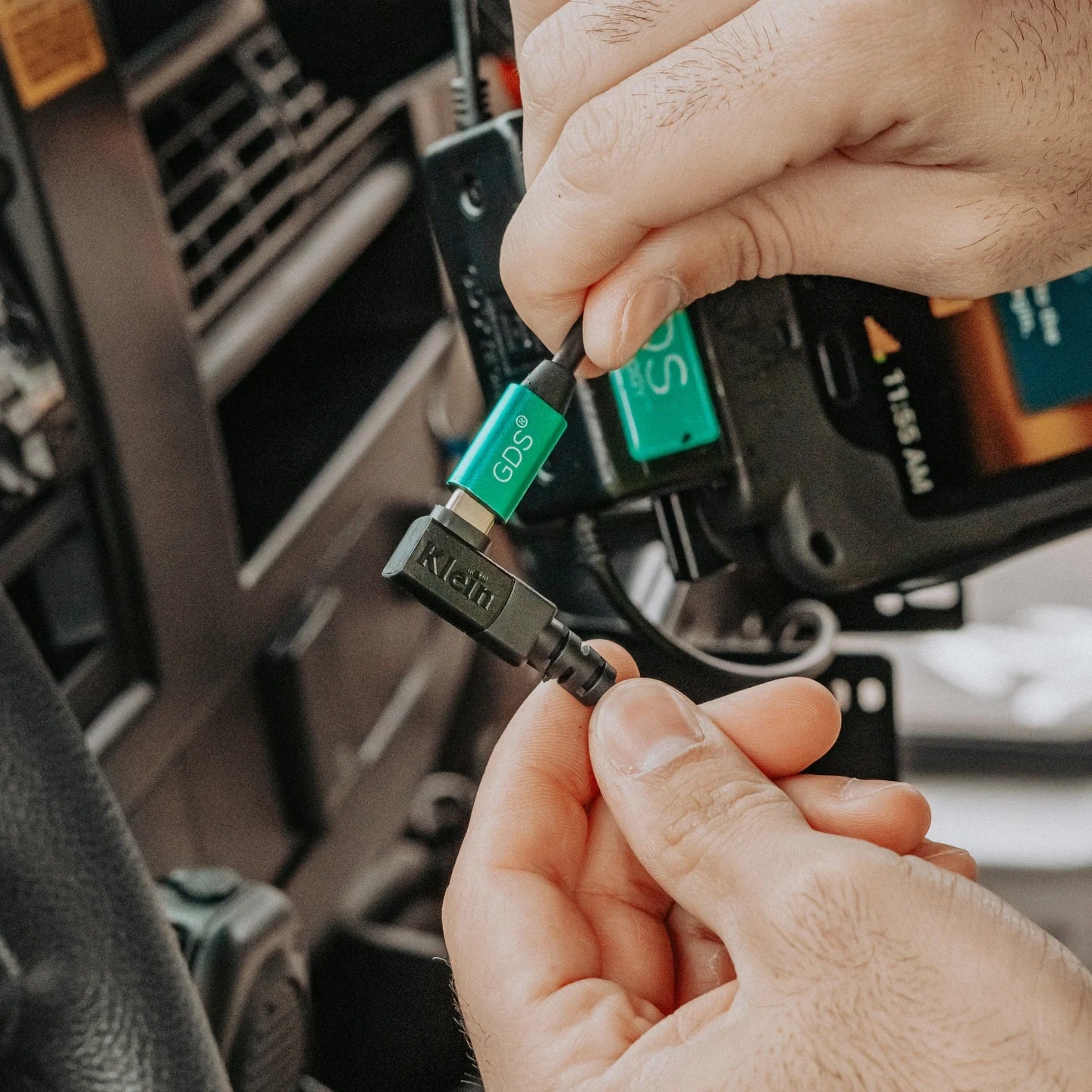

- Supports one peripheral device via integrated USB Type-C female connector; includes push-to-talk capabilities when paired with Klein Electronics microphones
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Constructed of high strength composite
- Mounting hole pattern: 4-Hole AMPS: 1.181" x 1.496"
Included Hardware:
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
Compatible Devices:*
- Samsung
- Galaxy Tab Active Pro with IntelliSkin® Next Gen
- Galaxy Tab Active4 Pro with IntelliSkin® Next Gen
* Additional Information: This product will not support the "No Battery Mode" function of the Tab Active4 Pro.
Specifications:
- Output Voltage: 5V - 12V @ 3A
- Power Output: 15W
- Input Connector: USB Type-C (Power In)
- Input Cable Length: 215mm
- Output Connector: USB Type-C (Peripheral)
- Output Cable Length: 215mm
- Peripheral Output: 500mAh
Brand: RAM Mounts
Part number: RAM-GDS-DOCK-SAM54NC-CU
Warranty: Manufacturer's 3-year warranty
