Description

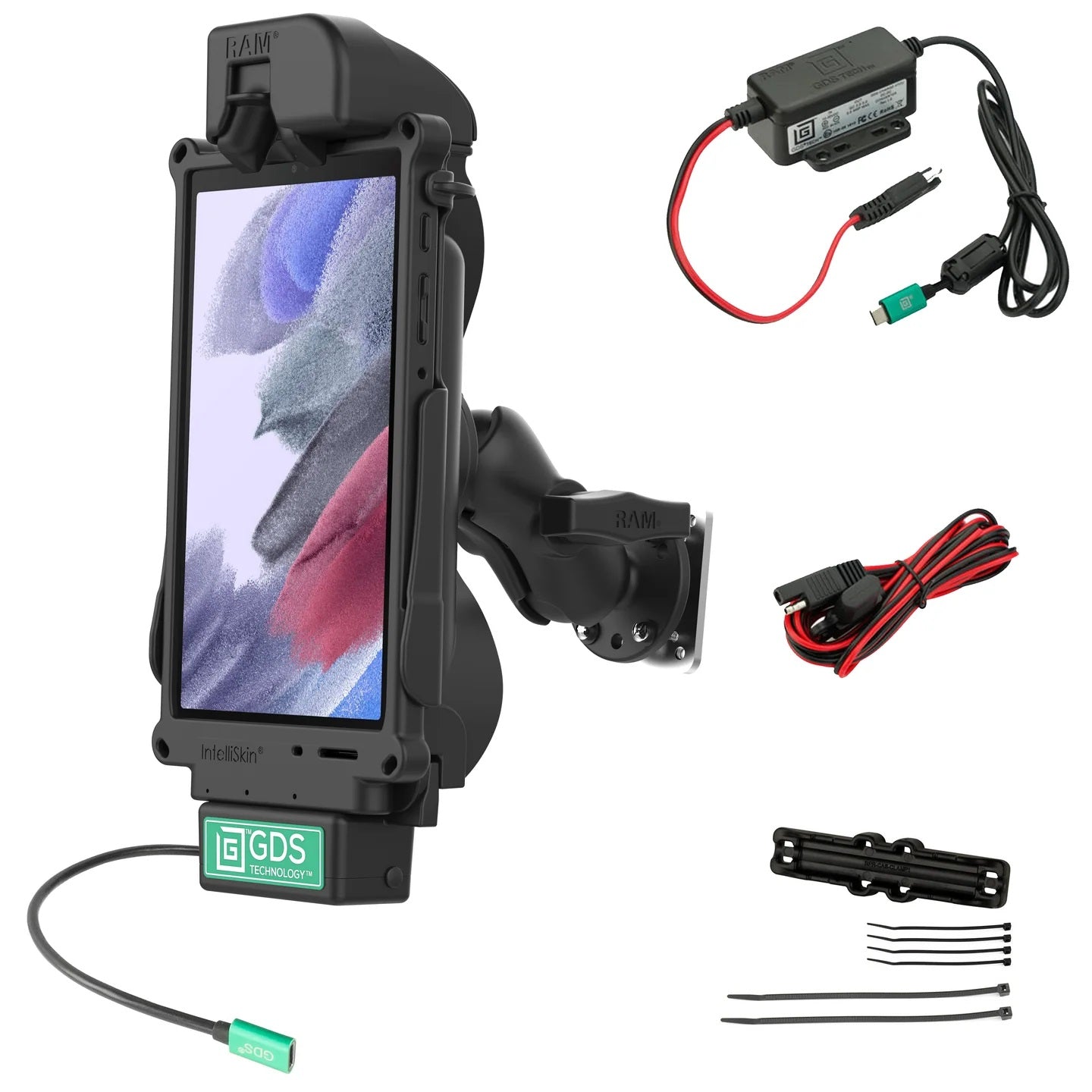

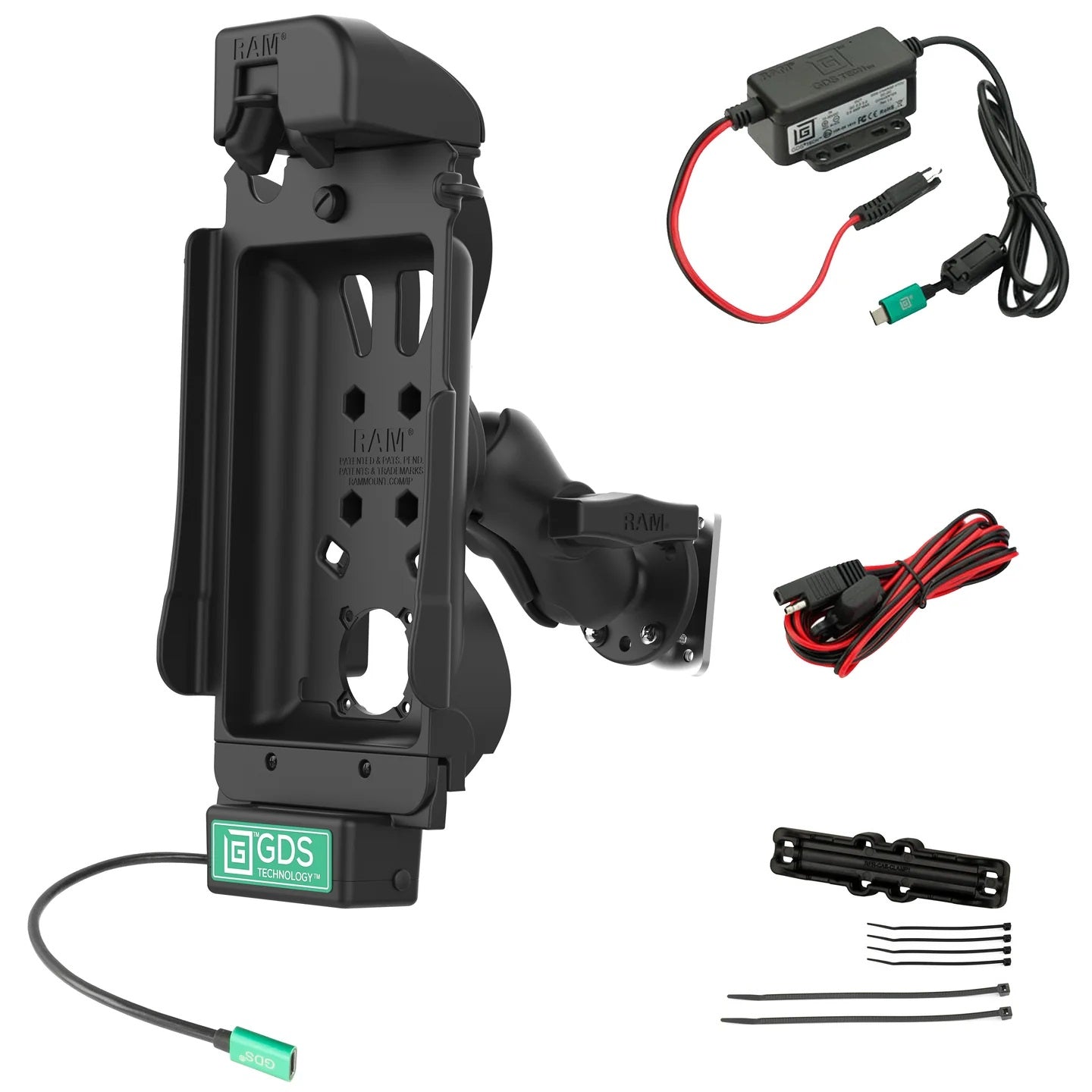

Ideal for transportation and large fleet vehicles, this bundle is all you need to pair with your Samsung Tab A7 Lite 8.7". This bundle includes a non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB Type-C connector, C Size double ball mount with short arm, backing plate adapter, and cable clamp. This bundle is ELD compliant, providing a turnkey solution for your fleet. Always Protected. Always Connected.®
Features:
- Bundle includes non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB-C connector, low-profile double ball mount with C size (1.5") ball, backing plate adapter and cable clamp
- Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand
- Hole pattern: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
- Mount supports up to 4 lbs.
- Constructed of marine-grade aluminum and high strength composite
Included Hardware:
- Assembly Hardware
- (1) 2.10" x 2.60" Steel Backing Plate
- (4) #8-32 x 1" Screws
- (4) #8 Split Lock Washers
- (4) #8 Flat Washers
- (1) Cable Clamp
- (1) Vehicle Hardwire Charger
Compatible Devices:
- Samsung
- Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
Specifications:
- Output Voltage: 5-9VDC*
- Input Connector: Female USB Type-C
- Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
- Output Cable Length: 150mm
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
Regulatory:
- Over Voltage Protection
- Short Circuit Protection
- Reverse Polarity Protection
- RoHS Compliance
- WEEE Compliance
- SAE J-1113-5 Load Dump (Transient Voltage)
- Moisture Resistant
Certifications:
- CE Certification
- E-Mark Certification
- RCM Certification
- FCC Certification
- UL 62368-1 Certificaton
Brand: RAM Mounts
Part number: RAM-GDS-101B2-SAM80CP-V7CU
Warranty: Manufacturer's 3 year warranty
