Description

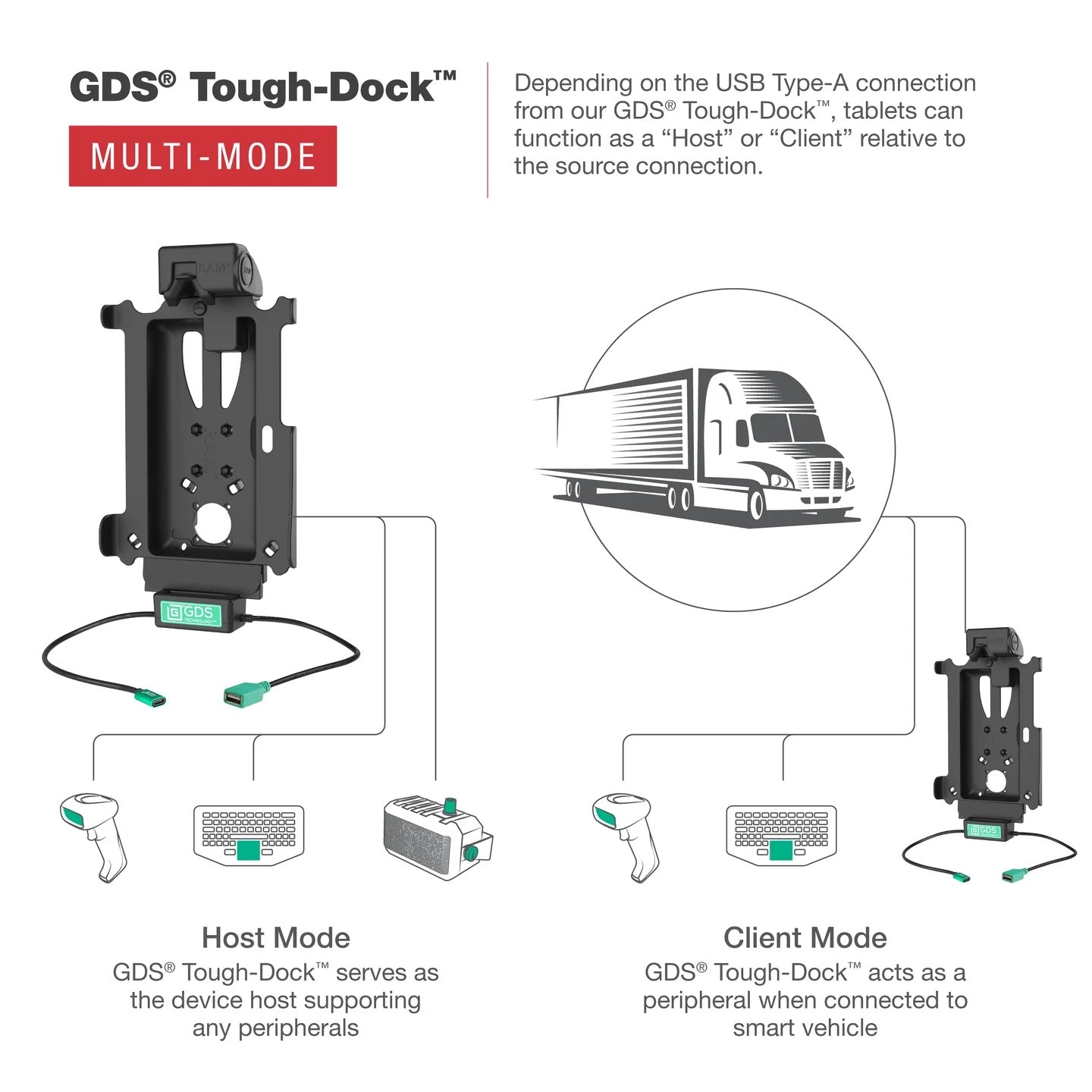

The GDS® Tough-Dock™ for Tab Active4 Pro & Tab Active Pro with Multi-Mode (RAM-GDS-DOCK-SAM54N-MMU) is a vehicle dock designed to support the Samsung Galaxy Tab Active4 Pro and Tab Active Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. Mutli-Mode is integrated into the dock allowing centralized AI systems to perform as the host instead of the tablet, turning your IntelliSkin®-wrapped tablet into a peripheral. There is no button or switch that turns this function on and off — Multi-Mode is automatically activated when the device is docked. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Galaxy Tab Active4 Pro and Tab Active Pro. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features:
- Multi-mode allows for centralized AI software systems to access tablets when docked
- Designed specifically for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve
- Integrated pogo pin connectors provide high speed charging to devices via integrated USB Type-C Female connector
- RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand
- Constructed of high strength composite
- Mounting hole pattern: 4-Hole AMPS: 1.181" x 1.496"

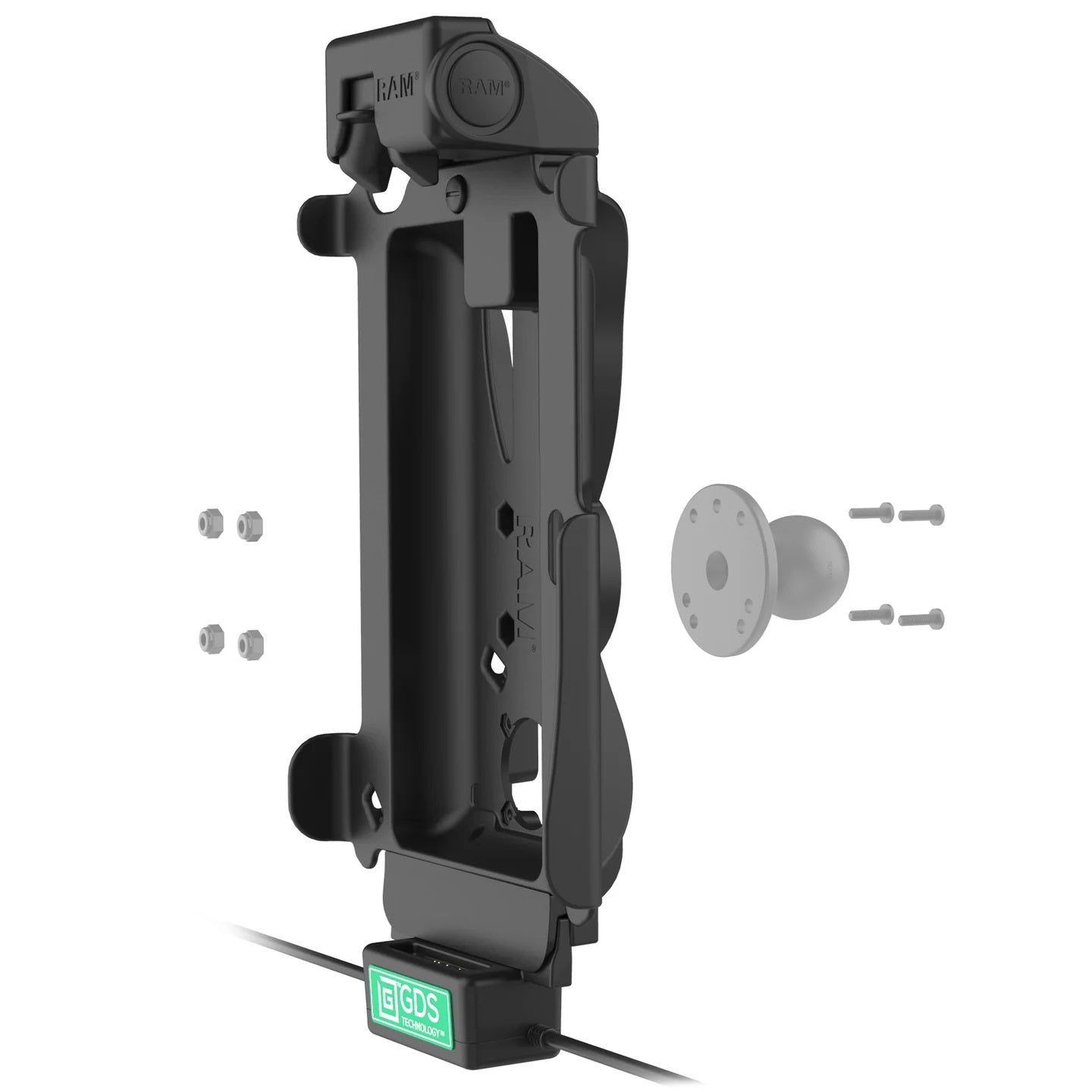

Included Hardware:
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
- (1) Cable Clamp with Zip Ties
- (1) USB Type-C to Type-A Cable
Compatible Devices:*
- Samsung
- Galaxy Tab Active Pro with IntelliSkin® Next Gen
- Galaxy Tab Active4 Pro with IntelliSkin® Next Gen
* Additional Information: This product will not support the "No Battery Mode" function of the Tab Active4 Pro.
Specifications:
- Output voltage: 5V - 12V @ 3A max; Peripheral: 5V @ 900mA max
- Power Output: 15W
- Input Connector: USB Type-C; USB Type A for 1 Peripheral
- Output Cable Length: 215mm
- Peripheral Output: 500mAh
Brand: RAM Mounts
Part number: RAM-GDS-DOCK-SAM54N-MMU
Warranty: Manufacturer's 3-year warranty
