Description

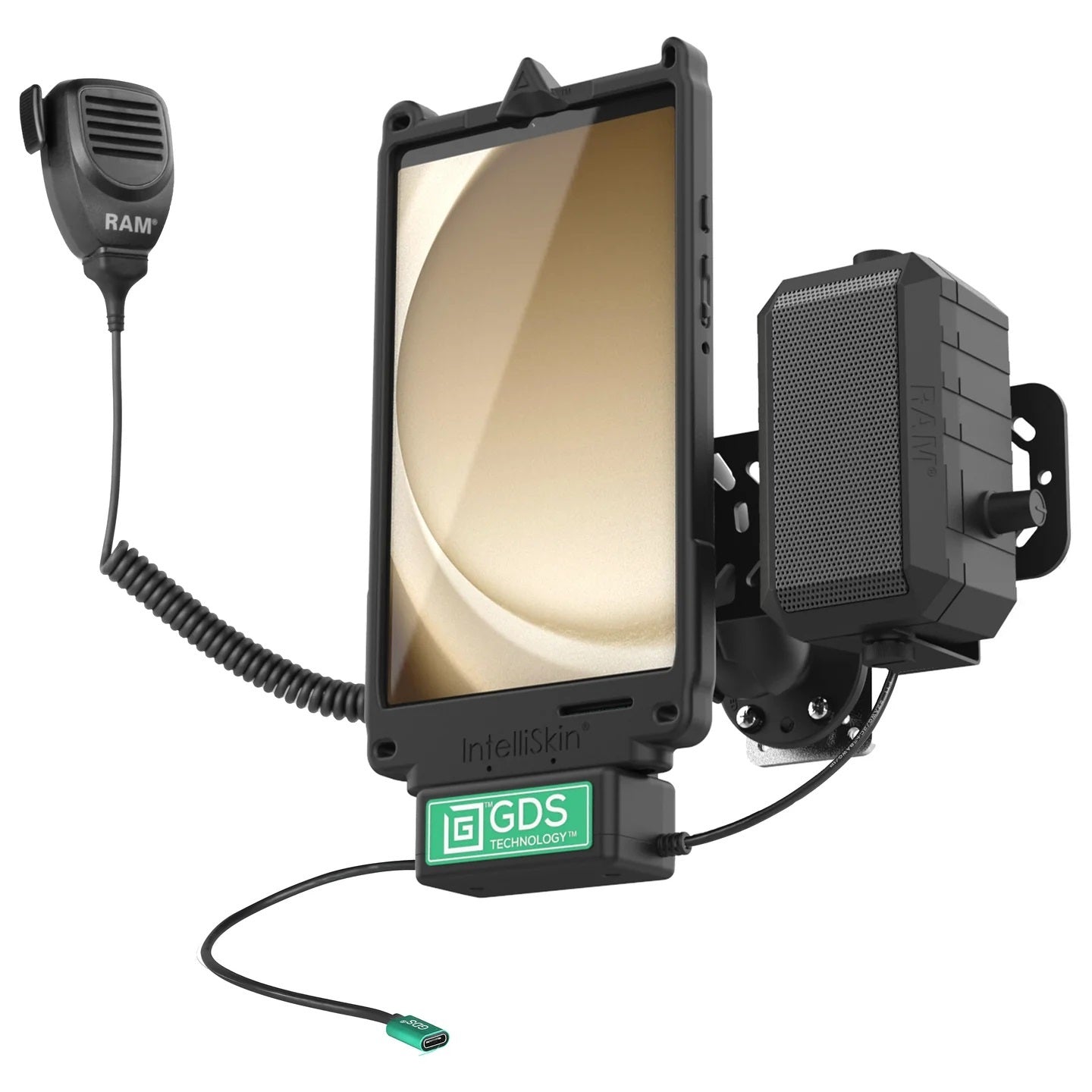

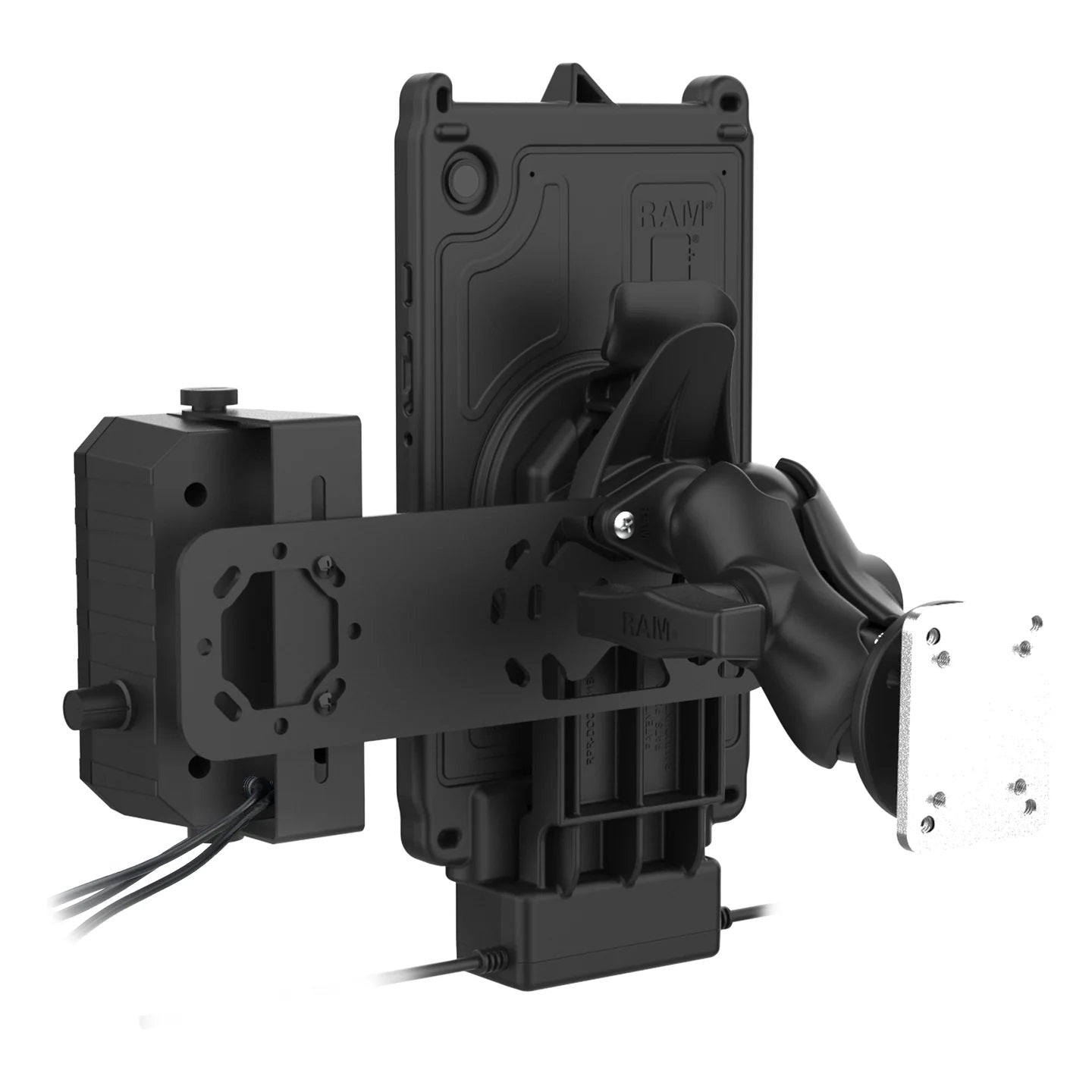

The GDS Uni-Conn™ PTT Vehicle Bundle for Samsung Tab A9 (RAM-GDS-U1-SAM95-KIT3) is a vehicle dock designed to support the Samsung Galaxy Tab A9 in an IntelliSkin® Next Gen and provide push-to-talk capabilities, ideal for fleets of vehicles. The GDS Uni-Conn™ uses a USB Type-C power connector to support high speed charging capabilities for the Tab A9 and a single USB Type-A peripheral connector for the RAM® microphone. This turnkey solution includes the GDS Uni-Conn™ dock, Uni-Conn™ Adapter IntelliSkin Next Gen for Samsung Tab A9, GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS Audio™ amplified speaker, RAM® microphone, and cable clamps. The GDS Uni-Conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®
Features

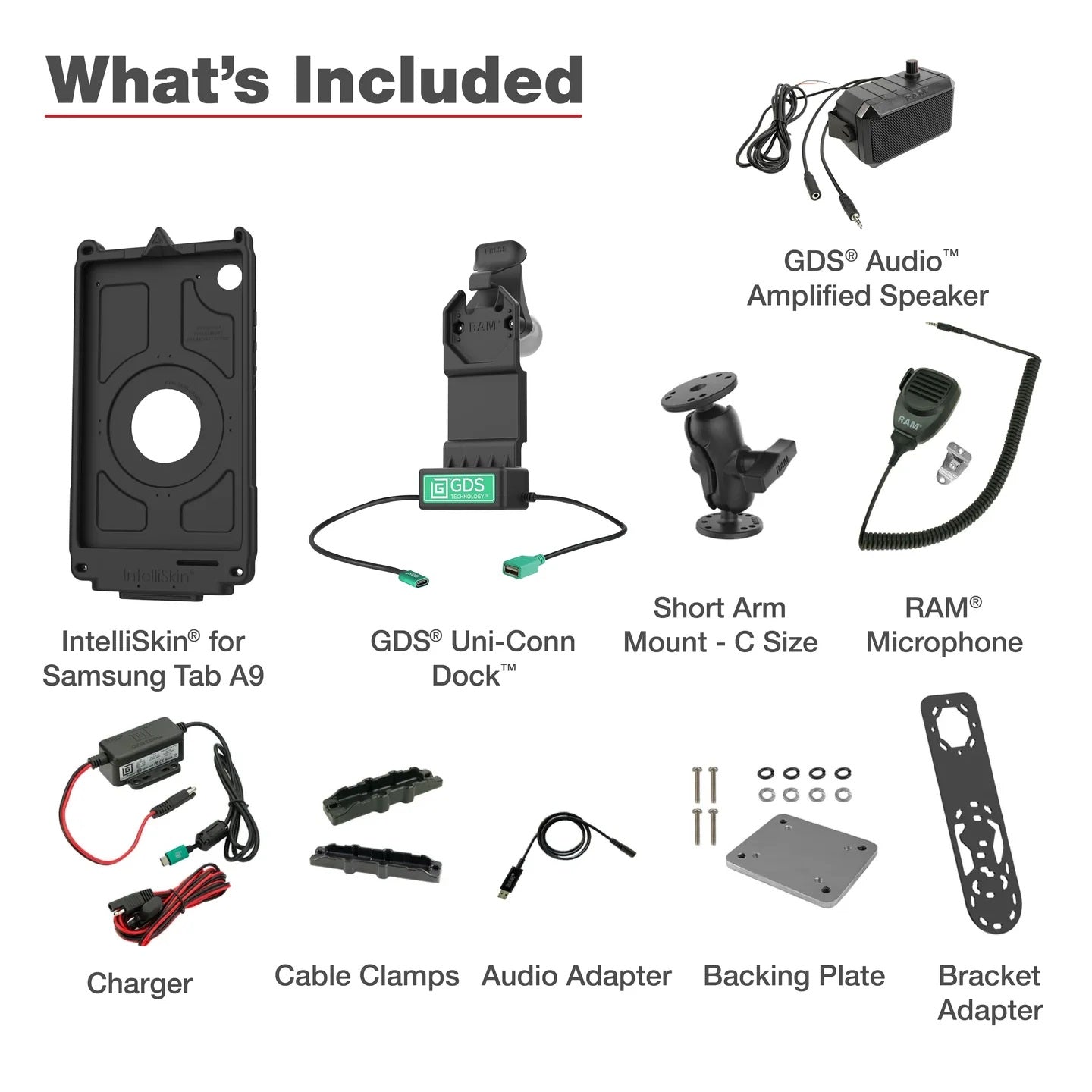

- Bundle includes the GDS Uni-Conn™ dock, IntelliSkin Next Gen for Samsung Tab A9, GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS Audio™ amplified speaker, RAM® microphone, and cable clamps
- Features Push-To-Talk capabilities via GDS Audio™ Amplified Speaker with PTT Breakout Feature
- Dock features GDS Technology™ for charging capabilities; uses USB-C port to connect to power
- RAM Mounts Compatible™ and compatible with the GDS Uni-Conn™ Adapter with Hand Strap
Included Hardware:
- Assembly Hardware
- (1) 2.10" x 2.60" Steel Backing Plate
- (4) #8-32 x 1" Screws
- (4) #8 Split Lock Washers
- (4) #8 Flat Washers
- (2) Cable Clamps
- (1) Vehicle Hardwire Charger
Socket to Socket Length: 2.5"
Hole Pattern:
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
Ball Size: C Size (1.5")
Materials:
- Steel
- Marine-grade aluminum
- High strength composite
Specs:
- Output Voltage: 5V - 12V @ 3A max
- Power Output: 15W
- Input Connector: USB Type-C, USB Type A for 1 Peripheral
- Input Cable Length: 215mm
- Output Cable Length: 215mm
Weight: 5.99 lbs.
Brand: RAM Mounts
Part number: RAM-GDS-U1-SAM95-KIT3
Warranty: Manufacturer's 3 year warranty
