Description

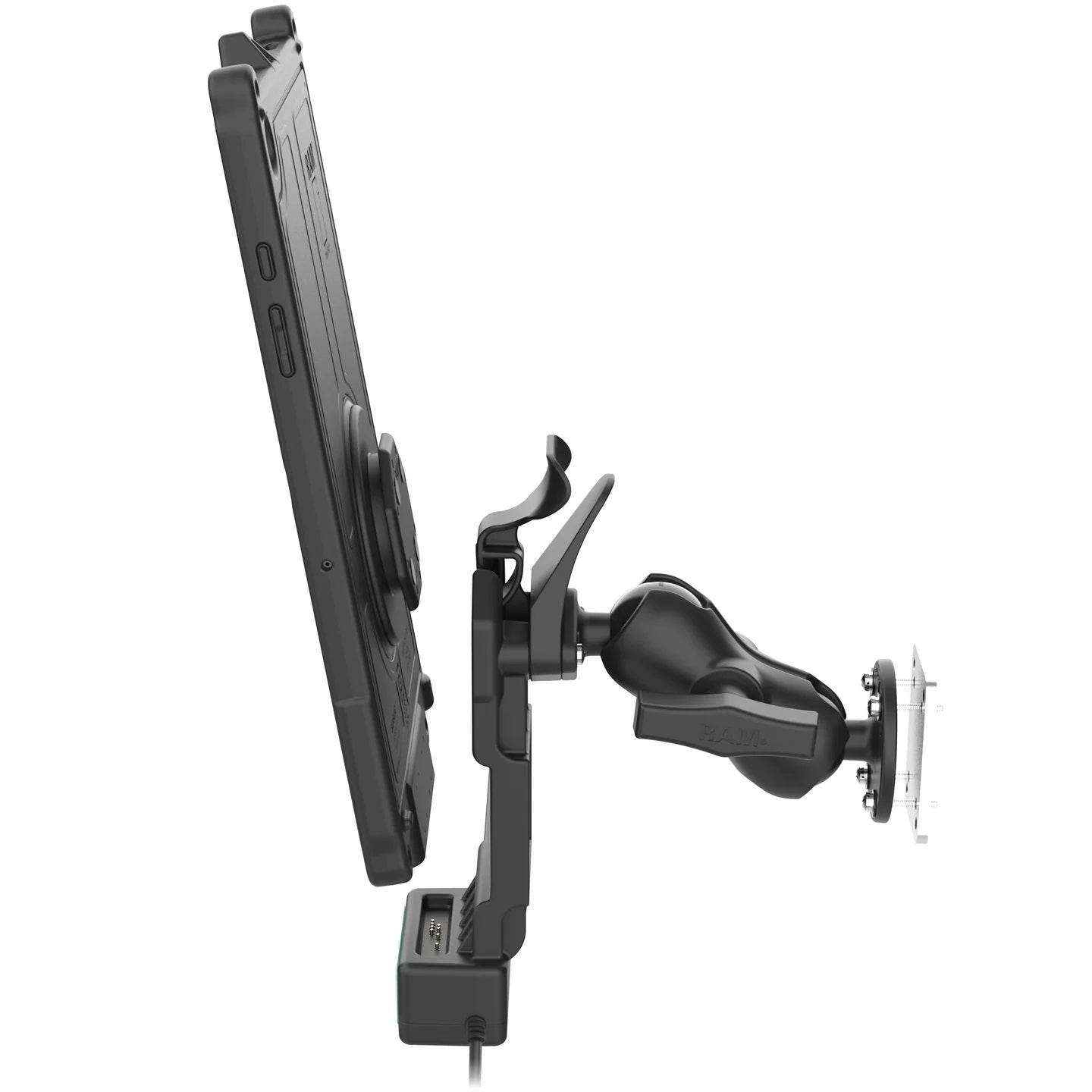

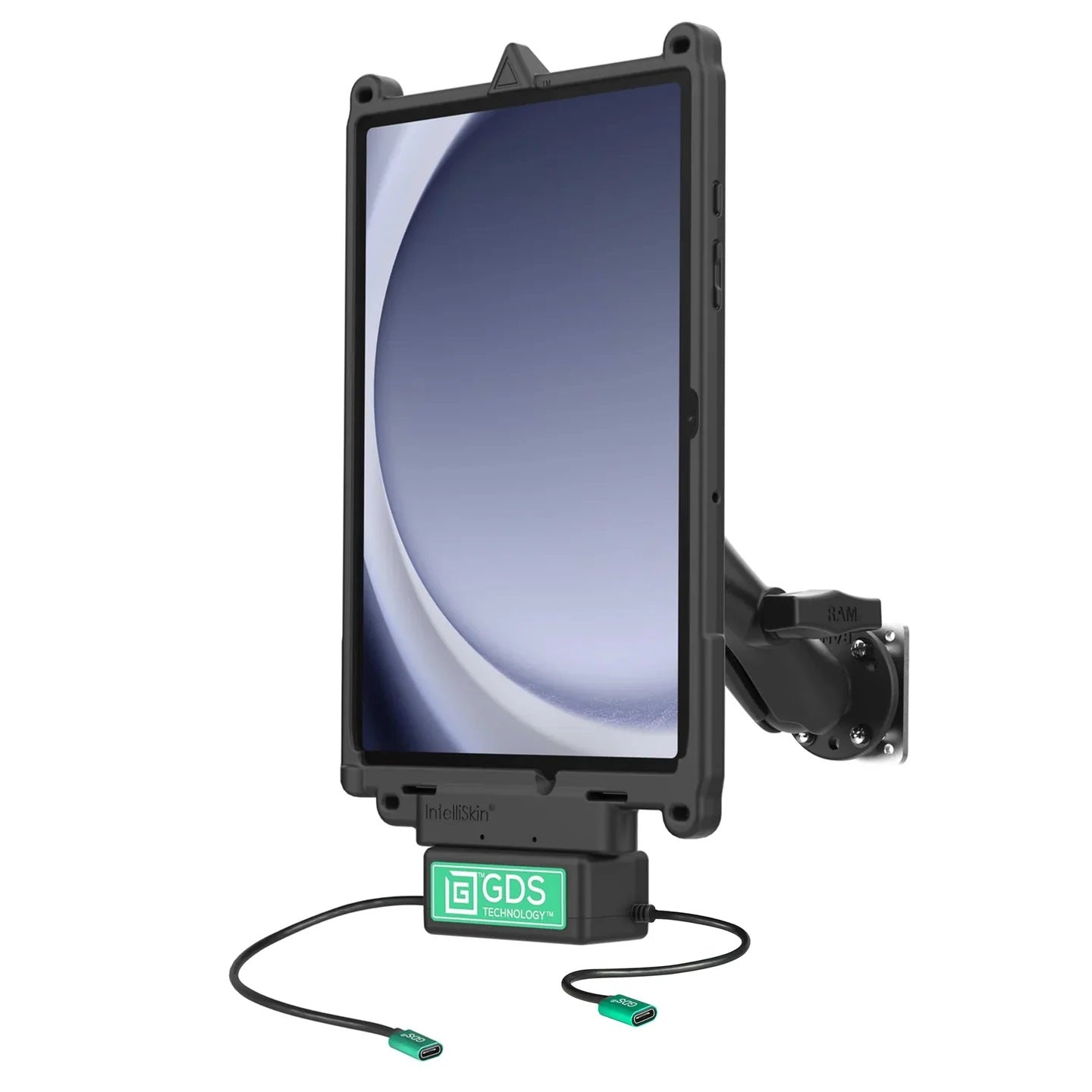

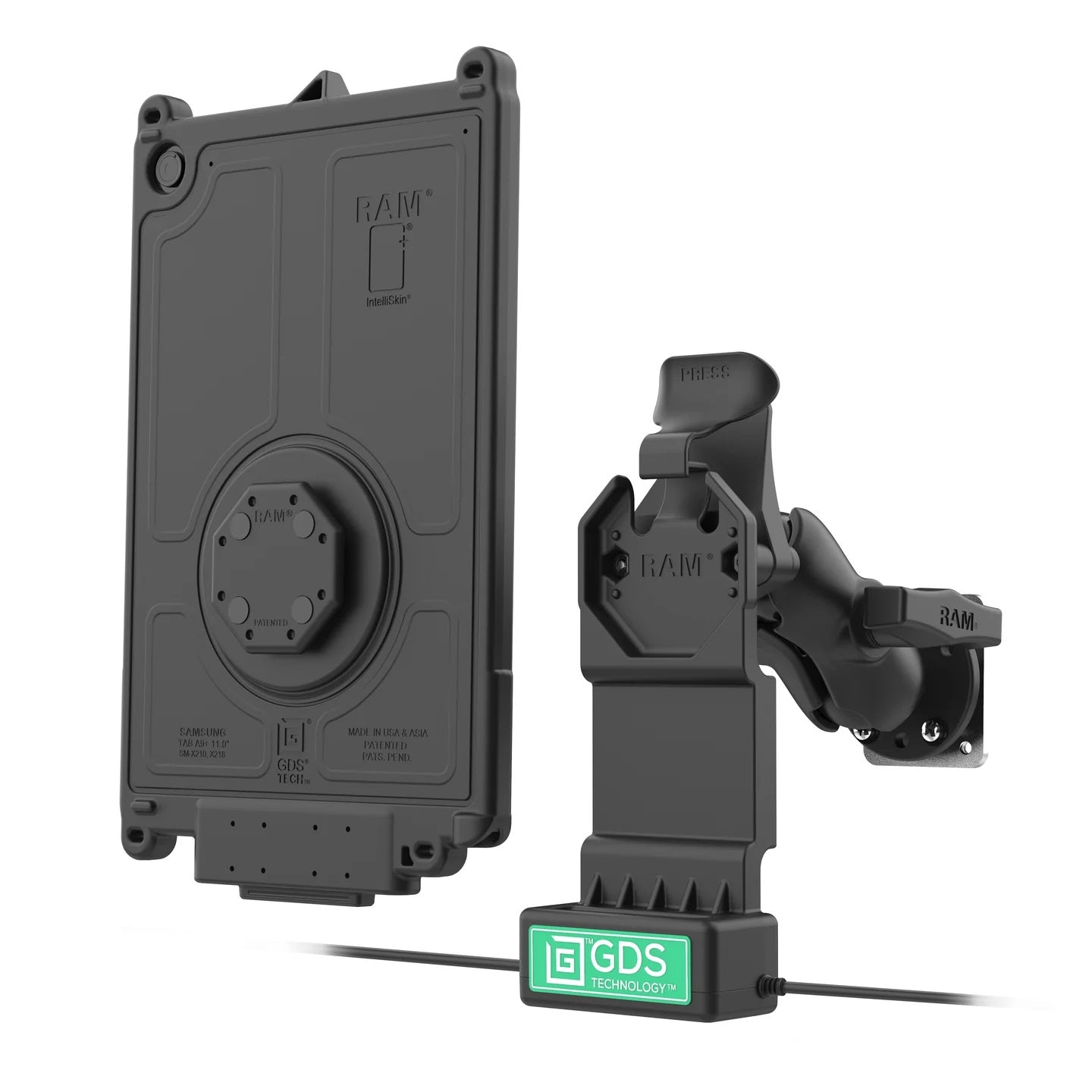

The GDS Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT4) is a comprehensive kit of everything needed to deploy the Tab A9+ in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin for the Tab A9+, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-C pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All™
Features
- Bundle includes the GDS Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin Next Gen for Samsung Tab A9+, C size double ball mount with short arm, backing plate adapter, and cable clamp
- Dock features GDS Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
- Uni-Conn™ dock features an easy device insertion and removal

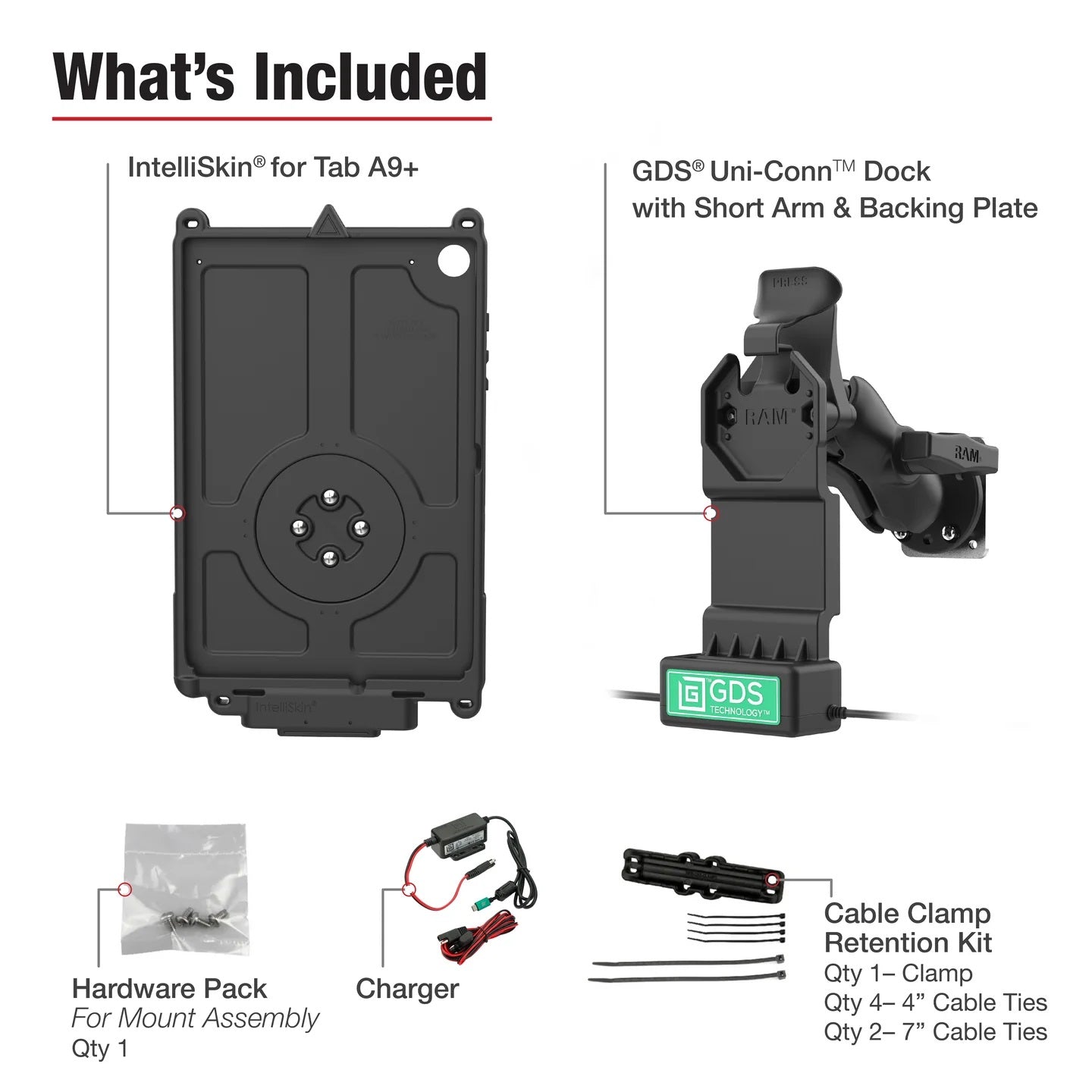

Included Hardware:
- Assembly Hardware
- (1) 2.10" x 2.60" Steel Backing Plate
- (4) #8-32 x 1" Screws
- (4) #8 Split Lock Washers
- (4) #8 Flat Washers
- (2) Cable Clamps
- (1) Vehicle Hardwire Charger
Socket to Socket Length: 2.5"
Hole Pattern:
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
Ball Size: C Size (1.5")
Materials:
- Steel
- Marine-grade aluminum
- High strength composite
Specs:
- Output Voltage: 5V - 12V @ 3A max
- Power Output: 15W
- Input Connector: USB Type-C; USB Type-C for 1 Peripheral
- Input Cable Length: 215mm
- Output Cable Length: 215mm
- Peripheral Output: 500mAh
Weight: 3.96 lbs.
Brand: RAM Mounts
Part number: RAM-GDS-U1-SAM88-KIT4
Warranty: Manufacturer's 3 year warranty
