Description

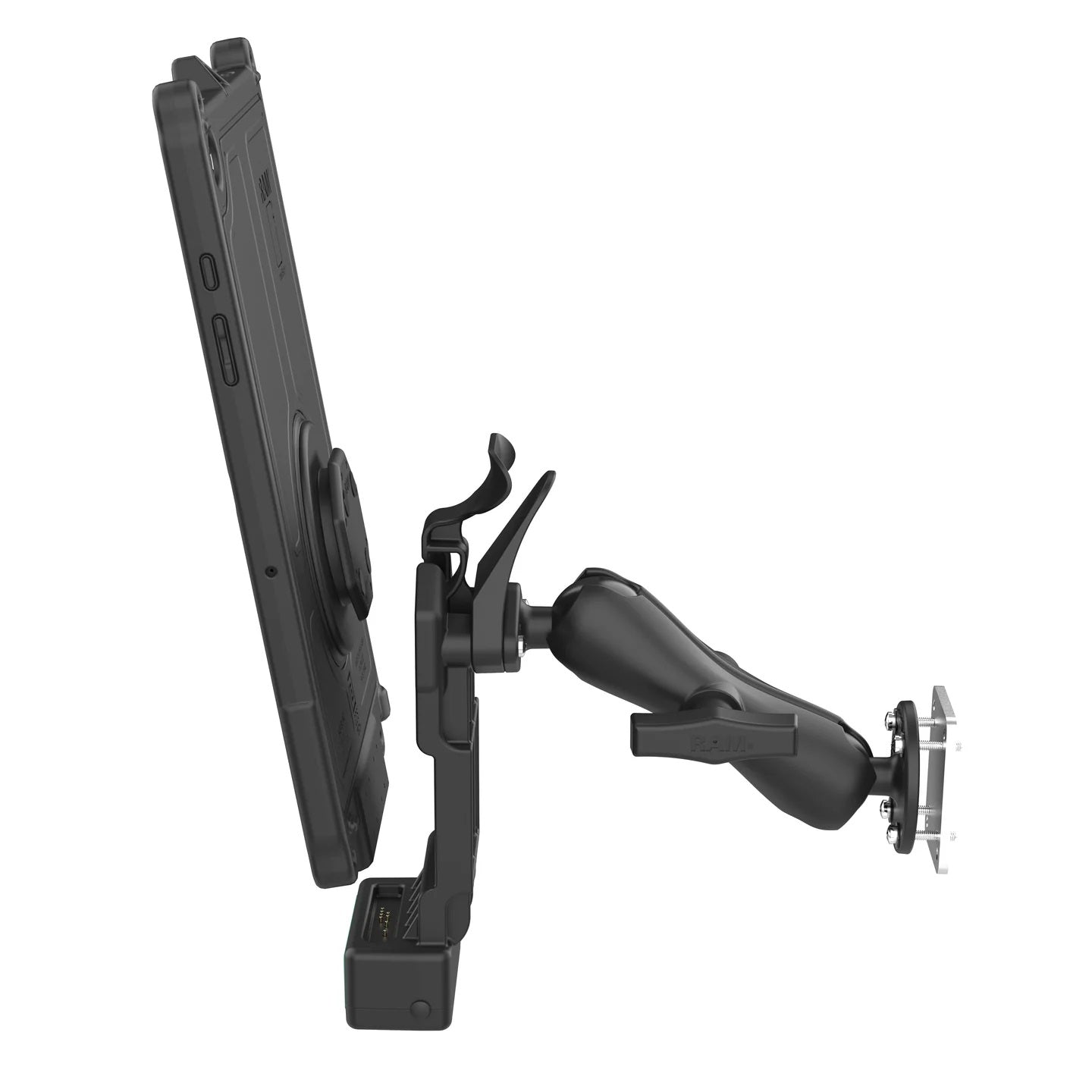

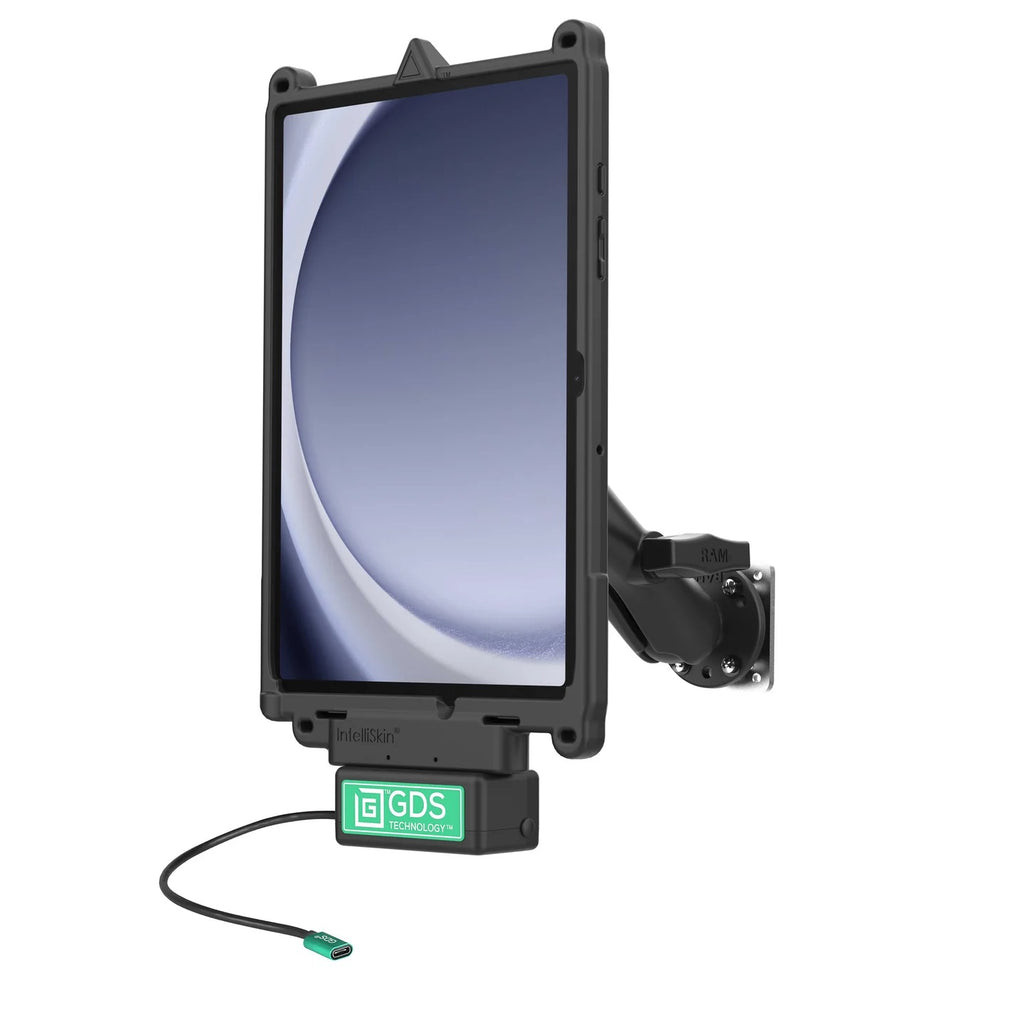

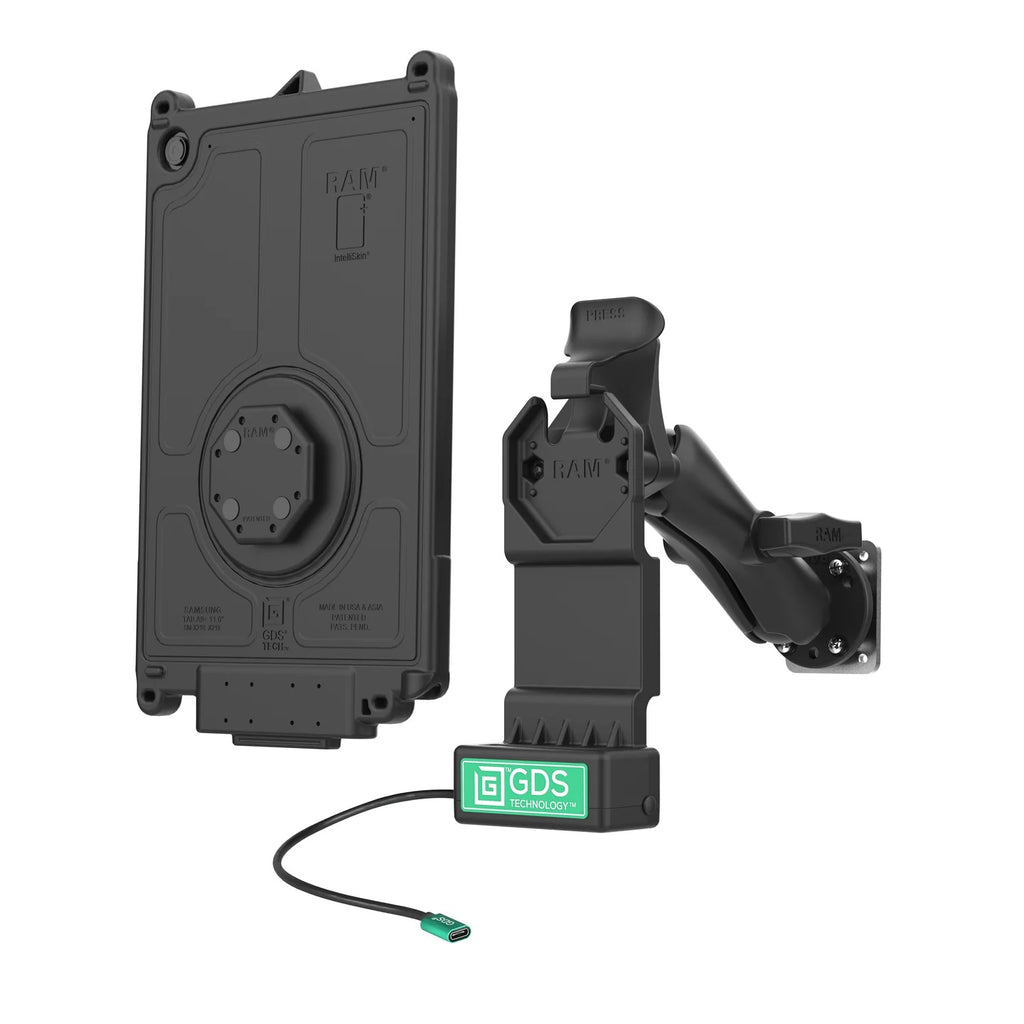

The GDS Uni-Conn Vehicle Bundle for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT1) is a comprehensive kit of everything needed to deploy the Tab A9+ in your fleet. It contains one GDS Uni-Conn dock, Uni-Conn adapter, IntelliSkin for the Tab A9+, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All
Features:

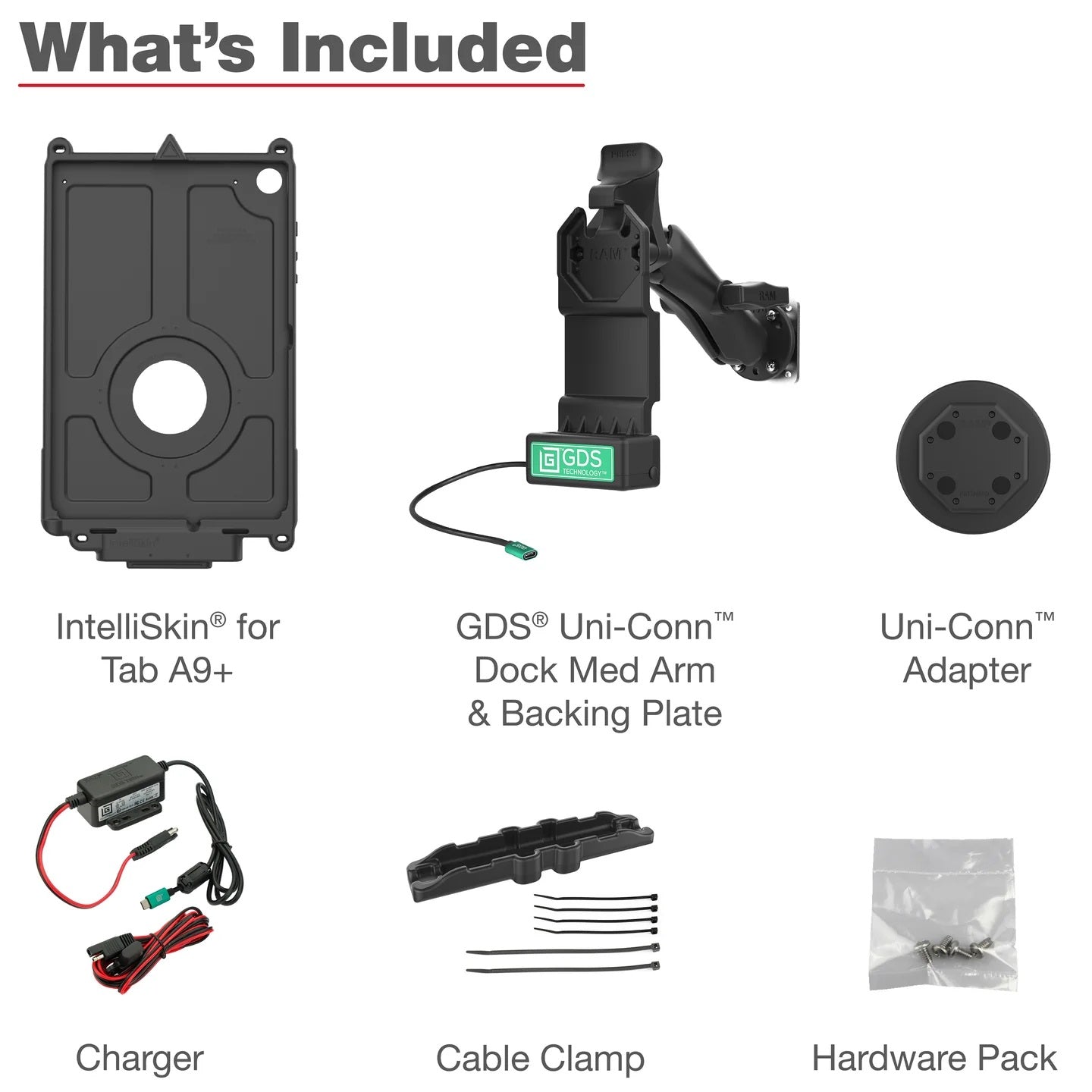

- Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab A9+, C size double ball mount with medium arm, backing plate adapter, and cable clamp
- Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
- Uni-Conn™ dock features an easy device insertion and removal
- Construct of steel, marine-grade aluminum and high strength composite
Included Hardware:
- Assembly Hardware
- (1) 2.10" x 2.60" Steel Backing Plate
- (4) #8-32 x 1" Screws
- (4) #8 Split Lock Washers
- (4) #8 Flat Washers
- (2) Cable Clamps
- (1) Vehicle Hardwire Charger
Socket to Socket Length: 4.66"
Hole Pattern:
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
Ball Size: C Size (1.5")
Specs:
- Output Voltage: 5V - 12V @ 3A max
- Power Output: 15W
Weight: 3.08 lbs.
Brand: RAM Mounts
Part number: RAM-GDS-U1-SAM88-KIT1
Warranty: Manufacturer's 3 year warranty
