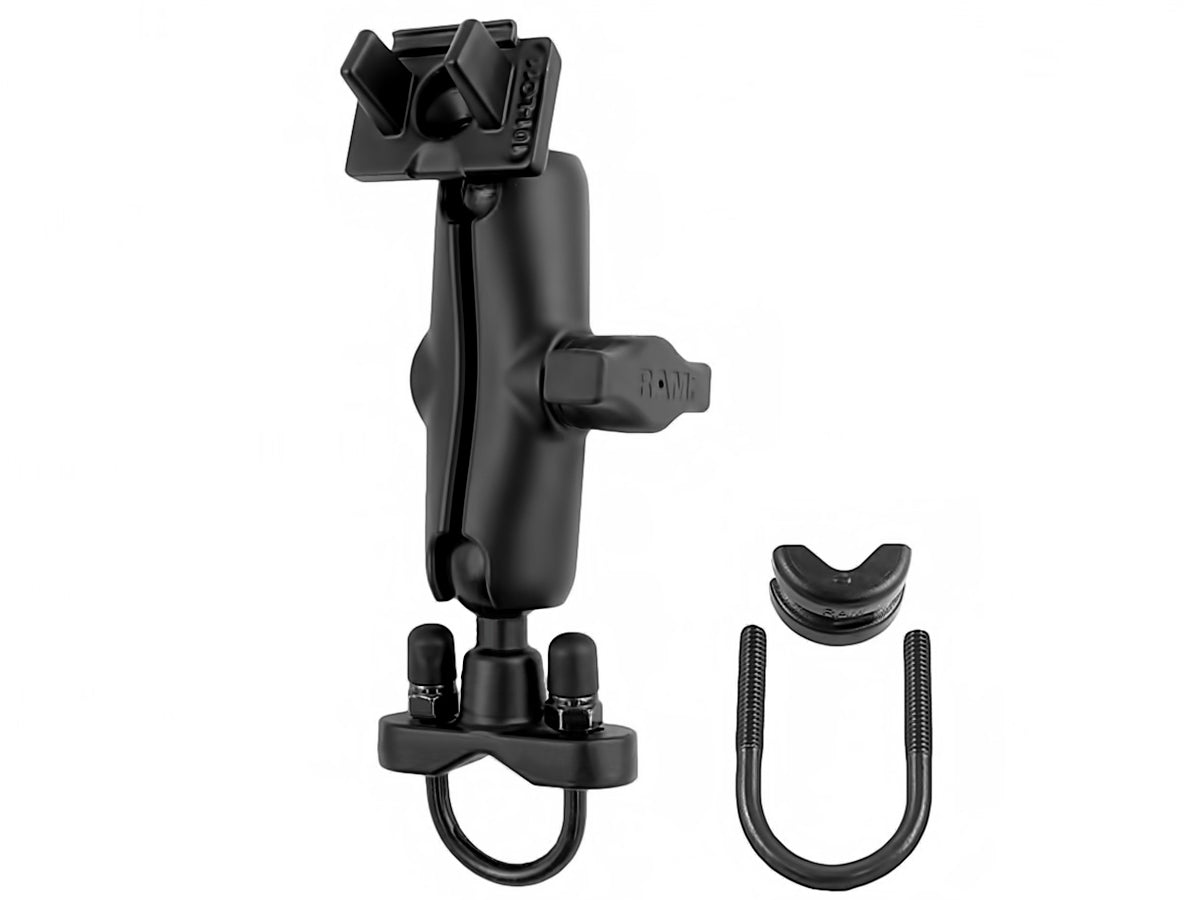

Mount your Lowrance fishfinder with confidence using the RAM® Rail and Handlebar U-Bolt 1" Ball Mount. Designed specifically for Lowrance Elite-4, Mark-4, and Hook-4 series units, this complete mounting solution delivers rock-solid stability with fast adjustability for boats, kayaks, ATVs, and other rail-equipped setups.
The included RAM® quick release adapter inserts directly into the back of compatible Lowrance units, preserving full factory quick-release functionality. This allows you to remove or transfer your fishfinder in seconds without tools. The zinc-coated U-bolt base securely clamps to rails and handlebars from 0.5" to 1.25" in diameter, while the RAM® double socket arm provides near-infinite positioning for optimal viewing angles in any environment.
Built from marine-grade aluminum and high-strength composite materials, this mount is engineered to withstand harsh marine conditions while maintaining a lightweight, low-profile design.
As an Authorized RAM Mounts Dealer, Gadget Mounts provides genuine RAM products backed by a lifetime manufacturer warranty.
Features
• Zinc-coated U-bolt base with 1" B-size rubber ball
• Fits rails and handlebars from 0.5" to 1.25" diameter
• RAM quick release ball adapter inserts directly into Lowrance Elite-4, Mark-4 & Hook-4 units
• Maintains full factory quick-release functionality
• Standard (medium) double socket arm for adjustable positioning
• Black rubber caps protect exposed U-bolt threads
• RAM ball and socket system allows precise angle adjustment
• Marine-grade aluminum and high-strength composite construction
• Designed for standard use up to 2 lbs
• Made in the USA
Specifications
Clamp Range: 0.5" – 1.25" diameter
Ball Size: B Size (1")
Socket-to-Socket Length: 3"
Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
Materials: Marine-grade aluminum & composite
Product Weight: 0.67 lb
Included Hardware
• (1) 1/4"-20 U-Bolt for 0.5" – 1" rails
• (1) 1/4"-20 U-Bolt for 1" – 1.25" rails
• (2) 1/4"-20 Nylock nuts
• (2) Rubber cover caps
• (1) U-Bolt spacer
Compatibility Note
This mount is not compatible with the standard Lowrance Elite-7.
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-B-149Z-LO11-NAV1
Warranty: Manufacturer’s Lifetime Warranty
