Description
Transform your Sonim XP8 into a fully equipped mobile communications system with this rugged RAM® PTT Speaker & Hardwire Bundle. Engineered for demanding field operations, emergency response teams, industrial fleets, and off-road work environments, this bundle delivers secure mounting, dependable charging, and loud, clear audio—all in a single integrated setup.

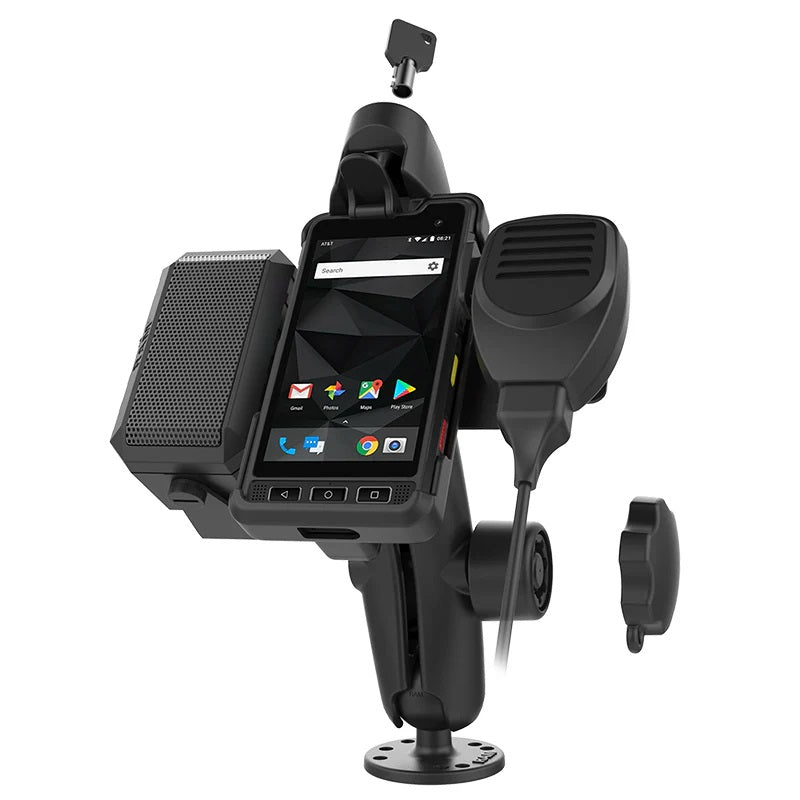

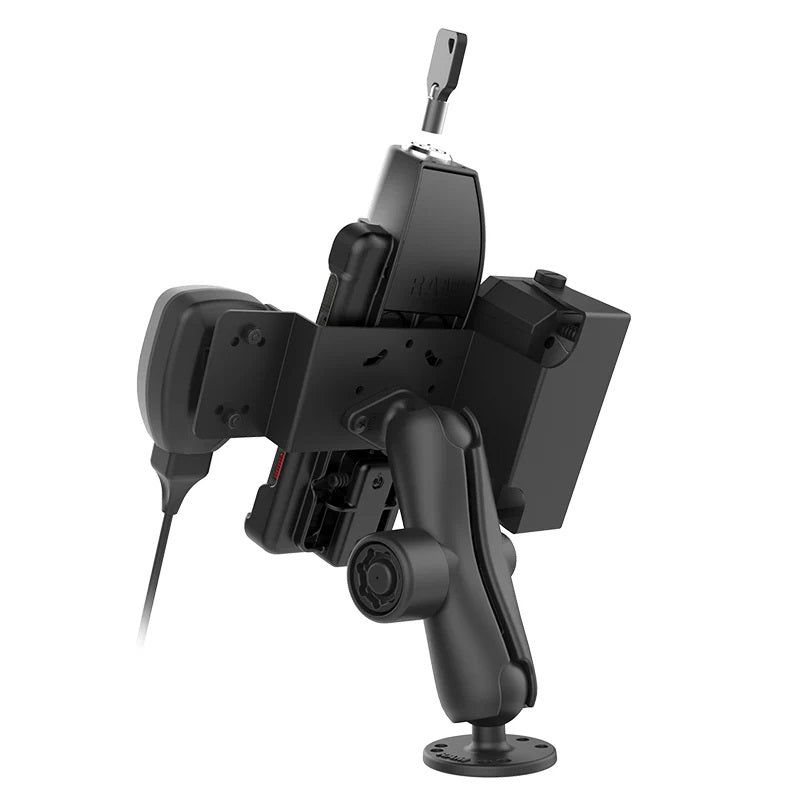

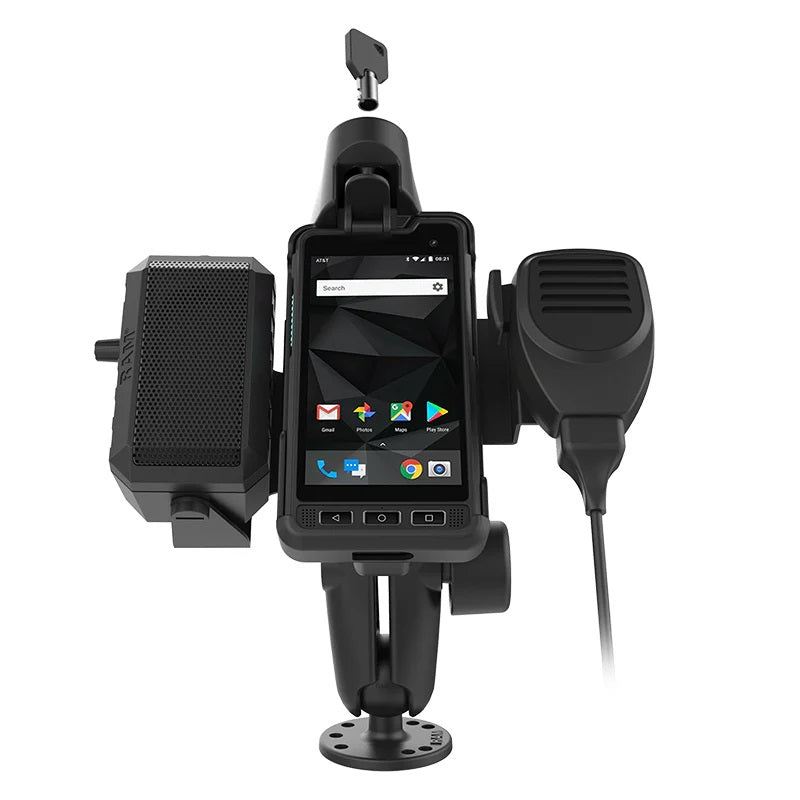

This kit features the RAM® EZ-Roll’r™ Powered Key-Locking Cradle, precision-designed for a perfect form-fit hold of the Sonim XP8 without a case. Built-in pogo pins deliver reliable charging through a USB Type-A connection, ensuring your XP8 stays powered even during high-intensity operations. For additional protection, the cradle includes a key lock, paired with the RAM® Pin-Lock™ security knob to help safeguard your device from tampering or theft.
The external speaker and microphone mount cleanly to the included bracket, keeping communications accessories organized and within reach. The high-output speaker connects to the XP8 using the supplied 10-pin to 3.5mm audio adapter cable, delivering clear, powerful audio up to 100 dB for loud work sites and high-noise vehicle cabins. A 10–30V modular vehicle hardwire charger is included for consistent power across commercial, industrial, and fleet vehicles.
This rugged all-in-one system keeps your Sonim XP8 and communication accessories unified, secure, and ready for mission-critical reliability.
Key Features
-
Complete PTT communication bundle for Sonim XP8
-
Powered RAM® EZ-Roll’r™ locking cradle provides secure device retention and continuous charging
-
Spring-loaded, form-fit design ensures stability without a device case
-
Key lock and RAM® Pin-Lock™ knob offer superior theft deterrence
-
External speaker/mic mount keeps audio components integrated and accessible
-
Includes 10–30V hardwire vehicle charger for dependable power
-
RAM® components backed by a lifetime warranty; cradle and electronics backed by 3-year warranty

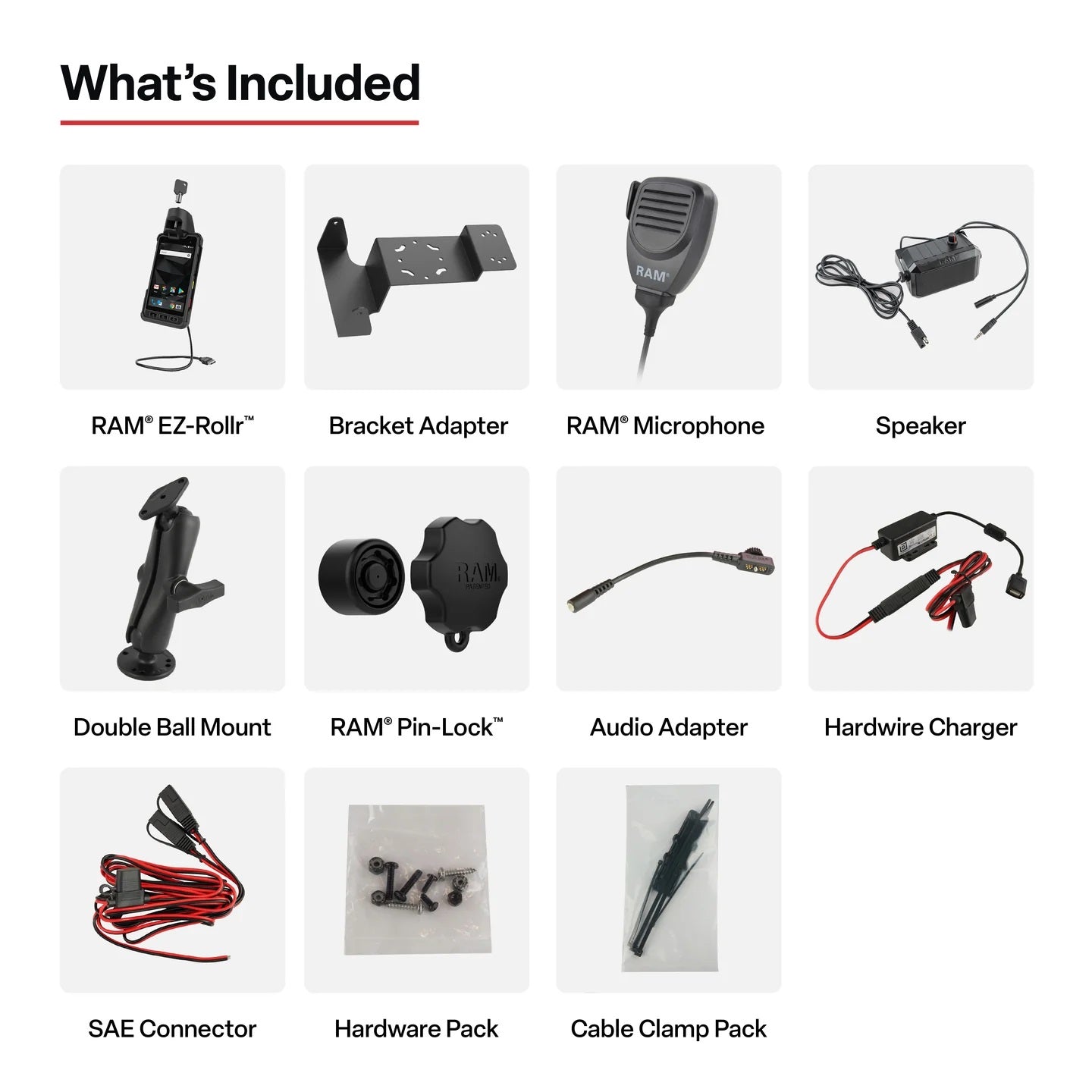

Included Hardware
-
Assembly hardware
-
(2) Keys for cradle
-
(1) Key for locking knob
-
(1) 10-pin to 3.5mm audio adapter cable
-
(1) Modular hardwire charger
Compatible Devices
Sonim
-
XP8
Additonal Information: 5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
Speaker Specifications
-
Independent volume control
-
Up to 100 dB maximum output
-
8? / 10W rated speaker
Technical Specifications
Socket-to-socket length: 4.66"
Hole patterns:
• 4-Hole AMPS (1.181" x 1.496")
• 3-Hole, 120° (1.812" diameter)
Plate size: 2.5" diameter
Ball size: C-Size (1.5")
Weight capacity: 4 lbs (standard), 3 lbs (heavy-duty)
Bundle weight: 4.29 lbs
Construction:
Marine-grade aluminum, high-strength composite, powder-coated steel
Electrical:
Input voltage: 10–30VDC
Output voltage: 5–9VDC*
Output current: Up to 2.5A
Connector: Female USB Type-A
Input cable: 1.2m with 2-pole flat marine connector
Output cable: 0.2m
Environmental & Compliance:
-10°C to +70°C operating temperature
Over-voltage, short-circuit, and reverse-polarity protection
Moisture resistant
RoHS, WEEE, FCC, CE, UKCA, IC
SAE J-1113-5 transient voltage compliance
E-Mark, RCM, IEC/UL 62368-1 certified
Brand: RAM Mounts
Part number: RAM-138-S-SNM2PL-V7B1U
Warranty: Manufacturer's waranty: cradle and electronics, 3-year warranty.; mount components, lifetime warranty
