Description

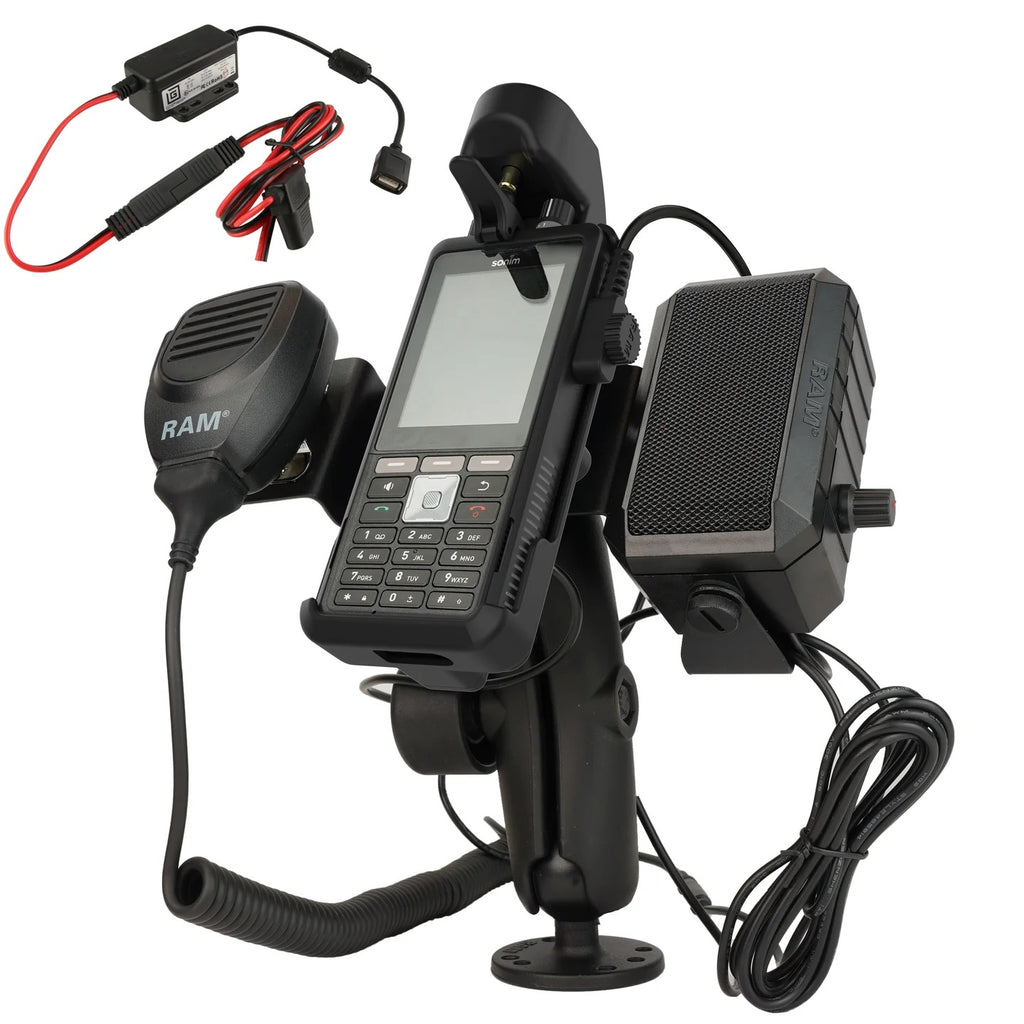

Upgrade your Sonim XP5plus to a fully integrated mobile communication hub with this rugged RAM® PTT Speaker & Hardwire Bundle. Designed for public safety, field service, fleet vehicles, and demanding work environments, this all-in-one kit combines secure device mounting, reliable power delivery, and loud, clear audio in one unified system.

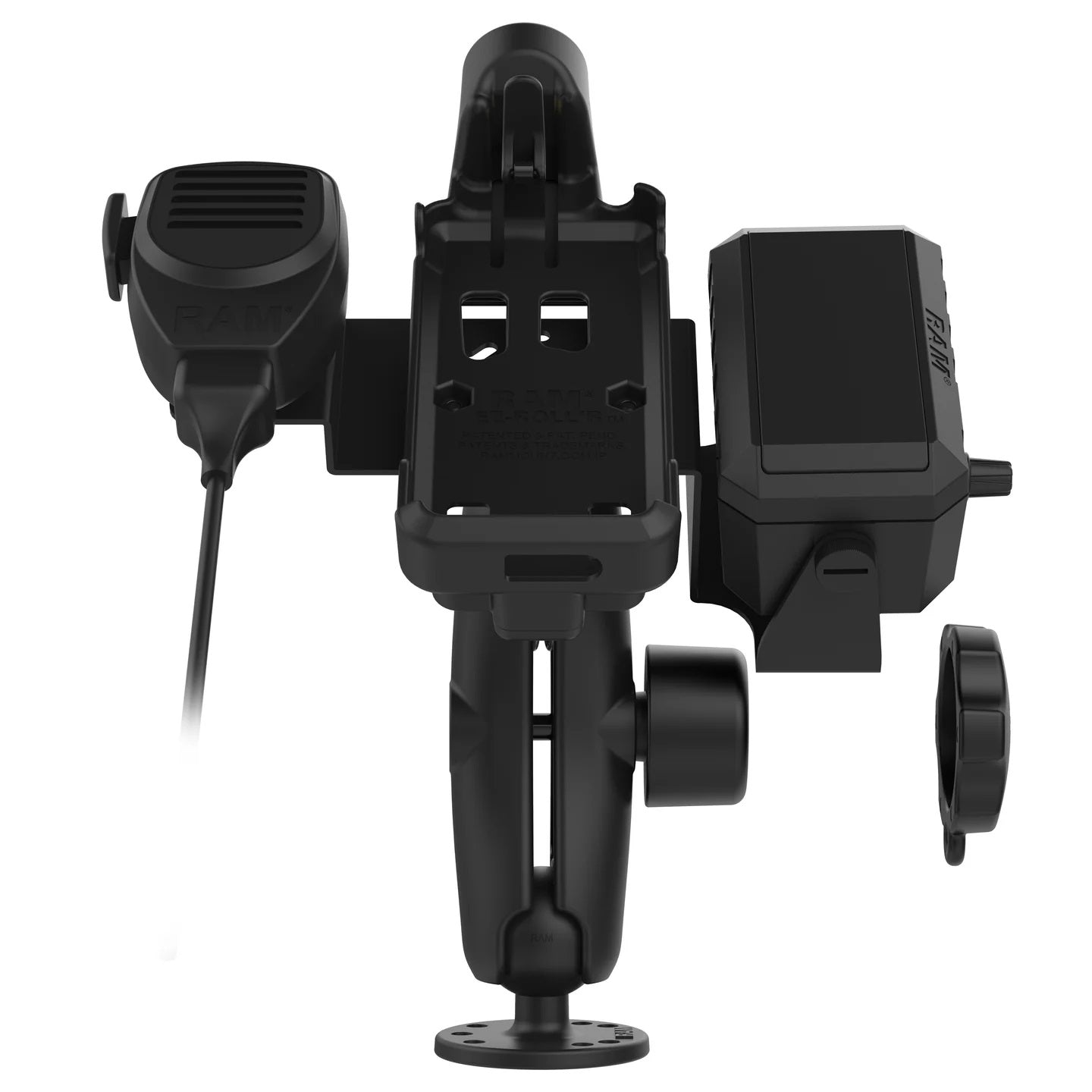

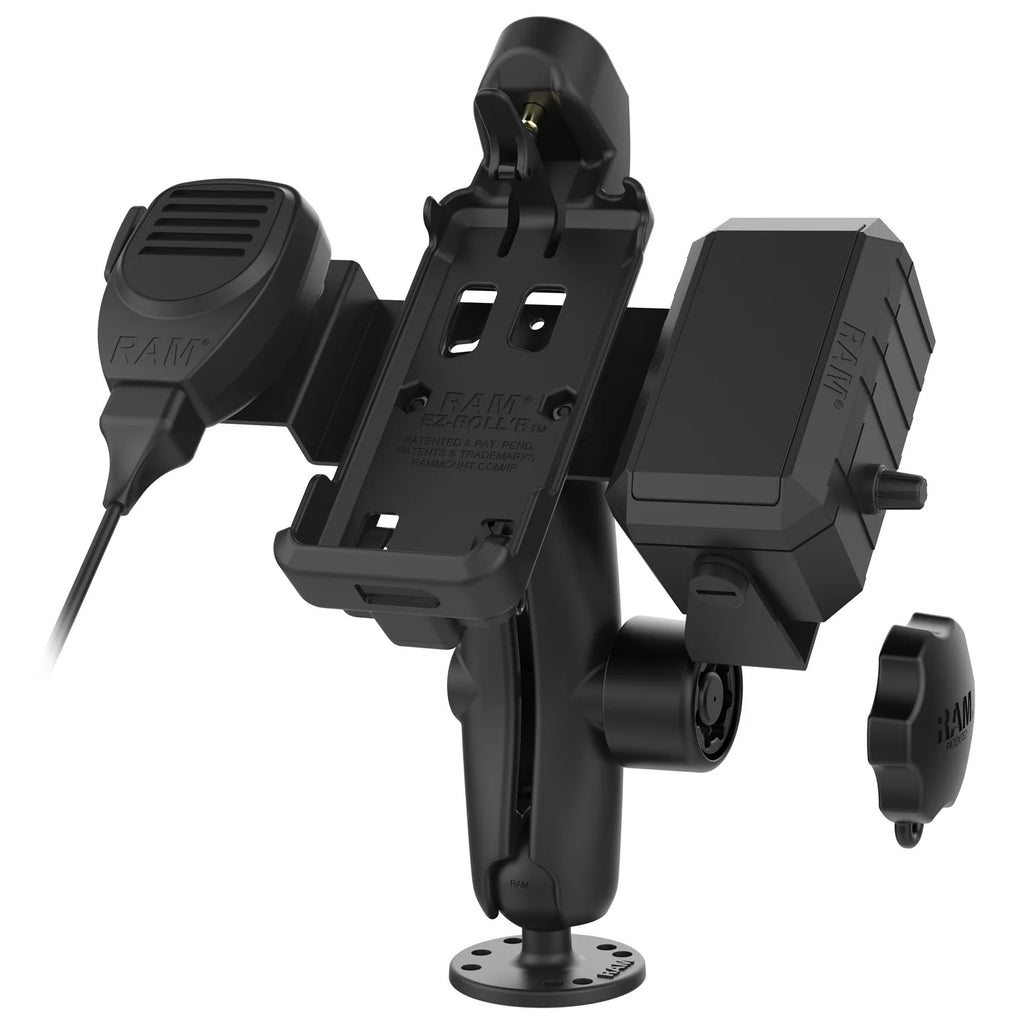

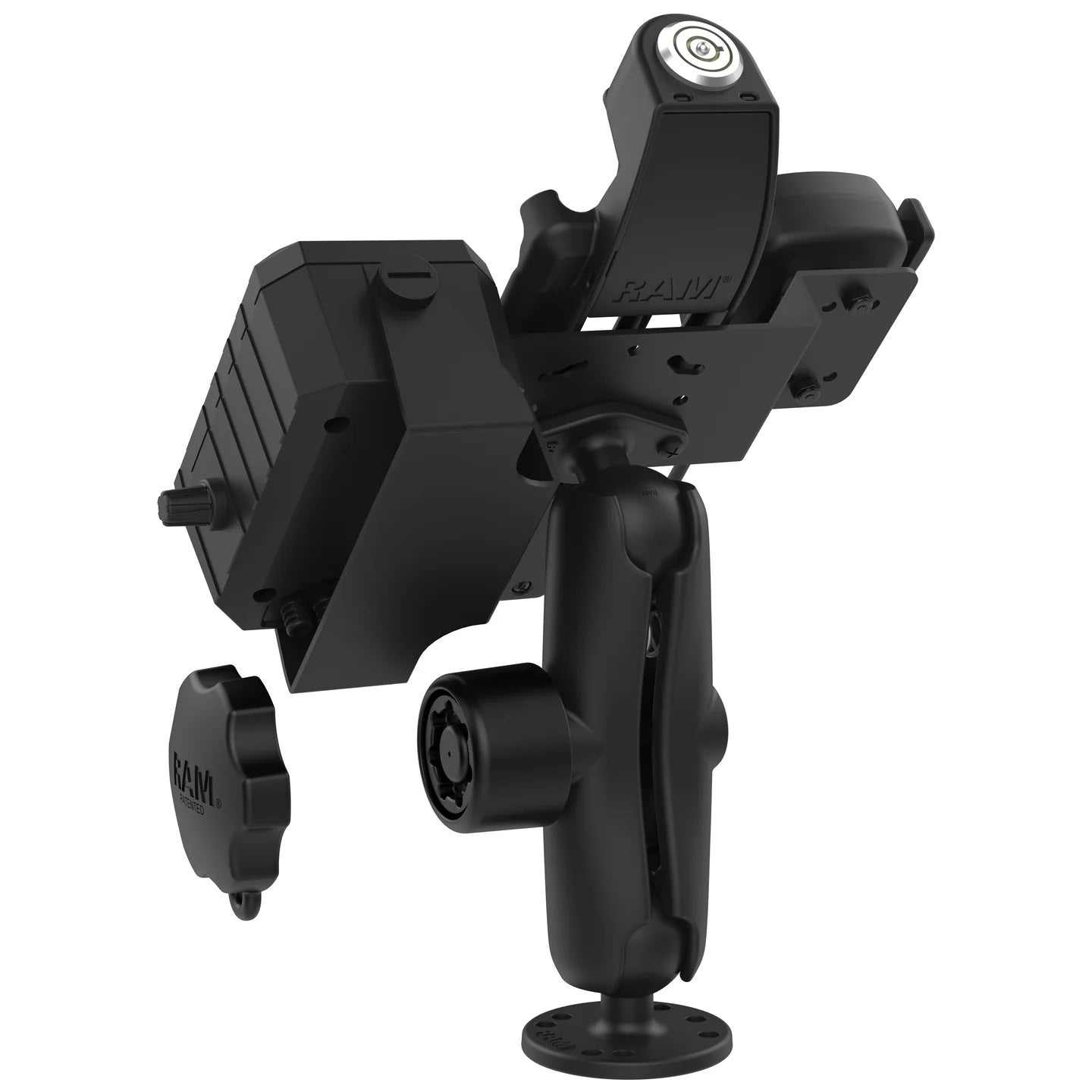

At the heart of the bundle is the RAM® EZ-Roll’r™ Powered Key-Locking Dock—engineered specifically for the Sonim XP5plus, including both device variations with or without PTT control knobs. Two integrated pogo pins ensure fast, consistent charging through a durable USB Type-A connection, while the built-in key lock and RAM® Pin-Lock™ security knob keep your device protected against theft and accidental removal.
The included external speaker and microphone mount neatly to the bracket, allowing operators to communicate clearly in high-noise environments. The speaker connects to the XP5plus using the provided 10-pin-to-3.5mm audio adapter, delivering powerful, adjustable audio up to 100 dB. Completing the setup is a 10–30V modular vehicle hardwire charger for dependable power in any fleet, emergency, or industrial vehicle.
Whether used in work trucks, patrol vehicles, or heavy-equipment cabins, this bundle keeps your Sonim XP5plus and audio accessories organized, secure, and mission ready.
Key Features
-
Complete communication bundle engineered for the Sonim XP5plus
-
Powered RAM® EZ-Roll’r™ locking dock provides continuous charging and a form-fit cradle
-

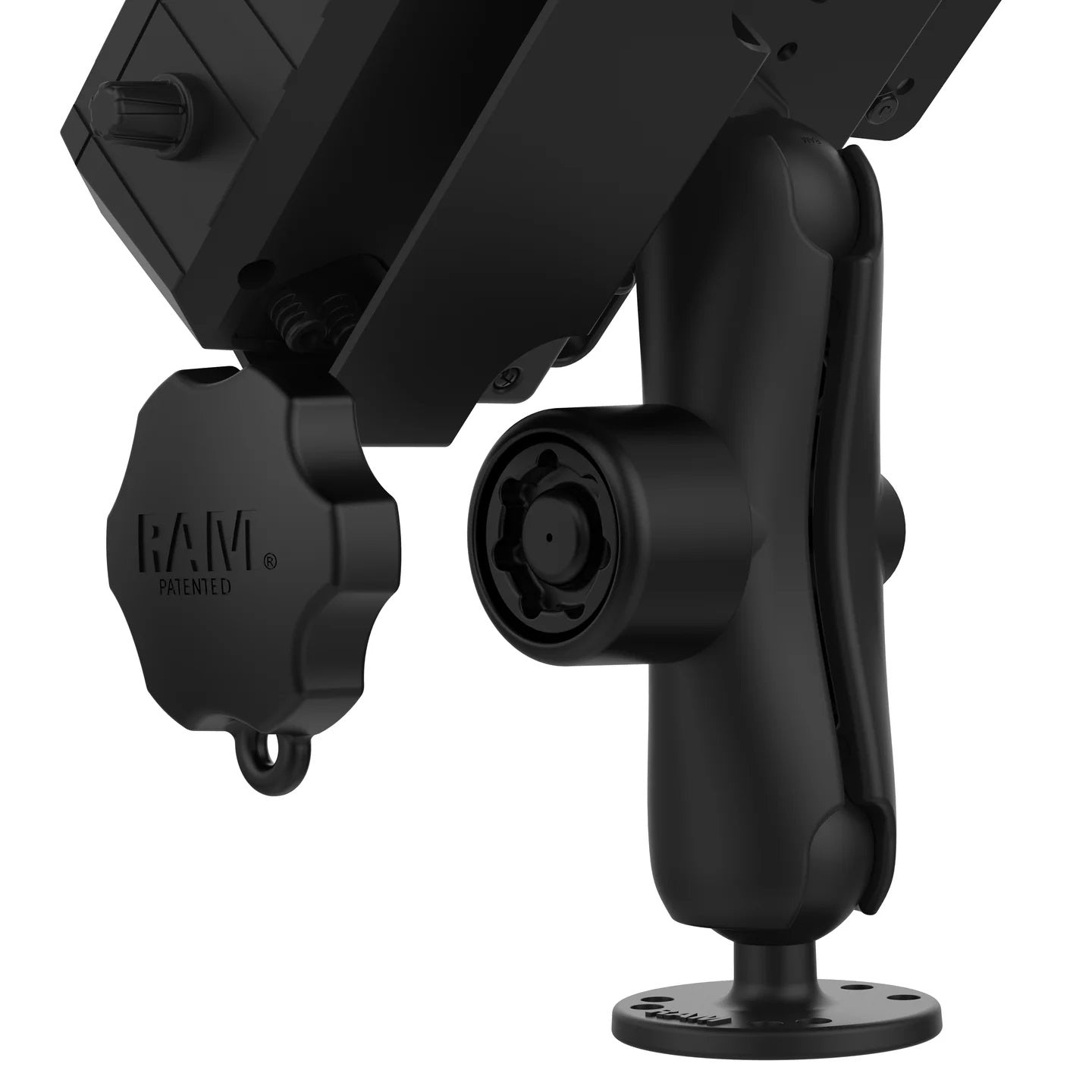

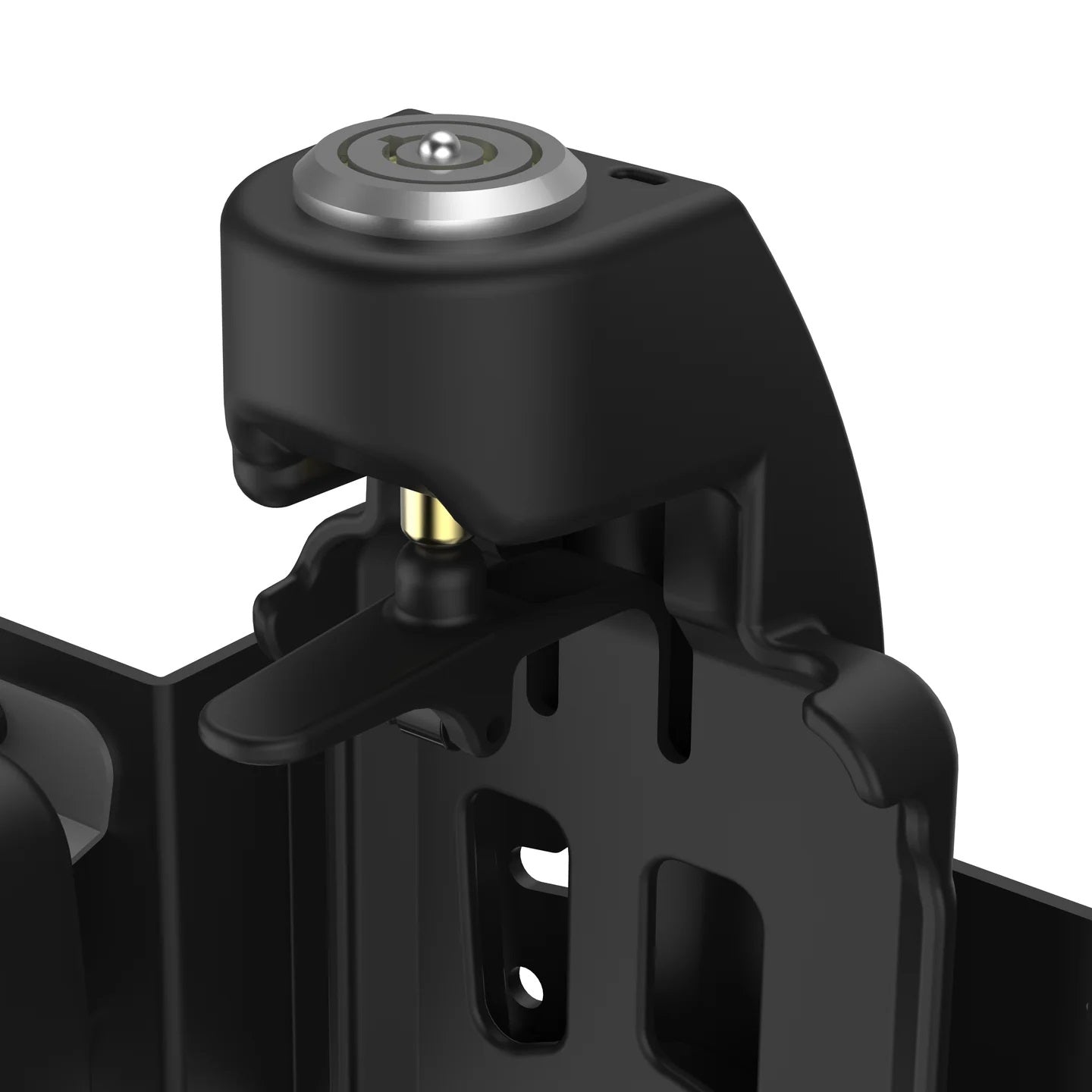

Key lock + RAM® Pin-Lock™ knob offer added theft deterrence
-
Integrated speaker/microphone mount keeps audio accessories secure and accessible
-
Supports both XP5plus versions (with or without PTT knobs)
-
Includes vehicle hardwire charger for 10–30V systems
-
Backed by a RAM® lifetime warranty on components (3-year warranty on electronics)

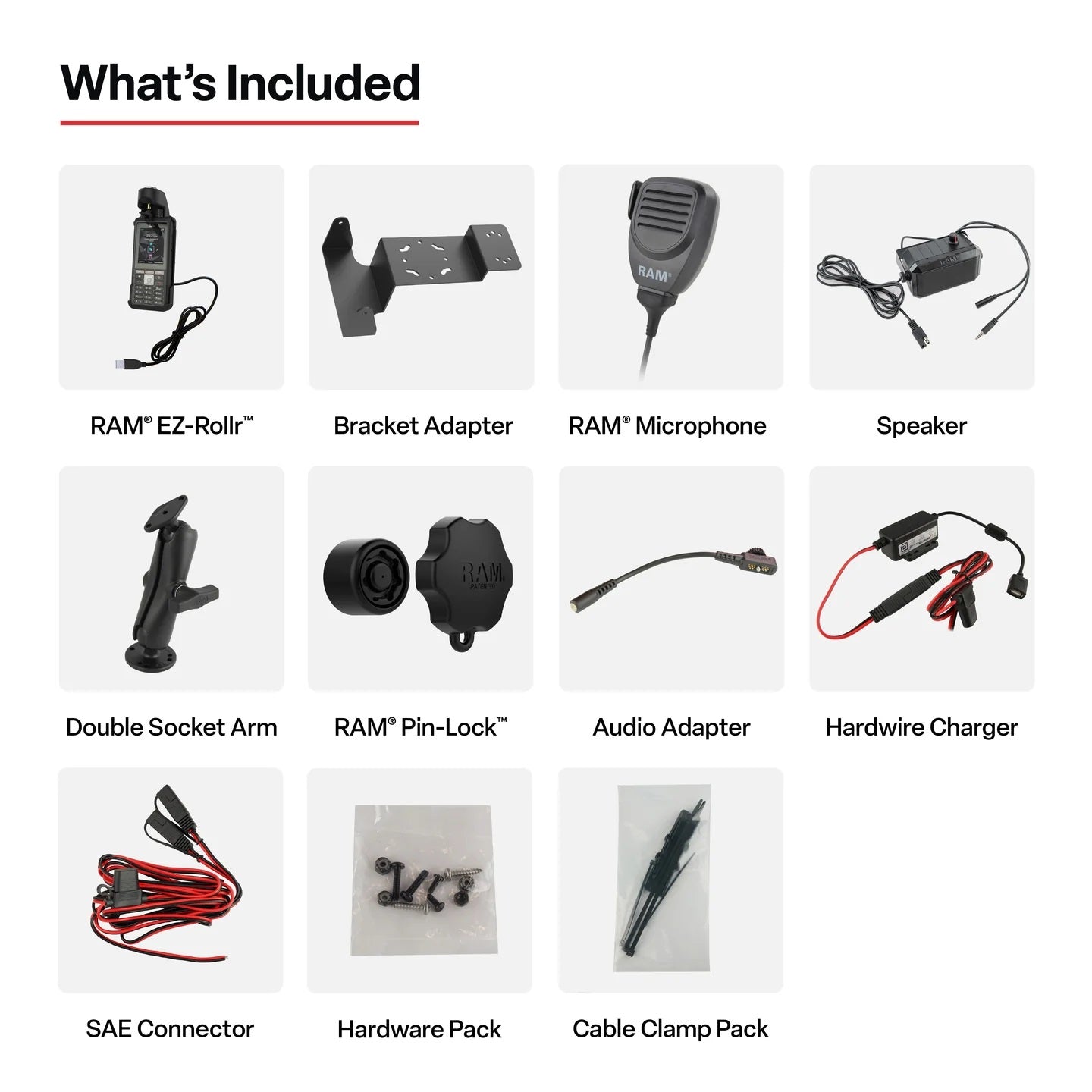

Included Hardware
-
Assembly hardware
-
(2) Keys for the device holder
-
(1) Key for the locking knob
-
(1) 10-pin to 3.5mm audio adapter cable
-
(1) Modular hardwire charger
Compatible Devices:
Sonim
- XP5plus
Additonal Information: *5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
Speaker Specifications
-
Adjustable volume knob
-
Up to 100 dB max output
-
8? / 10W rated speaker
Tech Specs
Socket-to-socket length: 4.66"
Hole patterns:
• 4-Hole AMPS (1.181" x 1.496")
• 3-Hole, 120° (1.812" diameter)
Plate size: 2.5" diameter
Ball size: C-Size (1.5")
Weight capacity: 4 lbs (standard), 3 lbs (heavy-duty)
Materials:
Marine-grade aluminum, powder-coated steel, high-strength composite
Electrical:
Input: 10–30VDC
Output: 5–9VDC, 2.5A max
USB Type-A input connector
1.2m input cable / 0.2m output cable
Protection & Compliance:
Over-voltage, short-circuit, reverse-polarity protection
Moisture-resistant
RoHS, WEEE, FCC, CE, UKCA, IC
SAE J-1113-5 compliant
E-Mark, RCM, IEC/UL 62368-1 certified
Brand: RAM Mounts
Part number: RAM-138-S-SNM3PL-V7B1U
Warranty: Manufacturer's waranty: dock and electronics, 3-year warranty.; Mount components, lifetime warranty
