Description

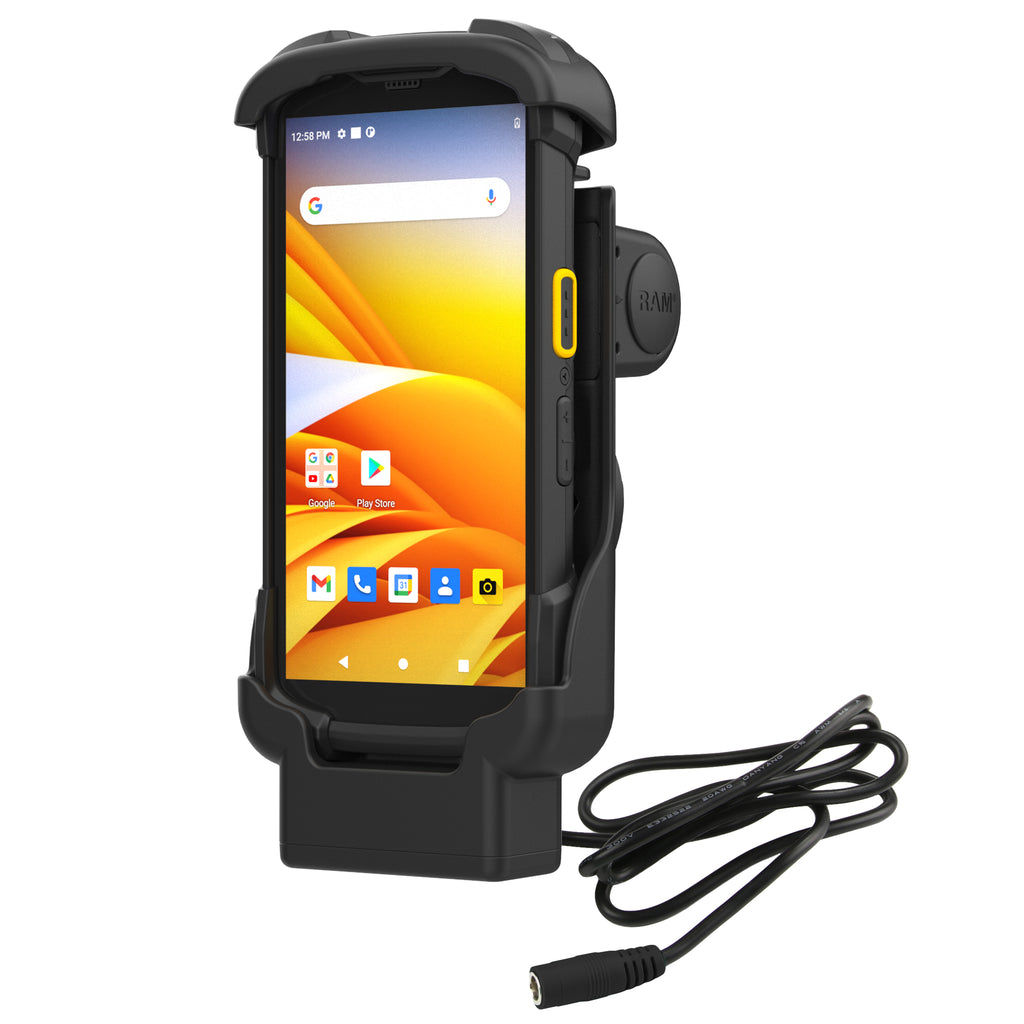

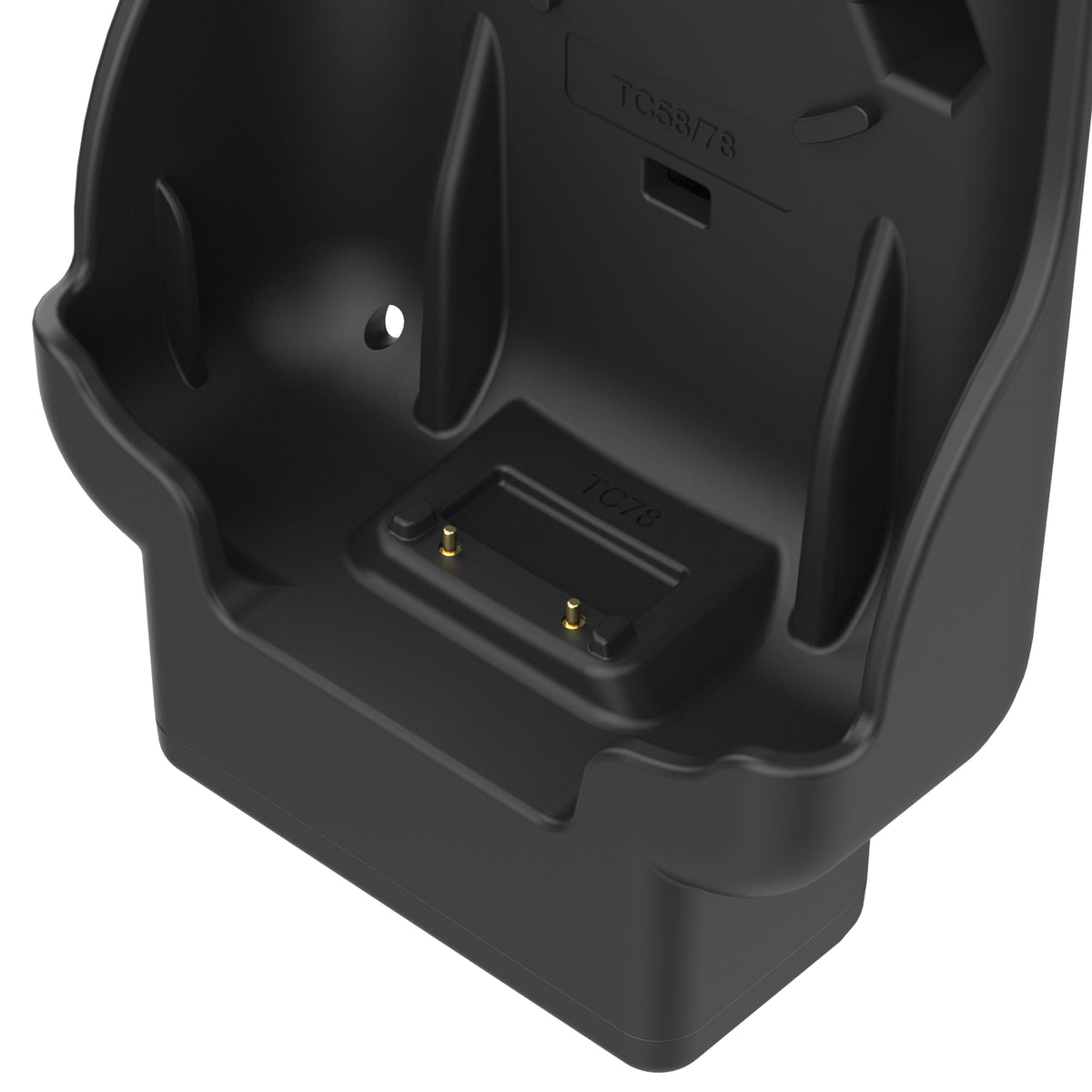

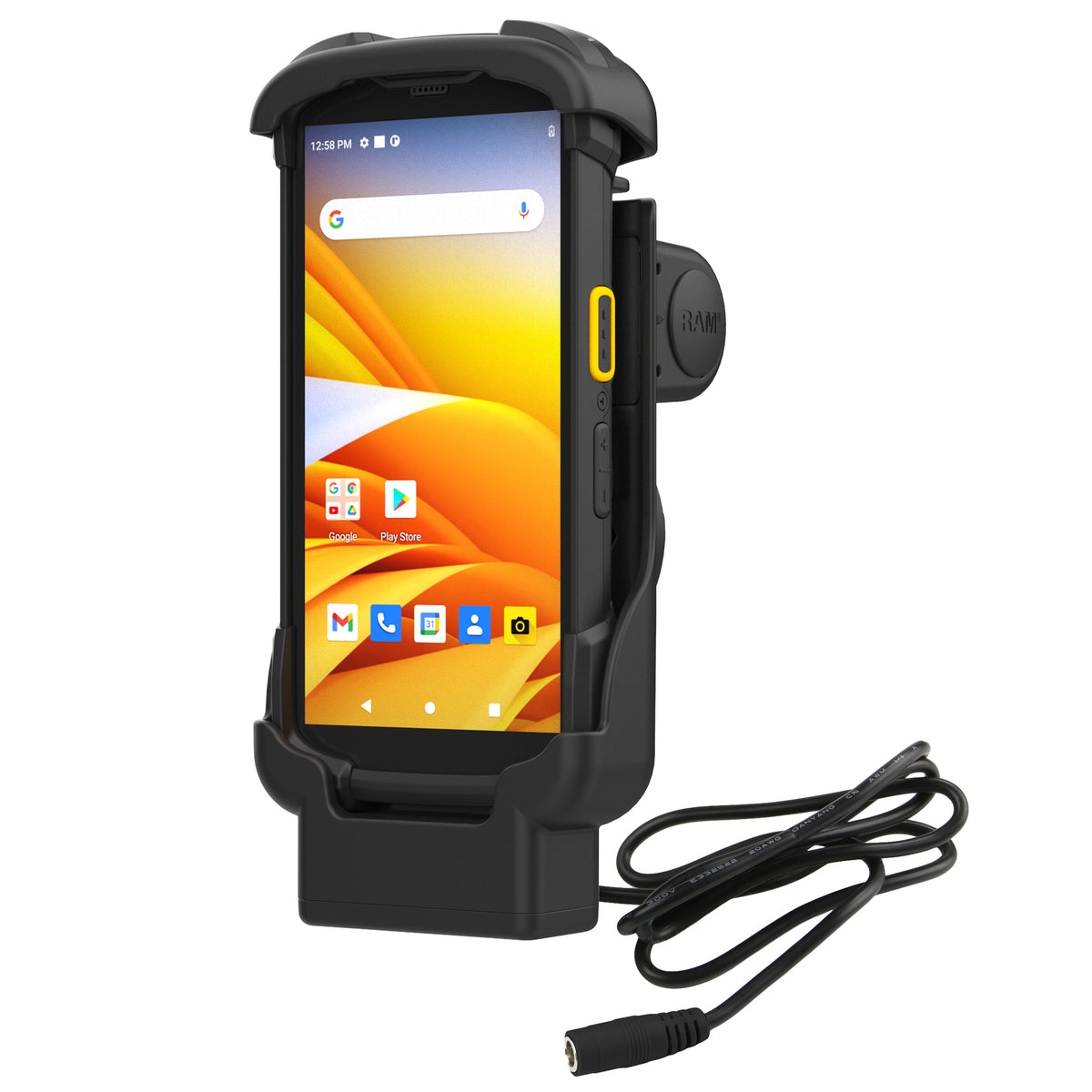

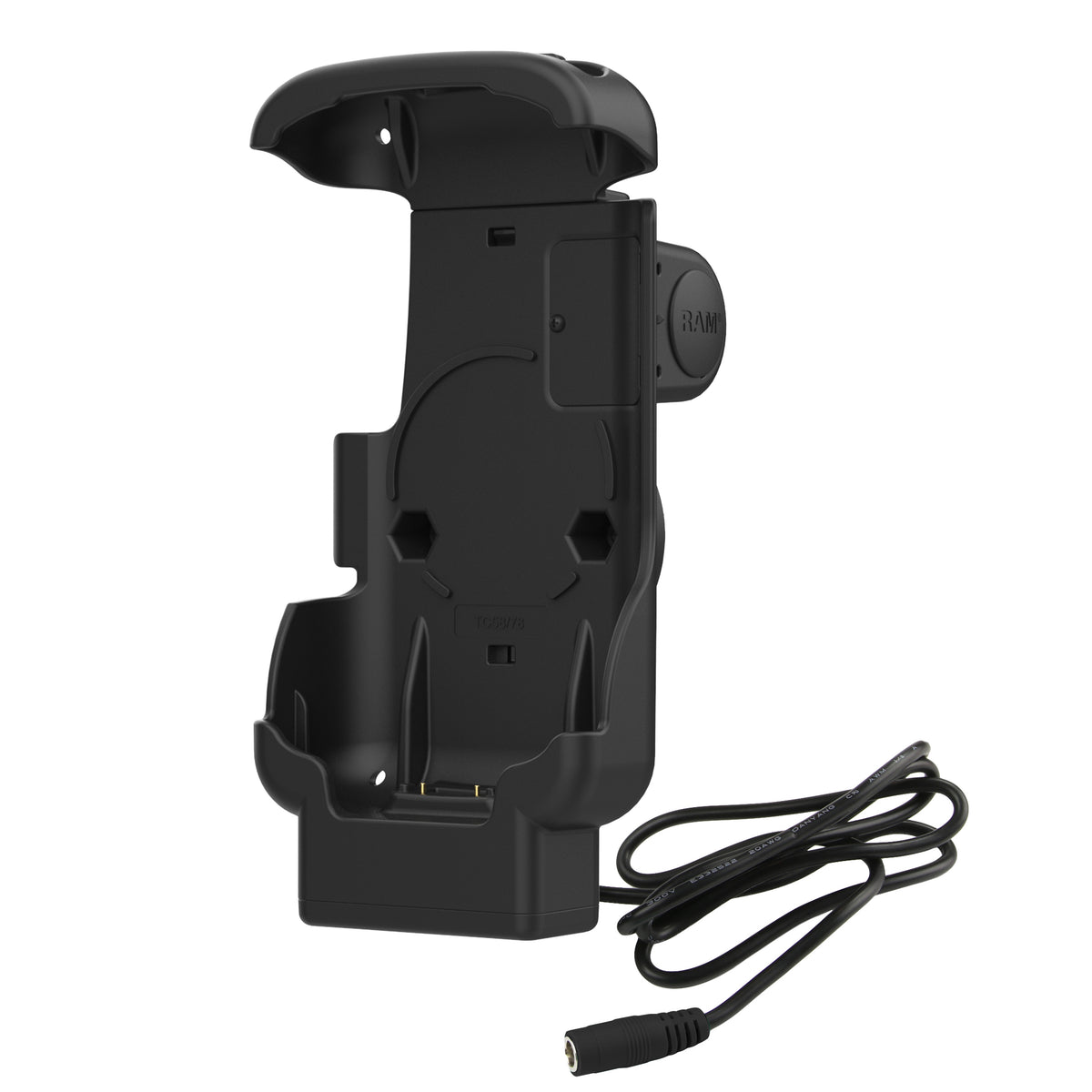

The RAM Form-Fit Powered Dock for Zebra TC73 & TC78 (RAM-HOL-ZE17-1U) is a spring-loaded docking station designed to securely hold and provide charging connectivity for Zebra TC73 and TC78 rugged handheld computers. Featuring a 5.5mm DC barrel power connector, the dock supports powered device installations in commercial and industrial environments.
An integrated stylus holder keeps a compatible stylus accessible when not in use, while the device cradle accommodates the Zebra hand strap accessory. The 2-hole AMPS mounting interface allows attachment to compatible RAM B Size or C Size diamond ball bases and adjustable mounting systems.
Key Features
-

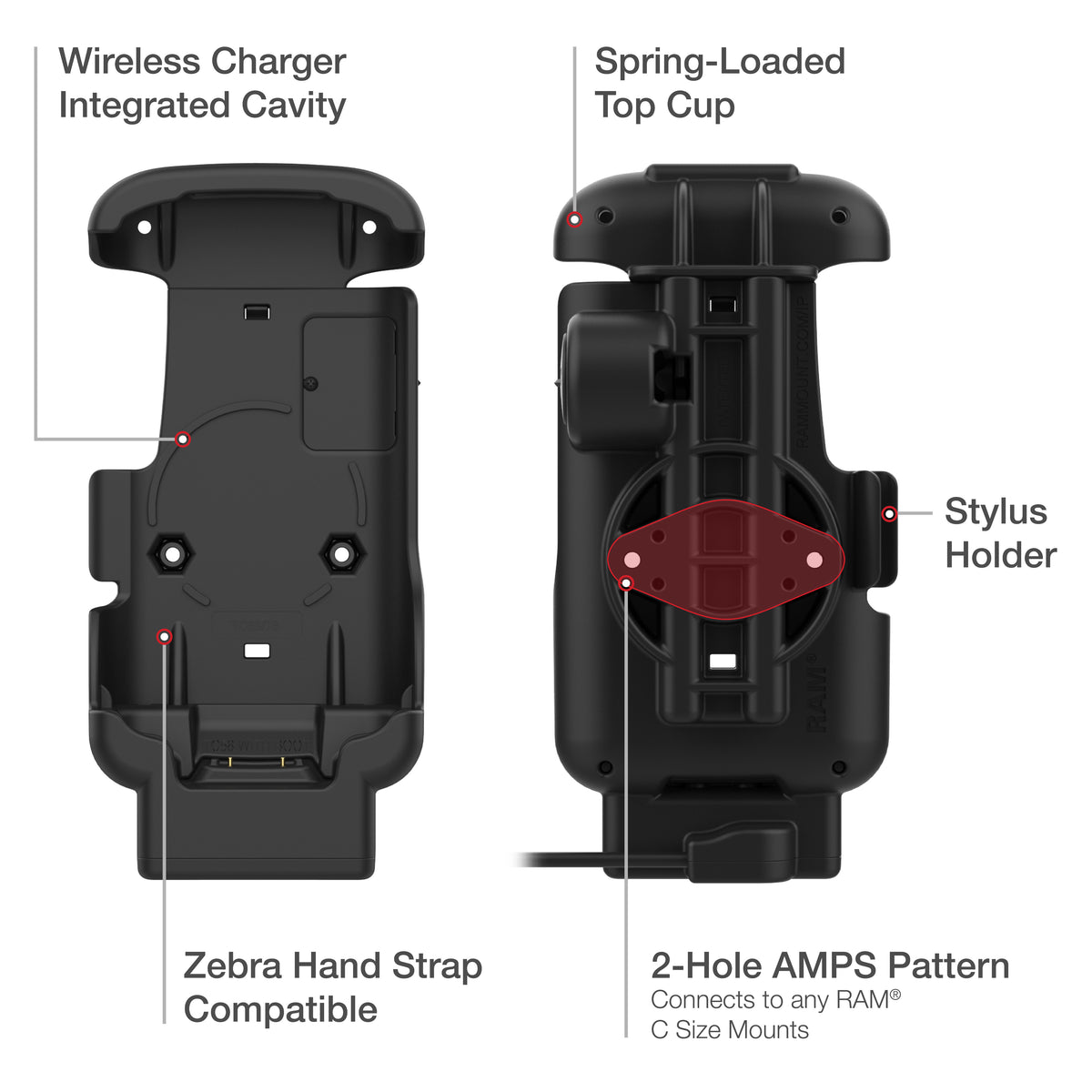

Form-Fit Powered Dock: Specifically designed for Zebra TC73 and TC78 rugged handheld computers.
-
Spring-Loaded Retention: Securely holds the device while allowing convenient insertion and removal.
-
Power Connectivity: Features a female 5.5mm DC barrel connector with a 1.25-meter input cable.
-
Integrated Stylus Holder: Built-in storage location keeps the stylus accessible when not in use.
-
Hand Strap Compatibility: Accommodates the Zebra hand strap accessory.
-
RAM Mounting Compatibility: Accepts compatible RAM B Size (1") or C Size (1.5") 2-hole diamond ball bases.
-
Adjustable Installation Options: Compatible RAM ball-and-socket systems offer flexible device positioning.
-
Durable Construction: High-strength composite material for demanding professional use.
Use Cases & Compatibility
Designed for Zebra TC73 and TC78 rugged handheld computers, this dock is suitable for warehouse operations, inventory management, logistics, material handling, fleet applications, and field service.
Device Compatibility:
-
Zebra TC73
-
Zebra TC78
-
Compatible with the Zebra hand strap accessory
Mounting Compatibility:
-
2-hole AMPS pattern (1.912" spacing)
-
Compatible RAM B Size (1") 2-hole diamond ball bases
-
Compatible RAM C Size (1.5") 2-hole diamond ball bases
-
Compatible RAM double socket arms and mounting components
Power Compatibility:
-
Female 5.5mm DC barrel power connector
-
Compatible charging accessories are sold separately
RAM mounting components can be selected separately to complete the mounting solution. Chargers are not included.
Specifications
-
Compatible Devices: Zebra TC73, Zebra TC78
-
Dock Type: Form-fit, spring-loaded powered dock
-
Input Connector: 5.5mm DC connector
-
Input Cable Length: 1.25 meters
-
Mounting Hole Pattern: 2-hole AMPS (1.912")
-
Materials: High-strength composite
-
Product Weight: 0.67 lb
What's Included
-
(1) RAM Form-Fit Powered Dock for Zebra TC73 & TC78
-
(2) #8-32 x 3/4" machine screws
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE17-1U
Warranty: Manufacturer's 3-year warranty.
