Description

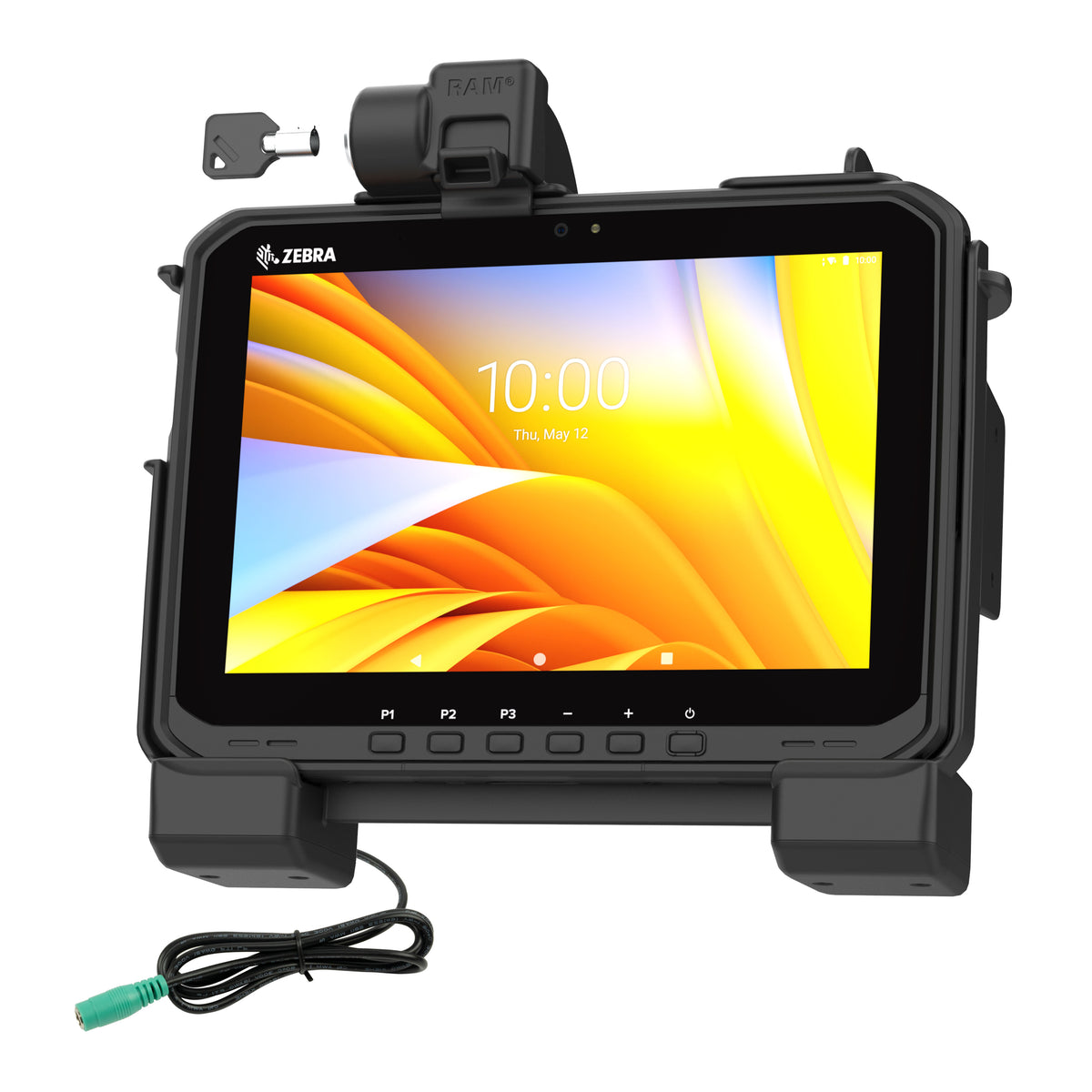

The RAM Powered Locking Dock for Zebra ET60 & ET65 Tablets (RAM-HOL-ZE25PLU) is a key-locking, form-fit docking station designed for Zebra ET60 and ET65 rugged tablets. Featuring RAM's patented 3-D Float docking connector, the dock uses self-aligning pogo-pin contacts to provide charging connectivity while helping protect the contacts from damage.
Designed for demanding professional applications, the dock accommodates the tablet with or without the attachable Zebra keyboard. Its unique 2-in-1 latch secures the tablet while allowing the keyboard to open and close independently. The integrated key lock provides additional device security. The dock features 75 x 75mm VESA and 4-hole AMPS mounting interfaces for integration with compatible RAM mounting components.
Key Features
-
Key-Locking Powered Dock: Provides form-fit tablet retention, integrated charging connectivity, and a key-operated locking mechanism.
-

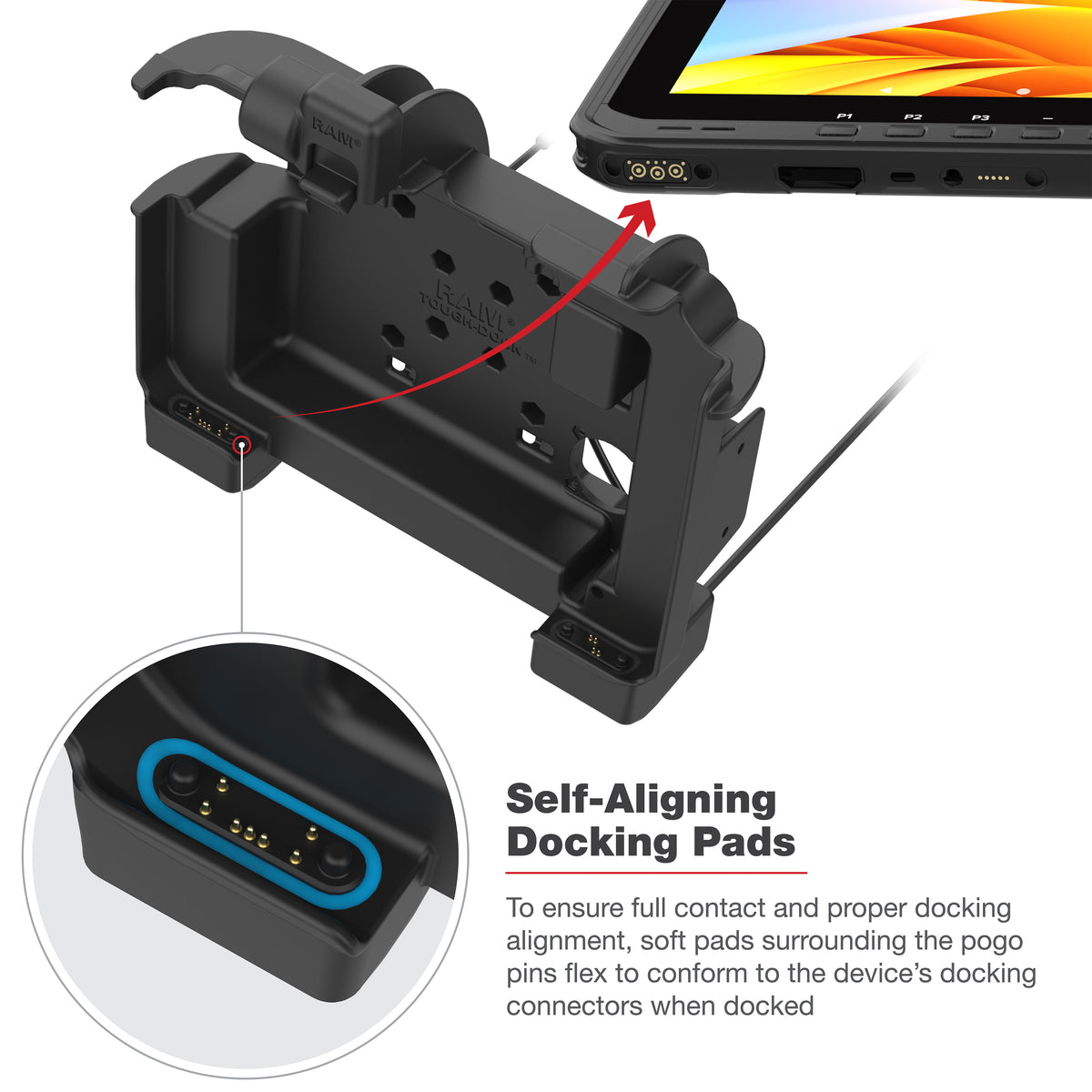

Patented 3-D Float Technology: Self-aligning docking pads conform to the tablet when seated, helping maintain charging contact and protect the pogo pins.
-
Integrated Charging: Built-in pogo-pin contacts and a 5.5mm DC barrel pigtail connector provide the charging interface.
-

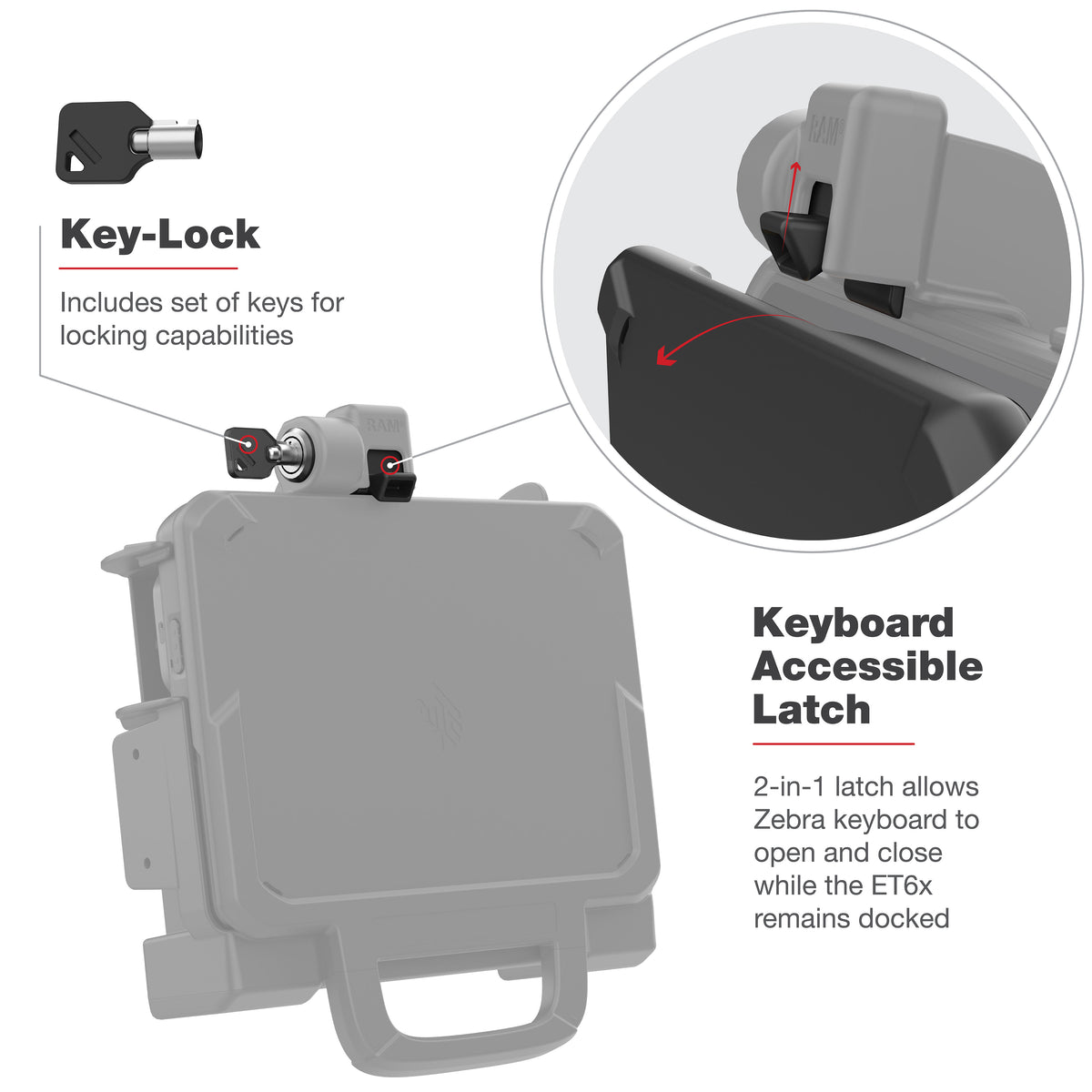

2-in-1 Retention Latch: Secures the tablet while allowing the optional Zebra keyboard to open and close independently.
-

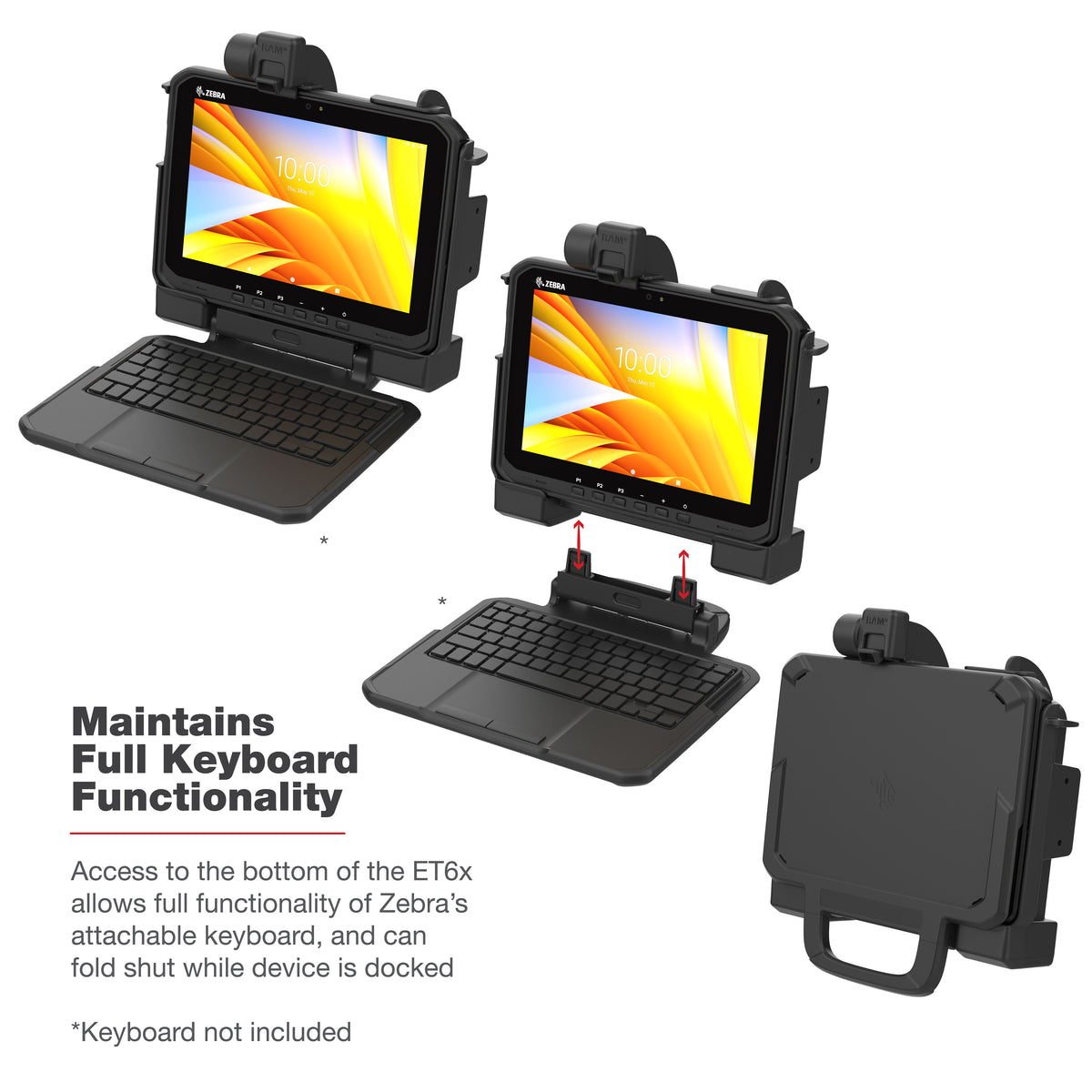

Keyboard Compatibility: Accommodates Zebra ET60 and ET65 tablets with or without the attachable Zebra keyboard.
-

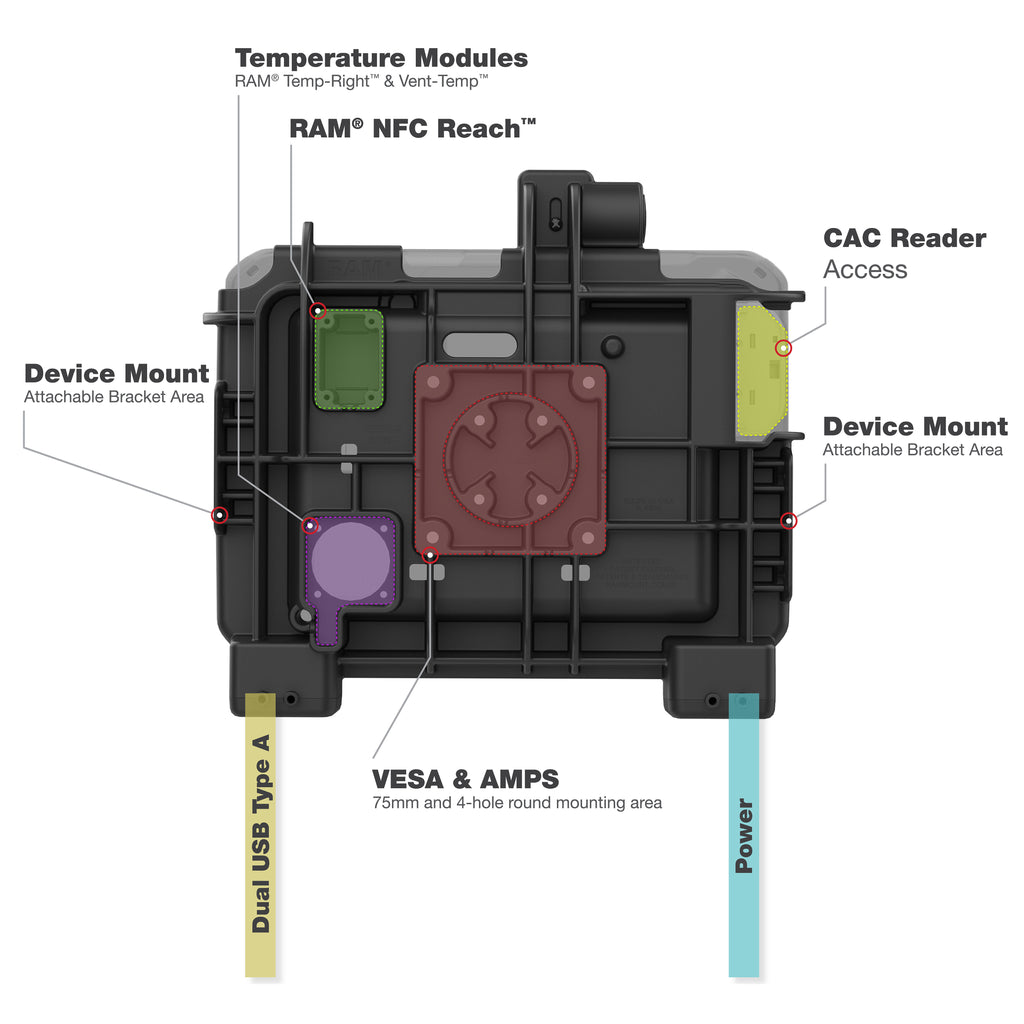

Accessory Compatibility: Supports compatible RAM Vent-Temp, RAM Temp-Right, and RAM NFC Extender accessories.
-
Additional Device Mounting: Features small-device mounting areas on both the left and right sides of the dock.
-
Zebra Accessory Access: Supports the Zebra hand strap and shoulder strap while docked, with a side cutout for access to the Zebra CAC reader and its door.
-

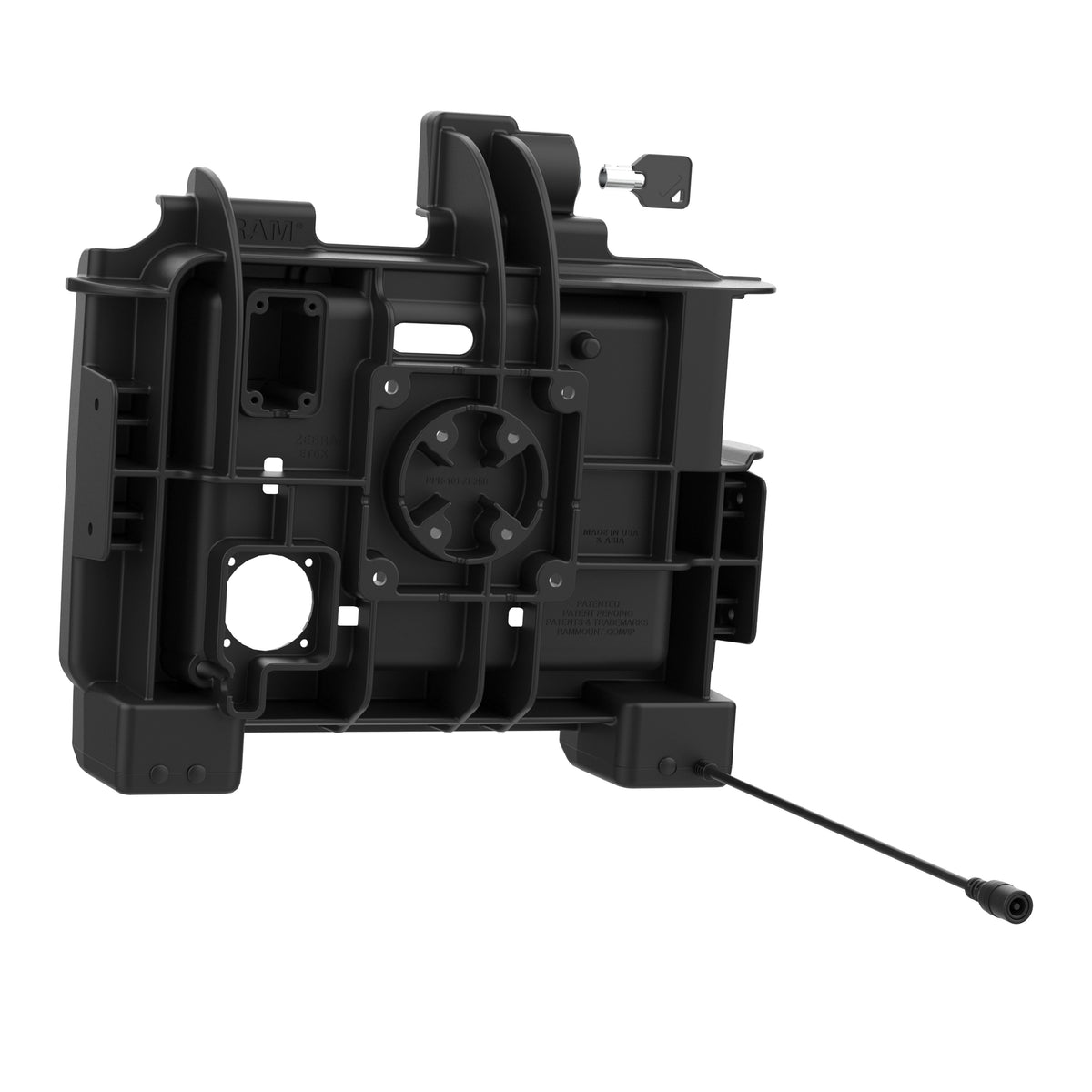

Flexible Mounting: Supports 75 x 75mm VESA and 4-hole AMPS mounting patterns.
-
Durable Construction: Manufactured from high-strength composite for professional applications.
Use Cases & Compatibility

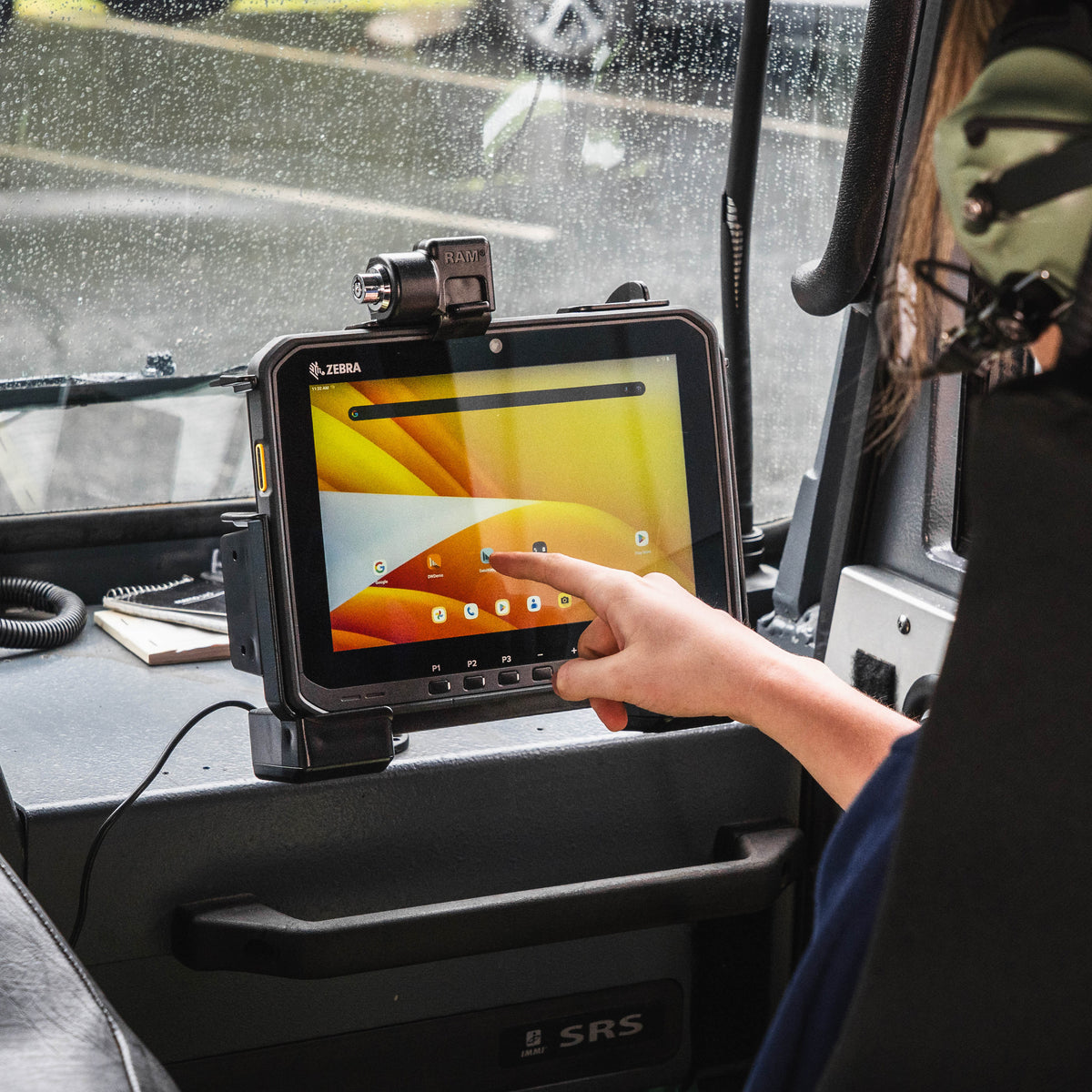

Designed for Zebra ET60 and ET65 rugged tablets, this powered locking dock is suitable for field service, utility operations, public safety, construction, and other mobile workforce applications.
Device Compatibility:
-
Zebra ET60
-
Zebra ET65
-
Compatible with or without the attachable Zebra keyboard
-
Compatible with Zebra hand strap and shoulder strap accessories while docked
-
Provides access to the Zebra CAC reader
Mounting Compatibility:
-
75 x 75mm VESA mounting pattern
-
4-hole AMPS mounting pattern (1.181" x 1.496")
-
Compatible RAM ball adapters and mounting components with matching interfaces
Optional RAM Accessories:
-
RAM Vent-Temp
-
RAM Temp-Right
-
RAM NFC Extender
-
Compatible accessories for the left and right small-device mounting areas
Power & Security Features:
-
Integrated pogo-pin charging contacts
-
5.5mm DC barrel pigtail power connection
-
Key-operated locking mechanism
The dock provides tablet retention, key-locking security, and a charging interface. Compatible RAM mounting components and additional accessories can be selected separately to configure the installation.
Specifications
-
Compatible Devices: Zebra ET60, Zebra ET65
-
Dock Type: Form-fit, key-locking powered tablet dock
-
Docking Technology: Patented RAM 3-D Float
-
Retention Mechanism: 2-in-1 tablet and keyboard latch
-
Security: Key-operated lock
-
Charging Interface: Integrated self-aligning pogo-pin contacts
-
Input Connector: 5.5mm DC connector
-
Input Cable Length: 1 meter
-
Mounting Hole Patterns: 75 x 75mm VESA; 4-hole AMPS (1.181" x 1.496")
-
Material: High-strength composite
-
Product Weight: 2.18 lb
-
Certifications: RoHS, WEEE, CE, UKCA
What's Included
-
(1) RAM Powered Locking Dock for Zebra ET60 & ET65
-
(2) Keys
-
(1) Side bracket for accessory mounting
-
(4) #8-32 x 5/8" machine screws
-
(2) #8-32 x 1/2" machine screws
-
(6) #8-32 Nyloc nuts
-
(4) #10-24 x 5/8" machine screws
-
(4) #10-24 Nyloc nuts
-
(8) 4" zip ties
-
(2) 7" zip ties
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE25PLU
Warranty: Manufacturer's 3-year warranty.
