Description

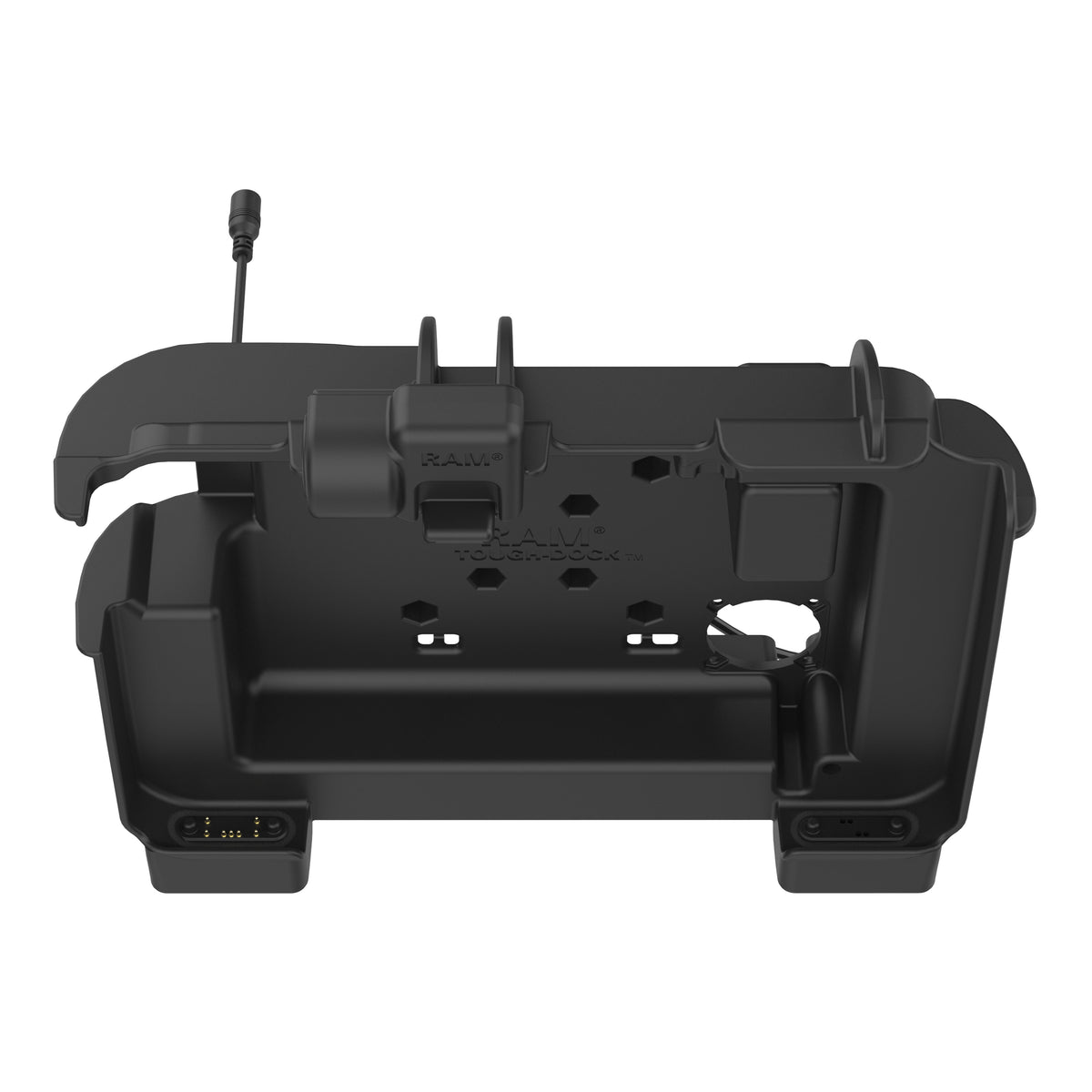

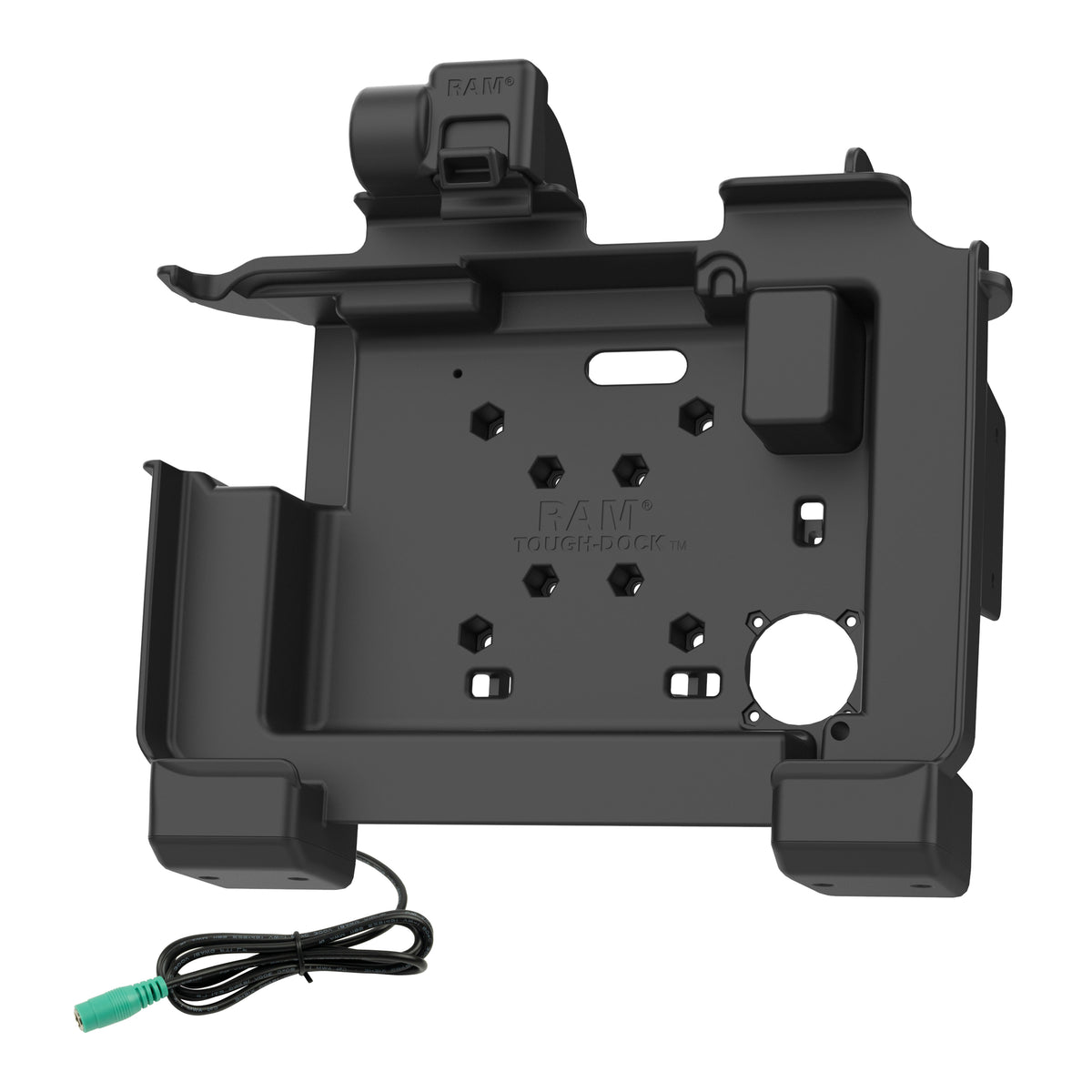

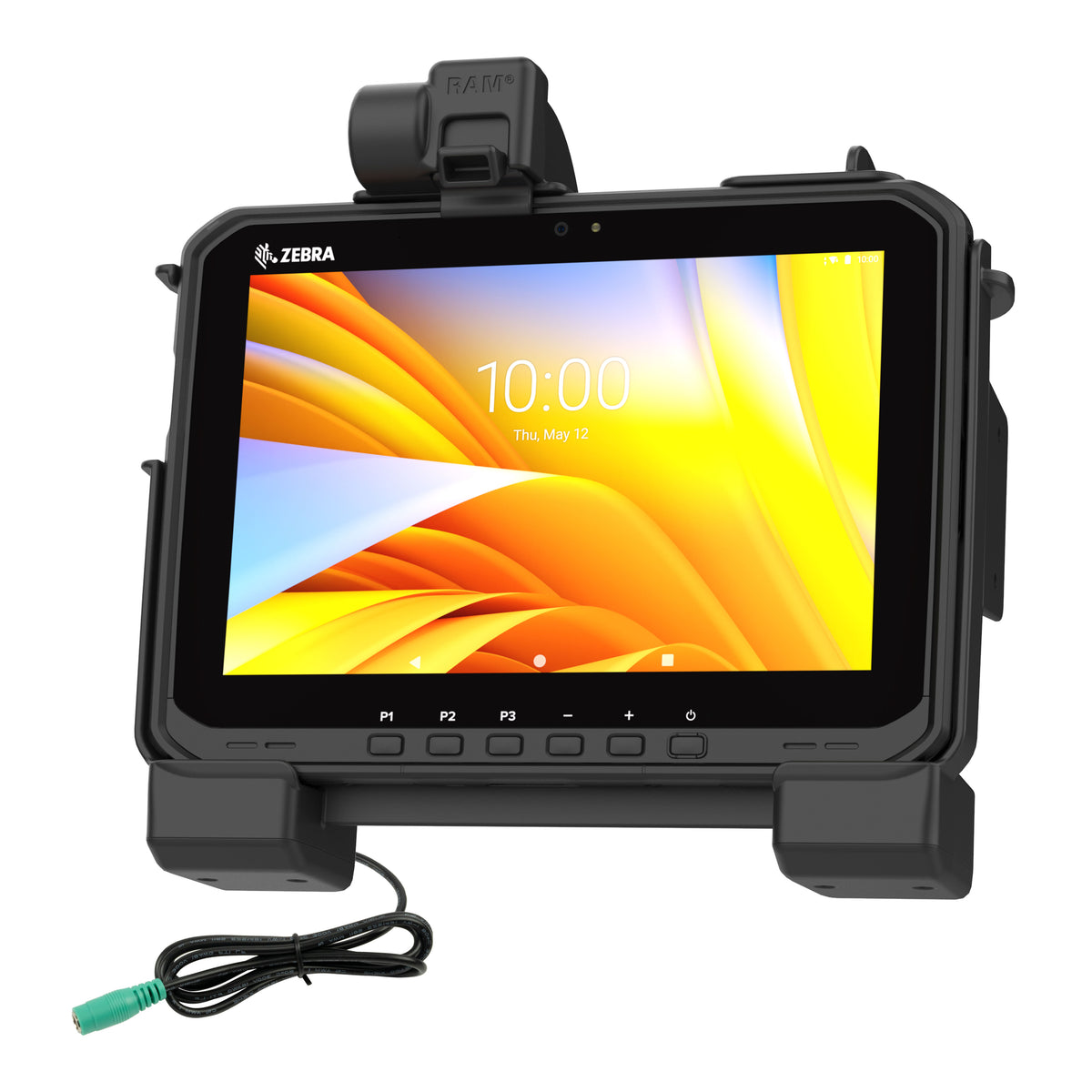

The RAM Powered Dock for Zebra ET60 & ET65 Tablets (RAM-HOL-ZE25PU) provides secure tablet retention and integrated charging for Zebra ET60 and ET65 rugged tablets. Featuring RAM's patented 3-D Float docking connector, the dock uses self-aligning pogo-pin contacts to maintain charging connectivity while helping protect the contacts from damage.
Designed for demanding professional environments, the dock accommodates the tablet with or without the attachable Zebra keyboard. Its unique 2-in-1 latch secures the tablet while allowing the keyboard to open and close independently. The dock also supports compatible RAM accessories and provides 75 x 75mm VESA and 4-hole AMPS mounting interfaces.
Key Features
-
Form-Fit Powered Dock: Designed for Zebra ET60 and ET65 rugged tablets.
-

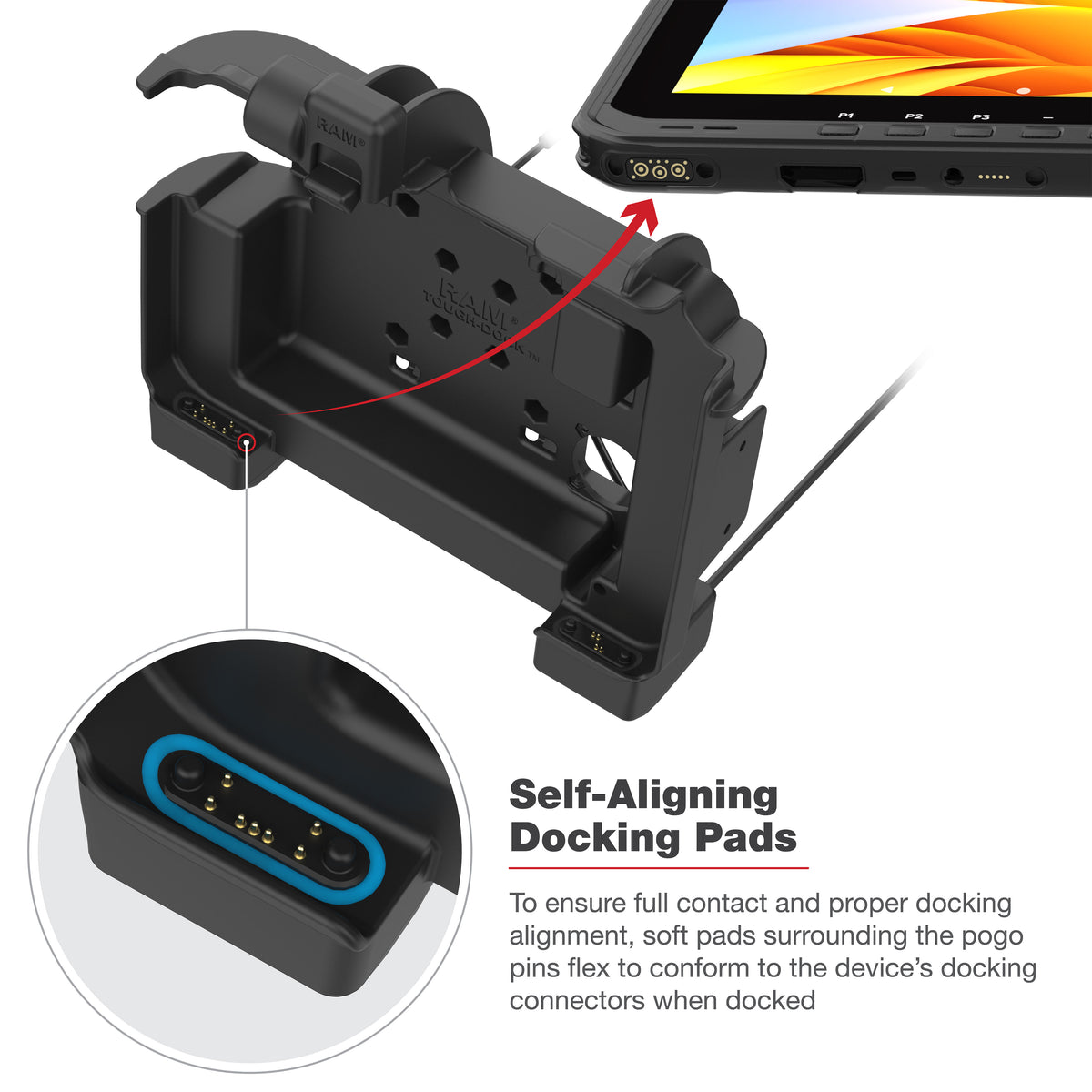

Patented 3-D Float Technology: Self-aligning docking contacts conform to the seated tablet for reliable charging contact and protection of the pogo pins.
-
Integrated Charging: Built-in pogo-pin contacts and a 5.5mm DC barrel pigtail connector provide charging connectivity.
-

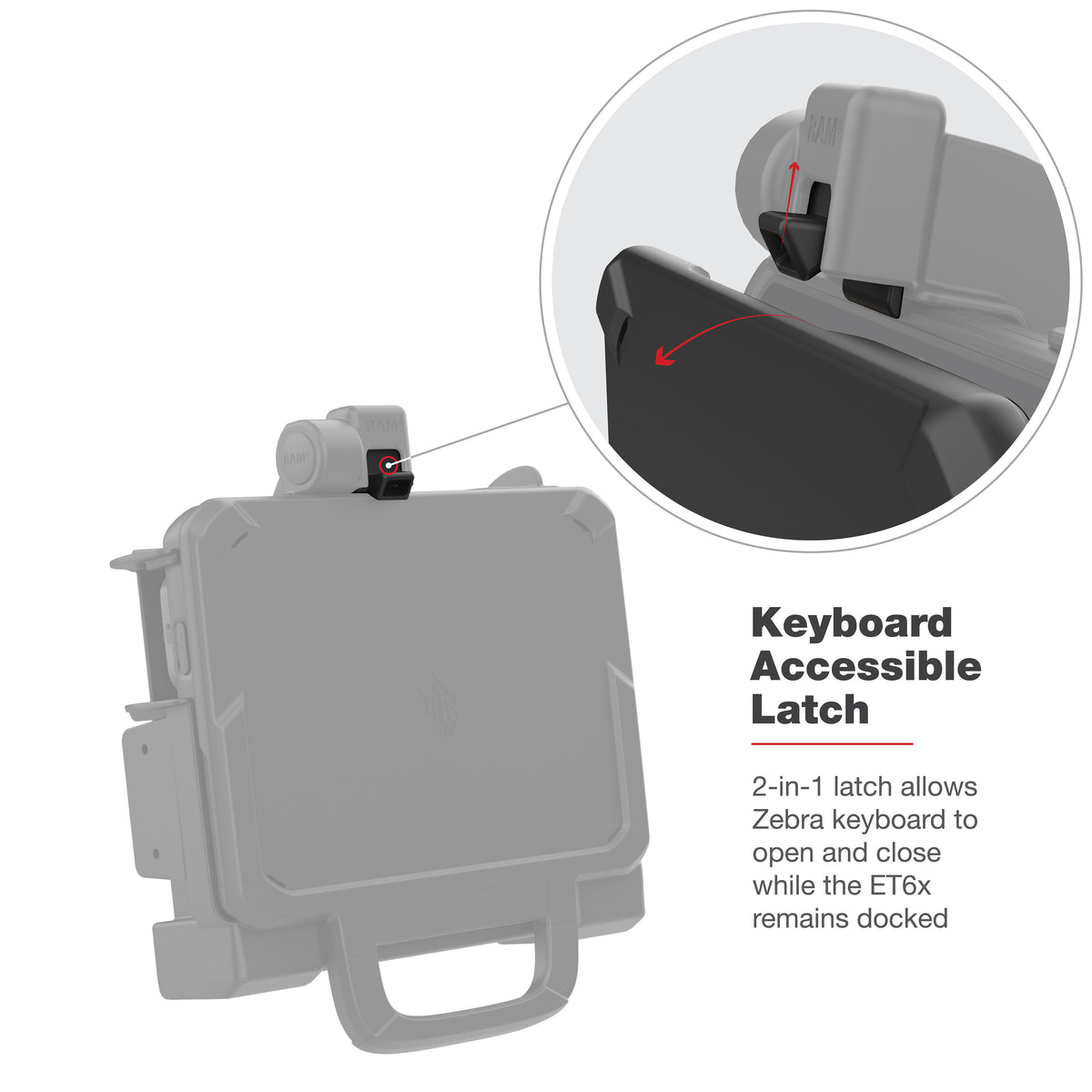

2-in-1 Retention Latch: Secures the tablet while allowing the optional Zebra keyboard to open and close independently.
-

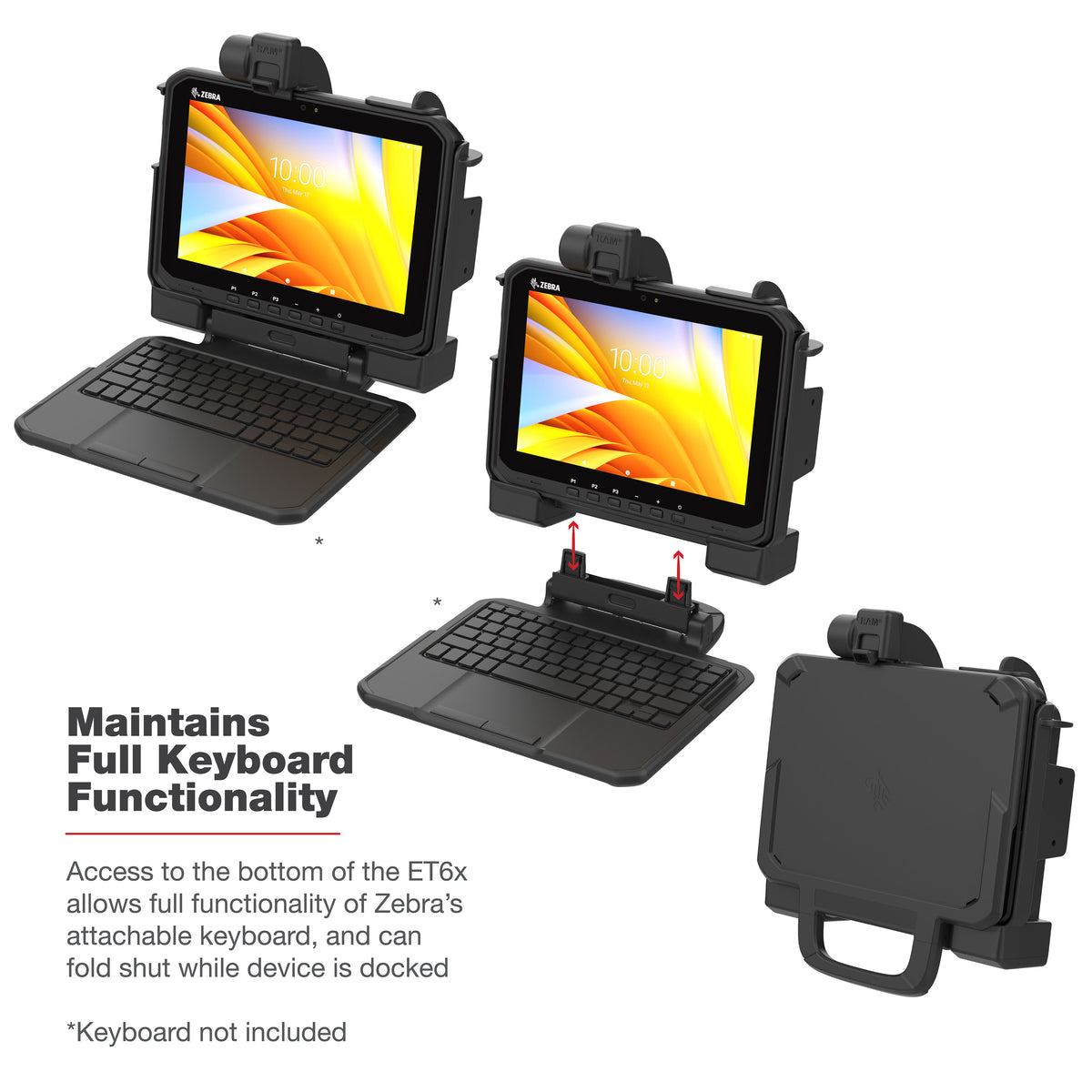

Keyboard Compatibility: Accommodates the tablet with or without the attachable Zebra keyboard.
-

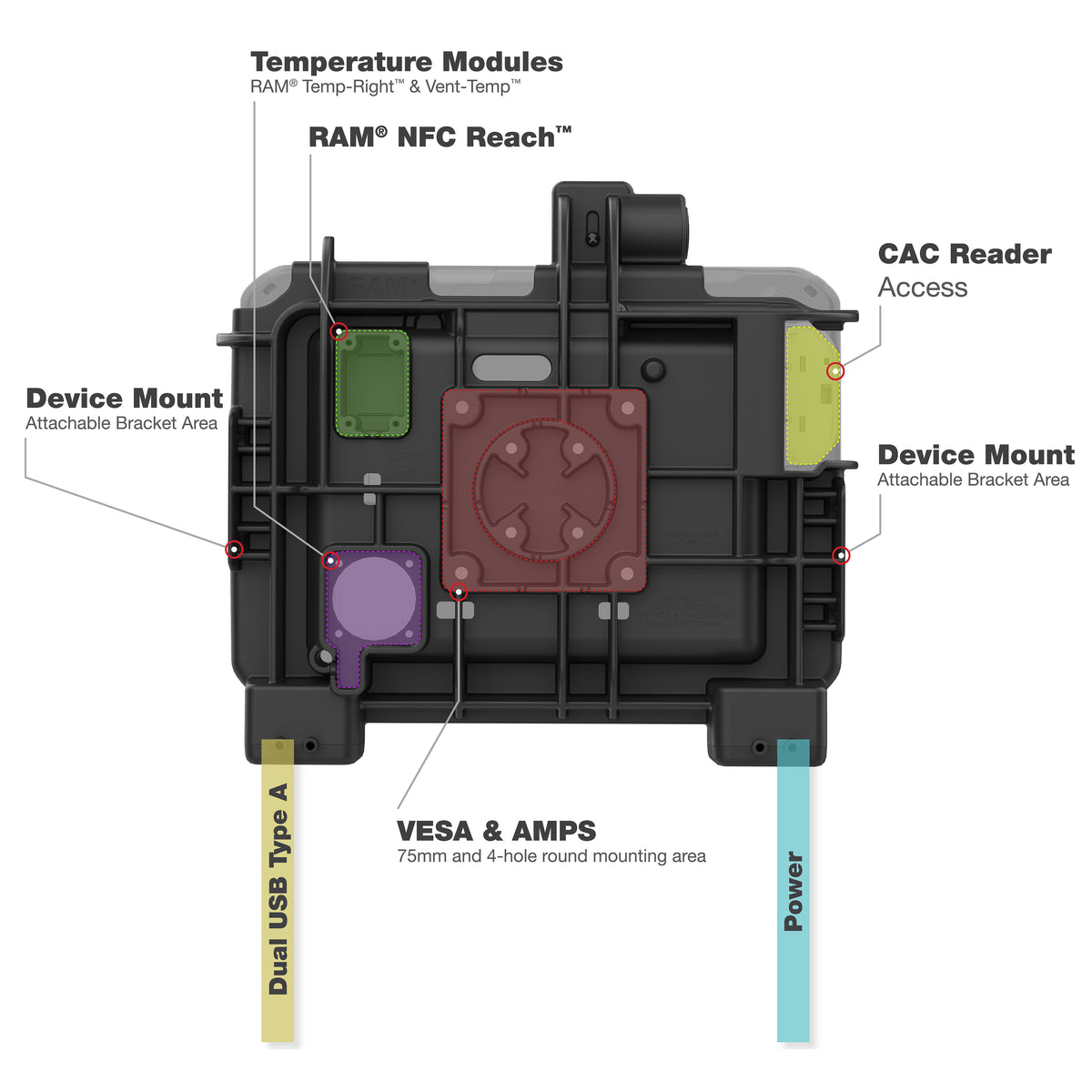

Accessory Compatibility: Supports RAM Vent-Temp, RAM Temp-Right, and RAM NFC Extender accessories.
-
Additional Device Mounting: Provides small-device mounting areas on both sides of the dock.
-
Zebra Accessory Access: Supports use of the Zebra hand strap and shoulder strap while docked, with a side cutout allowing access to the Zebra CAC reader and its door.
-

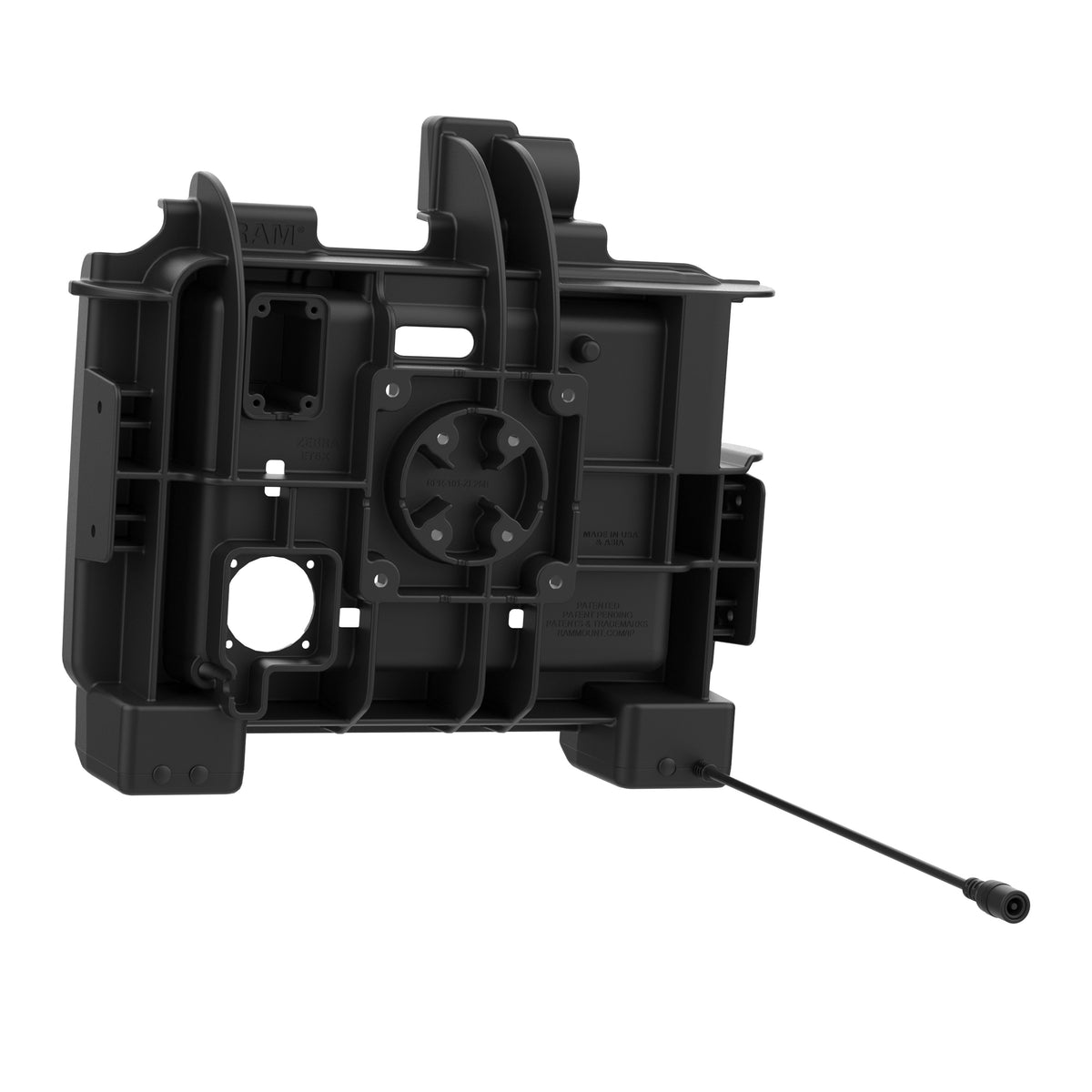

Flexible Mounting: Supports 75 x 75mm VESA and 4-hole AMPS mounting patterns.
-
Durable Construction: Manufactured from high-strength composite for demanding commercial applications.
Use Cases & Compatibility
Designed for Zebra ET60 and ET65 rugged tablets, this powered dock is suitable for field service, utility operations, public safety, construction, and other professional environments.
Device Compatibility:
-
Zebra ET60
-
Zebra ET65
-
Supports the attachable Zebra keyboard
-
Compatible with Zebra hand strap and shoulder strap accessories while docked
-
Provides access to the Zebra CAC reader
Mounting Compatibility:
-
75 x 75mm VESA mounting pattern
-
4-hole AMPS mounting pattern (1.181" x 1.496")
-
Compatible RAM ball adapters and mounting components with matching interfaces
Optional RAM Accessories:
-
RAM Vent-Temp
-
RAM Temp-Right
-
RAM NFC Extender
-
Compatible additional small-device mounting components
Power Connectivity:
-
Integrated pogo-pin charging contacts
-
5.5mm DC barrel pigtail power connection
The dock provides tablet retention and a charging interface. Compatible RAM mounting components and additional accessories can be selected separately to configure the installation.
Specifications
-
Compatible Devices: Zebra ET60, Zebra ET65
-
Dock Type: Form-fit powered tablet dock
-
Docking Technology: Patented RAM 3-D Float
-
Charging Interface: Integrated self-aligning pogo-pin contacts
-
Input Connector: 5.5mm DC connector
-
Input Cable Length: 1 meter
-
Mounting Hole Patterns: 75 x 75mm VESA; 4-hole AMPS (1.181" x 1.496")
-
Material: High-strength composite
-
Product Weight: 2.14 lb
-
Certifications: RoHS, WEEE, CE, UKCA
What's Included
-
(1) RAM Powered Dock for Zebra ET60 & ET65
-
(1) Side bracket for accessory mounting
-
(4) #8-32 x 5/8" machine screws
-
(2) #8-32 x 1/2" machine screws
-
(6) #8-32 Nyloc nuts
-
(4) #10-24 x 5/8" machine screws
-
(4) #10-24 Nyloc nuts
-
(8) 4" zip ties
-
(2) 7" zip ties
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE25PU
Warranty: Manufacturer's 3-year warranty.
