Description

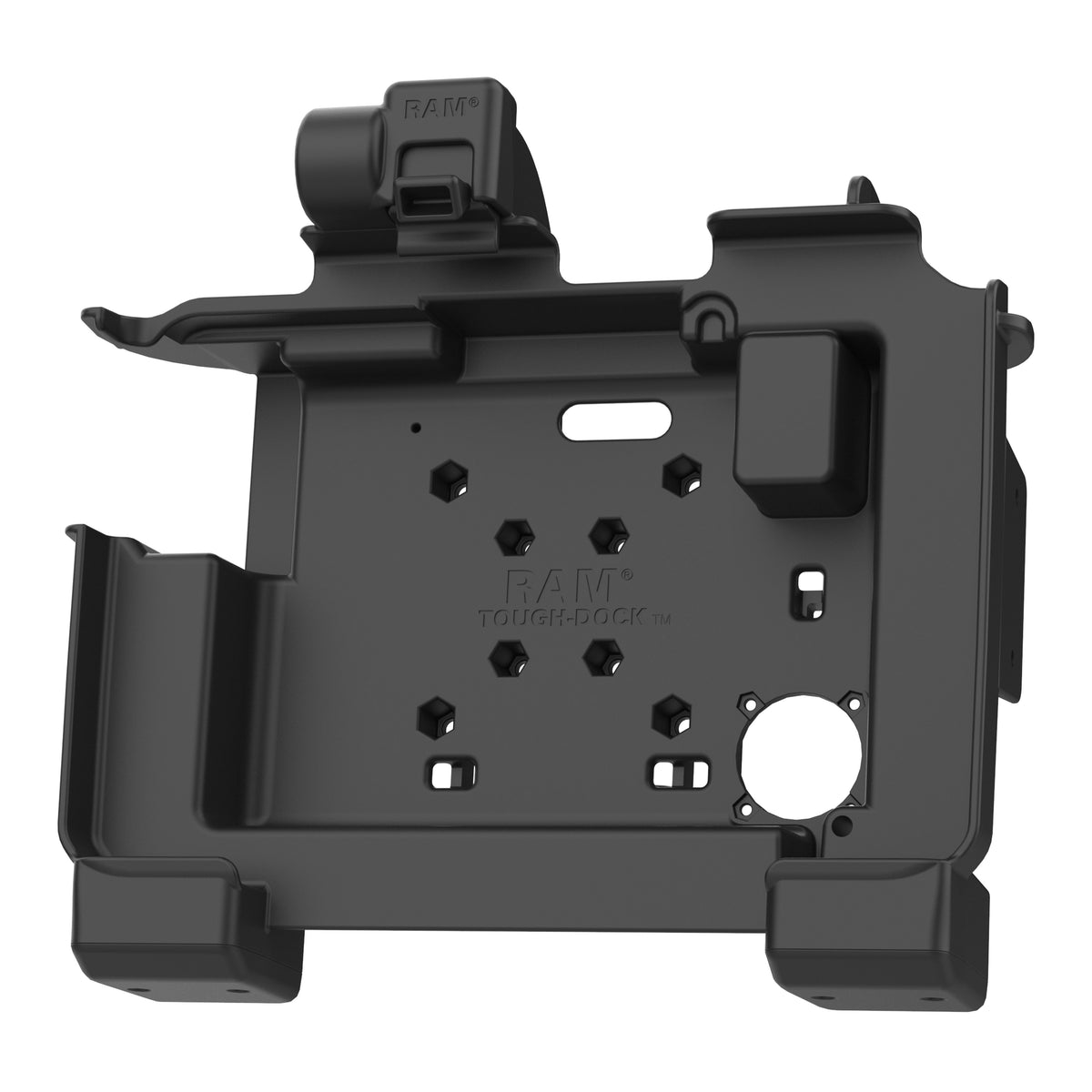

The RAM Form-Fit Tablet Holder for Zebra ET60 & ET65 (RAM-HOL-ZE25U) is a non-powered, device-specific holder designed for Zebra ET60 and ET65 rugged tablets. Built for professional field applications, it features a unique 2-in-1 latch that secures the tablet while allowing the optional Zebra keyboard to open and close independently.
Designed for versatility, the holder accommodates the tablet with or without the attachable Zebra keyboard. It also supports compatible RAM accessories, provides access to the Zebra CAC reader, and features 75 x 75mm VESA and 4-hole AMPS mounting patterns for integration with compatible RAM mounting components.
Key Features
-
Form-Fit Design: Specifically designed for Zebra ET60 and ET65 rugged tablets.
-
Non-Powered Holder: Provides physical tablet retention without integrated charging.
-

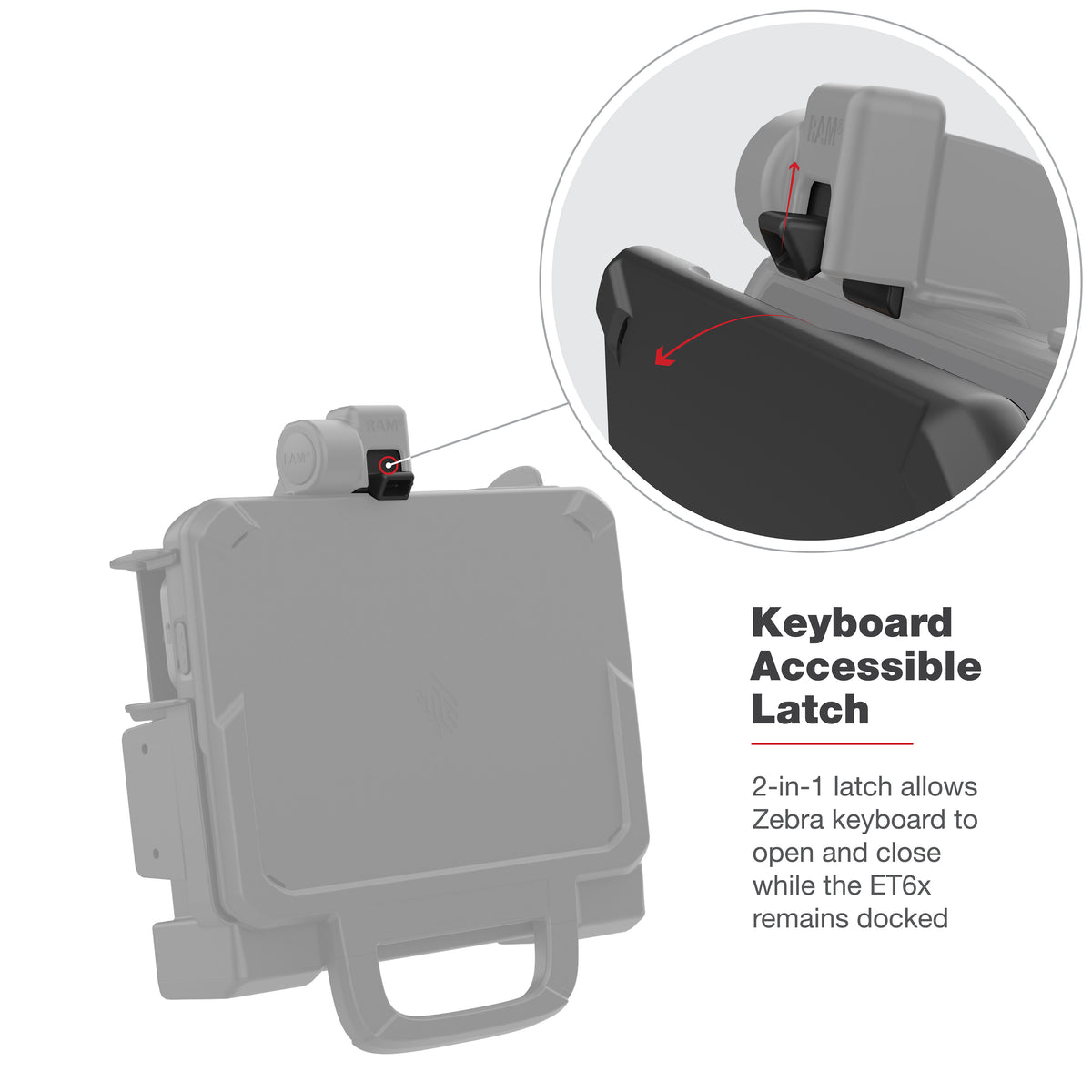

2-in-1 Retention Latch: Secures the tablet while allowing the attachable Zebra keyboard to open and close independently.
-

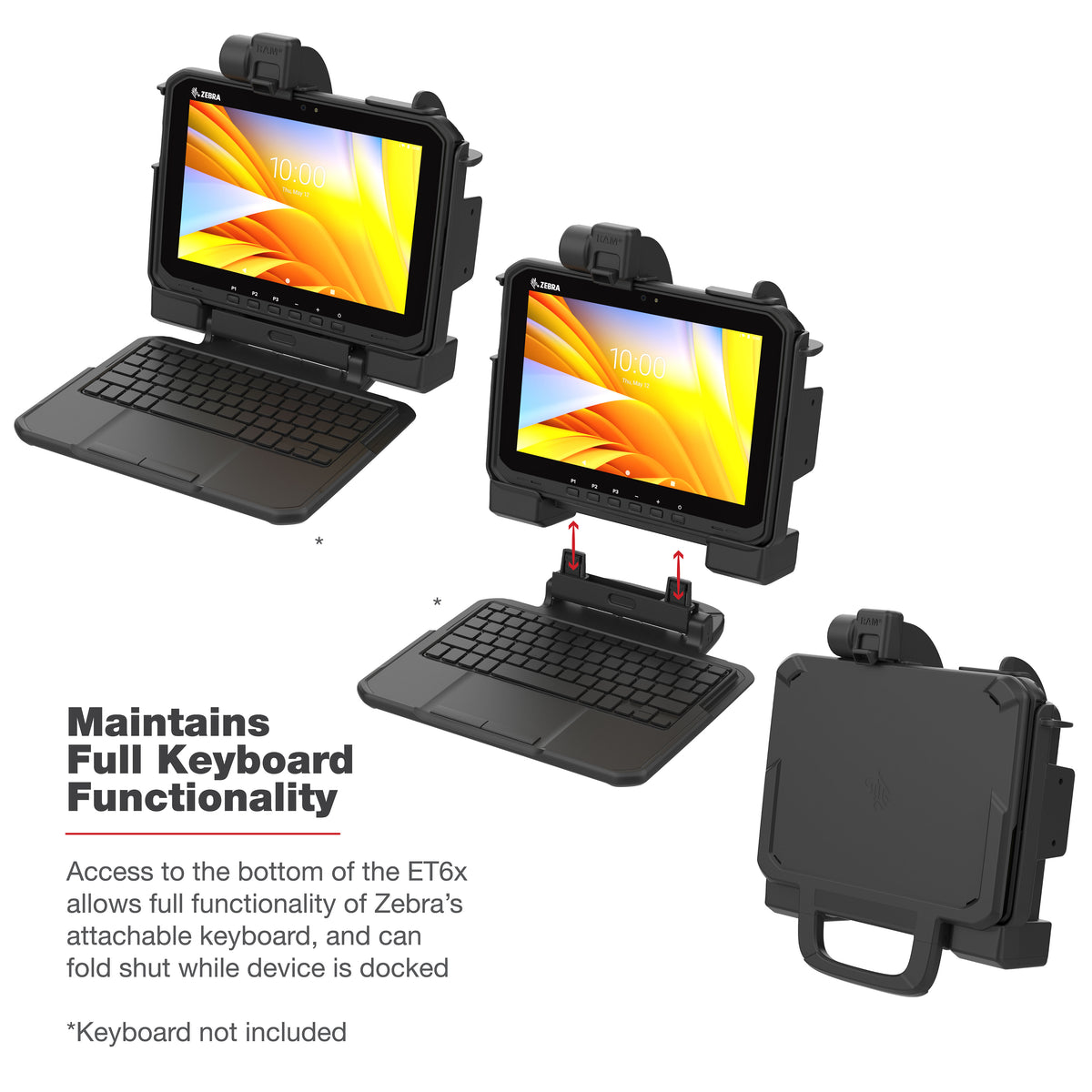

Keyboard Compatibility: Accommodates the tablet with or without the Zebra keyboard.
-

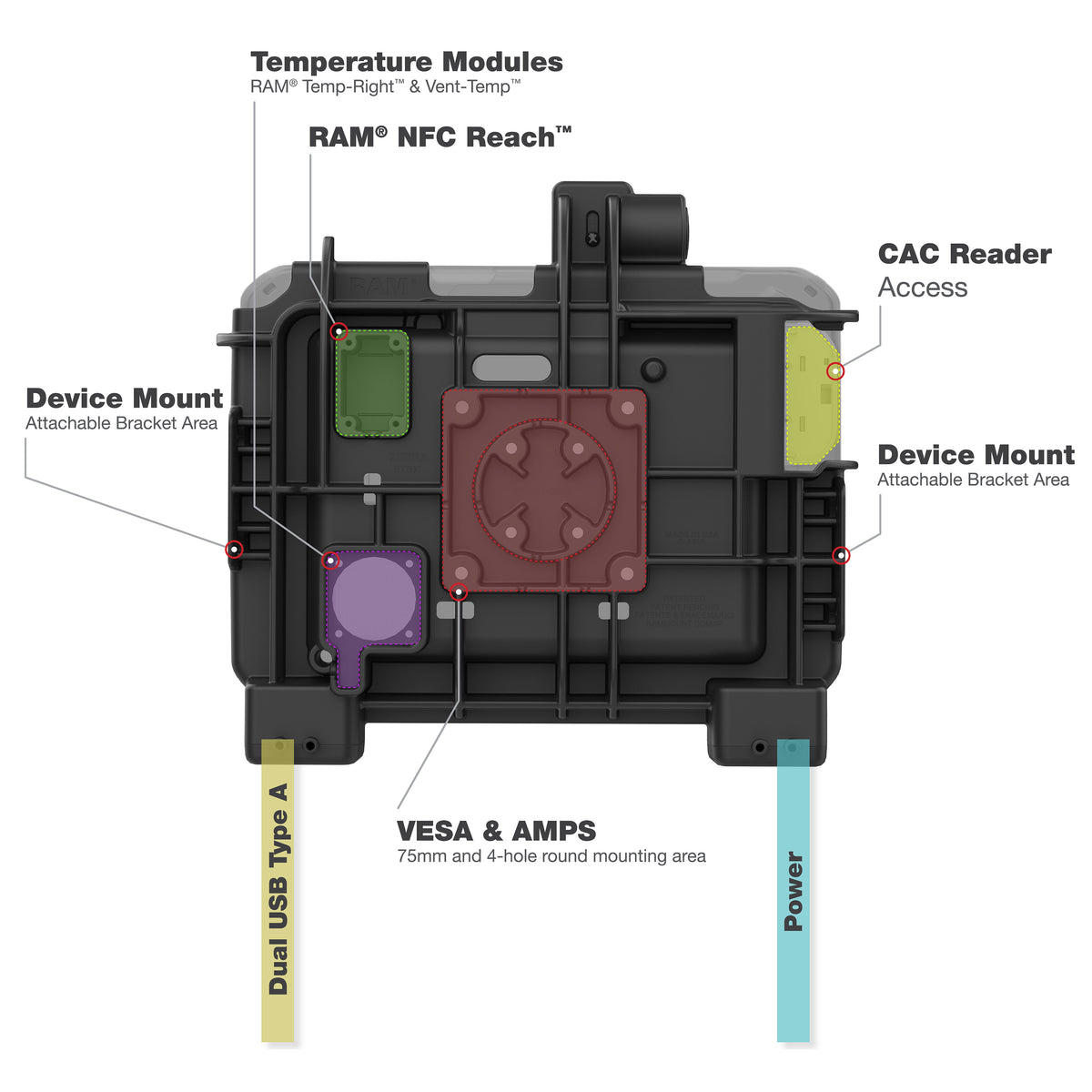

Accessory Compatibility: Supports RAM Vent-Temp, RAM Temp-Right, and RAM NFC Extender accessories.
-
Additional Device Mounting: Provides small-device mounting areas on both the left and right sides of the holder.
-
CAC Reader Access: Side cutout provides access to the Zebra CAC reader and allows its door to open and close.
-
Strap Compatibility: Supports use of the Zebra hand strap and shoulder strap while the tablet is docked.
-

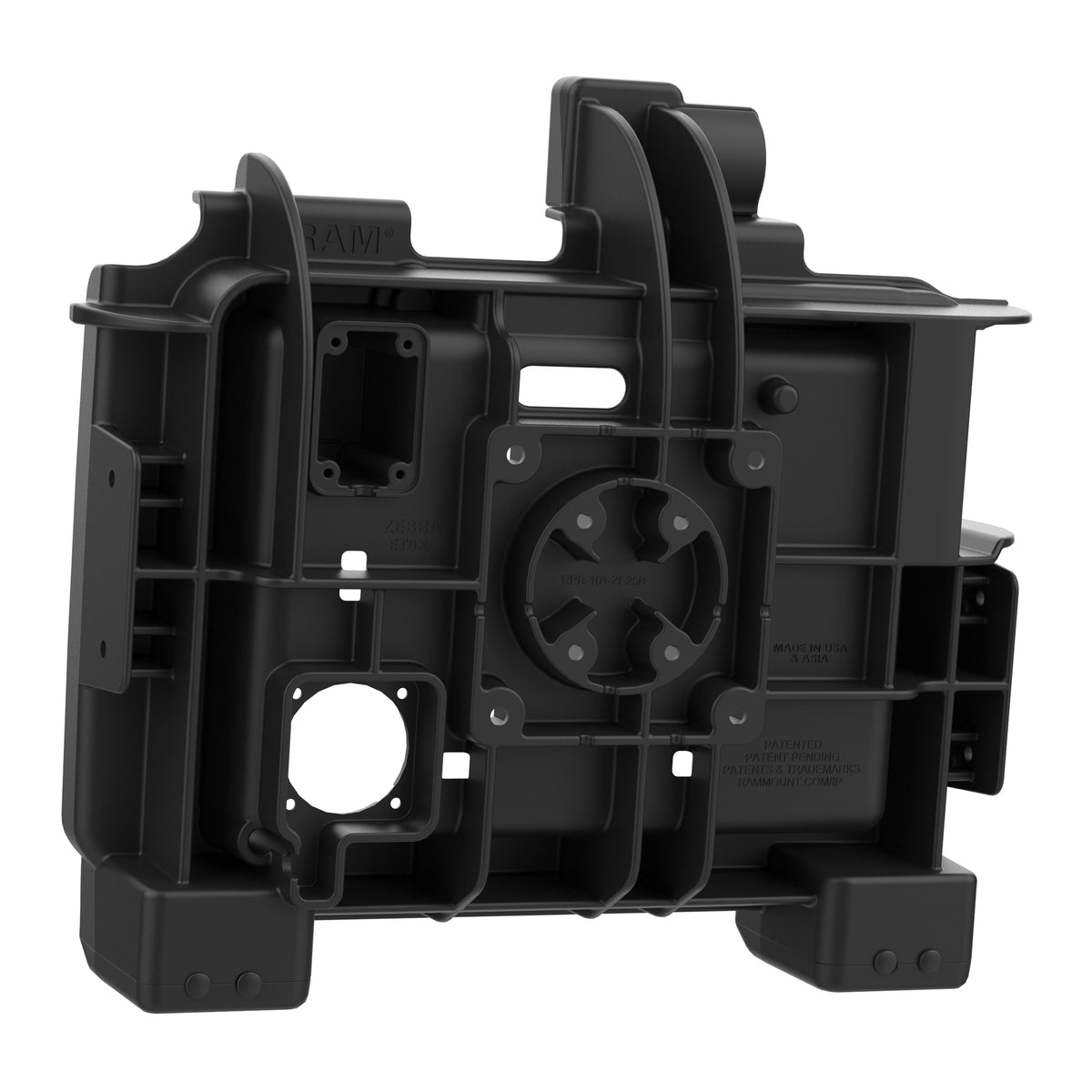

Flexible Mounting: Supports 75 x 75mm VESA and universal 4-hole AMPS mounting patterns.
-
Durable Construction: Manufactured from high-strength composite for demanding professional applications.
Use Cases & Compatibility

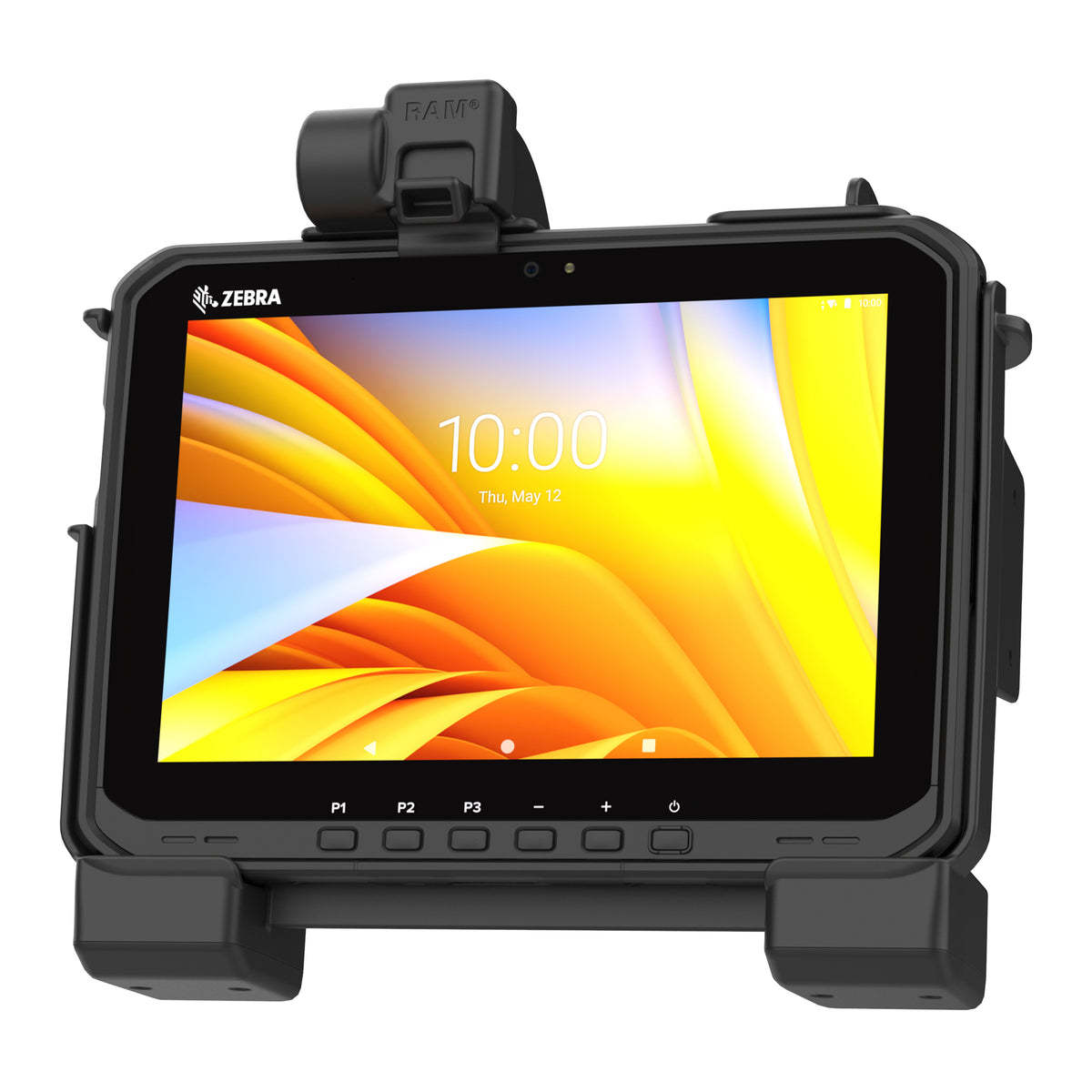

Designed for Zebra ET60 and ET65 rugged tablets, this holder is suitable for field and utility service, public safety, construction, and other professional environments.
Device Compatibility:
-
Zebra ET60
-
Zebra ET65
-
Compatible with the attachable Zebra keyboard
-
Compatible with Zebra hand strap and shoulder strap accessories while docked
-
Provides access to the Zebra CAC reader
Mounting Compatibility:
-
75 x 75mm VESA mounting pattern
-
4-hole AMPS mounting pattern (1.181" x 1.496")
-
Compatible RAM mounting components with matching VESA or AMPS interfaces
Optional RAM Accessories:
-
RAM Vent-Temp
-
RAM Temp-Right
-
RAM NFC Extender
-
Compatible accessories for the left and right small-device mounting areas
The holder provides secure tablet retention without integrated charging. Compatible RAM mounting components and accessories can be selected separately to configure the installation.
Specifications
-
Compatible Devices: Zebra ET60, Zebra ET65
-
Holder Type: Form-fit, non-powered tablet holder
-
Retention Mechanism: 2-in-1 tablet and keyboard latch
-
Mounting Hole Patterns: 75 x 75mm VESA; 4-hole AMPS (1.181" x 1.496")
-
Overall Height: 11.85"
-
Overall Width: 12.75"
-
Overall Depth: 4.36"
-
Material: High-strength composite
-
Product Weight: 2.01 lb
What's Included
-
(1) RAM Form-Fit Holder for Zebra ET60 & ET65
-
(1) Side bracket for accessory mounting
-
(4) #8-32 x 5/8" machine screws
-
(2) #8-32 x 1/2" machine screws
-
(6) #8-32 Nyloc nuts
-
(4) #10-24 x 5/8" machine screws
-
(4) #10-24 Nyloc nuts
-
(8) 4" zip ties
-
(2) 7" zip ties
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE25U
Warranty: Manufacturer's lifetime warranty.
Gadget Mounts is an authorized RAM Mounts Dealer.
