Description

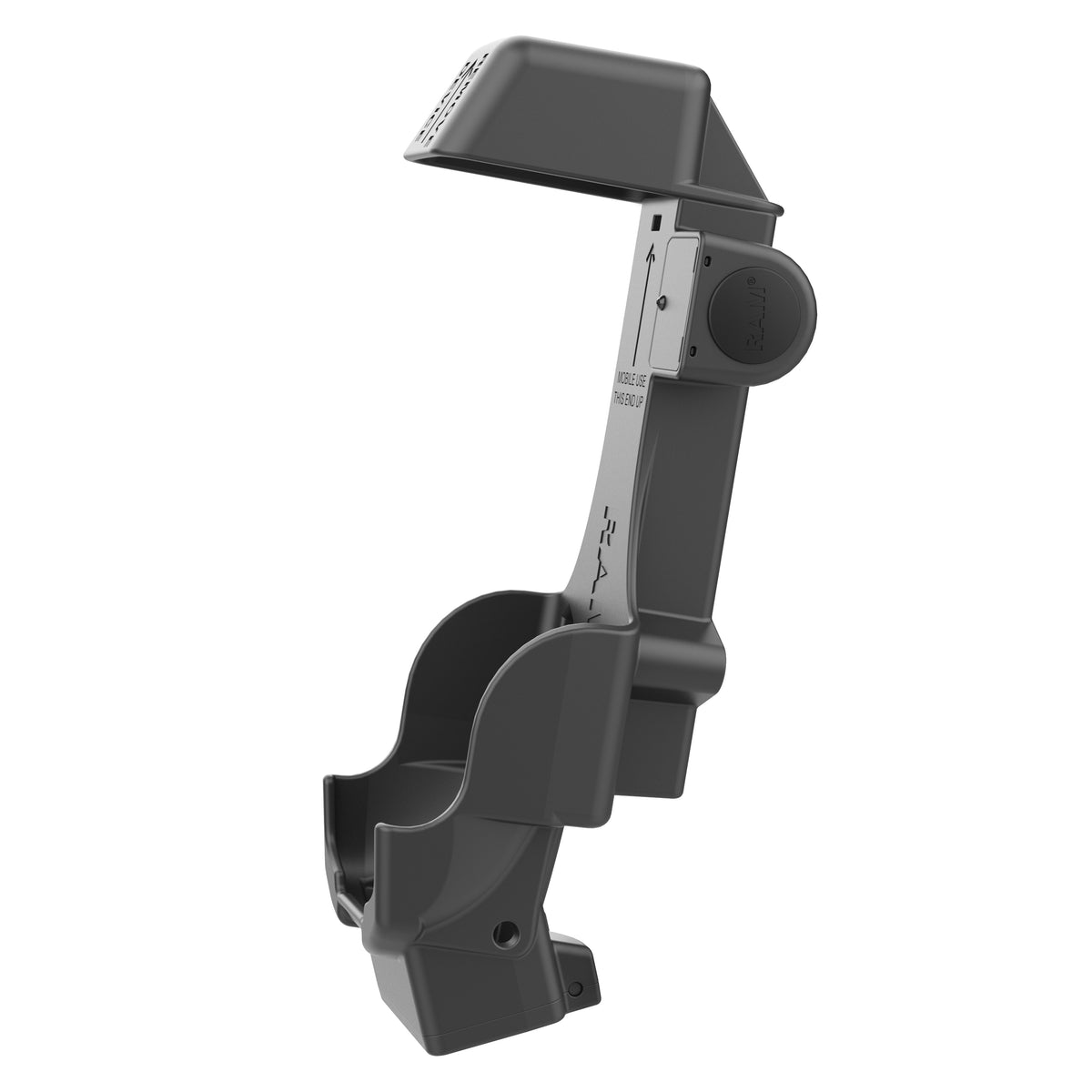

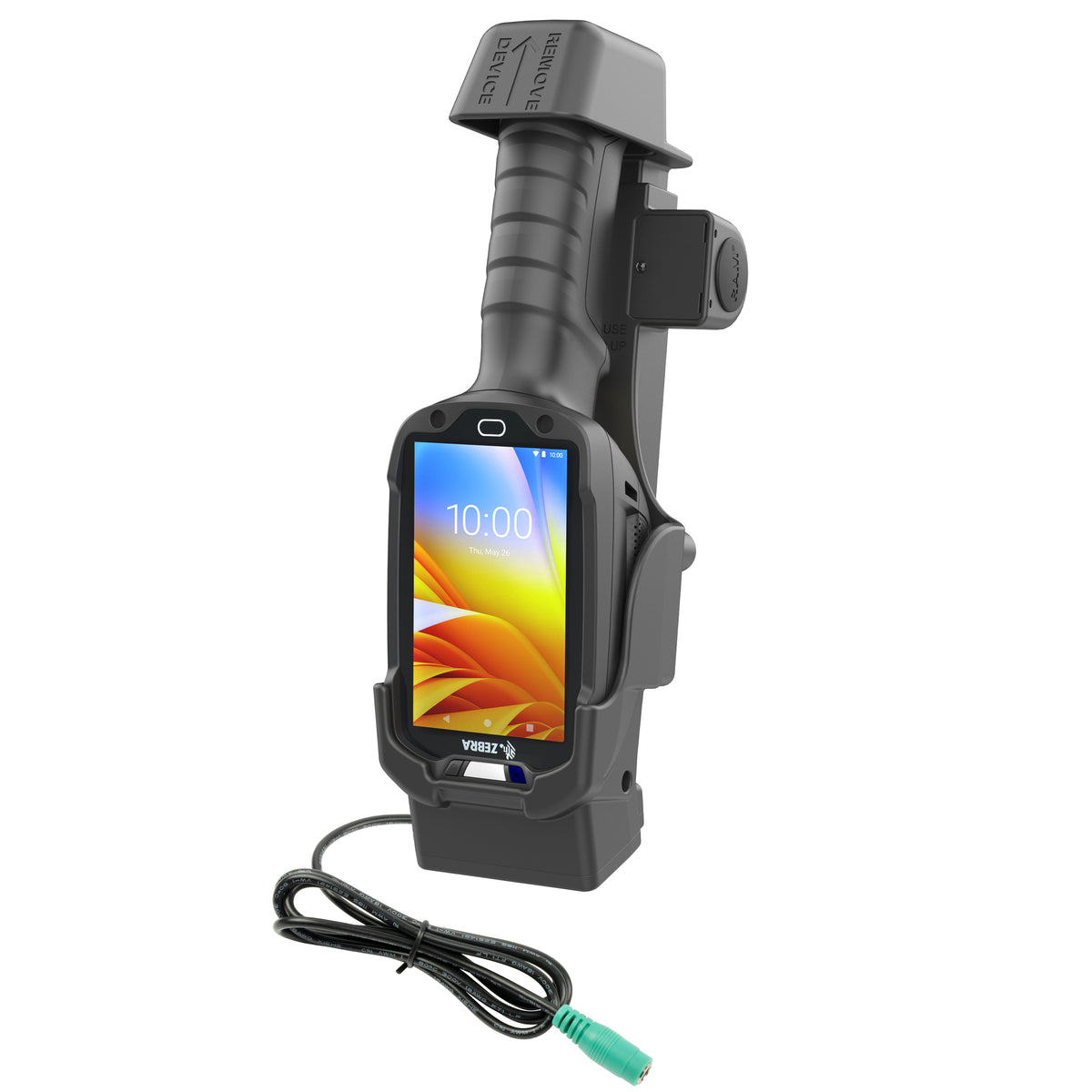

The RAM Quick-Draw Powered Dock for Zebra TC8300 (RAM-HOL-ZE26PU) is a form-fit, spring-loaded docking station designed specifically for the Zebra TC8300 touch computer. Integrated pogo-pin contacts and a 5.5mm DC barrel pigtail connector provide a charging interface while the device is docked.
Designed for convenient one-handed device insertion, the dock also features a USB Type-A connection for peripheral support. Its 2-hole AMPS mounting pattern allows attachment to compatible RAM diamond ball adapters and mounting components.
Key Features
-
Form-Fit Design: Specifically designed for the Zebra TC8300 touch computer.
-

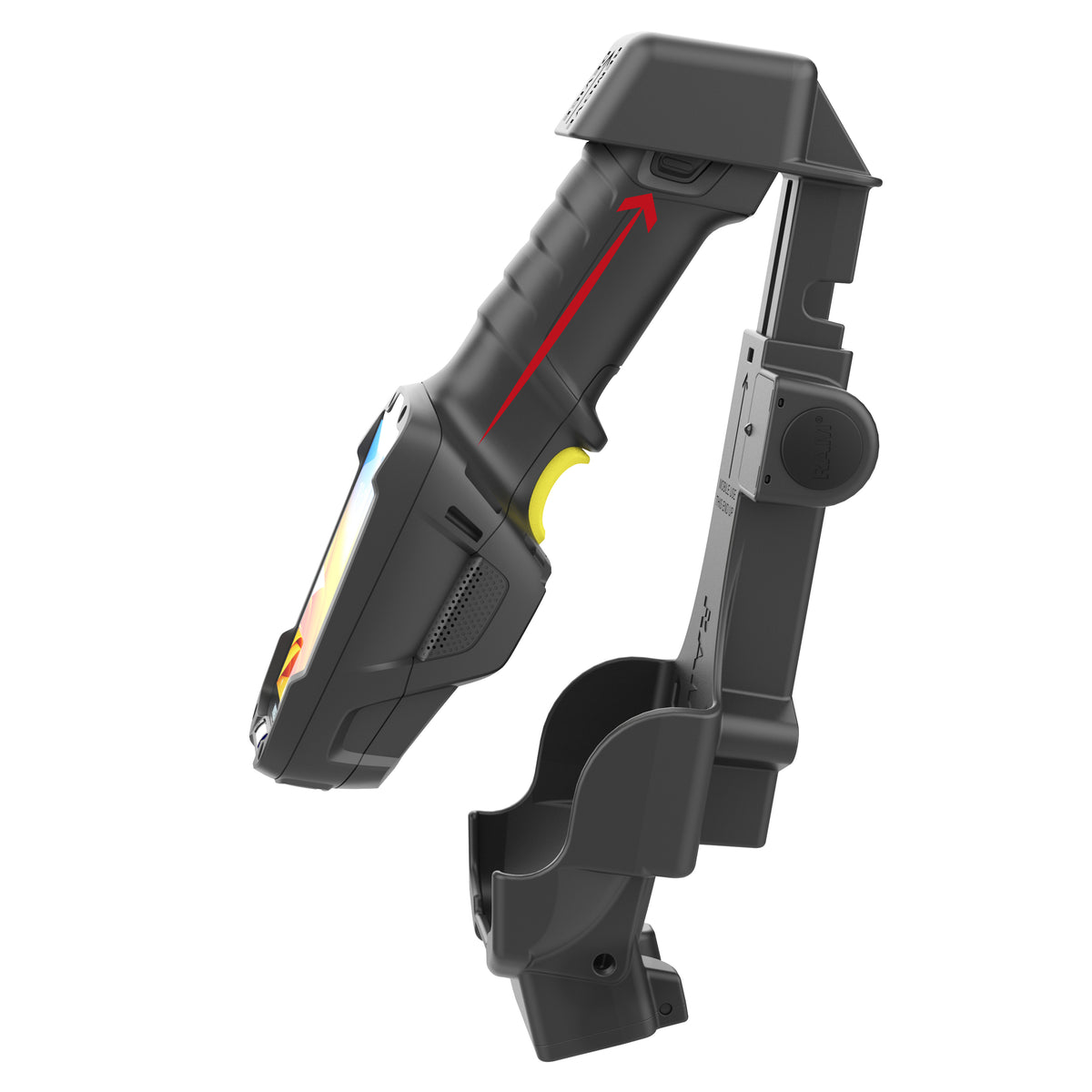

Spring-Loaded Dock: Enables convenient one-handed device insertion.
-

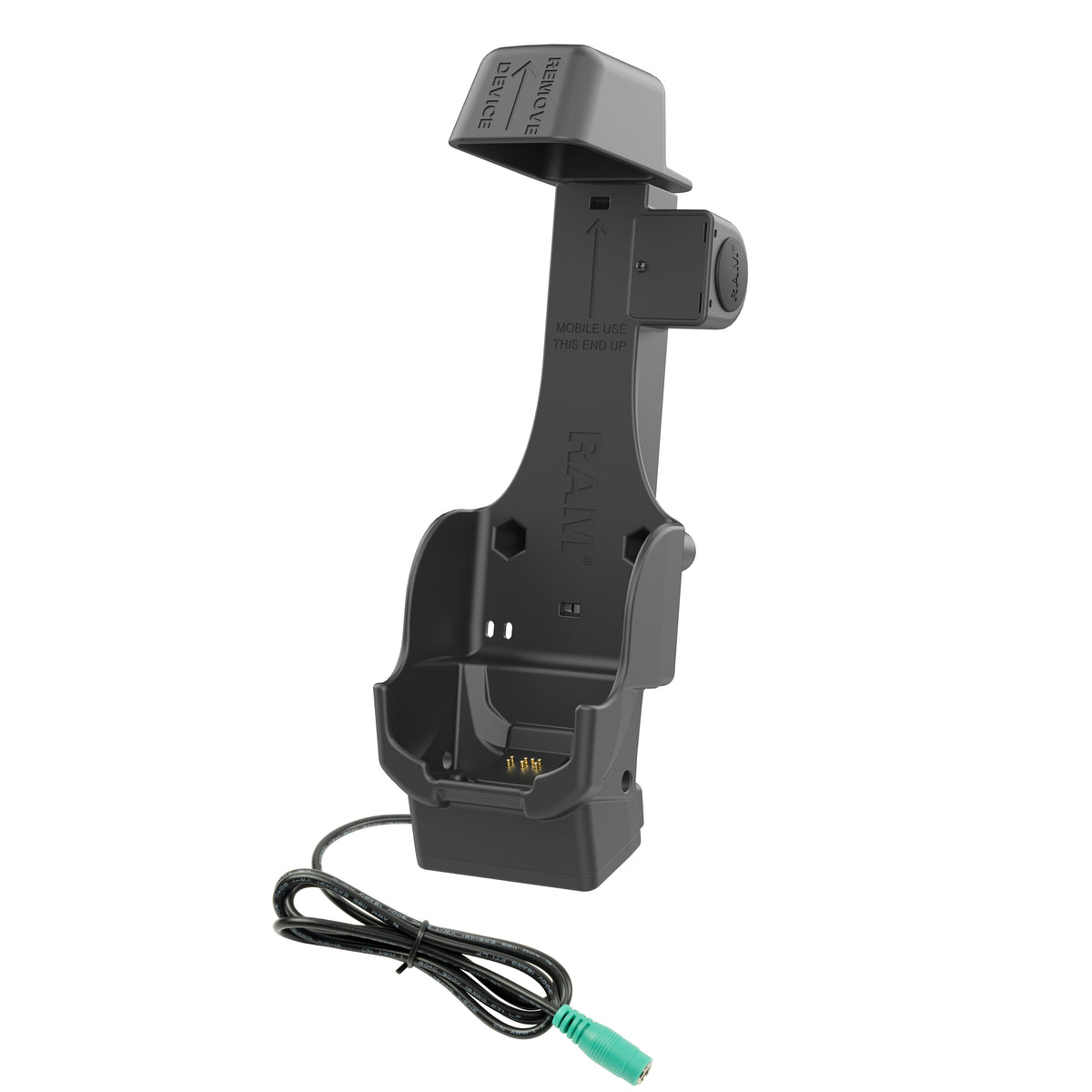

Integrated Charging: Built-in pogo-pin contacts and a 5.5mm DC barrel pigtail connector provide charging connectivity.
-
Self-Aligning Contacts: Pogo pins feature self-aligning docking pads that conform to the seated device.
-
Peripheral Connectivity: Includes one USB Type-A connector for peripheral support.
-
RAM Mounting Compatibility: 2-hole AMPS interface accepts compatible RAM diamond ball adapters.
-
Adjustable Mounting Options: Compatible RAM ball-and-socket mounting components allow positioning to suit the installation.
-
Durable Construction: Made from high-strength composite.
Use Cases & Compatibility

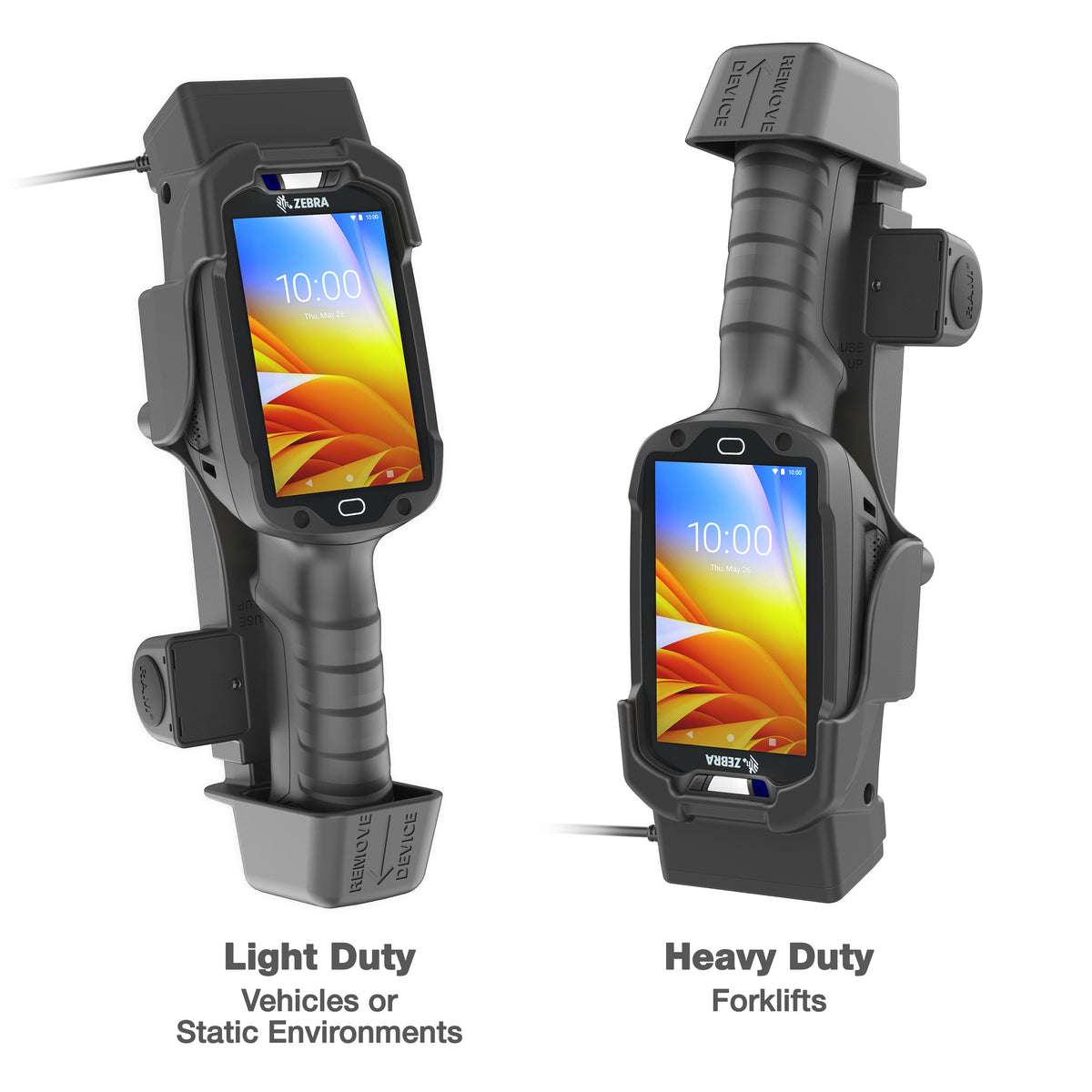

Designed for the Zebra TC8300 touch computer, this powered dock is suitable for commercial and industrial applications such as warehouse operations, inventory handling, logistics, and mobile workstations when installed with an appropriate mounting system.
Device Compatibility:
-
Zebra TC8300
Mounting Compatibility:
-
RAM 2-hole AMPS diamond ball adapters
-
Compatible RAM ball-and-socket mounting components
Power & Peripheral Connectivity:
-
5.5mm DC barrel pigtail connector for charging power
-
Integrated pogo-pin charging contacts
-
One USB Type-A connection for peripheral support
The dock provides the device-specific charging and retention interface. A compatible RAM mounting assembly can be selected separately to complete the installation.
Specifications
-
Compatible Device: Zebra TC8300
-
Product Line: RAM Quick-Draw
-
Dock Type: Form-fit, spring-loaded powered dock
-
Charging Interface: Integrated pogo-pin contacts
-
Power Connector: 5.5mm DC barrel pigtail
-
Peripheral Connector: (1) USB Type-A
-

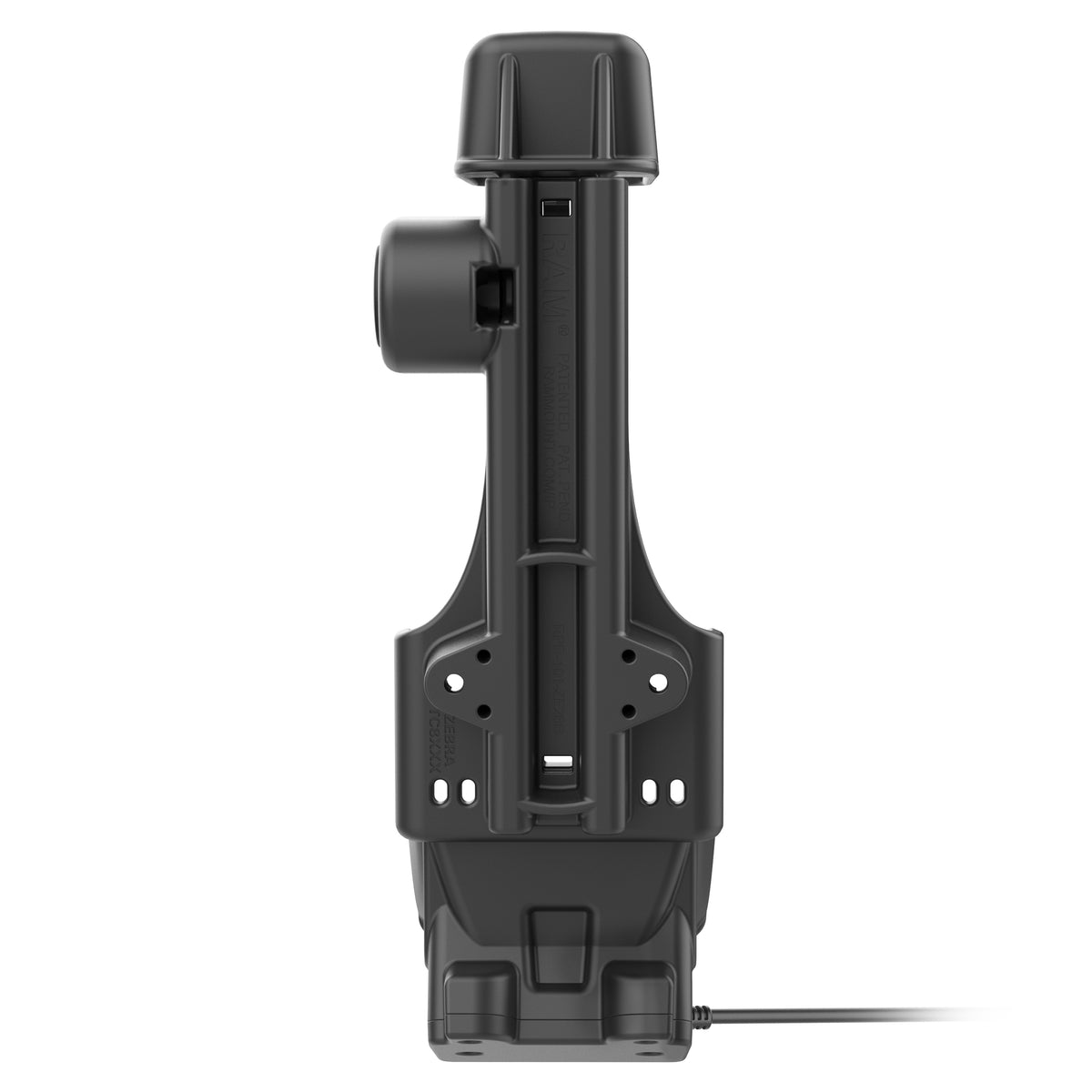

Mounting Hole Pattern: 2-Hole AMPS (1.912")
-
Overall Height: 10.36"
-
Overall Width: 3.25"
-
Overall Depth: 4.08"
-
Material: High-strength composite
-
Product Weight: 0.81 lb
What's Included
-
(1) RAM Quick-Draw Powered Dock for Zebra TC8300
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE26PU
Warranty: Manufacturer's 3-year warranty.
