Description
The RAM Quick-Draw Spring-Loaded Holder for Zebra MC9400 & MC9300 (RAM-HOL-ZE32U) provides form-fit retention for the Zebra MC9400 and MC9300 ultra-rugged mobile computer series. Designed for convenient one-handed device insertion, the holder provides a mounting interface for integrating compatible Zebra devices into a RAM mounting system.

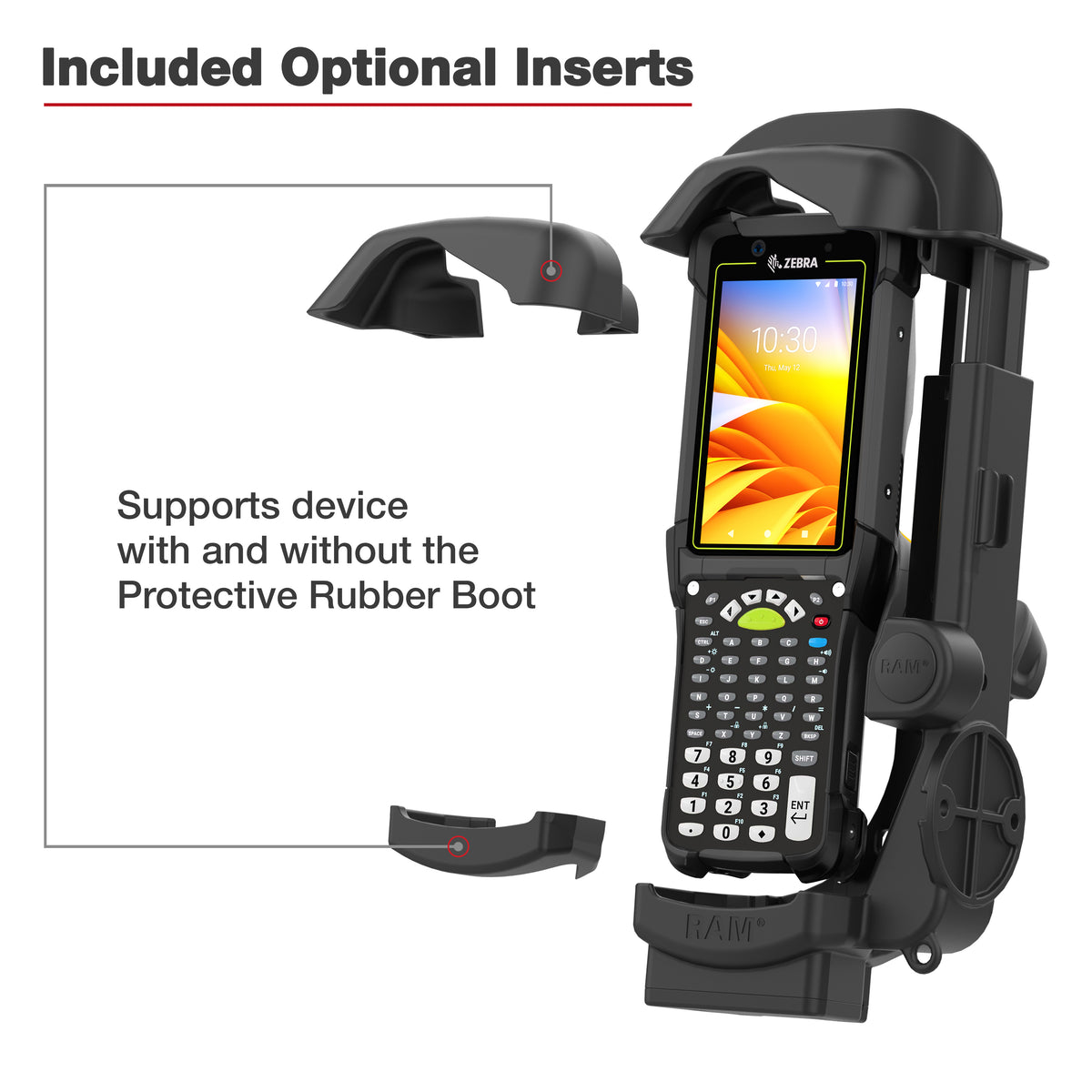

Optional shim inserts accommodate devices deployed without the Protective Boot, helping maintain a secure fit. The holder features a 2-hole AMPS mounting pattern for attachment to compatible RAM ball adapters and mounting components.
Key Features
-
Device-Specific Design: Form-fit holder for the Zebra MC9400 and MC9300 ultra-rugged mobile computer series.
-

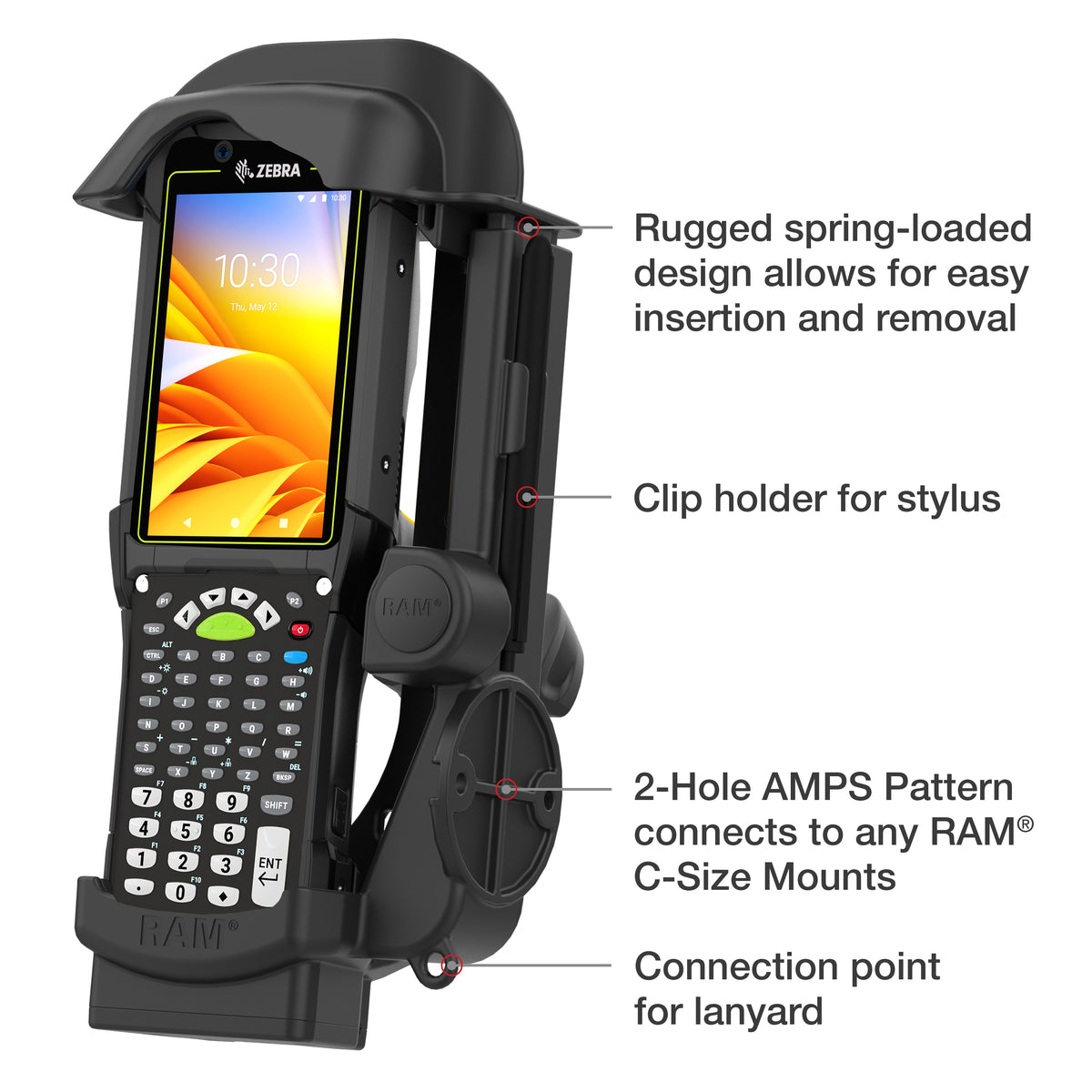

Spring-Loaded Holder: Designed for convenient one-handed device insertion.
-
Protective Boot Compatibility: Optional shim inserts provide a secure fit when the device is used without its Protective Boot.
-
Non-Powered Configuration: Provides device retention without integrated charging or data connectivity.
-

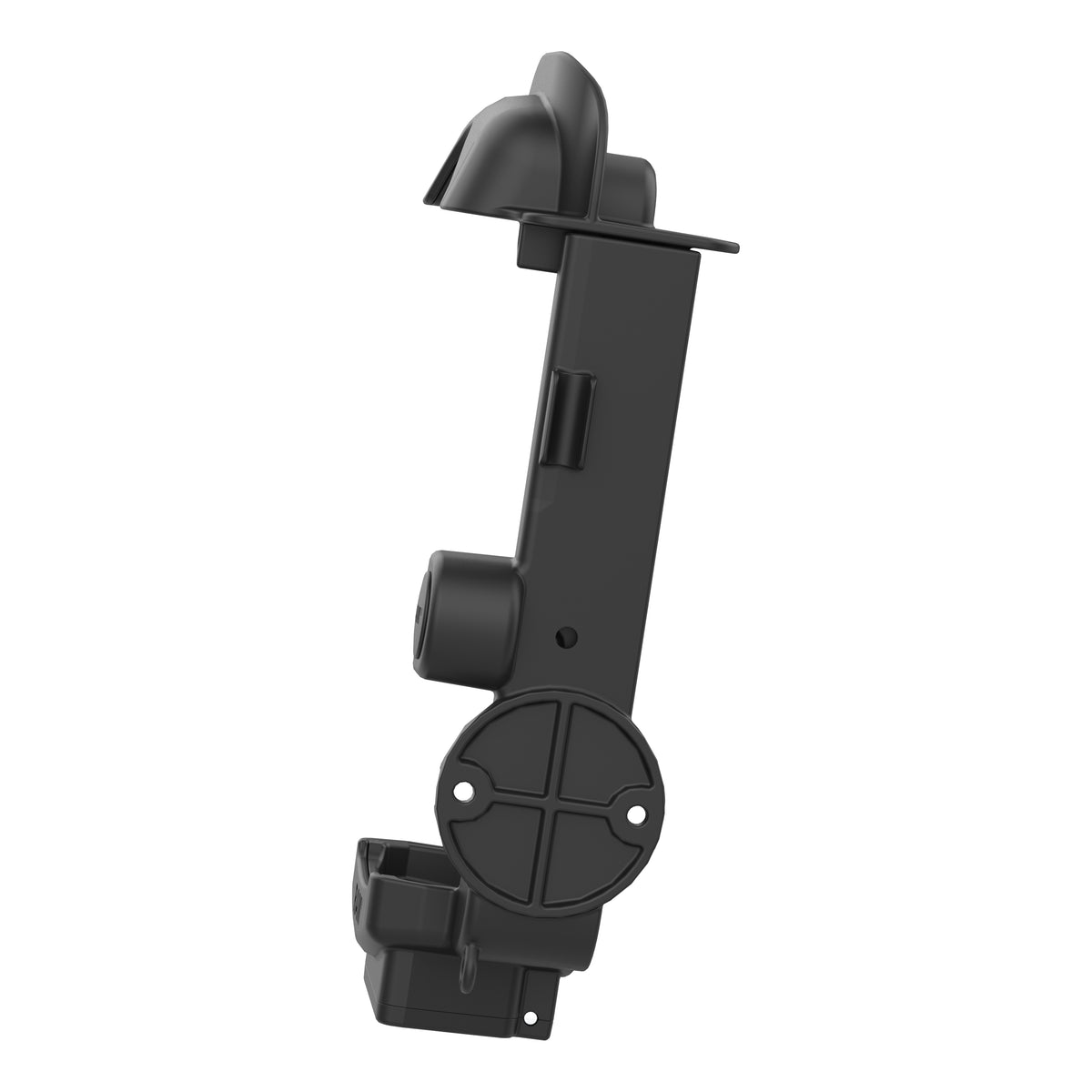

2-Hole AMPS Interface: Compatible with RAM 2-hole AMPS ball bases and mounting adapters.
-
Adjustable Mounting Options: Can be paired with compatible RAM double socket arms and mounting components for flexible positioning.
-

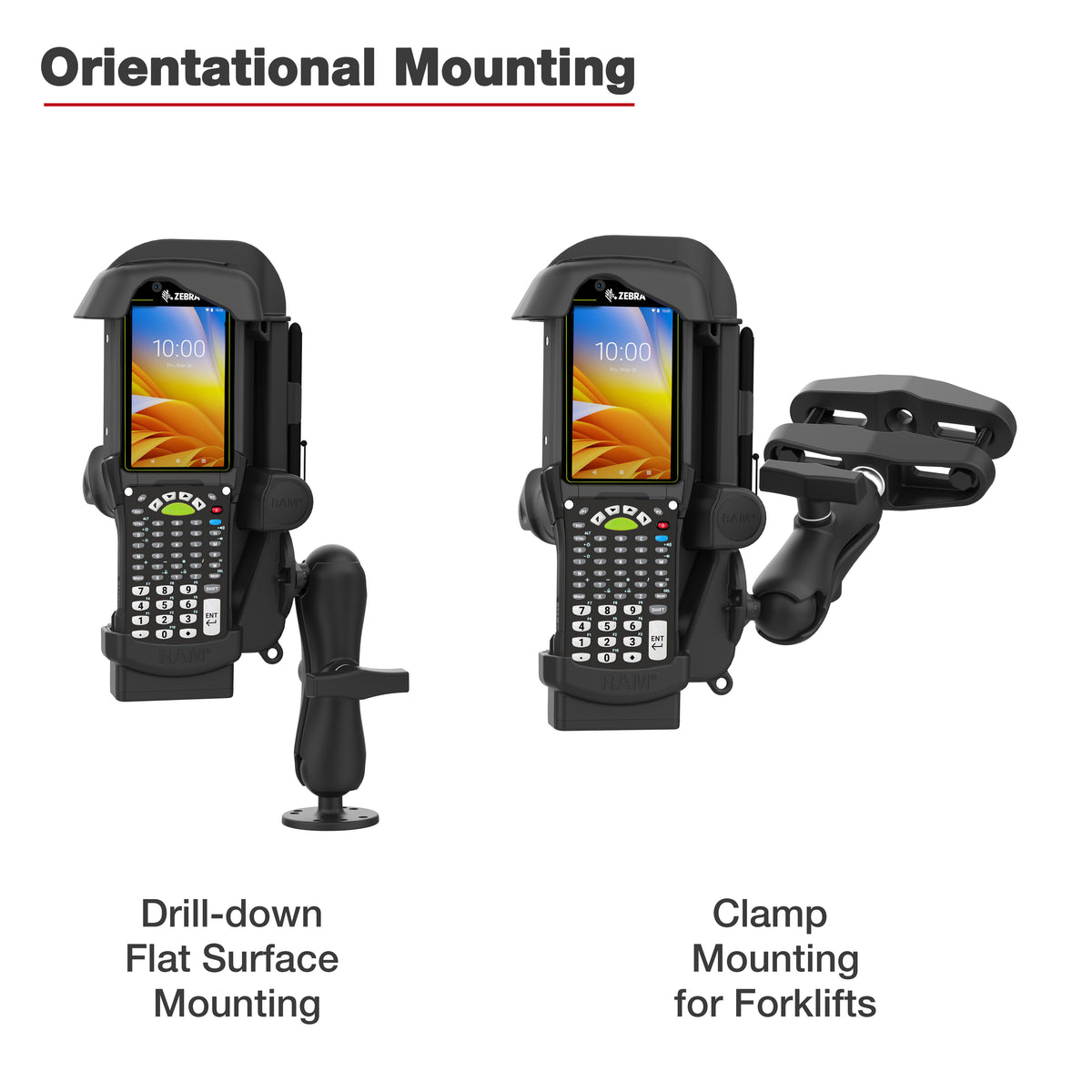

Installation Orientation: Supports RAM's two recommended mounting orientations, depending on the application and device screen positioning.
-
Durable Construction: Manufactured from high-strength composite.
Use Cases & Compatibility
Designed for Zebra MC9400 and MC9300 ultra-rugged mobile computers, this holder supports professional mounting applications in material handling, warehousing, inventory management, distribution, and other industrial environments.
Device Compatibility:
-
Zebra MC9300
-
Zebra MC9400
-
Devices deployed with the Protective Boot
-
Devices deployed without the Protective Boot using the optional shim inserts
Mounting Compatibility:
-
2-hole AMPS mounting pattern (1.912" spacing)
-
Compatible RAM 2-hole AMPS ball adapters
-
Compatible RAM double socket arms and mounting components
This is a standalone, non-powered holder. Compatible mounting components can be selected separately to configure a complete mounting solution.
Specifications
-
Compatible Devices: Zebra MC9300, MC9400
-
Product Line: RAM Quick-Draw
-
Holder Type: Form-fit, spring-loaded, non-powered
-
Mounting Hole Pattern: 2-Hole AMPS (1.912")
-
Materials: High-strength composite
-
Product Weight: 0.86 lb
What's Included
-
(1) RAM Spring-Loaded Holder for Zebra MC9400 & MC9300
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE32U
Warranty: Manufacturer lifetime warranty
