Description

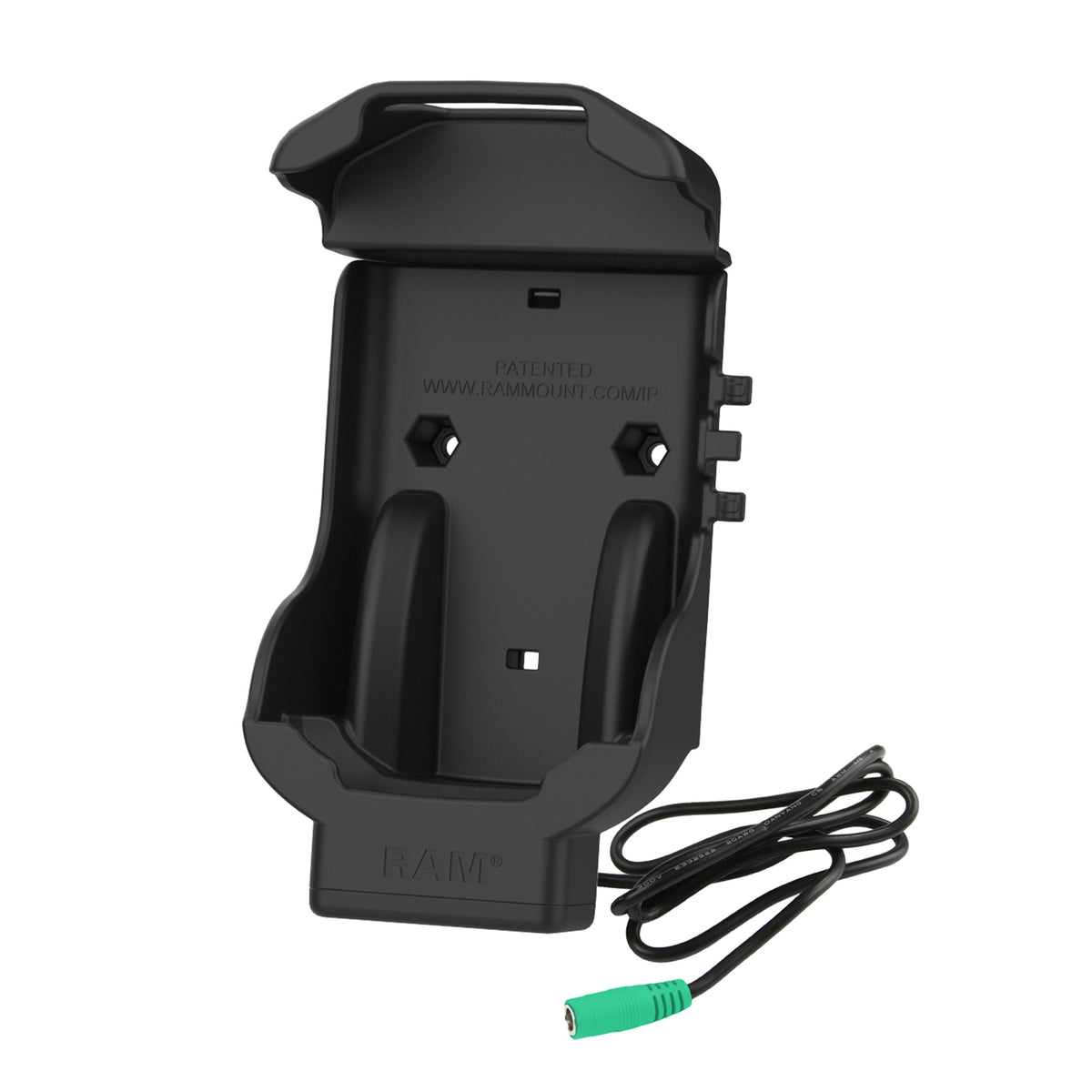

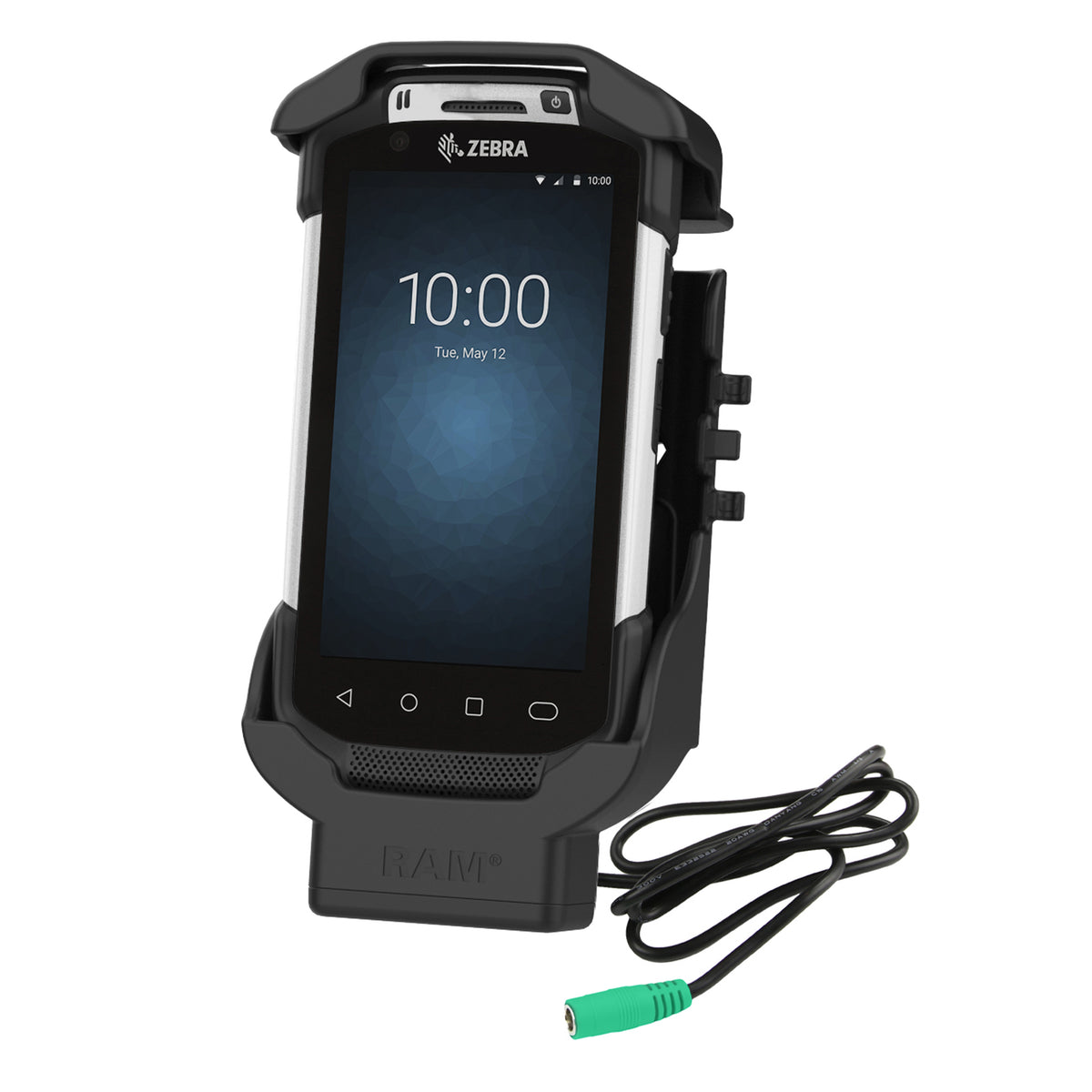

The RAM Form-Fit Powered Dock for Zebra TC70, TC72, TC75 & TC77 (RAM-HOL-ZE7-2U) provides secure device retention and charging connectivity for compatible Zebra rugged handheld computers. The spring-loaded cradle features an integrated stylus holder and accommodates devices with or without the Zebra Handstrap accessory.
Designed for commercial and industrial applications, this powered dock connects to compatible RAM mounting systems using a 2-hole AMPS diamond ball base. A USB Type-A cable with a 90-degree DC plug is included. A compatible external charger is required and sold separately.
Key Features
-
Form-Fit Powered Dock: Designed for Zebra TC70, TC72, TC75, and TC77 handheld computers.
-

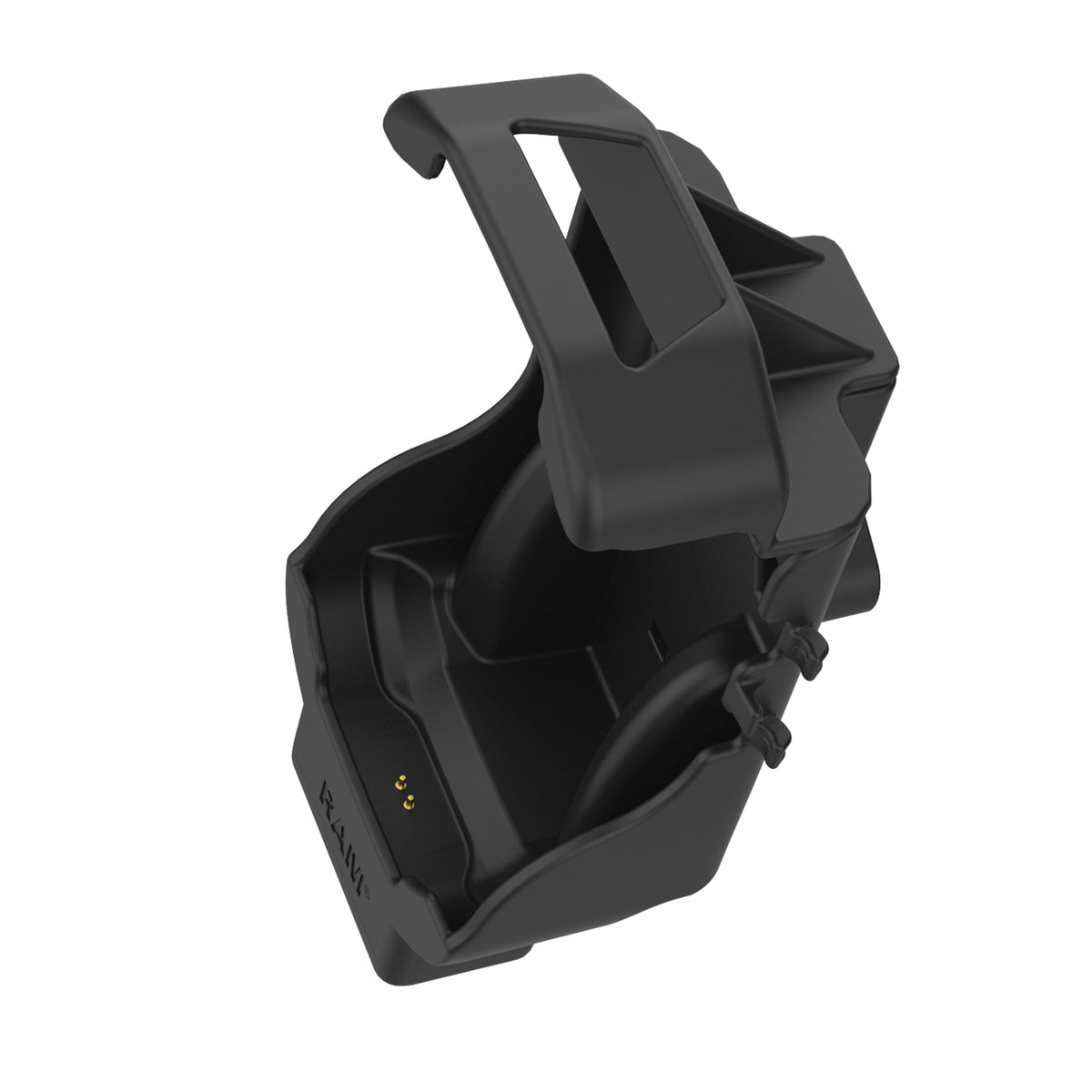

Spring-Loaded Retention: Holds the device securely while allowing convenient insertion and removal.
-
Charging Connectivity: Includes a USB Type-A cable with a 90-degree DC plug for use with compatible charging accessories.
-
Handstrap Compatibility: Supports the Zebra Handstrap accessory without requiring its removal.
-
Integrated Stylus Holder: Provides a designated location for storing a stylus.
-

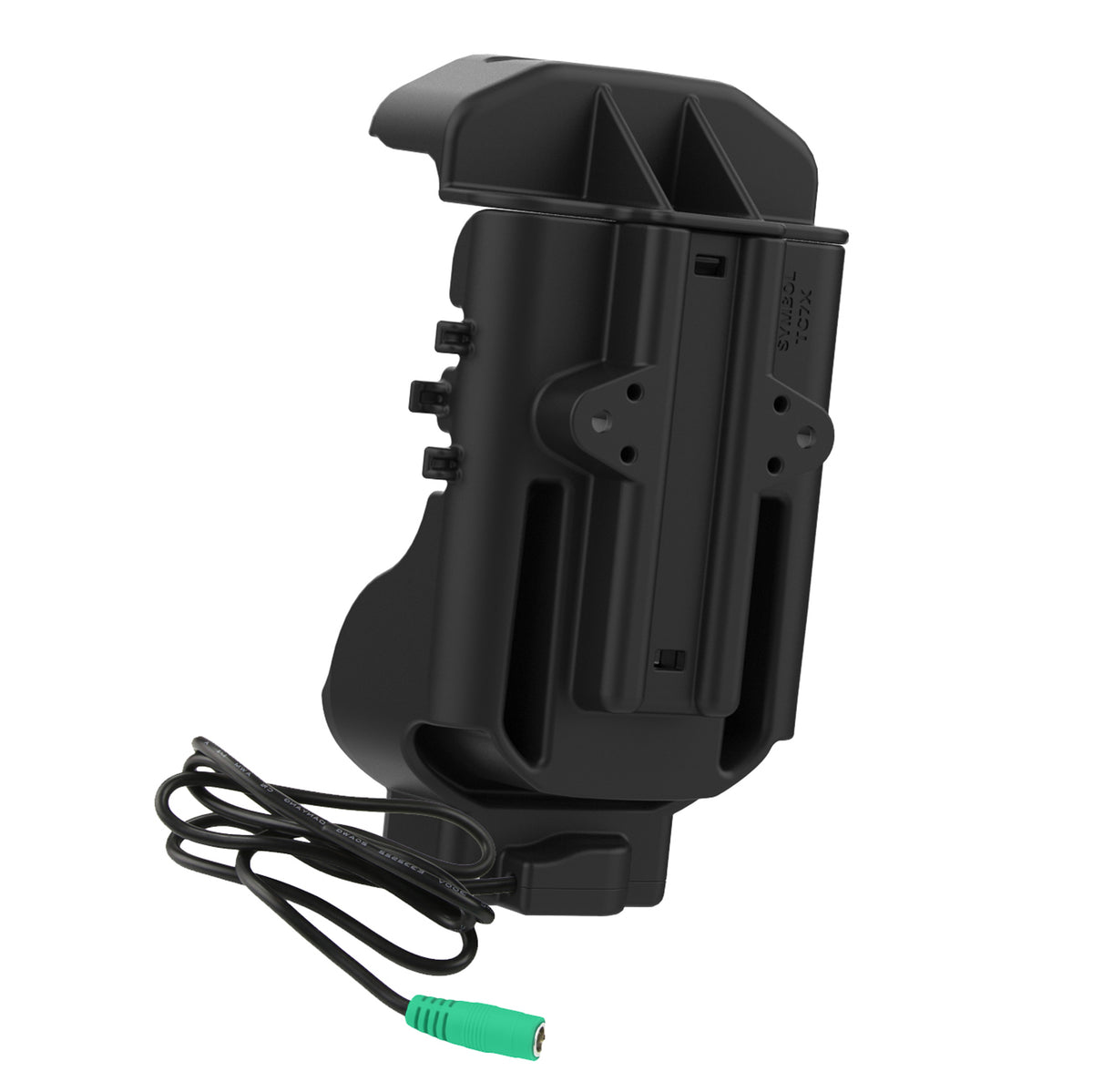

Flexible RAM Mounting: Compatible with RAM 2-hole AMPS diamond ball bases for B Size and C Size mounting systems.
-
Durable Construction: Made from high-strength composite material for demanding professional environments.
Use Cases & Compatibility
Designed for Zebra rugged handheld computers used in warehouse operations, logistics, inventory management, material handling, fleet applications, and field service.
Device Compatibility:
-
Zebra TC70
-
Zebra TC72
-
Zebra TC75
-
Zebra TC77
-
Compatible with the Zebra Handstrap accessory
Mounting Compatibility:
-
RAM 2-hole AMPS diamond bases
-
Compatible RAM B Size (1") mounting systems
-
Compatible RAM C Size (1.5") mounting systems
Compatible Charging Accessories (Sold Separately):
-
RAM-GDS-CHARGE-V7BU — hardwire charging
-
RAM-POW-CIG-M55 — vehicle cigarette-lighter charging
A compatible mounting base, mounting arm, and external charger are sold separately.
Specifications
-
Compatible Devices: Zebra TC70, TC72, TC75, TC77
-
Dock Type: Form-fit, powered, non-locking cradle
-
Retention Mechanism: Spring-loaded
-
Mounting Hole Pattern: 2-Hole AMPS (1.912")
-
Input Connector: USB Type-A
-
Material: High-strength composite
-
Product Weight: 0.70 lb
-
Handstrap Compatibility: Supports Zebra Handstrap accessory
-
Patent Status: Patented and patents pending
What's Included
-
(1) RAM Form-Fit Powered Dock for Zebra TC70, TC72, TC75 & TC77
-
(1) USB Type-A cable with 90-degree DC plug
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Note: External chargers and RAM mounting components are sold separately.
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE7-2U
Warranty: Manufacturer's 3-year warranty.
