Description

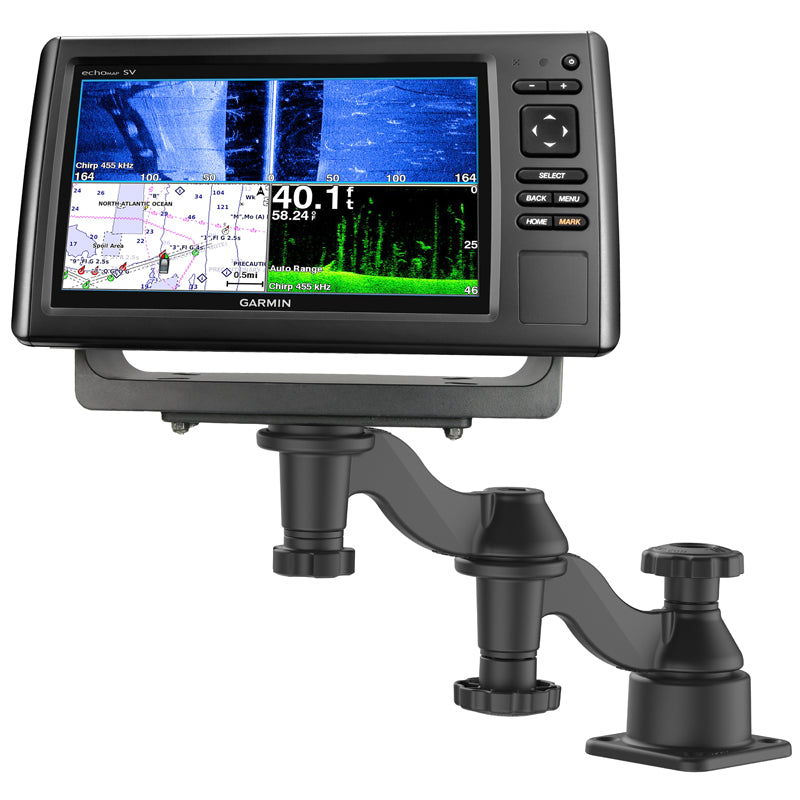

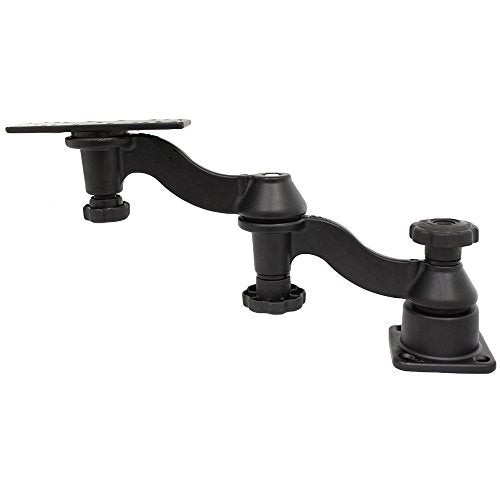

This fish finder mount is a drill-down mounting solution for Garmin, Humminbird, Lowrance, and similar marine electronics. Designed for marine and boating environments, it features two 6" swing arms that provide extended reach and full 360° adjustability for optimal viewing at the helm or console. The horizontal surface base ensures a secure permanent installation, while the universal 6.25" x 2" top plate supports a wide range of fish finder mounting patterns. Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by the full manufacturer warranty.
Key Features
• Dual 6" swing arms provide extended reach and flexible positioning
• 360° rotation at pivot points for precise device adjustment
• Drill-down base for secure horizontal surface mounting
• Universal top plate supports multiple fish finder hole patterns
• Marine-grade aluminum construction with powder-coated finish
• Supports devices up to 8 lbs
Common Applications
• Boat console fish finder mounting
• Marine electronics positioning at the helm
• Permanent drill-down installations on watercraft
• Mounting sonar and navigation displays
Specifications
Base Type: Drill-Down
Arm Length: Two 6" swing arms
Material: Marine-grade aluminum
Product Weight: 3.4 lbs
Plate Size:
• Top Plate: 6.25" x 2"
• Bottom Plate: 3.47" x 3.47"
Hole Pattern:
• Top Plate: See Drawing
• Bottom Plate: 2.5" x 2.5"
Additional Dimensions:
• Overall Height: 8.58"
• Total Swing Arm Length: 12"
Weight Capacity: 8 lbs
What’s Included
• Drill-down mounting base
• Two 6" swing arms
• Universal mounting plate
Notes
• Hardware not included; installation hardware may vary depending on mounting surface
• Gimbal bracket hardware included with most fish finders may be used for mounting
• Stainless steel hardware is recommended for marine environments to prevent corrosion
• Additional holes may need to be drilled for proper device fit depending on mounting pattern
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-109H-1U
Warranty: Lifetime
