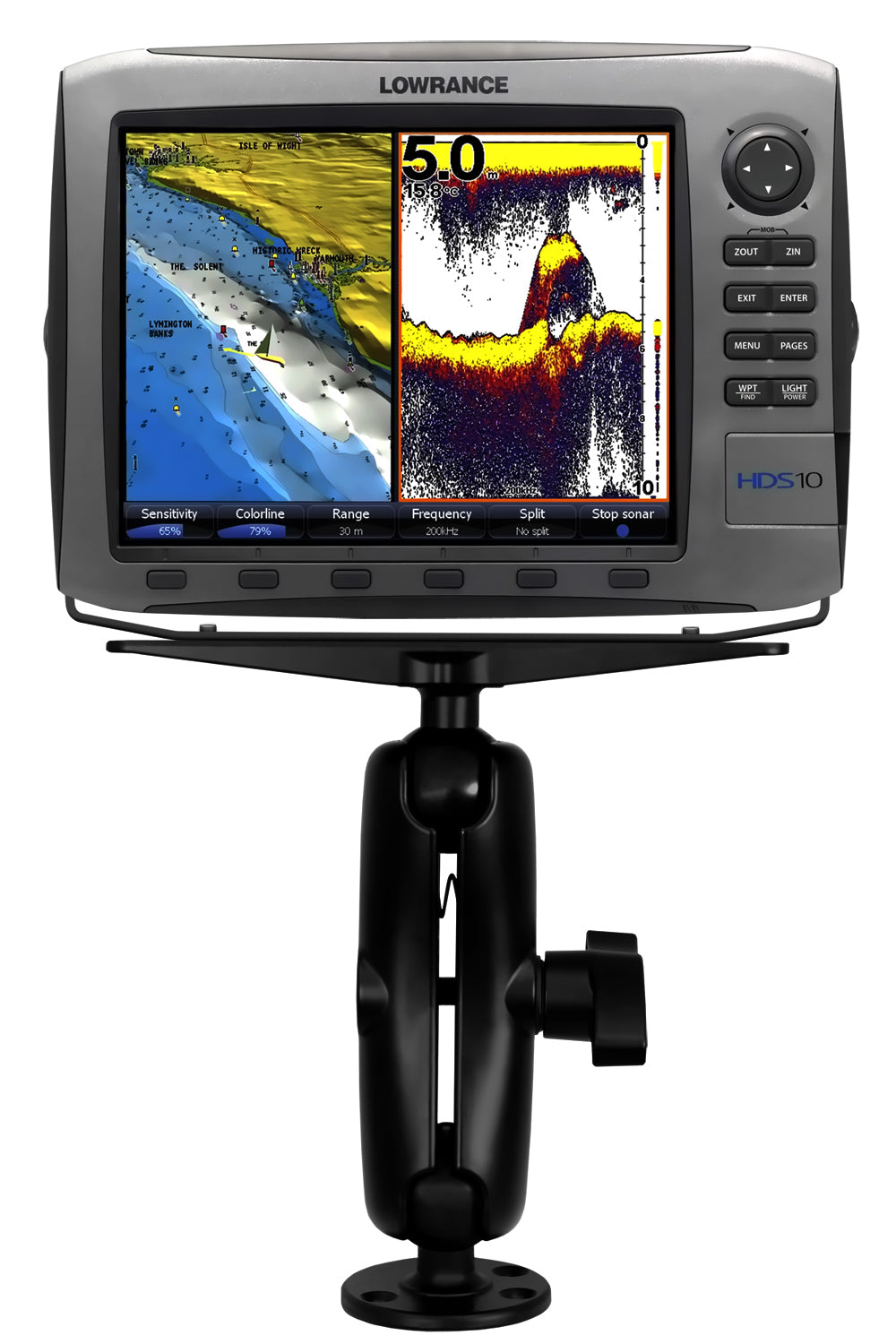

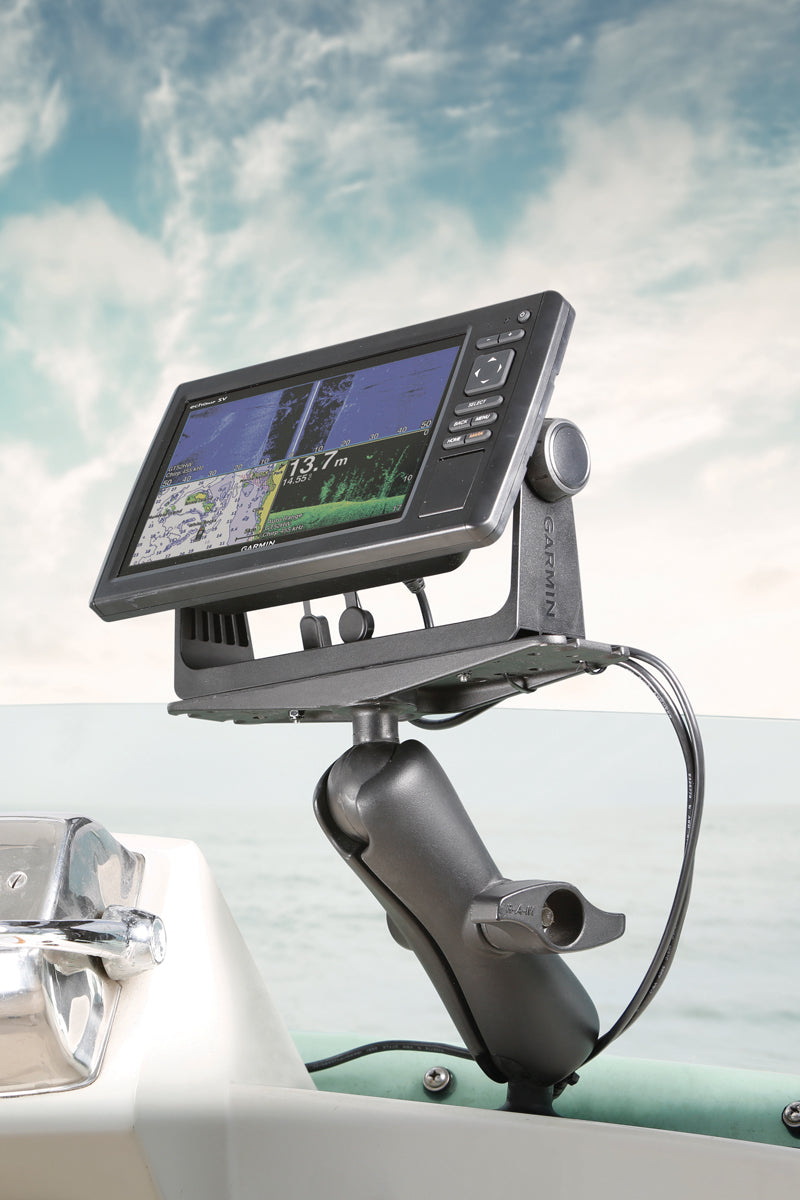

Secure large marine electronics with confidence using the RAM® Large Marine Electronics 2.25" D Ball Mount – Medium Arm. Designed for serious marine environments, this heavy-duty mounting system delivers superior strength, vibration damping, and precise adjustability for fishfinders and chartplotters ranging from 8” to 16”.

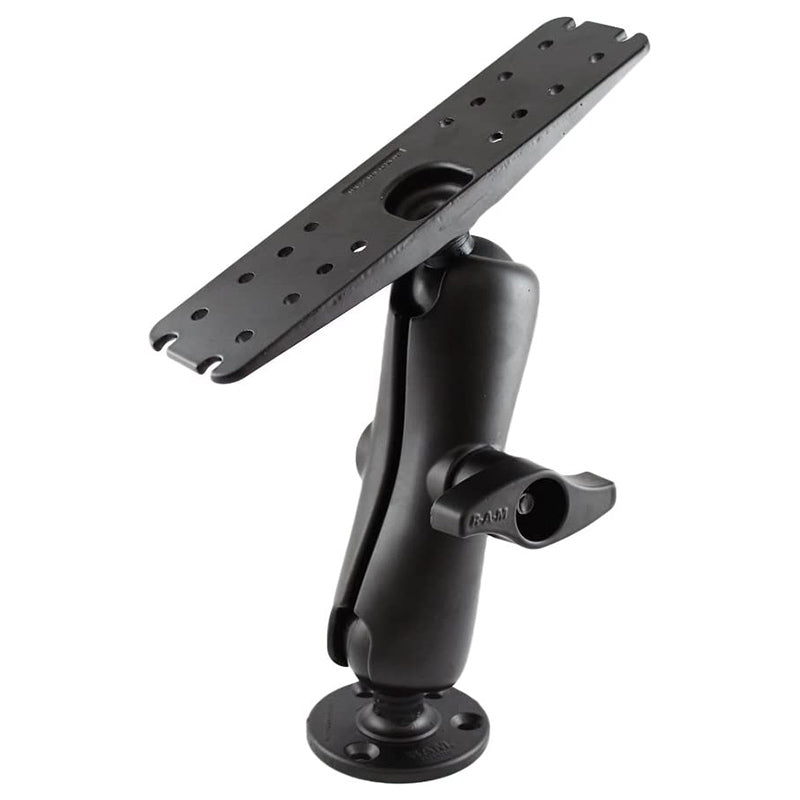

This complete mount features a medium-length double socket arm paired with two integrated 2.25" D size rubber balls—one on a 3.68" round drill-down base and the other on a wide 11" x 3" rectangular plate. The oversized D ball system provides exceptional holding power while absorbing shock and vibration, ensuring your electronics stay stable and easy to view even in rough conditions.
Pre-drilled hole patterns on both bases offer broad compatibility with popular marine electronics, and included shoulder washers allow smaller hardware to fit securely into the large mounting holes. Built from powder-coated, marine-grade aluminum, this mount is engineered to resist corrosion and deliver long-term reliability on the water.
As an Authorized RAM Mounts Dealer, Gadget Mounts ensures you receive genuine RAM® products backed by a manufacturer’s lifetime warranty.
Key Features
• Heavy-duty D size 2.25" RAM® ball and socket system for maximum stability
• Medium double socket arm allows near-infinite viewing angle adjustment
• Wide rectangular plate supports large fishfinders and chartplotters
• Shock-absorbing rubber balls reduce vibration and protect electronics
• Marine-grade, powder-coated aluminum for corrosion resistance
• Made in the USA and backed by a RAM® lifetime warranty
Compatibility
• Select 8"–16" fishfinders and chartplotters
• Universal mounting plate with multiple hole patterns
• Additional drilling may be required for certain devices
Included Hardware
• (4) .312" x .187" shoulder washers
Note: Drill-down mounting hardware is not included and should be selected based on your specific mounting surface.
Specifications

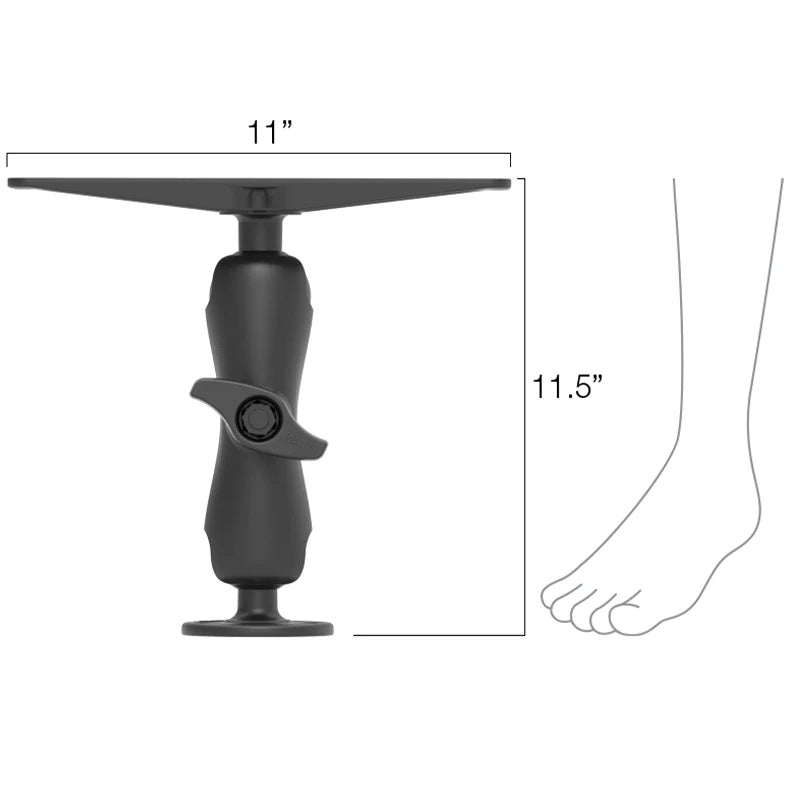

Overall Length (Fully Straight): 11.5"
Socket-to-Socket Length: 6.88"
Double Socket Arm Length: Overall 8.44"

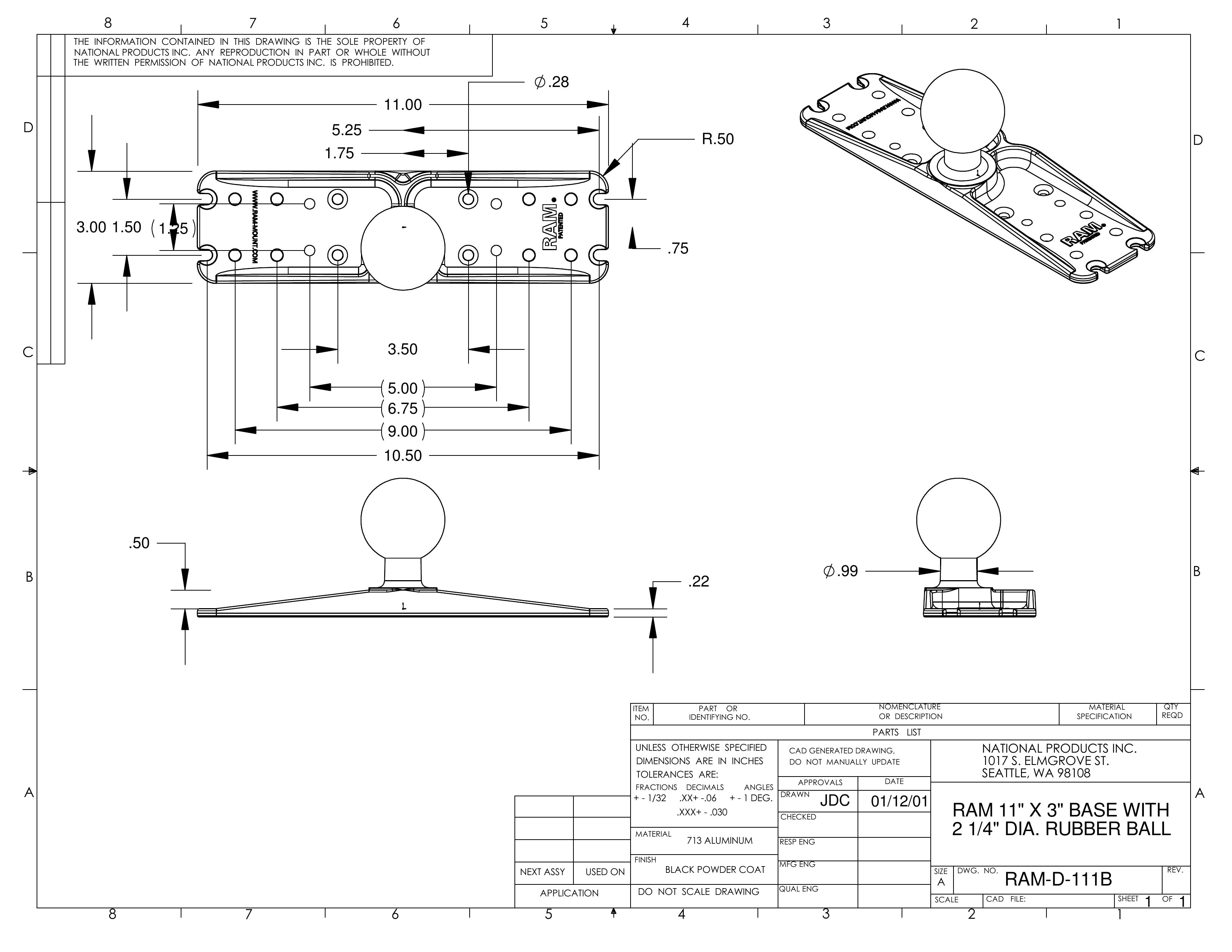

Top Plate Size: 11" x 3"

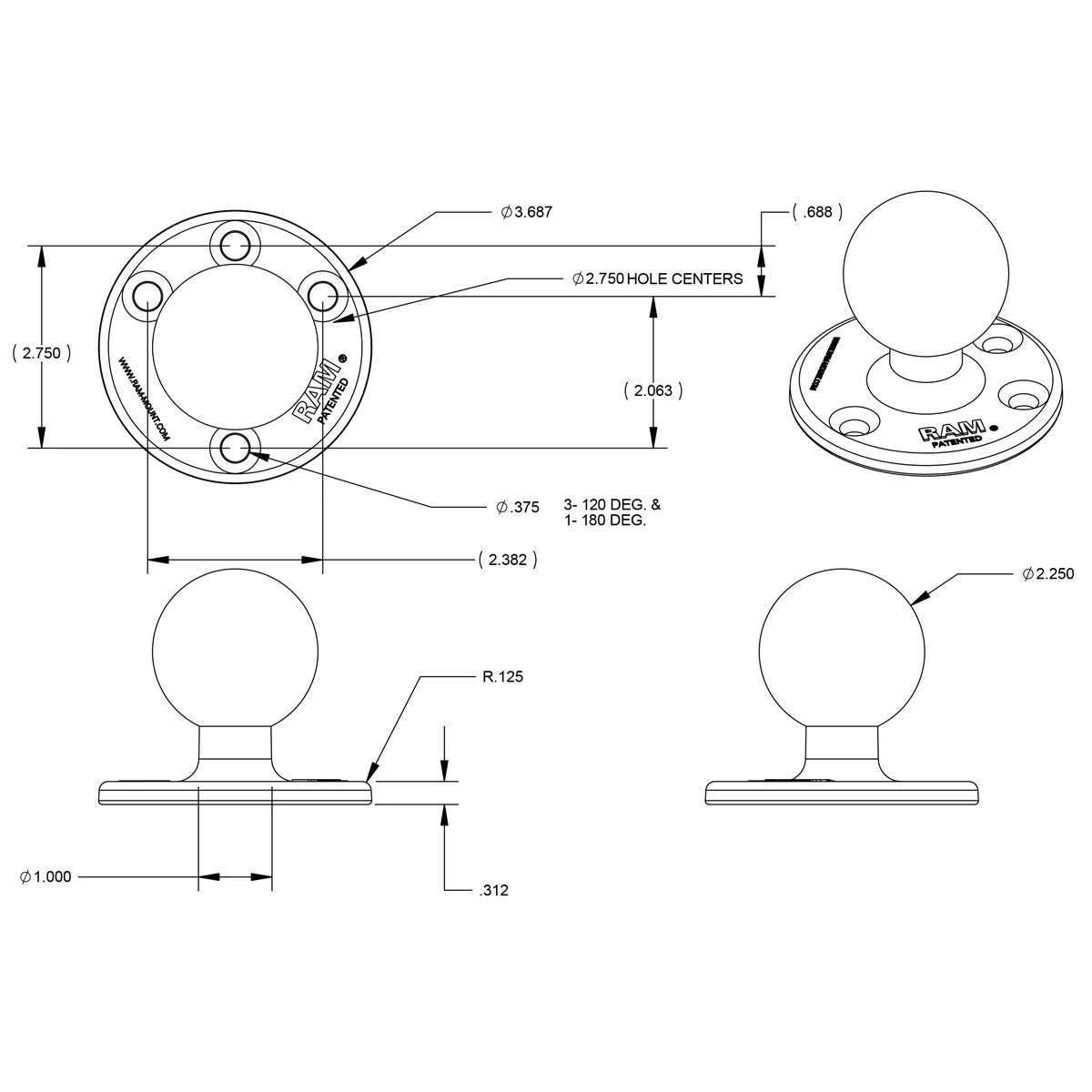

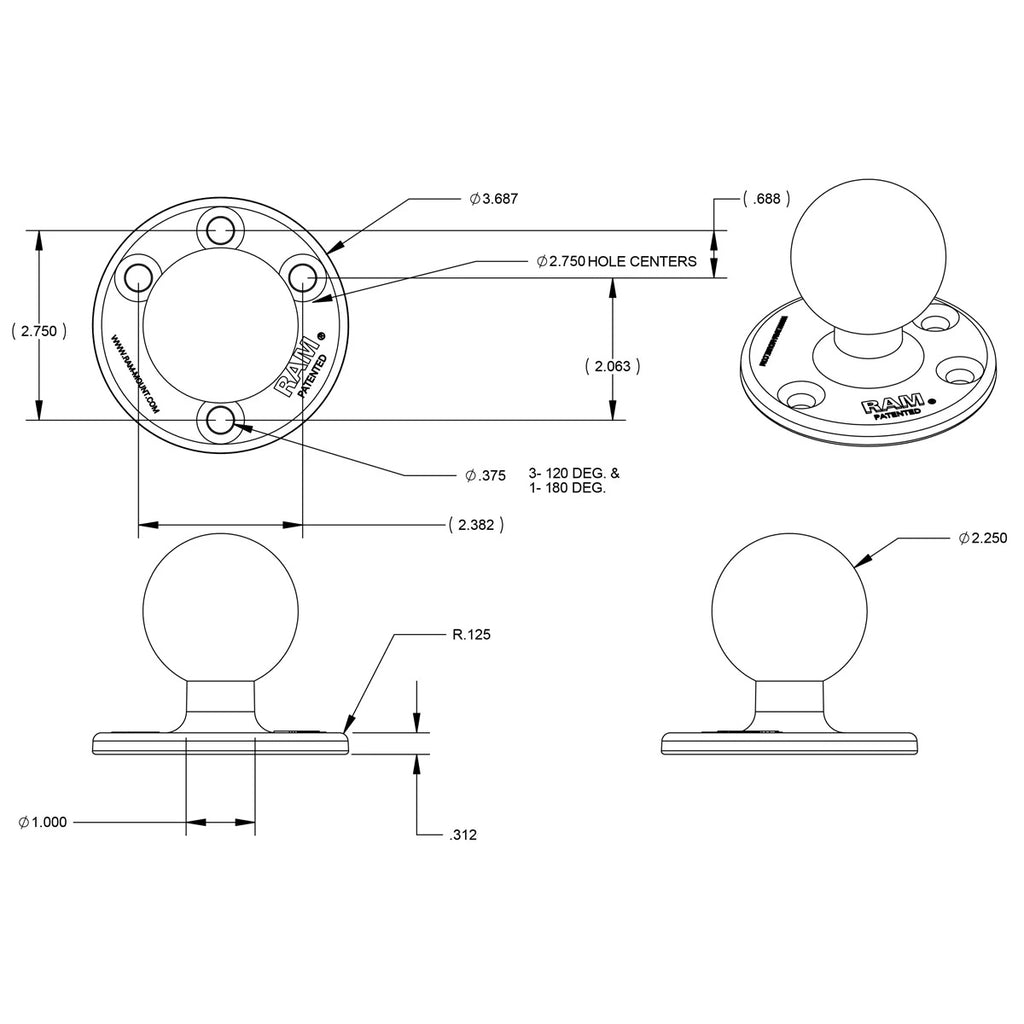

Bottom Plate Size: 3.68" diameter
Ball Size: D Size (2.25")
Weight Capacity:
• Standard Use: 6 lbs
• Heavy-Duty Use: 5 lbs
Materials: Powder-coated marine-grade aluminum
Product Weight: 4.65 lbs
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-D-111U
Warranty: Manufacturer’s Lifetime Warranty
