Description

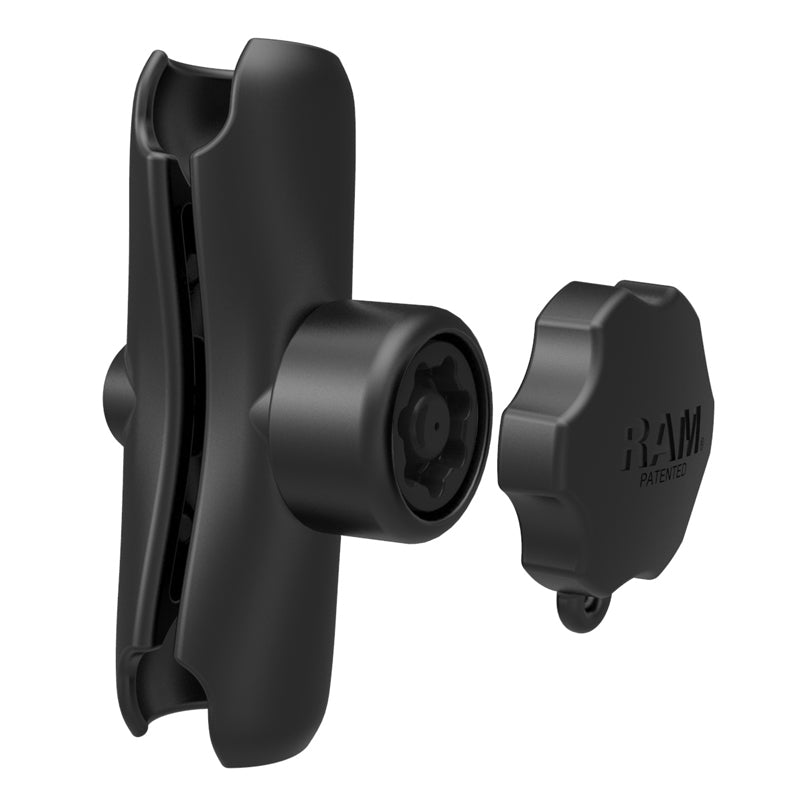

The RAM-201-SU is a standard-length double socket arm for RAM C Size mounting systems. It connects compatible C Size ball bases, adapters, and device holders while allowing the attached equipment to be adjusted at both ends.
A RAM Pin-Lock™ security knob replaces the standard adjustment knob to add tamper resistance without significantly increasing the size of the mounting system. The included key is used to lock and unlock the arm.
Key Features
-
Standard-length double socket arm for RAM C Size 1.5" ball components
-
Adjusts at both socket connections for flexible positioning
-
RAM Pin-Lock™ security knob adds tamper resistance
-
Low-profile locking design
-
Powder-coated marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
This standalone socket arm is designed for RAM C Size modular mounting systems where added resistance to unauthorized adjustment or removal is preferred.
Compatible with a variety of RAM C Size 1.5" ball bases, adapters, device holders, and mounting components.
Specifications
Ball Size: C Size 1.5" Ball
Overall Length: 5.69"
Socket-to-Socket Length: 4.66"
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Material: Marine-grade aluminum
Product Weight: 0.86 lb
What’s Included
-
(1) RAM Pin-Lock™ security key
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-201-SU
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
