Description

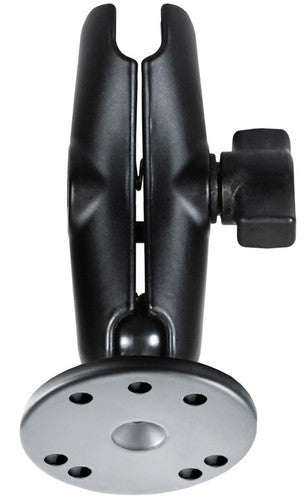

The RAM-B-103U includes a RAM B Size medium double socket arm and a 2.5" round plate with an integrated B Size 1" ball. The round plate includes pre-drilled hole patterns for connecting to compatible RAM device holders and other AMPS-pattern components. This is a component assembly and requires a compatible RAM B Size ball base or mounting point to complete the setup.
Key Features
- Includes RAM B Size medium double socket arm and 2.5" round plate
- Round plate features the industry-standard 4-hole AMPS pattern
- Also includes a 3-hole 120-degree pattern for compatible mounting applications
- Designed for RAM B Size 1" ball components
- Adjustable double socket arm allows positioning of the attached holder or device component
Specifications
Component Type: Double socket arm with round ball plate
Ball Size: B Size 1"
Socket-to-Socket Length: 3"
Hole Pattern: 4-hole AMPS: 1.181" x 1.496"; 3-hole 120-degree: 1.812" diameter
Material: Marine-grade aluminum
Color: Black powder-coated finish
Compatibility: Designed for RAM B Size 1" ball components and AMPS-compatible RAM holders
Included: RAM B Size medium double socket arm and 2.5" round plate with B Size 1" ball
Product Weight: 0.44 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-103U
Warranty: Manufacturer’s lifetime warranty
Authorized Dealer: Gadget Mounts is an Authorized RAM Mounts Dealer.
