Description

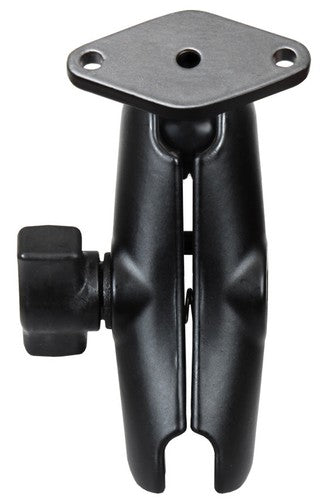

The RAM-B-103-238U combines a medium B Size double socket arm with a diamond plate adapter. The diamond plate uses the standard 2-hole AMPS pattern, making it compatible with many RAM holders, cradles, and third-party AMPS-compatible devices.
This component is useful when you need a medium-length RAM arm with a diamond plate already included for connecting a holder or cradle.
Key Features
- Includes medium RAM B Size double socket arm
- Diamond plate features 2-hole AMPS pattern
- 1.912" center-to-center hole spacing
- Compatible with many RAM holders and cradles
- Ball-and-socket design allows adjustable positioning
- Made from powder-coated, marine-grade aluminum
- Weight capacity: 2 lbs standard use; 1 lb heavy-duty use
Use Cases & Compatibility
The RAM-B-103-238U is commonly used to connect RAM B Size ball bases to holders, cradles, or adapters with a 2-hole AMPS pattern. The included medium socket arm provides adjustability, while the diamond plate creates a common attachment point for many RAM and AMPS-compatible device holders.
Specifications
Ball Size: B Size 1"
Material: Marine-Grade Aluminum
Color: Black
Hole Pattern: 2-Hole AMPS: 1.912"
Socket-to-Socket Length: 3"
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Product Weight: 0.4 lb
Additional Details: Diamond plate measures 2.43" x 1.31" and connects to many RAM and AMPS-compatible holders.
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-103-238U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
