Description
Overview

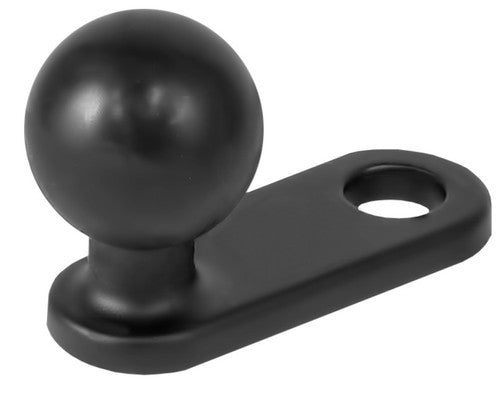

The RAM-B-252U is a compact bolt head adapter ball base with an 11mm hole and a RAM B Size 1" rubber ball. It is designed to create a RAM mounting point using compatible motorcycle mirror frames, handlebar pinch bolts, and similar bolt locations.
This base is commonly used on motorcycles, especially BMW models, where a low-profile mounting point is needed without using a handlebar clamp or suction cup. Once installed, it connects to RAM B Size double socket arms, holders, cradles, and adapters.
Key Features
-
Features an 11mm hole for compatible motorcycle mirror frame and bolt-mounted applications
-
Includes RAM B Size 1" rubber ball for use with RAM B Size socket arms
-
Compact 2.25" x 0.875" base with 5mm thickness
-
Compatible with RAM B Size double socket arms, device holders, cradles, and adapters
-
Made from powder-coated, marine-grade aluminum for durability
-
Manufacturer-rated weight capacity of 2 lbs for standard use and 1 lb for heavy-duty use
Use Cases & Compatibility
The RAM-B-252U is compatible with RAM Mounts B Size 1" ball components, including B Size double socket arms, phone holders, GPS holders, small device cradles, and adapter plates.

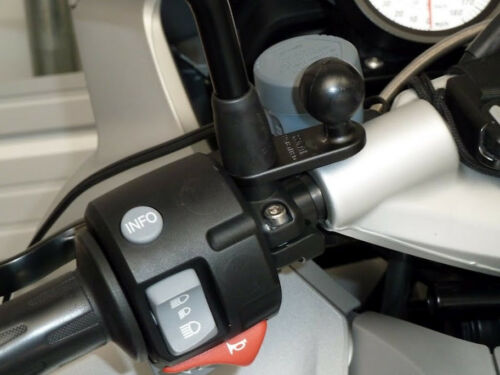

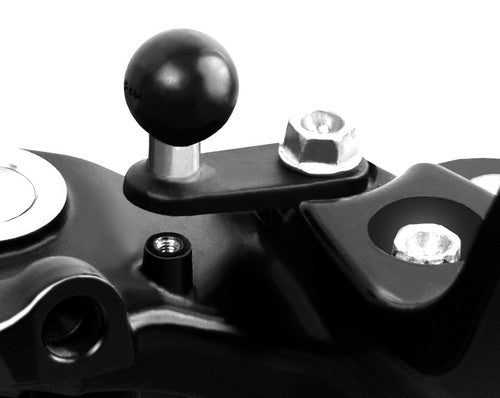

This adapter is often used on motorcycles by attaching to the mirror frame or compatible handlebar pinch bolt locations. RAM notes BMW motorcycles as a common application. For pinch bolt installations, the base may fit well with a washer depending on the bolt location and available clearance.
Specifications
Ball Size: B Size 1" Ball
Material: Powder-Coated Marine-Grade Aluminum
Color: Black
Hole Size: 11mm
Base Dimensions: 2.25" x 0.875"
Base Thickness: 5mm
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Product Weight: 0.08 lb
Additional Details: Commonly used on motorcycle mirror frames and compatible handlebar pinch bolt locations
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-252U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
