Description
The RAM-B-309-7U is a versatile motorcycle mounting base designed for installation on either a brake/clutch reservoir bracket or a handlebar rail. It includes a B size 1" RAM rubber ball, allowing connection to compatible RAM B size double socket arms for phones, GPS units, action cameras, and other supported device holders.
This combination base gives riders flexible mounting options with included reservoir hardware and U-bolt hardware for handlebars ranging from 0.5" to 1.25" in diameter.
Key Features
-
Combination motorcycle base for brake/clutch reservoir or handlebar mounting
-
Integrated B size 1" RAM rubber ball for use with RAM B size socket arms
-
Includes U-bolt hardware for rails from 0.5" to 1.25" in diameter
-
Ball-and-socket system allows adjustable positioning and viewing angles
-
Powder-coated marine-grade aluminum construction
-
Includes hardware for multiple motorcycle mounting configurations
Use Cases & Compatibility
The RAM-B-309-7U is designed for motorcycle mounting applications where a B size RAM ball base is needed at either the handlebar or the brake/clutch reservoir area. It can be used as the base component for mounting a compatible RAM phone holder, GPS holder, action camera adapter, or other B size RAM-compatible device holder.
The included U-bolt hardware fits handlebar rails from 0.5" to 1.25" in diameter. The included brake/clutch reservoir hardware provides an alternate mounting option for compatible motorcycle control brackets.
Specifications
Ball Size: B Size 1"
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Dimensions: Bar clamp range: 0.5"–1.25" diameter
Product Weight: 0.47 lb
Additional Details: Combination handlebar and brake/clutch reservoir motorcycle base with included hardware

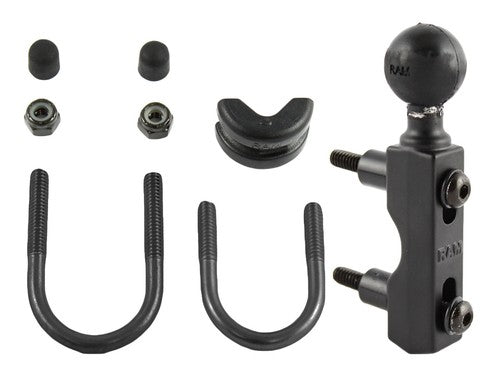

What’s Included
-
RAM motorcycle brake/clutch reservoir and handlebar ball base
-
Two M6 x 55mm hex bolts
-
Two 1/4"-20 x 2" hex bolts
-
Two 1/4"-20 x 2.5" hex bolts
-
Two 1/2" spacers
-
Two 1/4" split lock washers
-
One 1/4"-20 U-bolt for 0.5"–1" rails
-
One 1/4"-20 U-bolt for 1"–1.25" rails
-
Two 1/4"-20 Nylock nuts
-
Two rubber caps
-
One U-bolt spacer
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-309-7U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
