Description
Overview

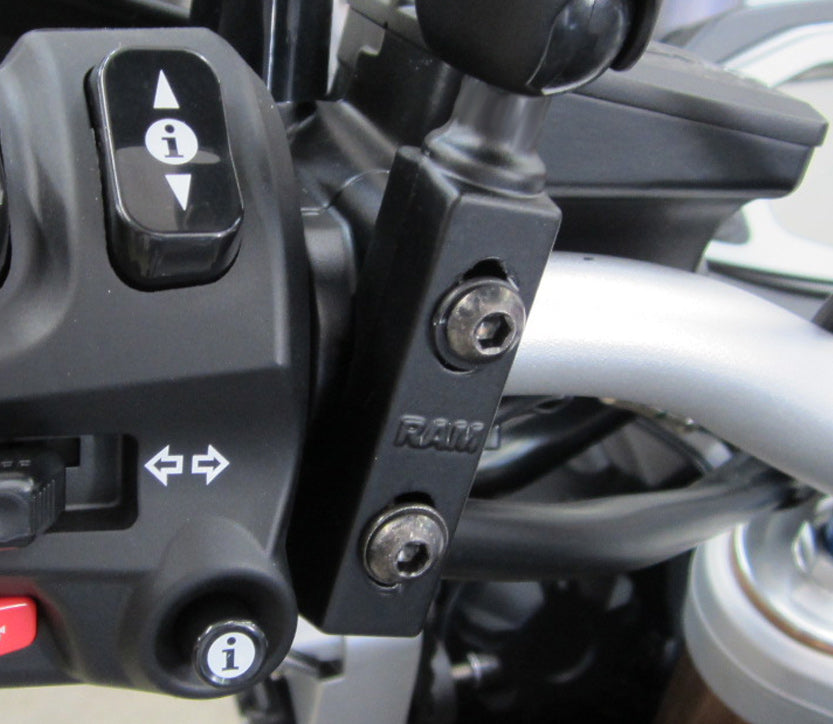

The RAM-B-309-1U is a motorcycle brake/clutch reservoir ball base that adds a RAM B Size 1" ball to compatible handlebar control clamps. It provides a clean mounting point for building a RAM Mounts motorcycle setup without requiring a separate handlebar clamp.
This base is commonly used to mount phones, GPS units, cameras, and other small devices when paired with a compatible RAM B Size socket arm and device holder. It is a practical option when handlebar space is limited or when a centered control-clamp mounting location is preferred.
Key Features
-
Attaches to compatible motorcycle brake or clutch reservoir/control clamps
-
Includes one RAM B Size 1" rubber ball for use with RAM B Size socket arms
-
Ball-and-socket compatibility allows near-infinite adjustment when paired with a RAM double socket arm
-
Made from powder-coated, marine-grade aluminum for durability
-
Manufacturer-rated weight capacity of 2 lbs for standard use and 1 lb for heavy-duty use
Use Cases & Compatibility
The RAM-B-309-1U is compatible with RAM Mounts B Size 1" ball components, including B Size double socket arms and adapters.
To check fitment, compare the hole spacing on your motorcycle’s brake or clutch reservoir clamp. The base supports hole center spacing from 0.94" to 1.58". Mounting hardware is included for compatible control clamp installations.
Specifications
Ball Size: B Size 1" Ball
Material: Powder-Coated Marine-Grade Aluminum
Color: Black
Hole Pattern: Brake/Clutch Reservoir Clamp Hole Spacing: 0.94" to 1.58"
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Included Hardware: Two M6 x 55mm hex bolts, two 1/4"-20 x 2" hex bolts, two 1/4"-20 x 2.5" hex bolts, two 1/2" spacers, two 1/4" split lock washers
Product Weight: 0.33 lb
Additional Details: Mounts to compatible motorcycle handlebar brake or clutch clamp locations
What’s Included
-
RAM motorcycle brake/clutch reservoir base with B Size 1" ball
-
Two M6 x 55mm hex bolts
-
Two 1/4"-20 x 2" hex bolts
-
Two 1/4"-20 x 2.5" hex bolts
-
Two 1/2" spacers
-
Two 1/4" split lock washers
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-309-1U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
