Description

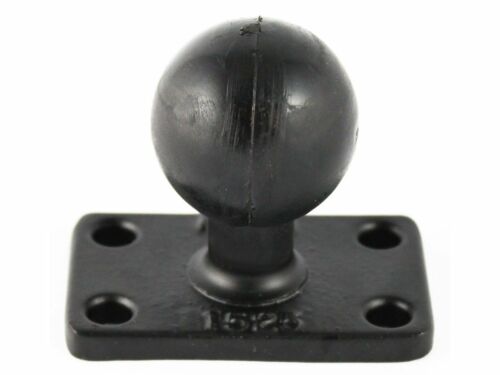

The RAM® Rectangular Plate Base combines a C Size 1.5" Ball with a 1.5" x 2.5" mounting plate. Its four-hole pattern measures 1" x 2" center to center, providing a secure attachment point for compatible equipment and mounting surfaces.
The powder-coated marine-grade aluminum construction creates a durable base for RAM C Size mounting systems. Once connected to a compatible double socket arm, the ball-and-socket design allows the attached equipment to be positioned and adjusted as needed.
Key Features
-
RAM C Size 1.5" ball connection
-
1.5" x 2.5" rectangular mounting plate
-
Four-hole pattern measuring 1" x 2" center to center
-
0.218" mounting holes
-
Compatible with RAM C Size 1.5" double socket arms
-
Powder-coated marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
This standalone ball base is designed for applications that require a compact rectangular plate with a four-hole 1" x 2" mounting pattern. It is compatible with a variety of RAM C Size 1.5" socket arms and mounting components.
Mounting hardware as included.
Specifications
Ball Size: C Size 1.5" Ball
Hole Pattern: Four-hole, 1" x 2" center to center
Hole Size: 0.218"
Plate Dimensions: 1.5" x 2.5"
Material: Powder-coated marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.23 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-202U-1525
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
