Description

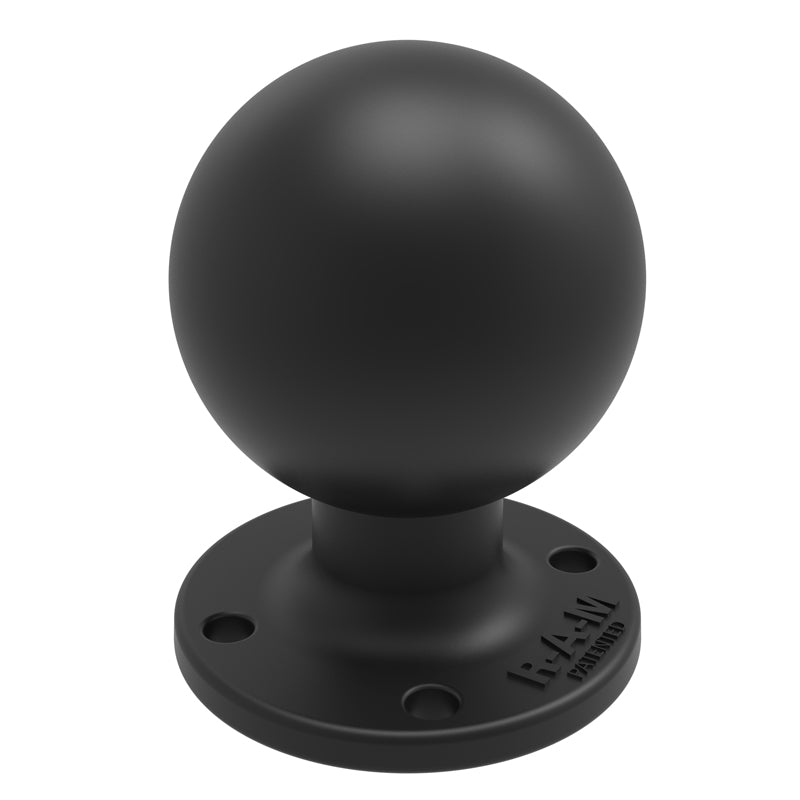

The RAM-D-254U combines a RAM D Size 2.25" ball with a 2.5" diameter round plate featuring the standard four-hole AMPS pattern. The plate can attach to compatible RAM holders and cradles or be installed on a suitable flat surface.
Constructed from powder-coated marine-grade aluminum, this standalone ball base connects with compatible RAM D Size socket arms for adjustable equipment mounting.
Key Features
-
Integrated RAM D Size 2.25" ball
-
2.5" diameter round mounting plate
-
Standard four-hole AMPS mounting pattern
-
Compatible with RAM holders and cradles using the AMPS pattern
-
Compatible with RAM D Size socket arms and mounting components
-
Powder-coated marine-grade aluminum construction
-
Supports up to 6 lbs under standard-use conditions
Use Cases & Compatibility
This ball base is designed for attaching compatible RAM device holders, cradles, and mounting components that use the standard AMPS hole pattern. It can also be installed on a suitable flat surface.
Compatible with a variety of RAM D Size 2.25" socket arms and mounting components. Attachment hardware is not included.
Specifications
Ball Size: D Size 2.25" Ball
Mounting Pattern: Four-hole AMPS
Hole Pattern: 1.181" x 1.496"
Plate Dimensions: 2.5" diameter
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 6 lbs; Heavy-Duty Use: 5 lbs
Product Weight: 0.5 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-D-254U
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
