Description

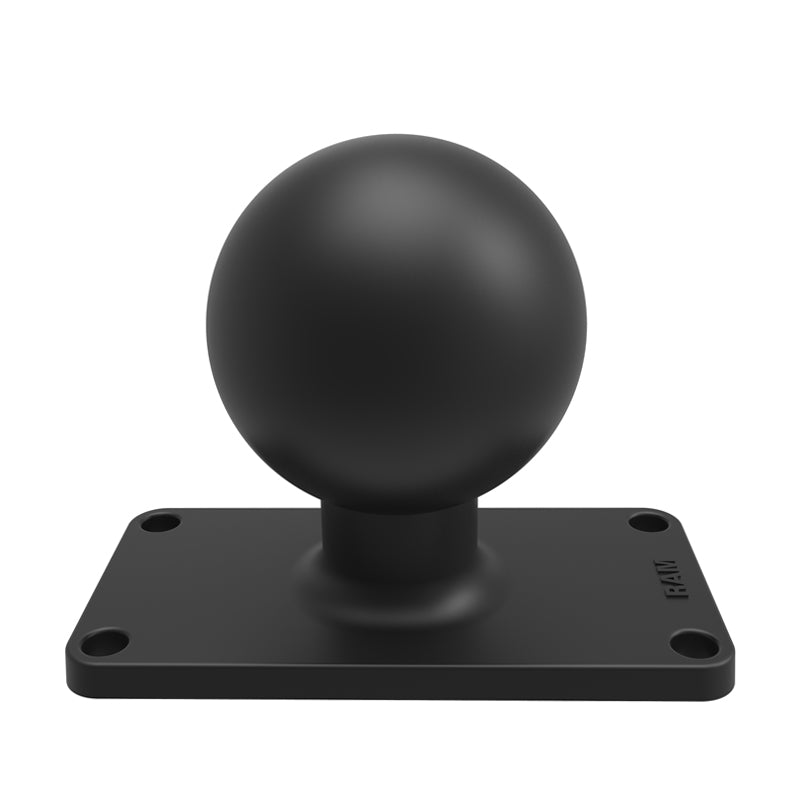

The RAM-D-202U-24 combines a RAM D Size 2.25" ball with a 2" x 4" rectangular mounting plate. Its four-hole pattern measures 1.5" x 3.5" center to center, providing a secure drill-down mounting point for compatible equipment and surfaces.
Constructed from powder-coated marine-grade aluminum, this standalone ball base connects with compatible RAM D Size socket arms for adjustable equipment mounting.
Key Features
-
Integrated RAM D Size 2.25" ball
-
2" x 4" rectangular mounting plate
-
Four-hole pattern measuring 1.5" x 3.5" center to center
-
Compatible with RAM D Size socket arms and mounting components
-
Powder-coated marine-grade aluminum construction
-
Supports up to 6 lbs under standard-use conditions
Use Cases & Compatibility
This standalone ball base can be installed on compatible flat surfaces, brackets, equipment, and mounting structures that use the specified four-hole pattern.
Compatible with a variety of RAM D Size 2.25" socket arms and mounting components. Attachment hardware is not included.
Specifications
Ball Size: D Size 2.25" Ball
Hole Pattern: Four-hole, 1.5" x 3.5" center to center
Plate Dimensions: 2" x 4"
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 6 lbs; Heavy-Duty Use: 5 lbs
Product Weight: 0.58 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-D-202U-24
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
