Description

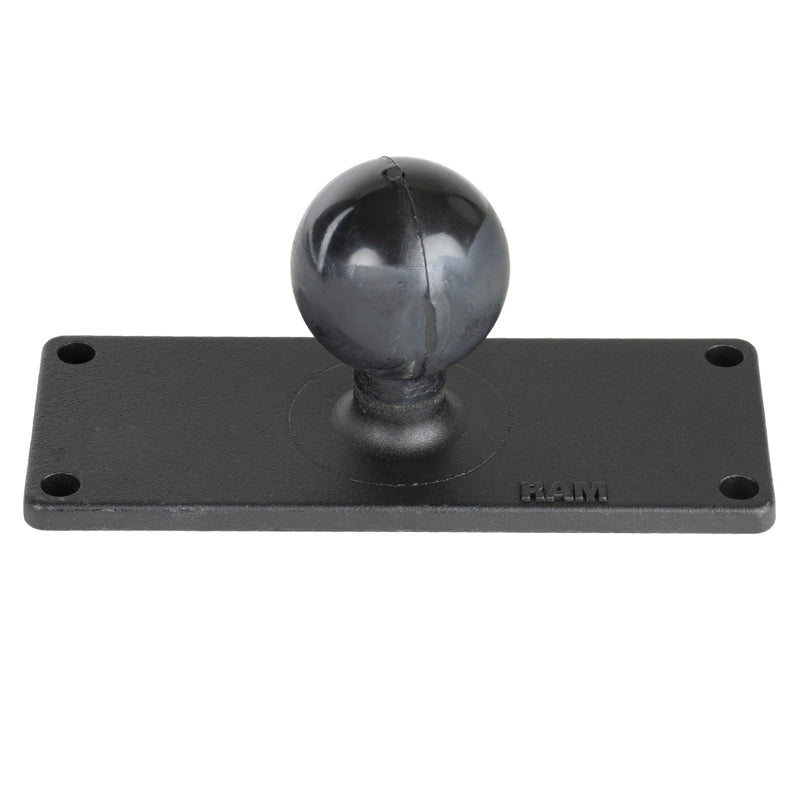

This RAM® rectangular plate base combines a 2" x 5" mounting plate with an integrated C Size 1.5" ball. The four-hole pattern measures 1.5" x 4.5" center to center, providing a sturdy connection point for compatible equipment and mounting surfaces.
The rubber ball connects with compatible RAM C Size socket arms, allowing the attached device or equipment to be positioned and adjusted as needed.
Key Features
-
Integrated RAM C Size 1.5" ball
-
2" x 5" rectangular mounting plate
-
Four-hole pattern measuring 1.5" x 4.5" center to center
-
Connects with compatible RAM C Size double socket arms
-
Powder-coated, marine-grade aluminum construction
-
Supports up to 4 lbs under standard-use conditions
Use Cases & Compatibility
Designed for applications requiring a rectangular mounting plate with a widely spaced four-hole attachment pattern.
This standalone ball base is compatible with a variety of RAM C Size 1.5" socket arms and mounting components.

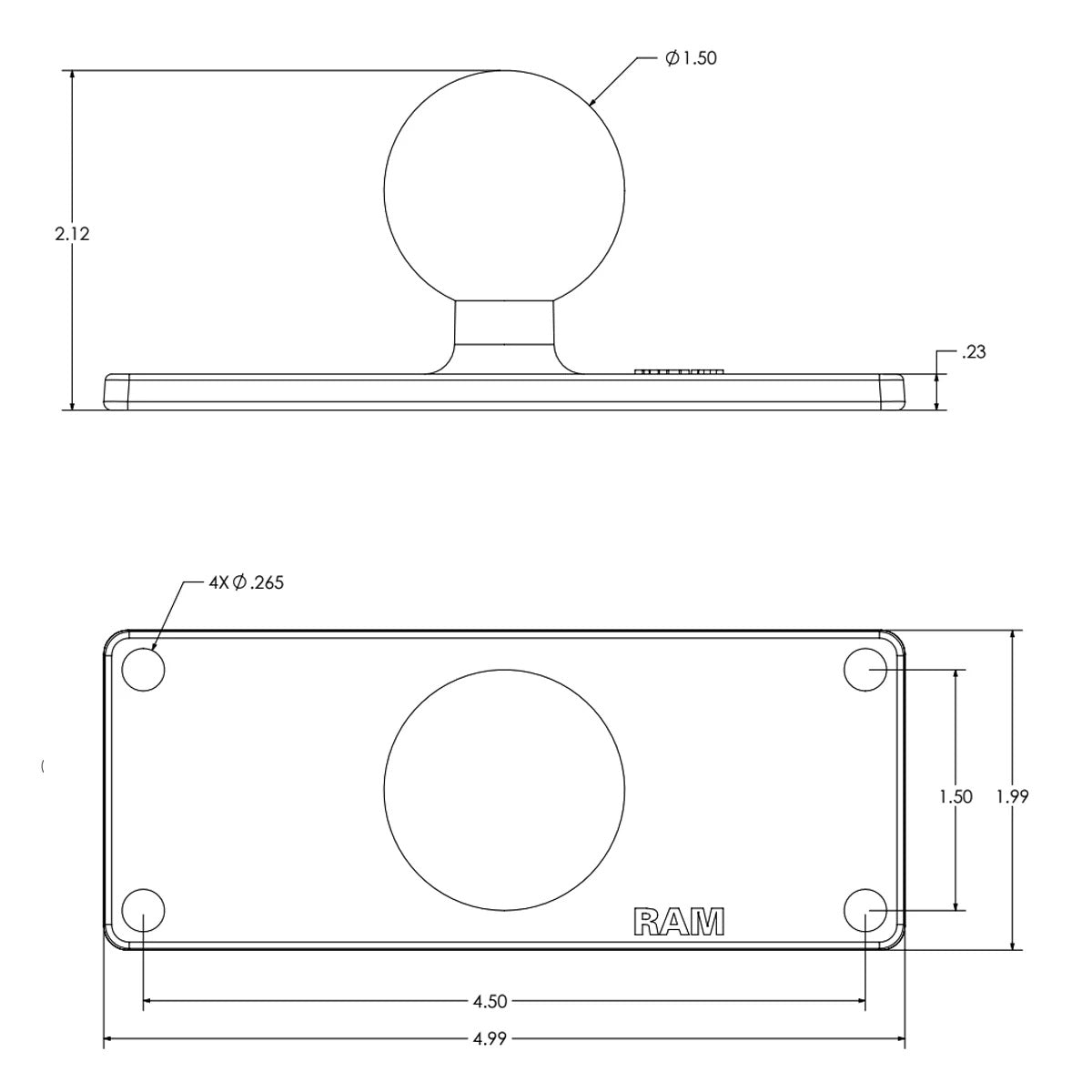

Specifications
Ball Size: C Size 1.5" Ball
Hole Pattern: Four-hole pattern
Hole Spacing: 1.5" x 4.5" center to center
Plate Dimensions: 2" x 5"
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.26 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-202U-25
Warranty: Manufacturer’s lifetime warranty.
