Description

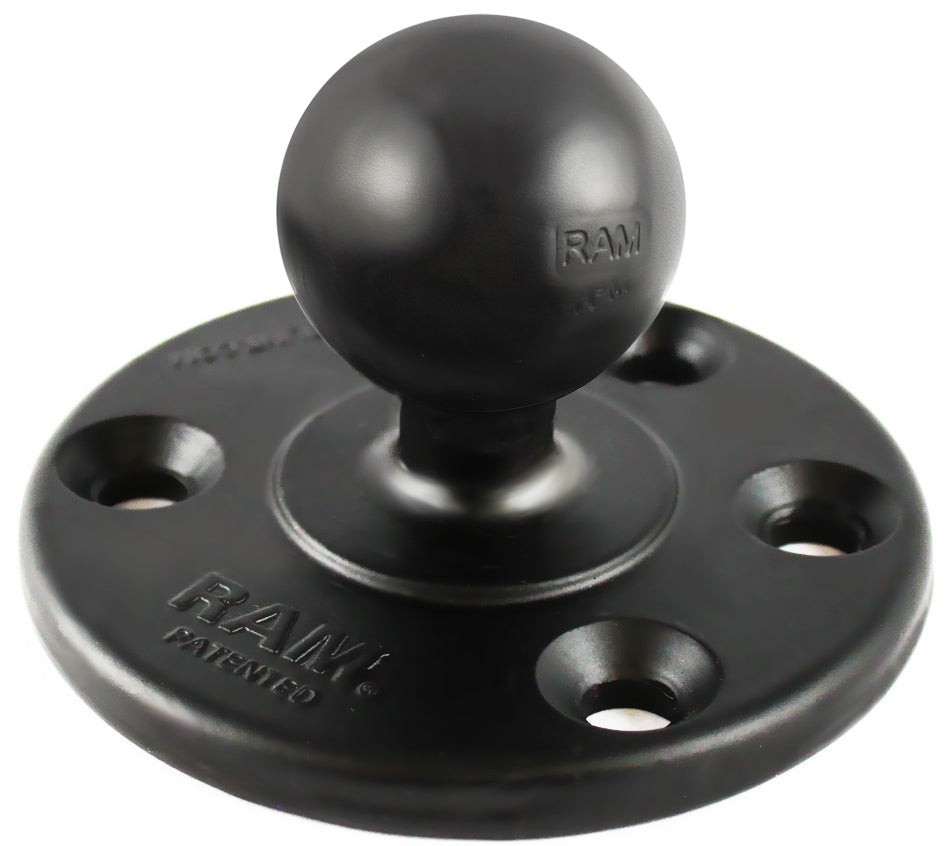

The RAM® Large Round Plate with 1.5" C Size ball provides a durable connection point for compatible RAM® docking stations and other supported equipment. Its flat 3.68" diameter plate features a pre-drilled mounting pattern designed for attachment to RAM Tough-Dock™ Powered Docking Stations.
Constructed from marine-grade aluminum, this component connects to a compatible RAM® C Size double socket arm, allowing the attached dock or device to be positioned as part of a custom mounting system.
Key Features
-
Integrated C Size 1.5" RAM® rubber ball connects to compatible RAM® C Size double socket arms
-
Flat 3.68" diameter round plate provides a broad mounting surface
-
Pre-drilled mounting pattern supports compatible RAM Tough-Dock™ Powered Docking Stations
-
Four 0.375" through-holes positioned on a 2.75" diameter bolt circle
-
Marine-grade aluminum construction provides strength and durability
-
Supports up to 4 lbs in standard-use applications and 3 lbs in heavy-duty applications
-
Backed by RAM Mounts' lifetime warranty
Use Cases & Compatibility
This round plate adapter is commonly used to connect compatible RAM Tough-Dock™ Powered Docking Stations to a RAM® C Size mounting system. It may also support other equipment that matches the plate's mounting-hole dimensions.
The integrated 1.5" rubber ball works with RAM® C Size double socket arms.

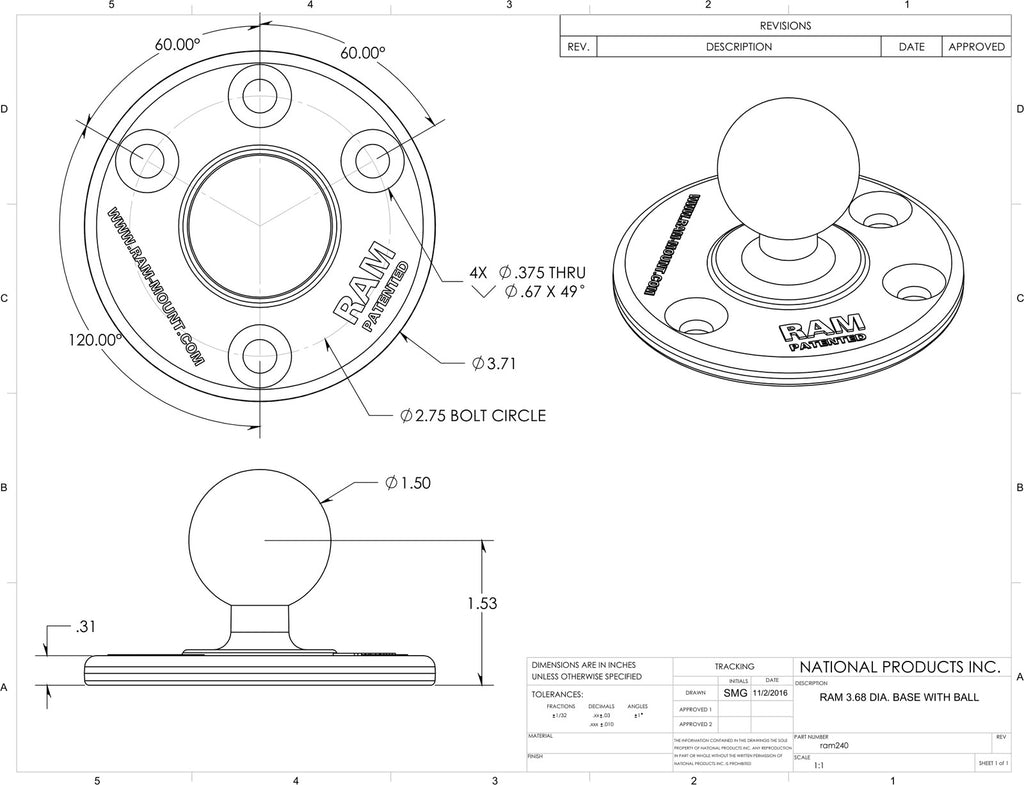

Confirm the mounting-hole pattern and dimensions shown in the RAM-240U technical drawing before installation.
Specifications
Ball Size: C Size (1.5")
Plate Diameter: 3.68"
Material: Marine-grade aluminum
Hole Pattern: Four 0.375" through-holes on a 2.75" diameter bolt circle; refer to technical drawing
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.45 lb
Additional Details: Designed to connect compatible RAM Tough-Dock™ Powered Docking Stations to RAM® C Size mounting components
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-240U
Warranty: Manufacturer's lifetime warranty
