Description

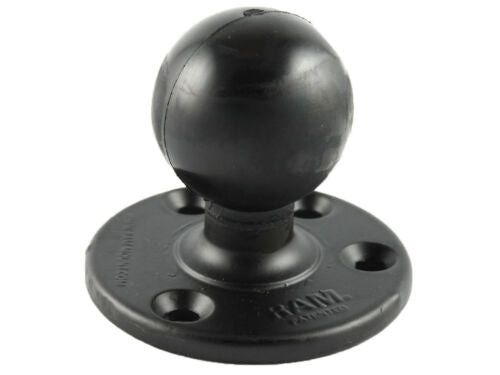

The RAM® Large Round Plate provides a D Size 2.25" Ball connection on a 3.68" diameter drill-down base. Its predrilled mounting holes support attachment to compatible equipment or installation on a flat surface.
The integrated ball connects to compatible RAM D Size double socket arms for adjustable positioning within the heavy-duty RAM D Size mounting system.
Key Features
-
RAM D Size 2.25" ball connection
-
3.68" diameter round drill-down plate
-
Multiple predrilled mounting-hole positions
-
Hole arrangement includes two positions at 180 degrees and three positions at 120 degrees
-
Each mounting hole measures .356" in diameter
-
Powder-coated marine-grade aluminum construction
-
Supports up to 6 lbs during standard use and 5 lbs during heavy-duty use
Use Cases & Compatibility
This 2.25" ball base can be attached to compatible equipment with a matching hole pattern or drilled down to a suitable flat surface. It is compatible with a variety of RAM D Size 2.25" socket arms and mounting components.
Attachment hardware is not included.
Specifications
Ball Size: D Size 2.25" Ball
Plate Dimensions: 3.68" diameter

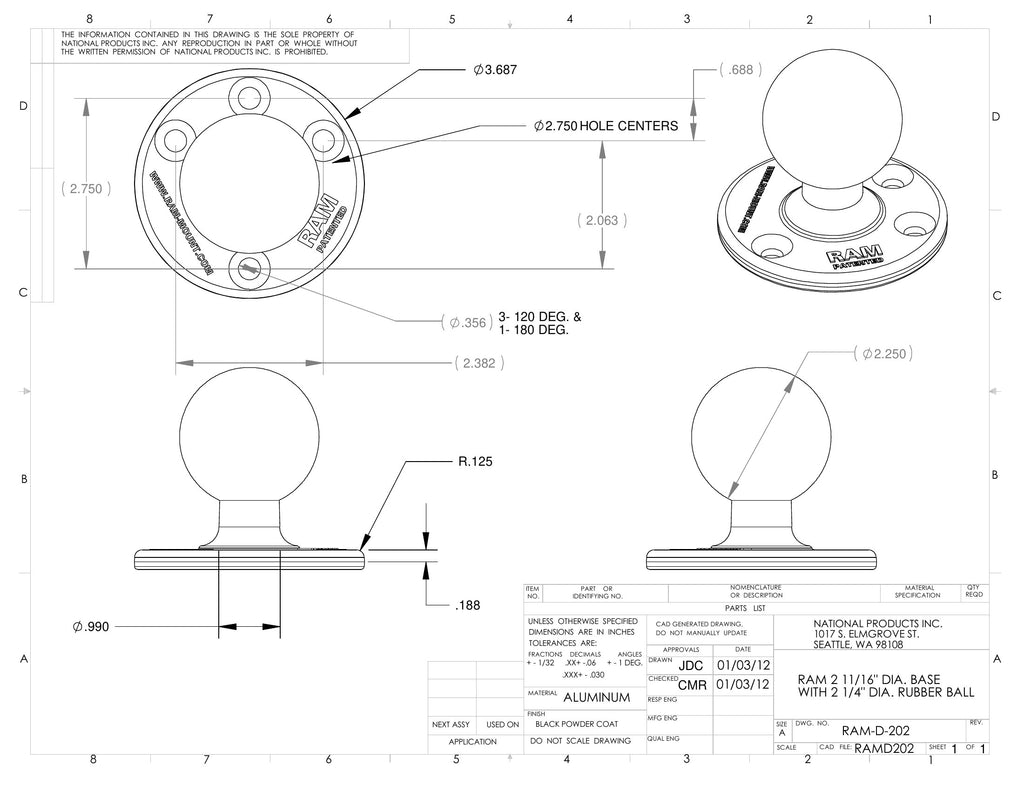

Hole Pattern: Two holes at 180 degrees and three holes at 120 degrees; see manufacturer drawing
Mounting Hole Diameter: .356"
Material: Powder-coated marine-grade aluminum
Weight Capacity: Standard Use: 6 lbs; Heavy-Duty Use: 5 lbs
Product Weight: 0.71 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-D-202U
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
