Description

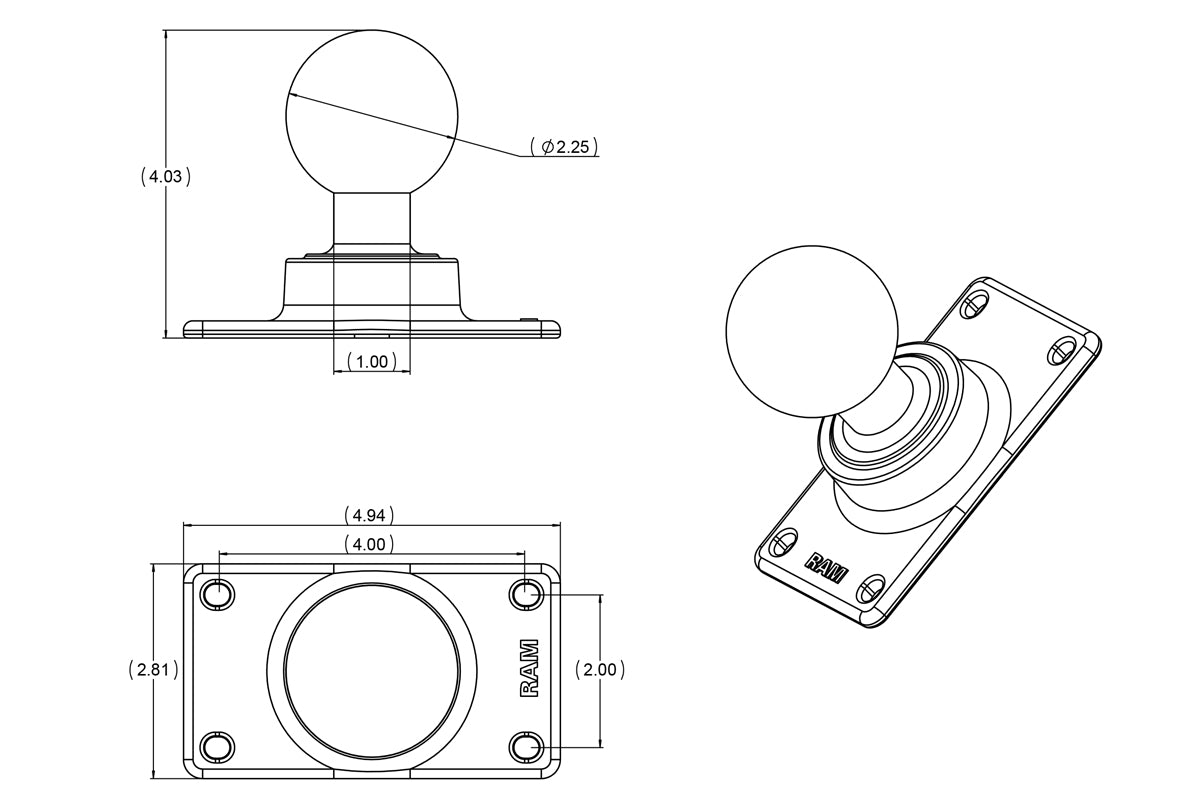

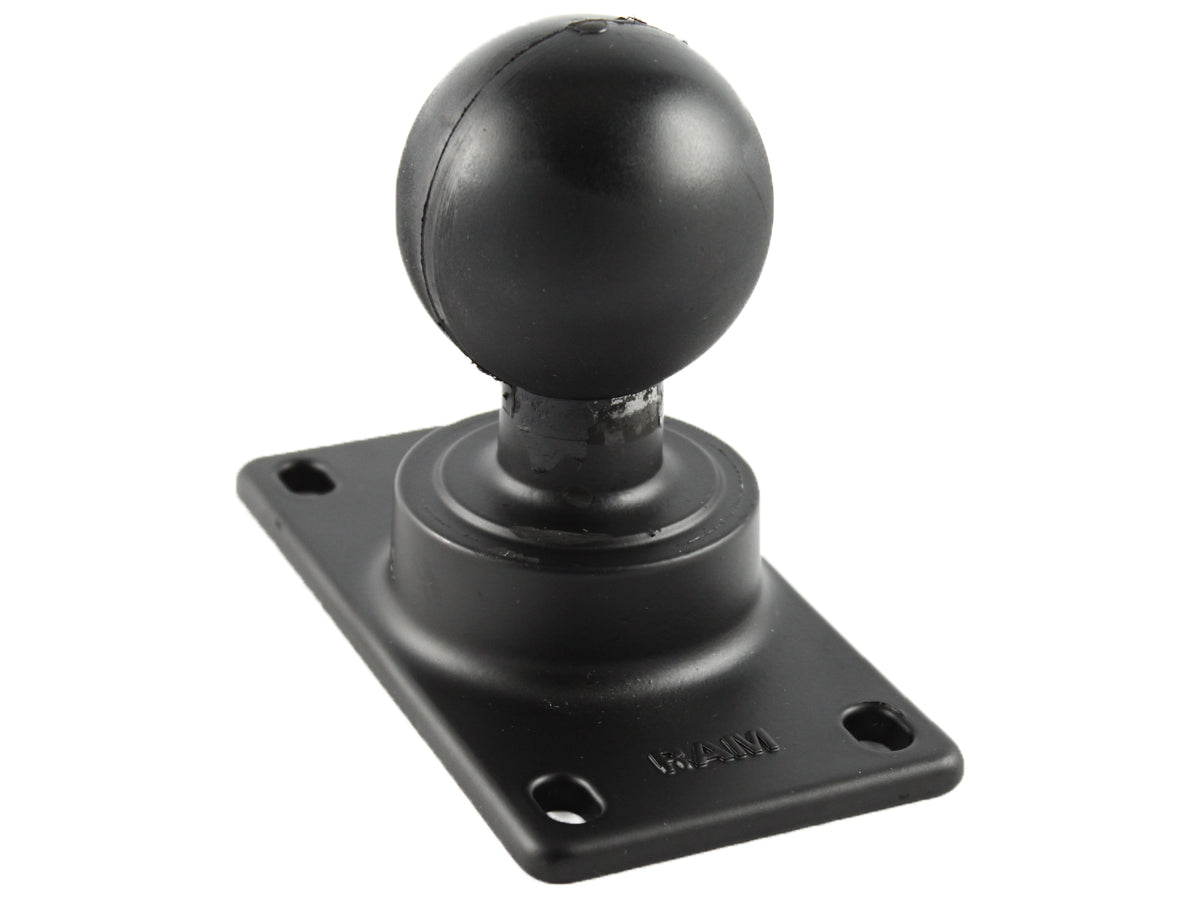

The RAM-D-243U combines a RAM D Size 2.25" ball with a 2.81" x 5" plate featuring a 50 x 100mm half-VESA hole pattern. The ball is positioned at a right angle to the plate, providing an offset connection for compatible displays and equipment.
Constructed from marine-grade aluminum, this standalone VESA adapter plate connects with compatible RAM D Size socket arms for adjustable positioning.
Key Features
-
Integrated RAM D Size 2.25" ball
-
50 x 100mm half-VESA mounting pattern
-
2.81" x 5" plate
-
Right-angle ball connection
-
Compatible with RAM D Size socket arms and mounting components
-
Marine-grade aluminum construction
-
Includes four shoulder washers
-
Supports up to 6 lbs under standard-use conditions
Use Cases & Compatibility
Designed for attaching compatible displays and equipment that use a 50 x 100mm half-VESA mounting pattern.
This VESA adapter plate is compatible with a variety of RAM D Size 2.25" socket arms and mounting components.
Specifications
Ball Size: D Size 2.25" Ball
Mounting Pattern: Half VESA
Hole Pattern: 50 x 100mm
Plate Dimensions: 2.81" x 5"
Ball Orientation: Right angle to plate
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 6 lbs; Heavy-Duty Use: 5 lbs
Product Weight: 0.82 lb
What’s Included
-
Half VESA plate with D Size 2.25" ball
-
(4) .312" x .187" shoulder washers
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-D-243U
Warranty: Manufacturer’s lifetime warranty.
