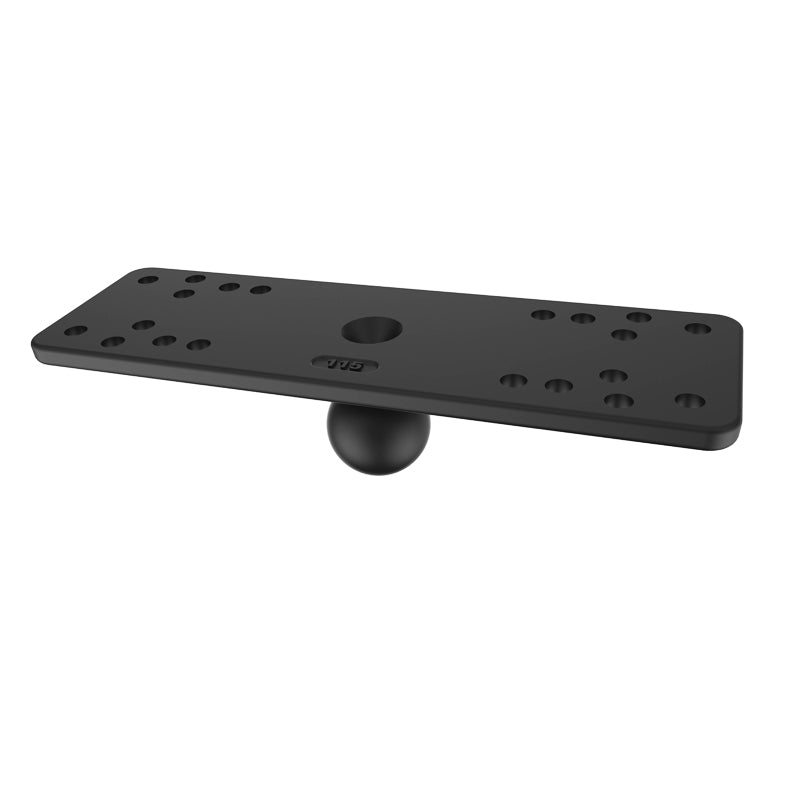

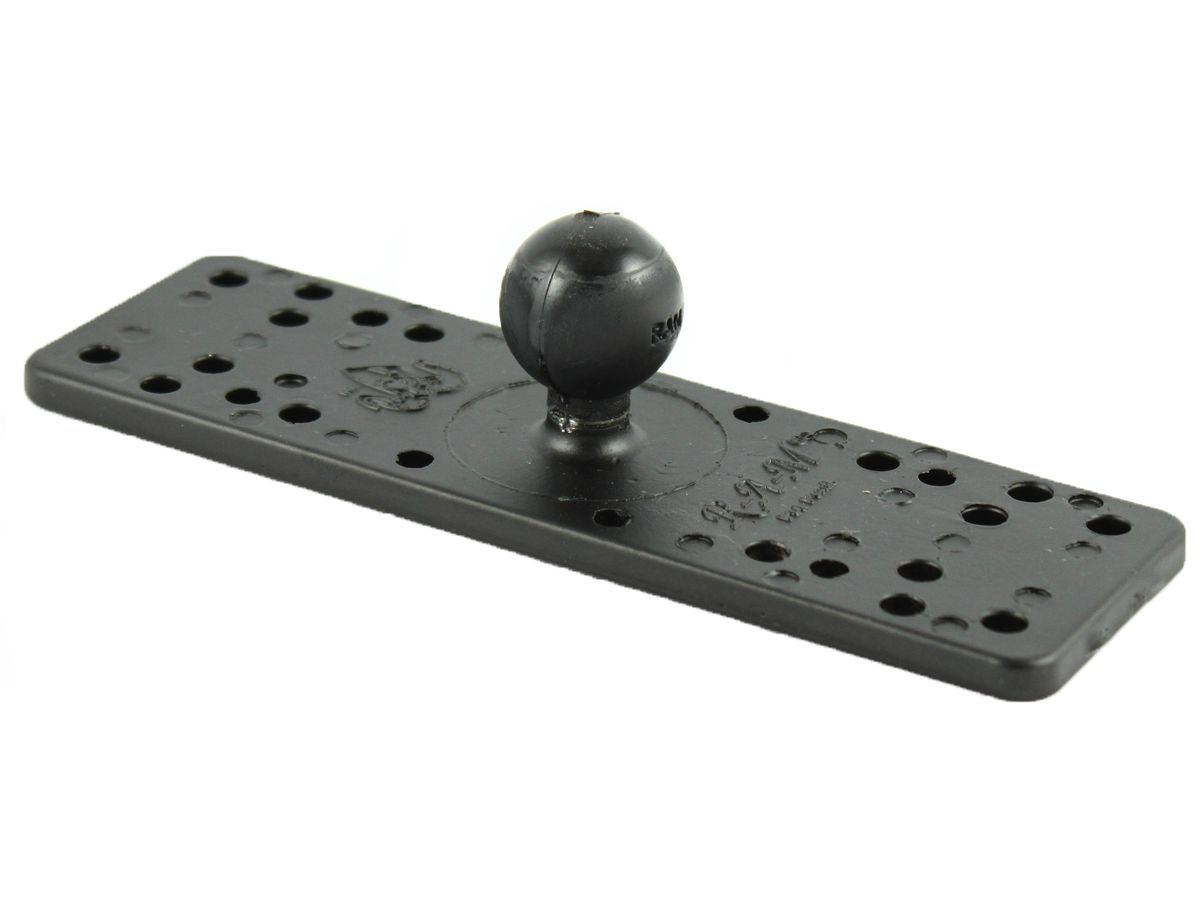

The RAM-B-111BU is a universal marine electronics mounting plate with a RAM® B Size 1" rubber ball attached to a flat 6.25" x 2" rectangular base. It is designed to provide a versatile mounting point for marine electronics, GPS units, radios, gimbal brackets, and other compatible devices.
The plate includes multiple pre-drilled hole locations to match a variety of electronics and mounting brackets. Customers should review the product drawing for hole pattern details before installation, as some applications may require additional drilling for proper fit.
Key Features
- Universal rectangular mounting plate with RAM® B Size 1" rubber ball
- Designed for marine electronics, GPS units, CB radios, ham radios, gimbal brackets, and similar devices
- 6.25" x 2" plate includes multiple pre-drilled mounting hole locations

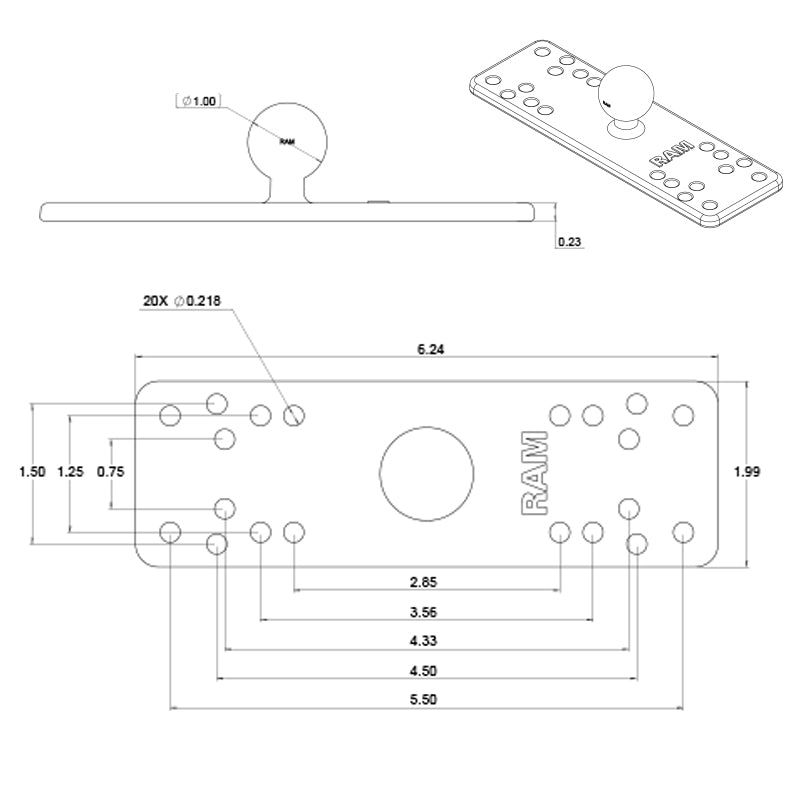

- Hole pattern is shown in the product technical drawing
- Compatible with RAM® B Size socket arms and related 1" ball components
- Made from marine-grade aluminum for durability in demanding environments
- Manufacturer-rated weight capacity: 2 lbs standard use, 1 lb heavy-duty use
Use Cases & Compatibility

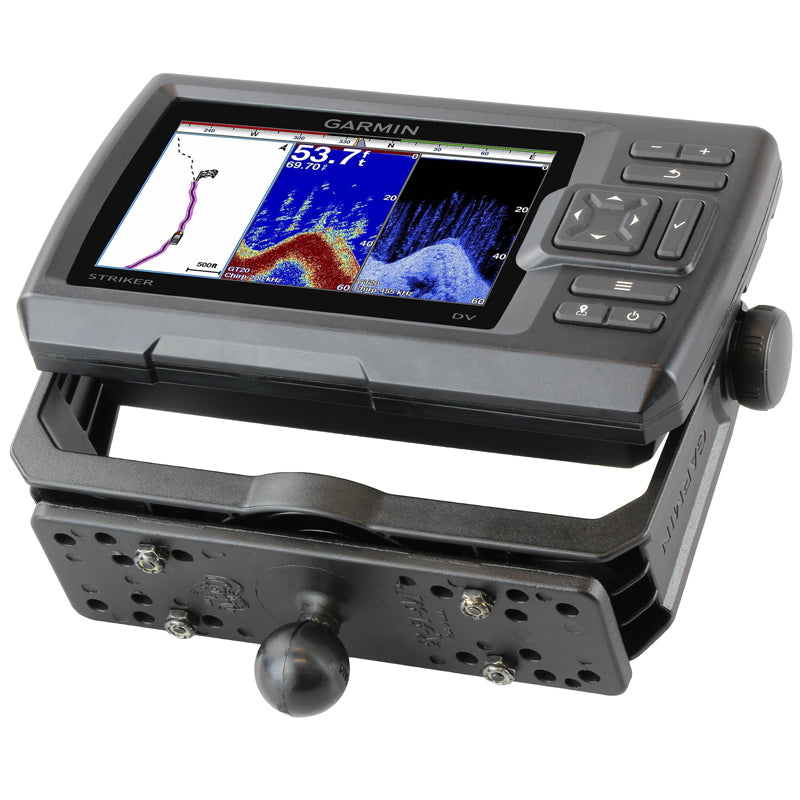

The RAM-B-111BU is commonly used as a mounting plate for marine electronics and communication equipment. It can be used with compatible fish finders, marine GPS units, CB radios, ham radios, gimbal brackets, and other electronics that can attach to the plate’s available hole pattern.
This component includes a RAM® B Size 1" ball and connects to compatible RAM® B Size socket arms, mounting bases, and related components. The plate includes a selection of mounting hole locations, but customers should compare their device or bracket to the technical drawing. In some applications, additional holes may need to be drilled for proper fit.
Specifications
Ball Size: B Size 1" Ball
Material: Marine-grade aluminum
Color: Black
Hole Pattern: Multiple pre-drilled hole locations; see product technical drawing
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Product Weight: 0.31 lb
Additional Details: Plate size: 6.25" x 2"; some applications may require additional drilling for proper fit
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-111BU
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
