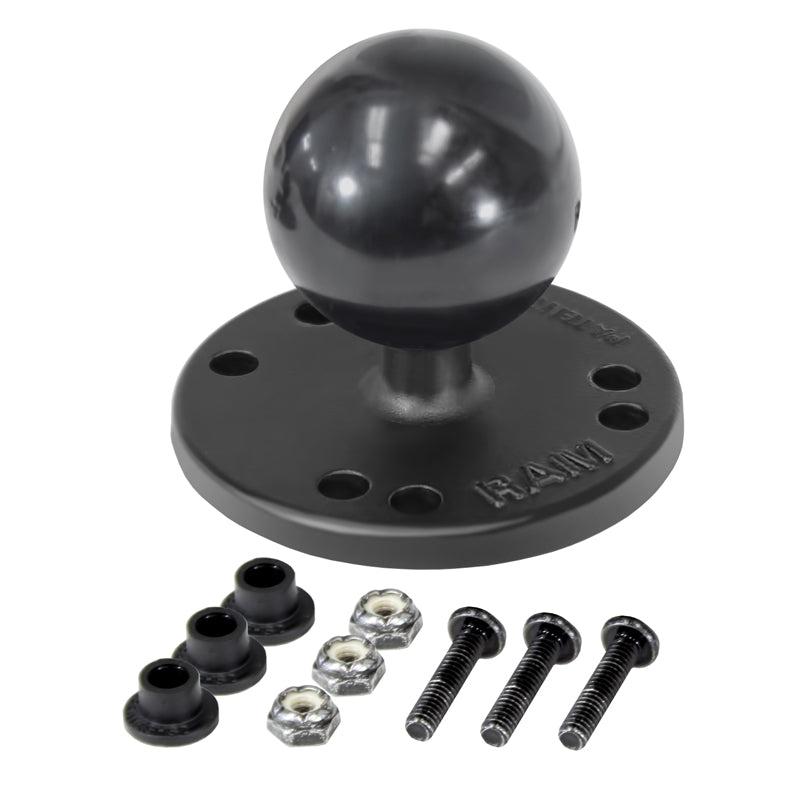

The RAM® Round Plate Adapter connects compatible Raymarine® Dragonfly™ Sonar/GPS units to a RAM C Size mounting system. It combines a C Size 1.5" Ball with a flat 2.5" diameter plate featuring both a four-hole AMPS pattern and a three-hole 120-degree pattern.

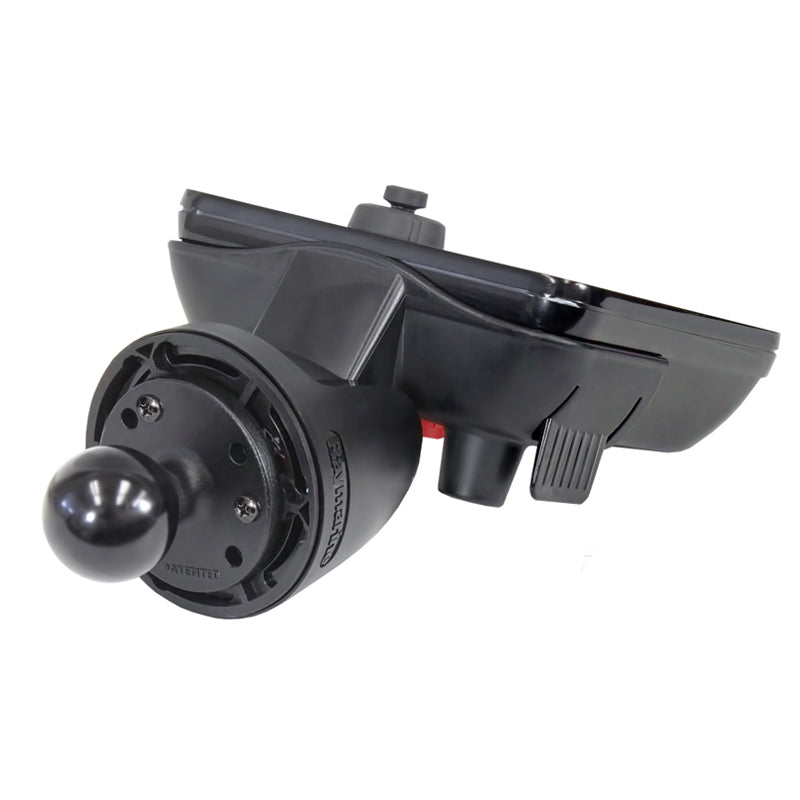

The included machine screws, Nylock nuts, and shoulder washers attach the plate to the bottom of compatible Raymarine Dragonfly devices. Once installed, the ball connects to a compatible RAM C Size double socket arm for adjustable positioning.
Key Features
-
RAM C Size 1.5" ball connection
-
Designed for compatible Raymarine® Dragonfly™ Sonar/GPS devices
-
Flat 2.5" diameter round plate
-
Four-hole AMPS pattern measuring 1.181" x 1.496"
-
Three-hole 120-degree pattern on a 1.812" diameter
-
Includes hardware for attaching the plate to the supported Dragonfly device
-
Powder-coated marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility

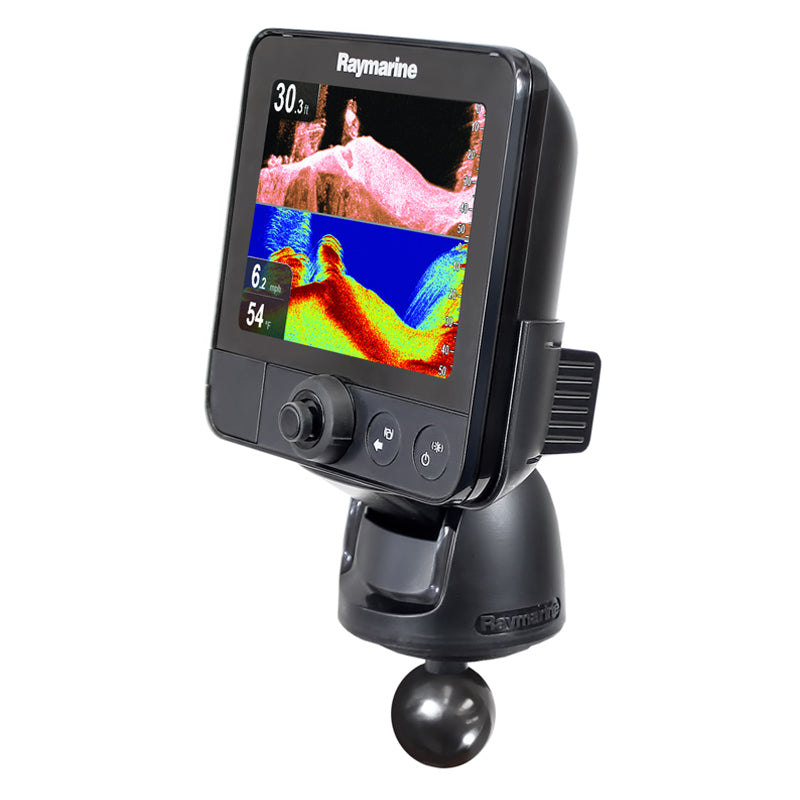

This standalone adapter is designed to connect to the bottom of compatible Raymarine Dragonfly Sonar/GPS devices using the included attachment hardware. The C Size 1.5" Ball is compatible with a variety of RAM C Size 1.5" socket arms and mounting components.
Specifications
Ball Size: C Size 1.5" Ball
Plate Diameter: 2.5"
Hole Pattern: Four-hole AMPS: 1.181" x 1.496"
Secondary Hole Pattern: Three-hole, 120-degree: 1.812" diameter
Material: Powder-coated marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.25 lb
What’s Included
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-202U-RYM1
Warranty: Manufacturer’s lifetime warranty.
