RAM Rugged Mount Bundle with Speaker & Hardwire for Sonim XP10

Sale price$399.99

Manufacturer Part Number: RAM-138-S-SNM4PL-V7B1U

Estimated Ship Date: 4 - 8 weeks. Contact us for precise availability.

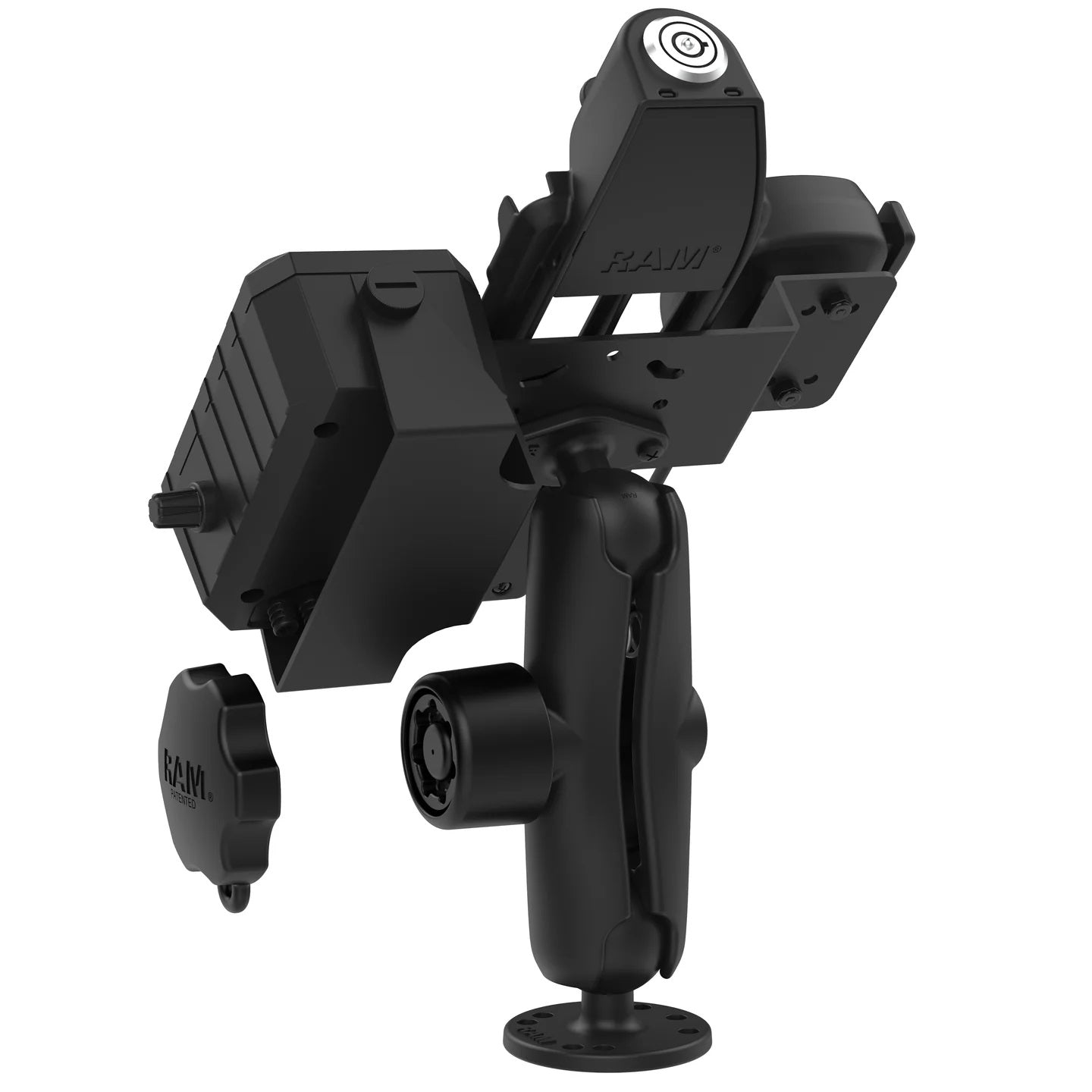

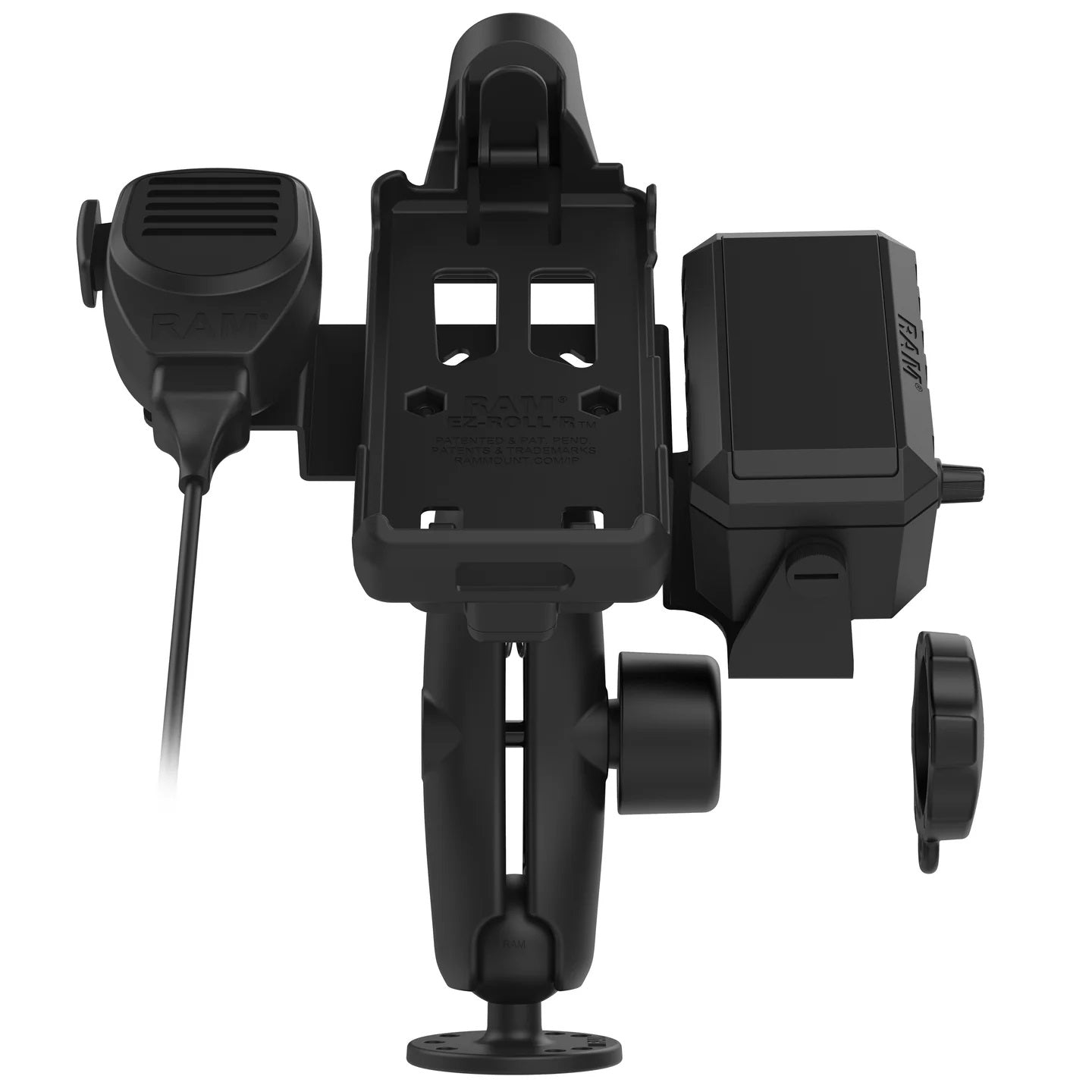

Secure your Sonim XP10 with this mounting bundle from RAM Mounts. Complete with the RAM® EZ-Roll'r™ Powered Key Locking Dock, a double ball mount featuring the RAM® Pin-Lock™ Security Knob, and a mounting bracket equipped with a speaker and microphone.

This rugged mounting bundle keeps your Sonim XP10 and all your peripherals organized and connected as a single unit. The powered dock boasts two built-in pogo pins, facilitating charging via a male USB Type-A connector, and comes with a key lock for added security.

Additionally, the included speaker easily connects to your Sonim device using the provided 10-pin to 3.5 audio adapter cable. To top it off, you get a 10-30V modular vehicle hardwire charger with the complete bundle.


  • Bundle for Sonim XP10 includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
  • Powered RAM® EZ-Roll'r™ form-fit dock provides a perfect fit for your device while keeping the device charged

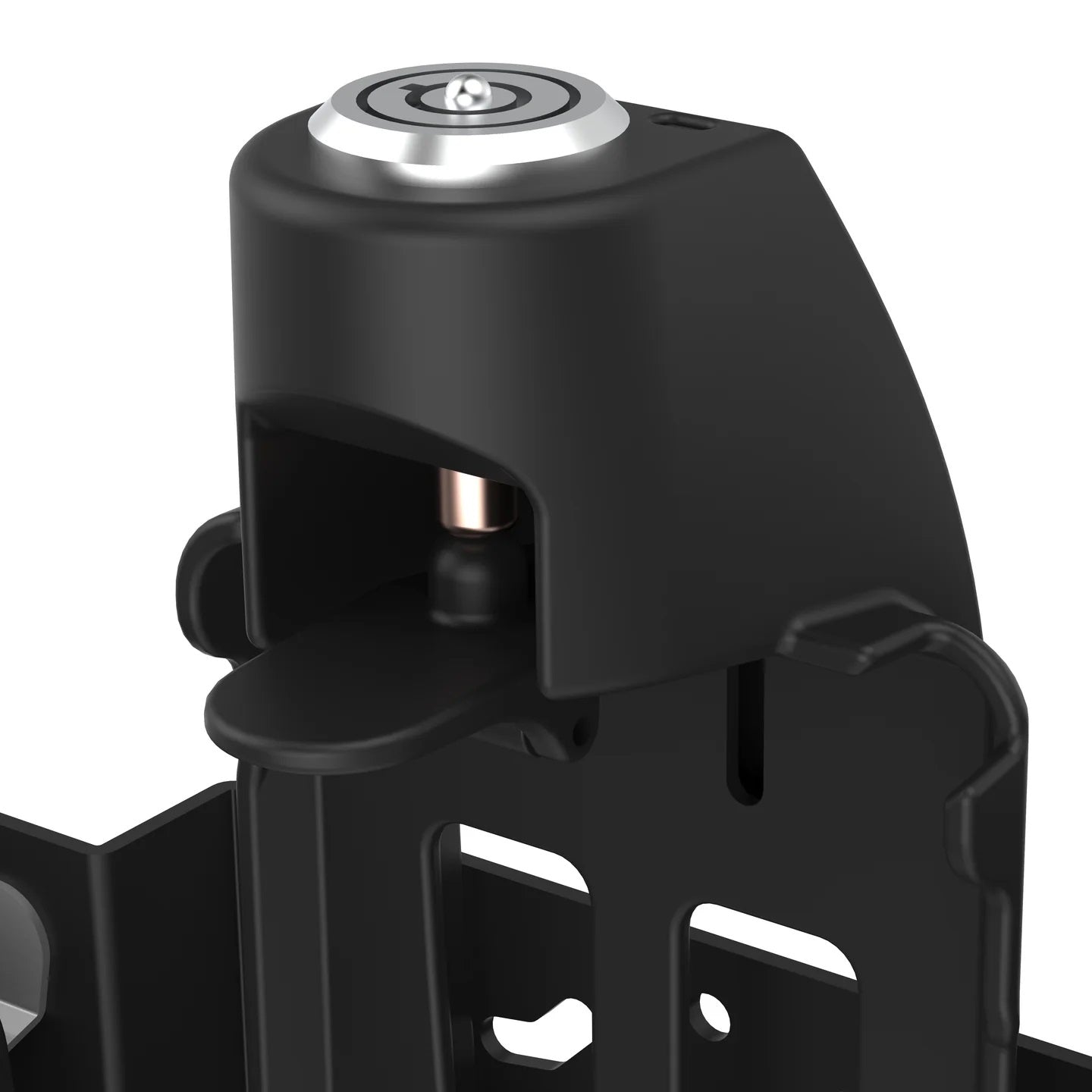

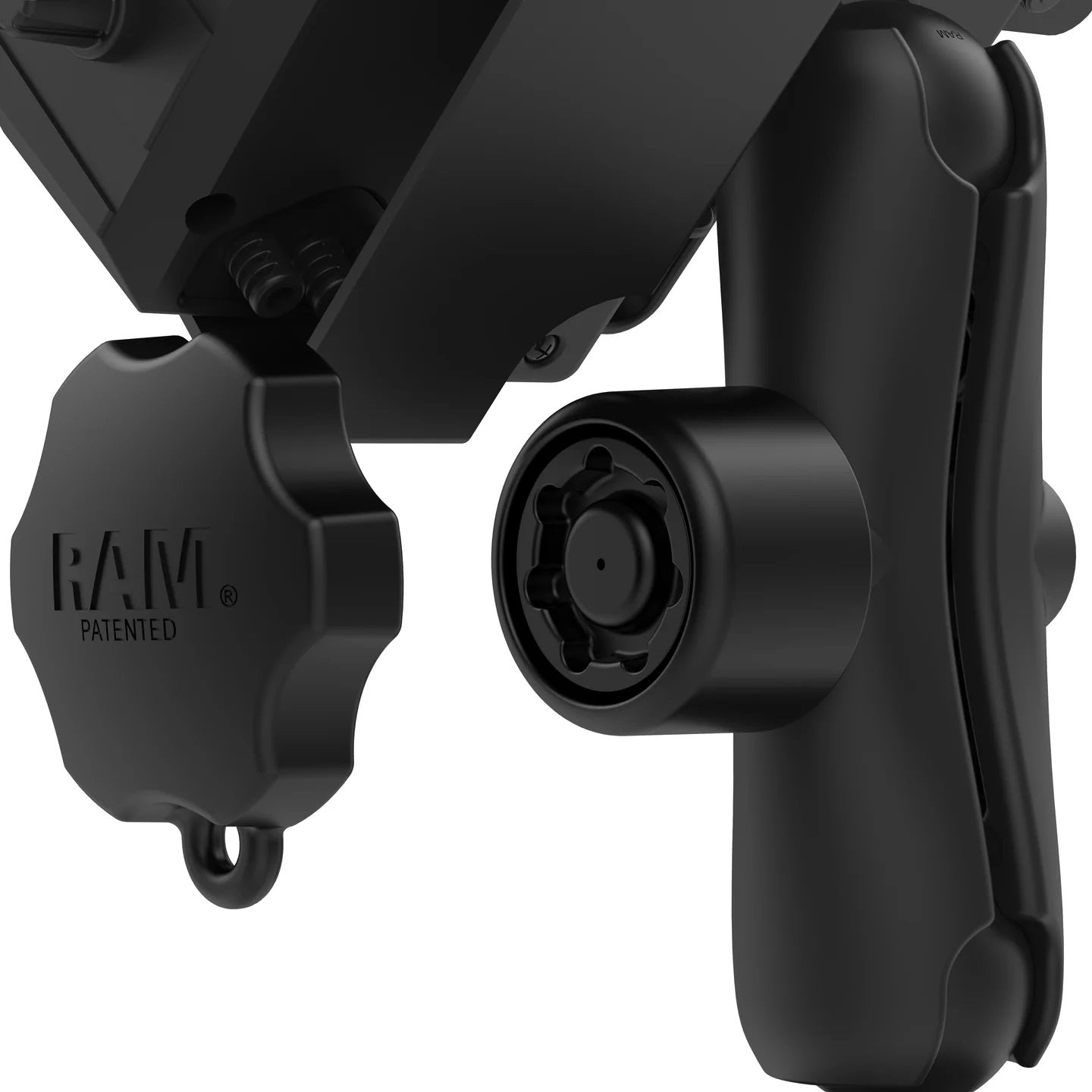

  • Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
  • Rugged 1.5" ball (C-sice) drill down mount containg a 2.5" round base with AMPS hole pattern, standard length double socket - Overall Length: 5.625", Socket-To-Socket Length: 4.5" and a diamond base
  • Constructed of marine-grade aluminum, high strength composite and powder-coated steel
  • Weight: 4.24 lb
  • Made in the USA


Included Hardware:

  • Assembly Hardware
  • (2) Keys for Holder
  • (1) Key for Locking Knob
  • (1) 10-pin to 3.5 Audio Adapter Cable
  • (1) Modular Hardwire Charger


Speaker Specifications

  • Independently adjustable volume knob
  • Max volume level: 100dB
  • 8? / 10W rated speaker

Input Voltage: 10-30VDC
Output Voltage: 5-9VDC*
Output Current: 2.5A max
Input Connector: Charger: Female USB Type A
Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length: 0.2 Meters
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C



  • Over Voltage Protection
  • Short Circuit Protection
  • Reverse Polarity Protection
  • RoHS Compliance
  • WEEE Compliance
  • SAE J-1113-5 Load Dump (Transient Voltage)
  • Moisture Resistant



  • E-Mark Certification
  • RCM Certification
  • IEC/UL 62368-1


Additional Information: *5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

Brand: RAM Mounts
Part number: RAM-138-S-SNM4PL-V7B1U
Warranty: Mounting components are backed by the manufacturer's lifetime warranty; dock and electronics backed by a 3-year warranty
