Description

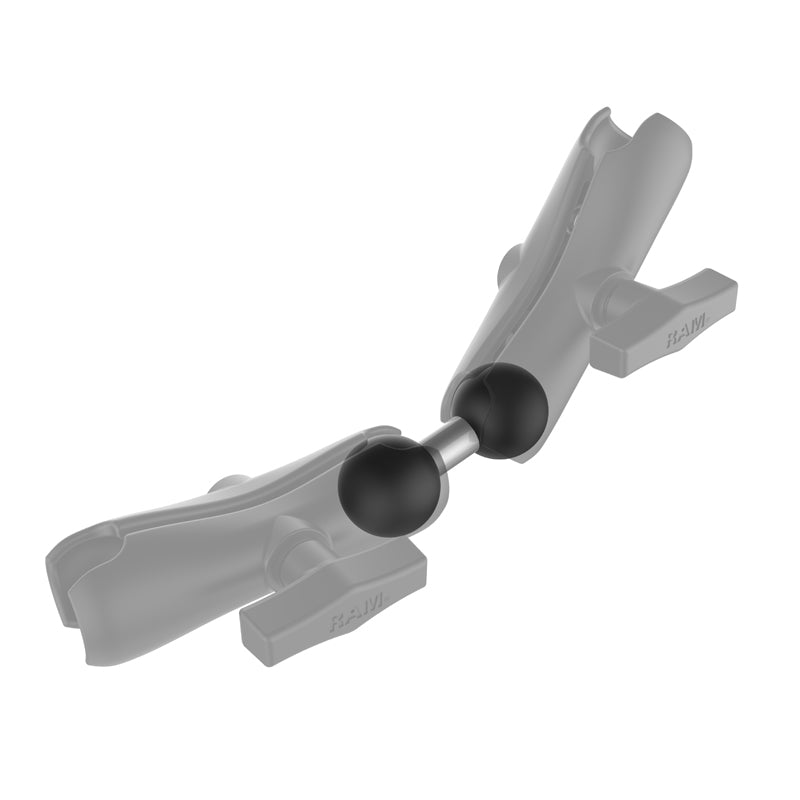

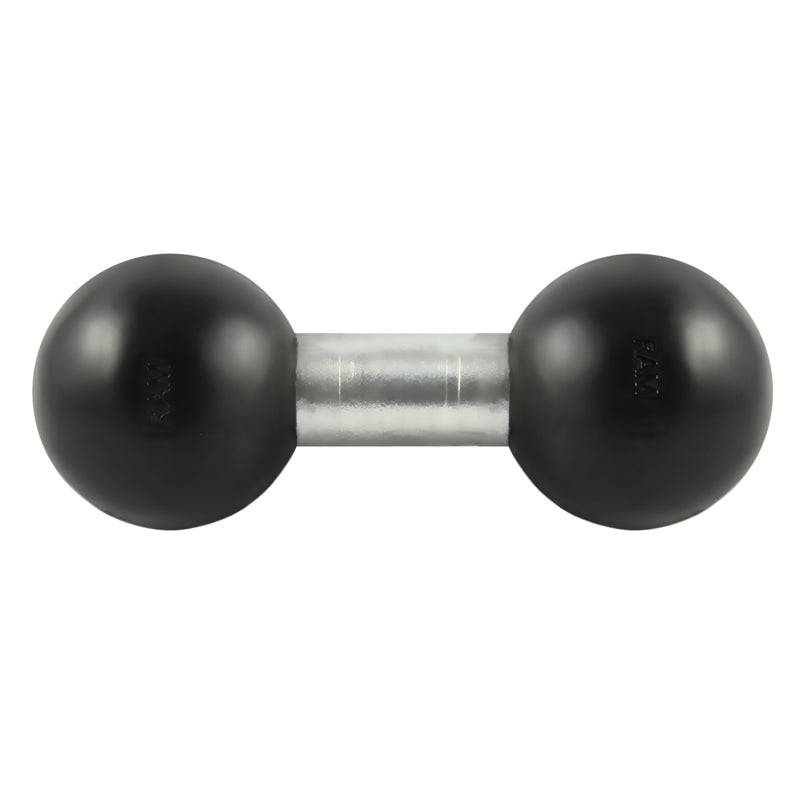

The RAM® Double Ball Adapter connects two compatible C Size double socket arms, adding extension and another point of articulation to a modular RAM mounting system. A C Size 1.5" Ball at each end provides an adjustable connection between the two arms.
Its powder-coated marine-grade aluminum center post provides a durable link for applications that require additional reach or positioning flexibility.
Key Features
-
Two RAM C Size 1.5" ball connections
-
Joins two compatible RAM C Size double socket arms
-
Adds extension and an additional adjustment point
-
3.74" overall length
-
2.38" socket-to-socket length
-
Powder-coated marine-grade aluminum center post
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
This double ball adapter is designed to connect two RAM C Size 1.5" double socket arms. It can be used to extend a mounting system or add another articulating connection for improved equipment positioning.
Specifications
Ball Size: C Size 1.5" Ball
Number of Balls: Two
Overall Length: 3.74"
Socket-to-Socket Length: 2.38"
Material: Powder-coated marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.24 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-230U
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
