Description

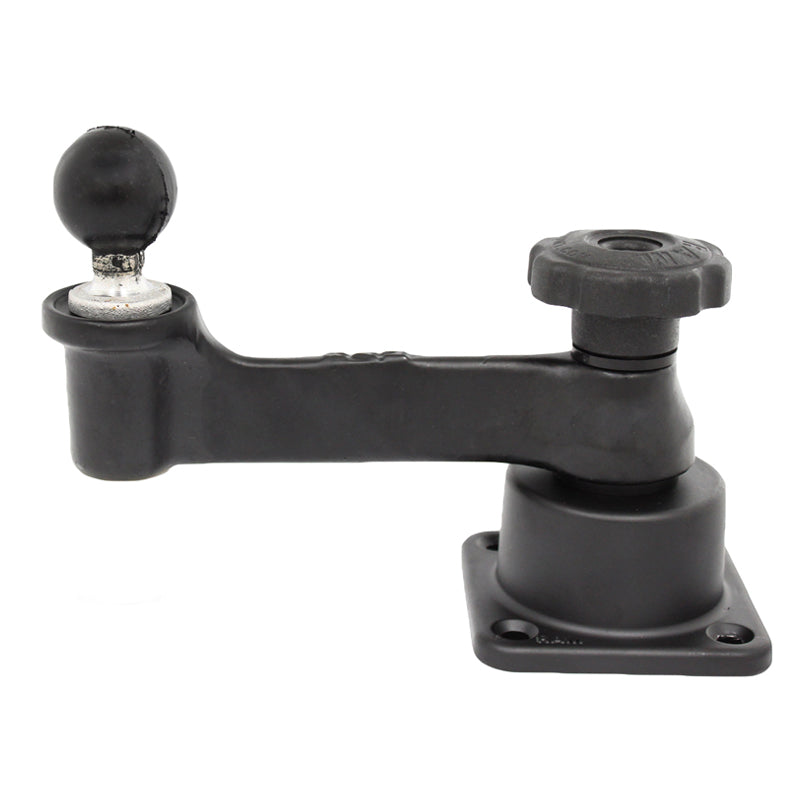

The RAM® Horizontal Swing Arm Mount provides a 6" extension from a fixed horizontal mounting base to an integrated C Size 1.5" Ball. Its two adjustment points allow attached equipment to be repositioned across a wide range of horizontal and vertical angles.
The bolt-style base pivot rotates a full 360 degrees, while the ball connection provides up to 180 degrees of vertical movement and 360-degree rotation when paired with a compatible RAM C Size double socket arm.
Key Features
-
6" straight horizontal swing arm
-
RAM C Size 1.5" ball connection
-
Base pivot provides 360-degree horizontal rotation
-
Ball connection supports 180-degree vertical pivoting
-
Ball connection also allows 360-degree rotation
-
Designed for installation on compatible horizontal surfaces
-
Marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
This swing arm base is designed for applications requiring added horizontal reach and multiple adjustment points from a fixed surface. The integrated ball is compatible with a variety of RAM C Size 1.5" socket arms and mounting components.
Mounting hardware is not included.
Specifications
Ball Size: C Size 1.5" Ball
Swing Arm Length: 6"
Base Rotation: 360 degrees
Vertical Pivot: Up to 180 degrees

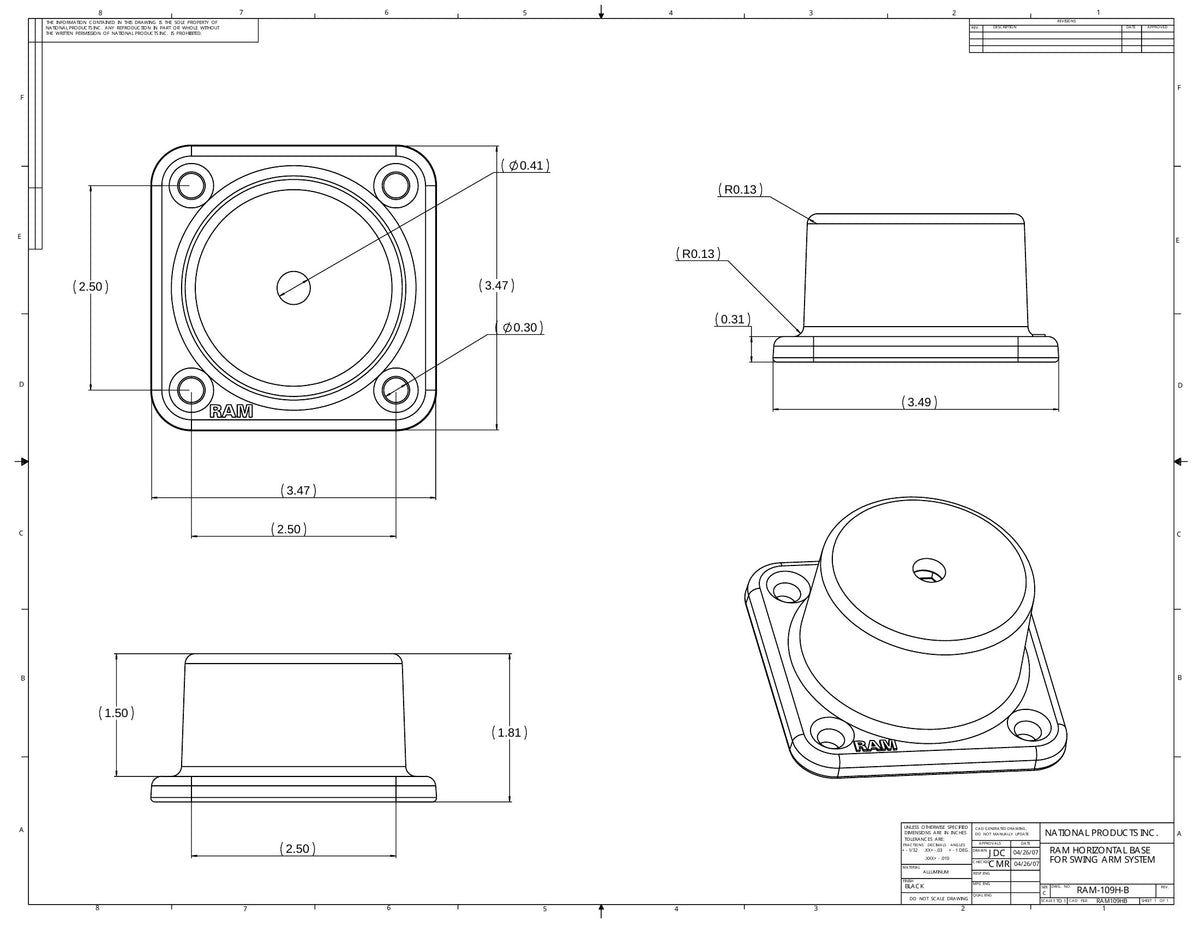

Hole Pattern: See manufacturer drawing
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 1.67 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-109H-2BU
Warranty: Manufacturer’s lifetime warranty.
